AdGuard Home on Ubuntu 24.04 on Azure User Guide

Overview

AdGuard Home is a network wide DNS server that blocks ads, trackers and malicious domains for every device that points its DNS at it, with no client software to install on each device. Point a single device or your whole router at this VM on port 53 and its DNS lookups are filtered, logged and visible in a clean web dashboard. The cloudimg image installs AdGuard Home 0.107.77 as a systemd service, running the DNS server on port 53 (UDP and TCP) and the built in web admin bound to the loopback address 127.0.0.1:3000 behind an nginx reverse proxy on port 80. On Ubuntu 24.04 the systemd resolved stub listener is disabled during the build so AdGuard owns port 53 cleanly, and the box still resolves names through its configured upstreams. All runtime state, the configuration, query logs, statistics and filter caches, lives on a dedicated Azure data disk, and a unique admin username and password is generated on the first boot of every VM. The image ships with the AdGuard DNS filter enabled, so it blocks ads and trackers the moment it comes up. Backed by 24/7 cloudimg support.

What is included:

• AdGuard Home 0.107.77 managed by systemd, serving DNS on port 53 (UDP and TCP)
• The AdGuard web admin on port 80, fronted by nginx and bound to 127.0.0.1:3000
• The AdGuard DNS filter enabled out of the box so ads and trackers are blocked immediately
• A unique admin username and password generated on first boot and recorded in a root only file
• A dedicated Azure data disk at /var/lib/adguardhome holding the config, query logs and statistics
• The systemd resolved stub listener freed so AdGuard owns port 53 on Ubuntu 24.04
• AdGuardHome.service and nginx.service as systemd units, enabled and active
• An unauthenticated /healthz endpoint for Azure Load Balancer health probes
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet plus subnet in the target region. Standard_B2s (2 vCPU / 4 GiB RAM) is a comfortable starting point. NSG inbound rules: allow 22/tcp from your management network for SSH, 80/tcp for the web admin, and 53/udp and 53/tcp so devices can use the server for DNS. AdGuard serves the admin over plain HTTP on port 80; for production, terminate TLS in front of it with your own domain (see Maintenance).

Step 1 - Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for AdGuard Home by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTP (80). After deployment, add inbound rules for DNS on UDP 53 and TCP 53 so your devices can query the server. Review the dedicated data disk on the Disks tab, then Review + create -> Create.

Step 2 - Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name adguardhome \
  --image <marketplace-image-urn> \
  --size Standard_B2s \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name adguardhome --port 80 --priority 1010
az network nsg rule create --resource-group <your-rg> --nsg-name <your-nsg> \
  --name allow-dns-udp --priority 1020 --protocol Udp --destination-port-ranges 53 --access Allow
az network nsg rule create --resource-group <your-rg> --nsg-name <your-nsg> \
  --name allow-dns-tcp --priority 1030 --protocol Tcp --destination-port-ranges 53 --access Allow

Step 3 - Connect to your VM

ssh azureuser@<vm-public-ip>

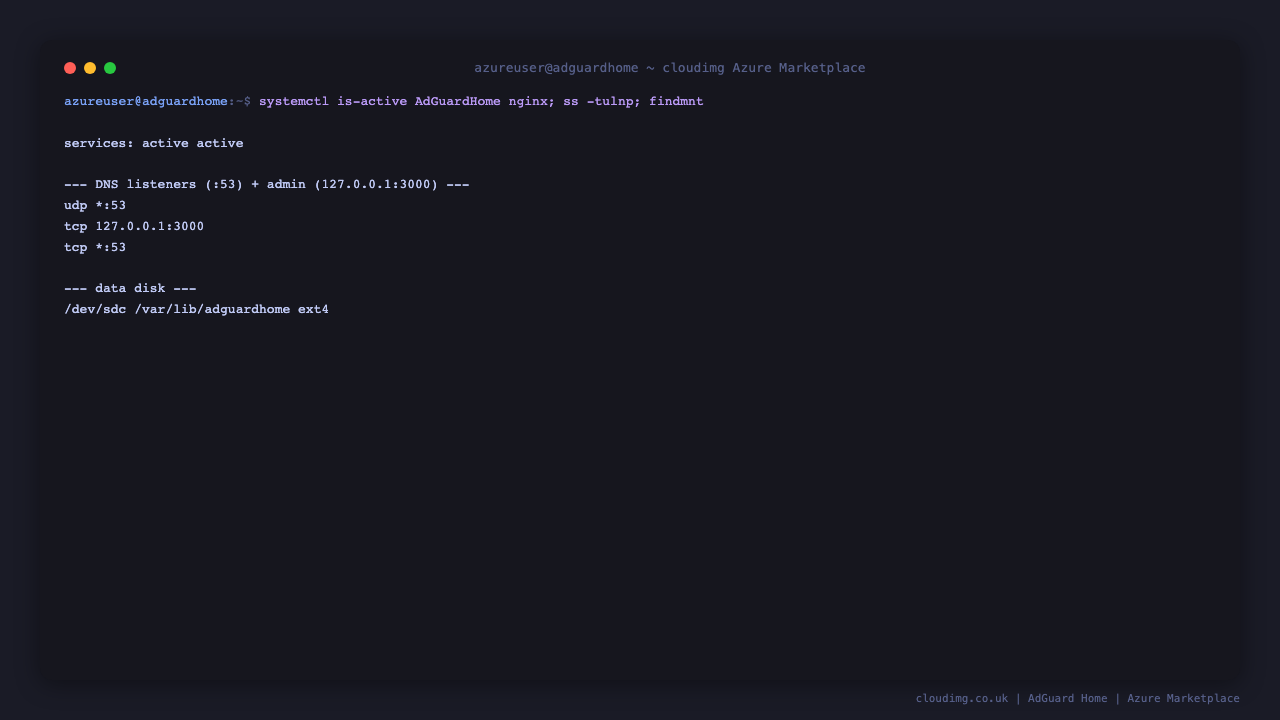

Step 4 - Confirm the services are running

systemctl is-active AdGuardHome.service nginx.service

Both report active. AdGuard Home serves DNS on port 53 (UDP and TCP) and its web admin on the loopback address 127.0.0.1:3000; nginx fronts the admin on port 80. All configuration, query logs and statistics live on the dedicated Azure data disk mounted at /var/lib/adguardhome.

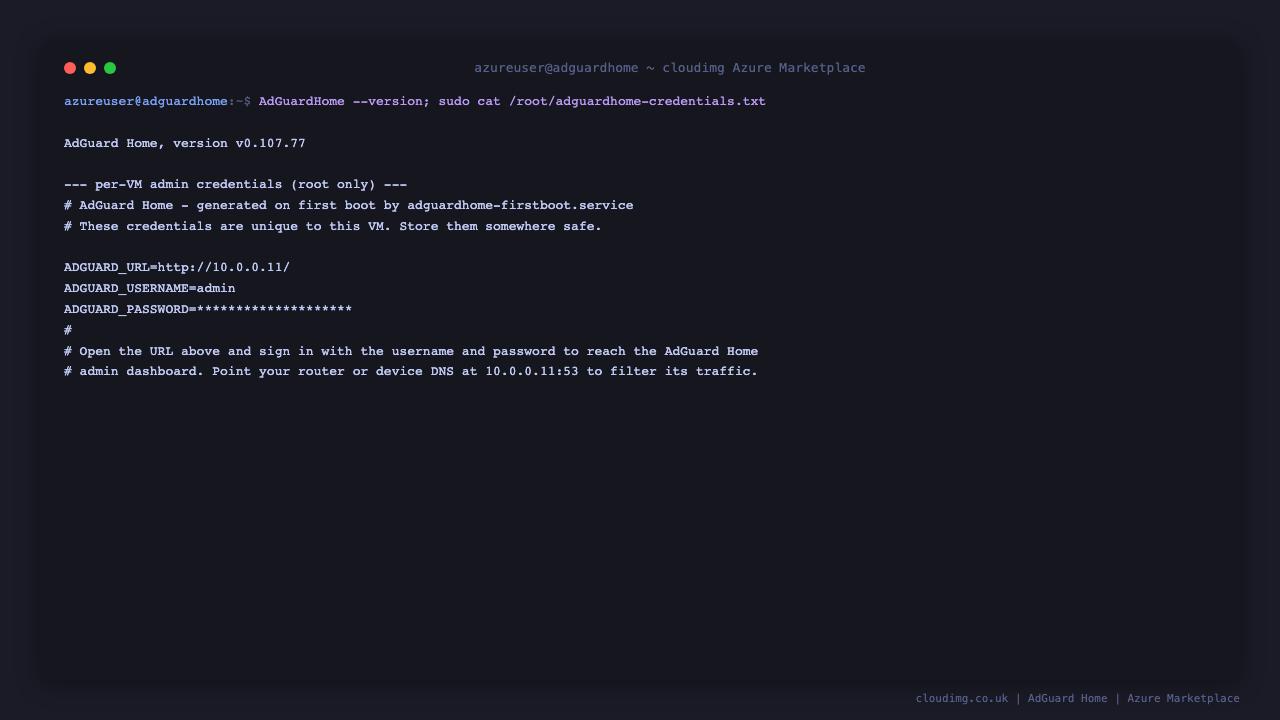

Step 5 - Retrieve your admin login

The AdGuard admin username and password are generated uniquely on the first boot of your VM and written to a root only file:

sudo cat /root/adguardhome-credentials.txt

This file contains ADGUARD_USERNAME, ADGUARD_PASSWORD and the URL to open. Store them somewhere safe.

Step 6 - Confirm the health endpoint

nginx serves an unauthenticated health endpoint for load balancers and probes:

curl -s http://localhost/healthz

It returns ok. This endpoint never requires authentication, so it is safe for an Azure Load Balancer health probe.

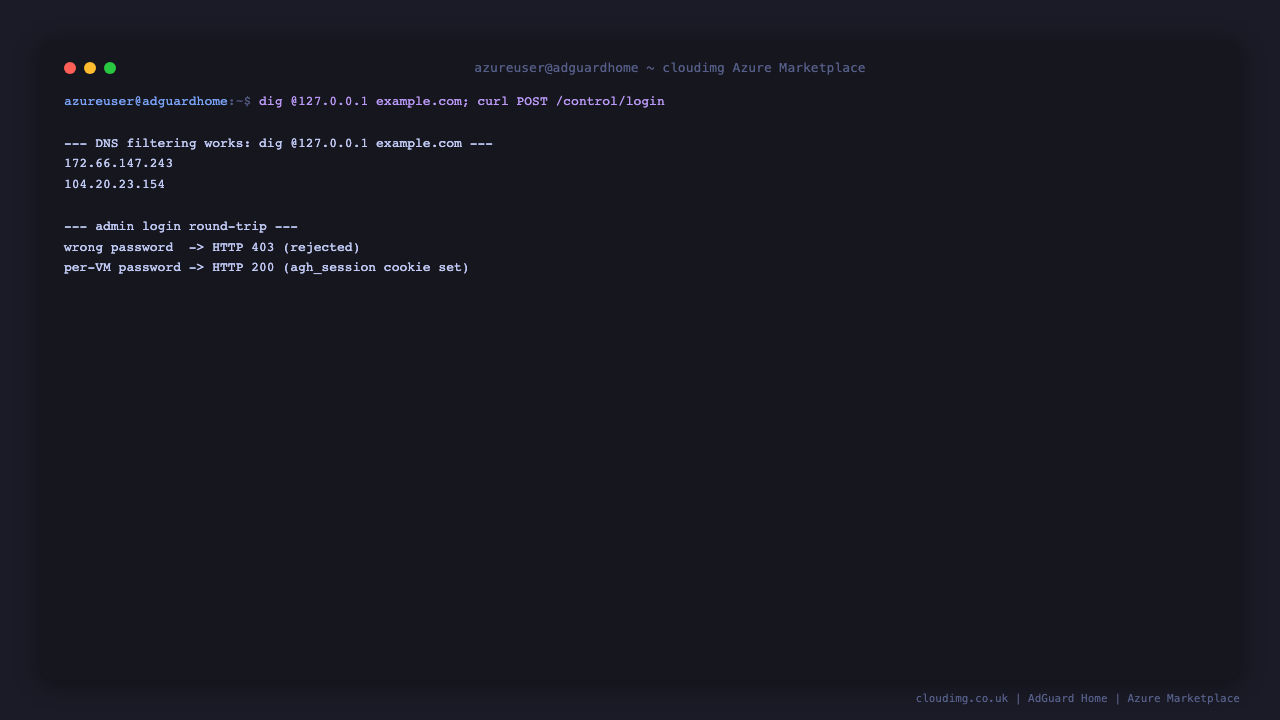

Step 7 - Verify DNS filtering and authentication from the command line

Confirm the DNS server resolves a normal domain and blocks a known ad domain:

dig @127.0.0.1 example.com +short
dig @127.0.0.1 ad.doubleclick.net +short

example.com returns a normal address, while the ad domain returns 0.0.0.0 because the AdGuard DNS filter blocks it. AdGuard also rejects a wrong admin password and issues a session cookie for the correct one. Read the password from Step 5 first, then post it to the login endpoint. Because the command embeds your unique password, run it interactively rather than from a script, substituting the value of ADGUARD_PASSWORD for <ADGUARD_PASSWORD>:

curl -s -o /dev/null -w '%{http_code}\n' -c cookies.txt -H 'Content-Type: application/json' -X POST --data '{"name":"admin","password":"<ADGUARD_PASSWORD>"}' http://127.0.0.1/control/login; grep -o 'agh_session' cookies.txt

A correct password returns 200 and prints agh_session (the session cookie was set). A wrong password returns 403 and sets no session cookie.

Step 8 - Sign in to the dashboard

Browse to http://<vm-public-ip>/. AdGuard Home shows a sign in page; enter the username and password from Step 5.

Once signed in, the dashboard shows live query statistics: total DNS queries, how many were blocked by filters, the busiest clients and the average processing time.

Step 9 - Point your devices at the server and watch the query log

On a device or your router, set the DNS server to the VM public IP. Every lookup from that device now flows through AdGuard and appears in Query Log, where you can see which domains were processed and which were blocked, per client, in real time.

Step 10 - Manage blocklists

Open Filters -> DNS blocklists to review the enabled blocklists. The image ships with the AdGuard DNS filter enabled (over 150,000 rules). Add more blocklists with Add blocklist, write your own rules under Custom filtering rules, and allow specific domains with an allowlist.

Step 11 - Confirm state lives on the dedicated disk

AdGuard's configuration, query logs and statistics are stored under /var/lib/adguardhome on the dedicated Azure data disk, so they survive OS changes and can be resized independently:

findmnt /var/lib/adguardhome

The mount is backed by a separate Azure data disk captured into the image and re-provisioned on every VM.

Maintenance

• Admin login: the per VM credentials live in /root/adguardhome-credentials.txt. To change the password, sign in to the dashboard and use Settings, or reconfigure through the AdGuard admin.
• Blocklists: add and enable blocklists under Filters -> DNS blocklists; they update automatically on a schedule.
• Upstream DNS: set your preferred upstream resolvers under Settings -> DNS settings.
• Storage: all runtime state lives under /var/lib/adguardhome on the data disk; back up that volume to protect your configuration and history.
• Service: the unit is AdGuardHome.service; after any change run sudo systemctl restart AdGuardHome.
• TLS: the admin is served over plain HTTP on port 80; front it with TLS (for example certbot with your own domain) before production use. AdGuard Home can also serve DNS over HTTPS and DNS over TLS once you add a certificate under Settings -> Encryption settings.
• Security patches: unattended-upgrades remains enabled so the OS continues to receive security updates automatically.
