Apache Drill on Ubuntu 24.04 on Azure User Guide

Overview

Apache Drill is the open-source, schema-free distributed SQL query engine for big data exploration. It runs ANSI SQL directly against files (JSON, Parquet, CSV), object storage, NoSQL stores and relational databases — no schemas or ETL to define up front. The cloudimg image installs Apache Drill 1.20.0 on OpenJDK 11 at /opt/drill, runs a single-node drillbit backed by a local single-node Apache ZooKeeper, fronts the Drill Web UI / REST API with an nginx reverse proxy on TCP 80, persists Drill's working state on a dedicated Azure data disk, and generates a unique Web UI admin password on the first boot of every VM. Backed by 24/7 cloudimg support.

What is included:

• Apache Drill 1.20.0 drillbit on OpenJDK 11 at /opt/drill, run as a dedicated drill system user
• A local single-node Apache ZooKeeper (zookeeper.service) on loopback :2181 for Drill cluster coordination
• nginx reverse proxy on :80 in front of the Drill Web UI / REST API (:8047); the JDBC/ODBC user port is 31010
• A dedicated Azure data disk at /var/lib/drill holding Drill's sys.store, query profiles, logs and the ZooKeeper data — separate from the OS disk and re-provisioned with every VM
• Per-VM Web UI admin password (DRILL_ADMIN_PASSWORD) generated at first boot, in a root-only file, with PLAIN/htpasswd authentication
• zookeeper.service, drill.service and nginx.service as systemd units, enabled and active
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B4ms (4 vCPU / 16 GiB RAM) is a good starting point for the drillbit JVM; scale up for larger scans and concurrency. NSG inbound: allow 22/tcp from your management network and 80/tcp for the Web UI (front with TLS for public exposure — see Enabling HTTPS). The Drill user port 31010 is bound on the VM's private IP for JDBC/ODBC clients inside your VNet; open it in the NSG only for the application networks that need it.

Step 1 — Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Apache Drill by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTP (80). Review the dedicated data disk on the Disks tab, then Review + create → Create.

Step 2 — Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name drill \
  --image <marketplace-image-urn> \
  --size Standard_B4ms \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name drill --port 80 --priority 1010

Step 3 — Connect to your VM

ssh azureuser@<vm-public-ip>

Step 4 — Confirm the services are running

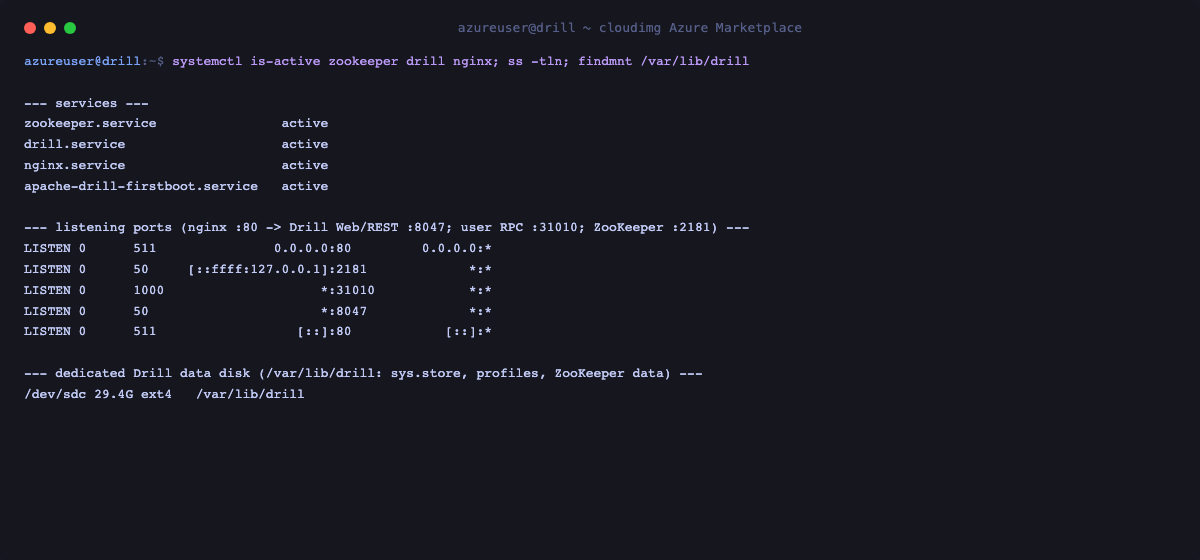

systemctl is-active zookeeper.service drill.service nginx.service

All three services report active. The drillbit can take a minute or two to fully start on first boot while the JVM warms up and registers with ZooKeeper; the Web UI port 8047 and the user RPC port 31010 come up once it is ready.

Step 5 — Retrieve your Web UI password

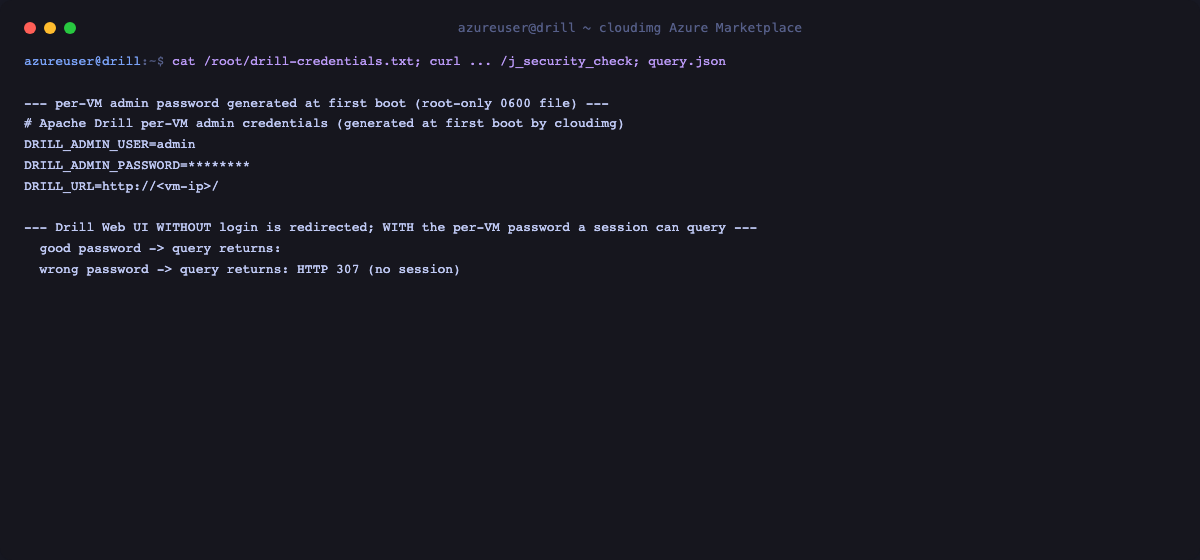

The Web UI admin password is generated uniquely on the first boot of your VM and written to a root-only file:

sudo grep -E '^DRILL_ADMIN_USER|^DRILL_ADMIN_PASSWORD' /root/drill-credentials.txt

The DRILL_ADMIN_PASSWORD value is the password; sign in to the Web UI as admin with it.

Step 6 — Open the Drill Web UI

Browse to http://<vm-public-ip>/ and sign in as admin with the password from Step 5. The Drill Web UI shows the cluster (drillbits, ports, version and uptime), a SQL Query editor, completed-query Profiles, and runtime Metrics.

Step 7 — Run a SQL query through the REST API

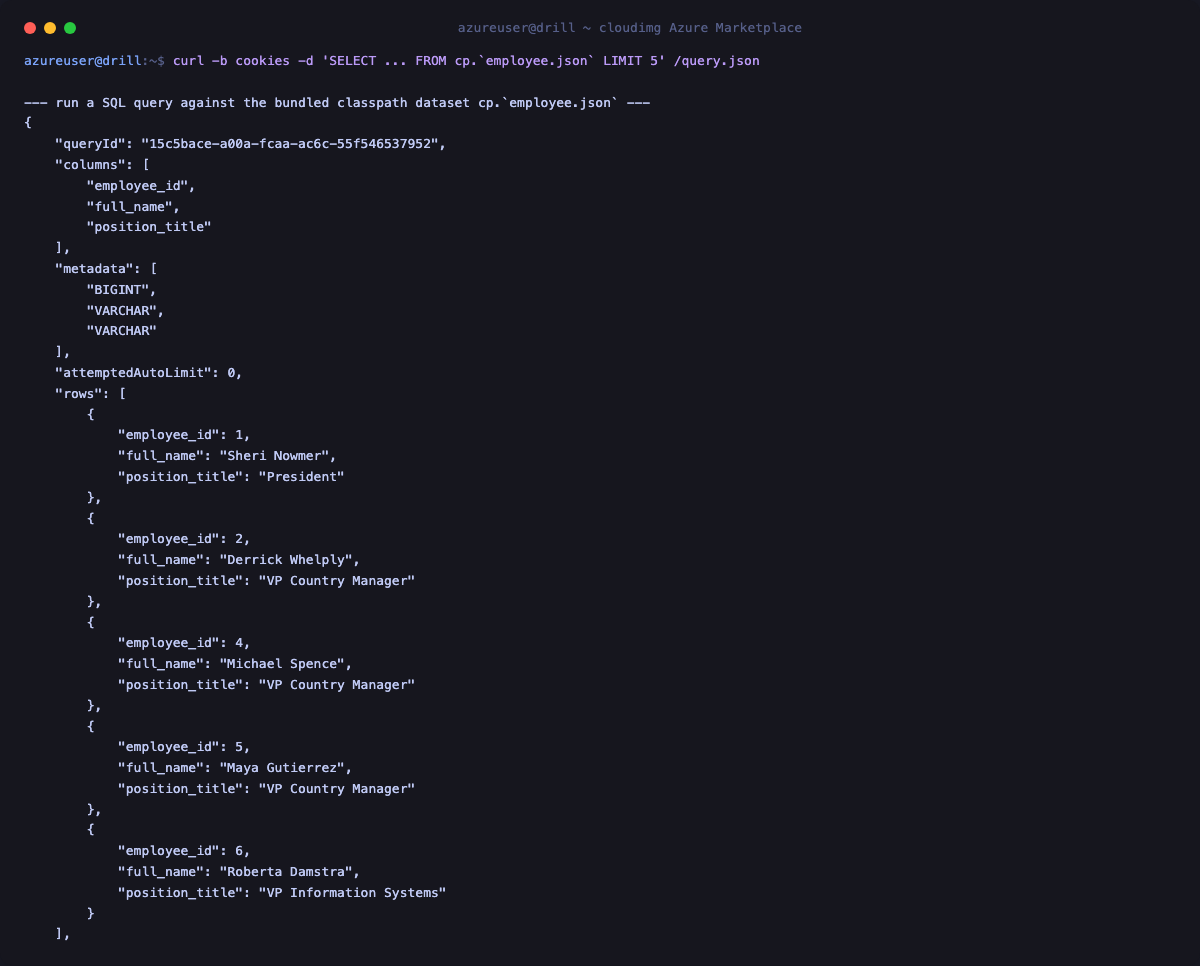

Drill's Web UI is backed by a REST API. Log in to obtain a session cookie, then run a query against the bundled classpath dataset cp.`employee.json`. This runs against the local drillbit through nginx:

PW='<DRILL_ADMIN_PASSWORD>'
CJ=$(mktemp)
curl -s -c "$CJ" -o /dev/null -X POST \
  --data-urlencode 'j_username=admin' --data-urlencode "j_password=$PW" \
  http://127.0.0.1/j_security_check
curl -s -b "$CJ" -X POST -H 'Content-Type: application/json' \
  -d '{"queryType":"SQL","query":"SELECT employee_id, full_name, position_title FROM cp.`employee.json` LIMIT 5"}' \
  http://127.0.0.1/query.json
rm -f "$CJ"

The response is JSON containing a queryId, the result columns and the matching rows. Any SQL that Drill supports can be submitted the same way.

Step 8 — Check the Drill version and cluster

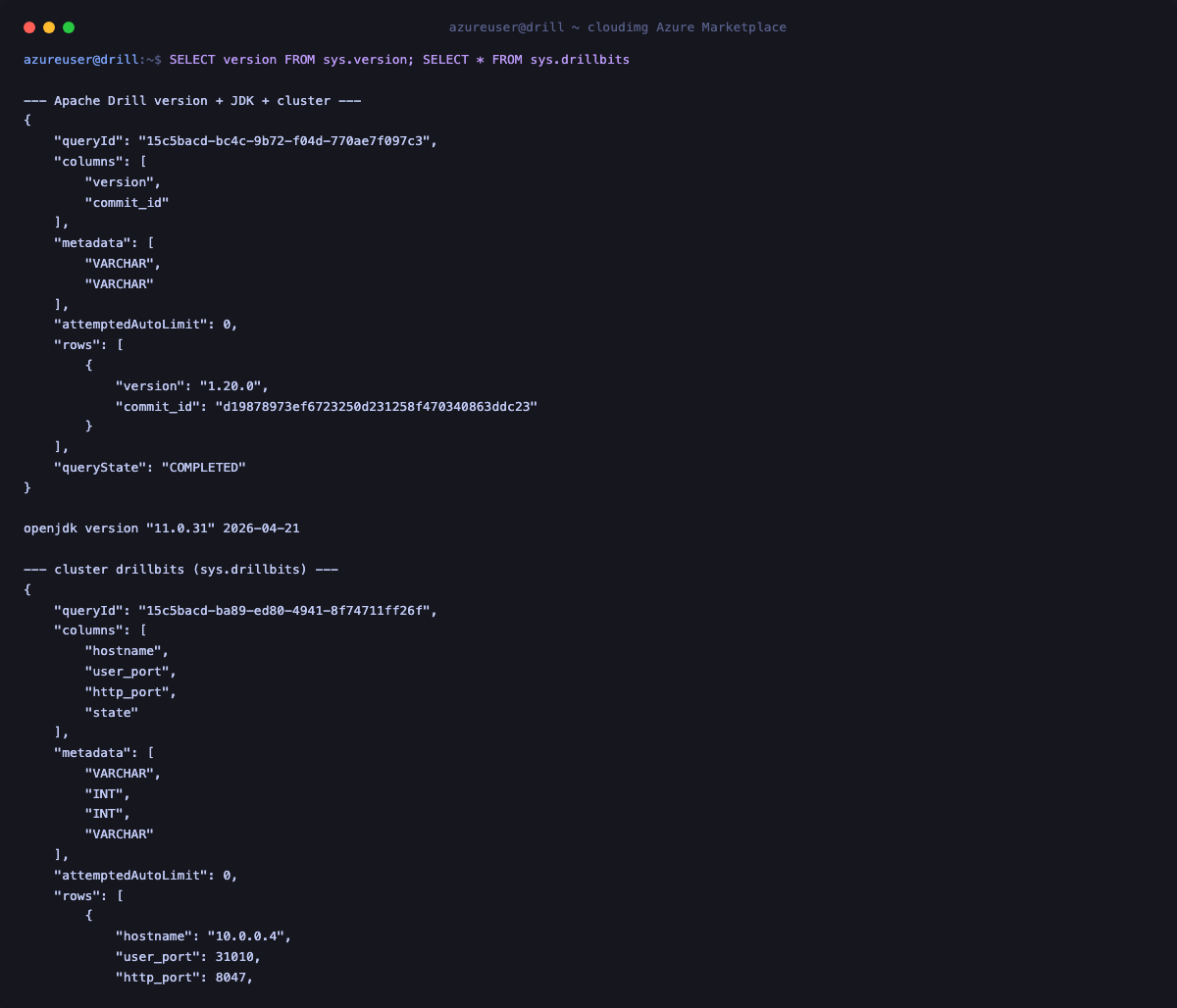

Confirm the running version and the registered drillbits by querying Drill's system tables:

PW='<DRILL_ADMIN_PASSWORD>'
CJ=$(mktemp)
curl -s -c "$CJ" -o /dev/null -X POST \
  --data-urlencode 'j_username=admin' --data-urlencode "j_password=$PW" \
  http://127.0.0.1/j_security_check
curl -s -b "$CJ" -X POST -H 'Content-Type: application/json' \
  -d '{"queryType":"SQL","query":"SELECT version FROM sys.version"}' http://127.0.0.1/query.json
curl -s -b "$CJ" -X POST -H 'Content-Type: application/json' \
  -d '{"queryType":"SQL","query":"SELECT hostname, user_port, http_port FROM sys.drillbits"}' http://127.0.0.1/query.json
rm -f "$CJ"

sys.version returns 1.20.0 and sys.drillbits lists the single node with its user (31010) and http (8047) ports.

Step 9 — Query your own data and connect clients

Drill queries files and object storage directly. Configure storage plugins in the Web UI Storage tab (for example a dfs workspace pointing at a directory of Parquet/JSON/CSV, or Azure Blob via the dfs plugin with the Azure connector), then run SELECT ... FROM dfs.\/path/to/data`. For BI tools and applications, connect over JDBC/ODBC to the Drill user port at:31010from inside your VNet (open31010/tcp` in the NSG for those application networks only).

Enabling HTTPS

For production, terminate TLS at nginx with a real domain pointed at the VM's public IP. Install certbot and request a certificate (replace the domain):

sudo apt-get update && sudo apt-get install -y certbot python3-certbot-nginx
sudo certbot --nginx -d your-domain.example.com

Backup and maintenance

Drill's working state — sys.store, query profiles, logs and the ZooKeeper data — lives on the dedicated data disk at /var/lib/drill. Snapshot that disk in Azure to back up cluster and query state, and keep the OS patched with sudo apt update && sudo apt upgrade. The drillbit restarts cleanly with sudo systemctl restart drill, and ZooKeeper with sudo systemctl restart zookeeper.

Support

This image is backed by 24/7 cloudimg support. Contact us by email and chat for help with storage plugins, query tuning, JDBC/ODBC connectivity, authentication, TLS and backups.
