Apache Ignite on Ubuntu 24.04 on Azure User Guide

Overview

Apache Ignite is a distributed in-memory database and compute grid that keeps the hot dataset in RAM for memory-speed reads and writes while persisting durably to disk. This cloudimg image runs a single Ignite node with native persistence enabled, so your data survives restarts on a dedicated Azure data disk. It installs Apache Ignite 2.16.0 (the official Apache binary release into /opt/ignite), runs it on OpenJDK 11 as a dedicated ignite system user, enables Ignite authentication, and rotates a unique password into the cluster on first boot. Management is via the bundled control.sh and sqlline.sh CLIs and the thin-client SQL port. Backed by 24/7 cloudimg support.

What is included:

• Apache Ignite 2.16.0 from the official Apache binary release, on OpenJDK 11
• Native persistence (work directory, persistence store and WAL) on a dedicated 40 GiB Azure data disk at /var/lib/ignite
• A unique per-VM password generated on first boot (no shared default credential)
• Ignite authentication enabled, with the node bound to 127.0.0.1 only
• The thin-client / JDBC SQL port 10800 on loopback (not exposed publicly)
• 24/7 cloudimg support

This is a datastore product: Ignite listens on 127.0.0.1 only. There is no web console (GridGain Control Center is a separate commercial product and is not shipped). The SQL port is not opened to the internet - connect locally on the VM or over an SSH tunnel.

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B4ms (4 vCPU / 16 GiB RAM) is a good starting point because Ignite is memory-hungry. NSG inbound: allow 22/tcp from your management network. No inbound application ports are needed because Ignite is reached over the SSH tunnel.

Step 1 - Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Apache Ignite by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) only. Then Review + create -> Create.

Step 2 - Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name apache-ignite \
  --image <marketplace-image-urn> \
  --size Standard_B4ms \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

Step 3 - Connect to your VM

ssh azureuser@<vm-public-ip>

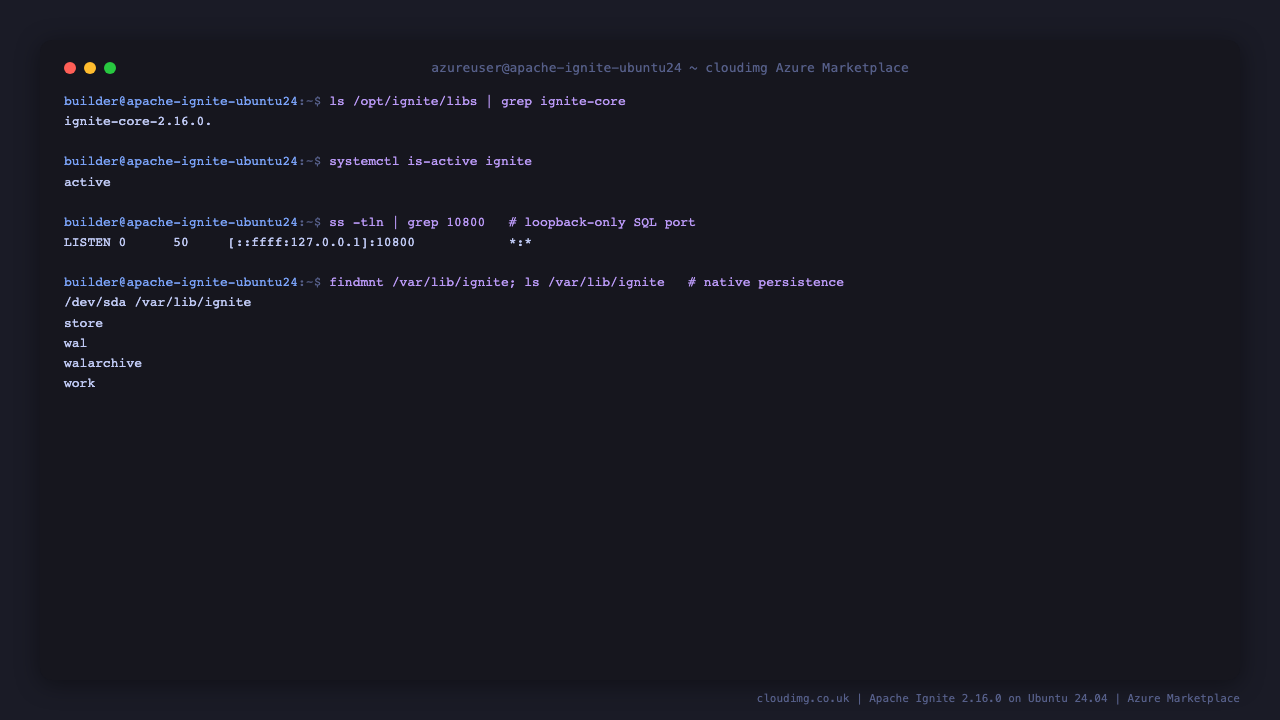

Step 4 - Confirm Apache Ignite is installed and running

ls /opt/ignite/libs | grep -oE 'ignite-core-[0-9.]+'
systemctl is-active ignite

You should see the Ignite 2.16.0 core jar and active:

ignite-core-2.16.0
active

Step 5 - Confirm the cluster state and persistence directory

The node activates automatically on first boot. Confirm the SQL/thin-client port is listening on loopback only and that native persistence lives on the dedicated data disk:

ss -tln | grep 10800
findmnt -no SOURCE,TARGET /var/lib/ignite
sudo ls /var/lib/ignite

LISTEN 0      50     [::ffff:127.0.0.1]:10800            *:*
/dev/sda /var/lib/ignite
lost+found
store
wal
walarchive
work

The work, store and wal directories on /var/lib/ignite are the native-persistence store on the dedicated Azure data disk, so the keyspace and cluster metadata survive reboots.

Step 6 - Retrieve your per-VM password

Each VM generates its own unique Ignite password on first boot and writes it to a root-only credentials file:

sudo cat /root/ignite-credentials.txt

The file contains IGNITE_USERNAME (ignite), IGNITE_PASSWORD, the SQL connection details and the SSH-tunnel instructions. Store the password in your secrets manager. In the steps below, <IGNITE_PASSWORD> stands for the value of IGNITE_PASSWORD.

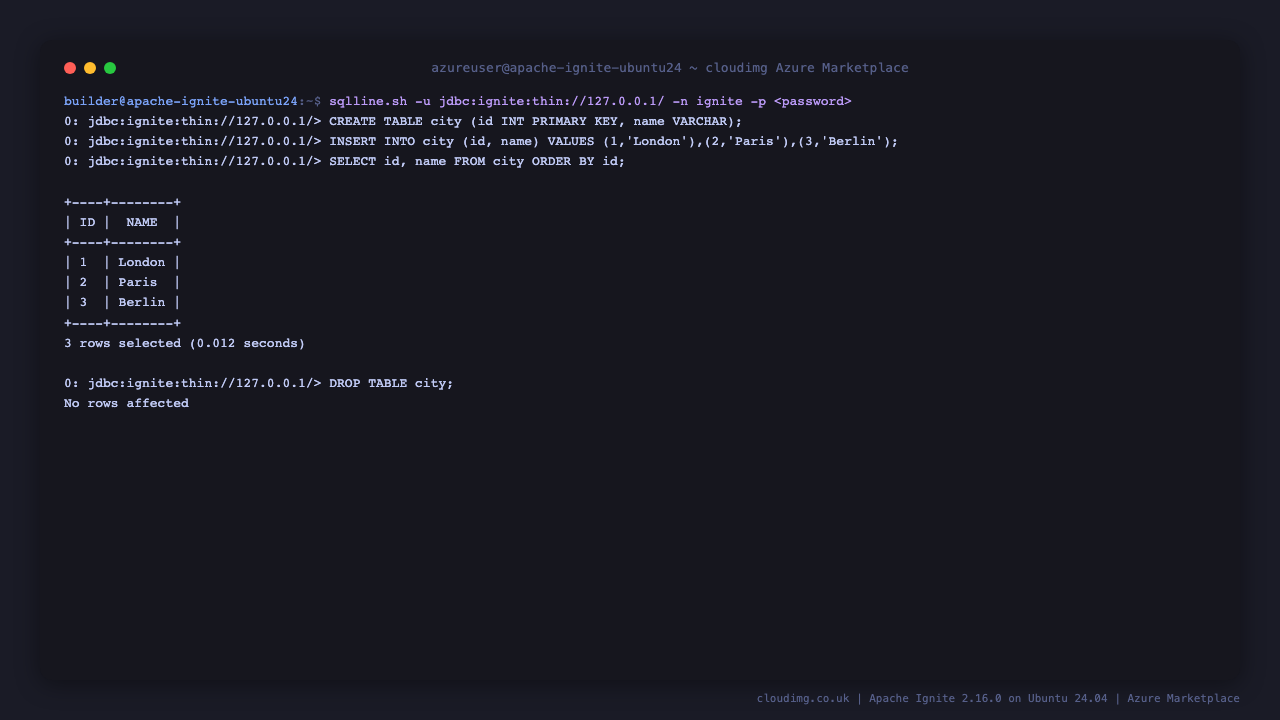

Step 7 - Run SQL with sqlline

Apache Ignite ships a JDBC SQL CLI, sqlline.sh. Connect as the ignite user with your per-VM password (run this in your shell, substituting the real password for <IGNITE_PASSWORD>):

/opt/ignite/bin/sqlline.sh -u 'jdbc:ignite:thin://127.0.0.1/' -n ignite -p '<IGNITE_PASSWORD>'

At the sqlline prompt you can create a table, insert rows and query them:

0: jdbc:ignite:thin://127.0.0.1/> CREATE TABLE city (id INT PRIMARY KEY, name VARCHAR);
0: jdbc:ignite:thin://127.0.0.1/> INSERT INTO city (id, name) VALUES (1, 'London'), (2, 'Paris');
0: jdbc:ignite:thin://127.0.0.1/> SELECT name FROM city ORDER BY id;
+--------+
|  NAME  |
+--------+
| London |
| Paris  |
+--------+
0: jdbc:ignite:thin://127.0.0.1/> !quit

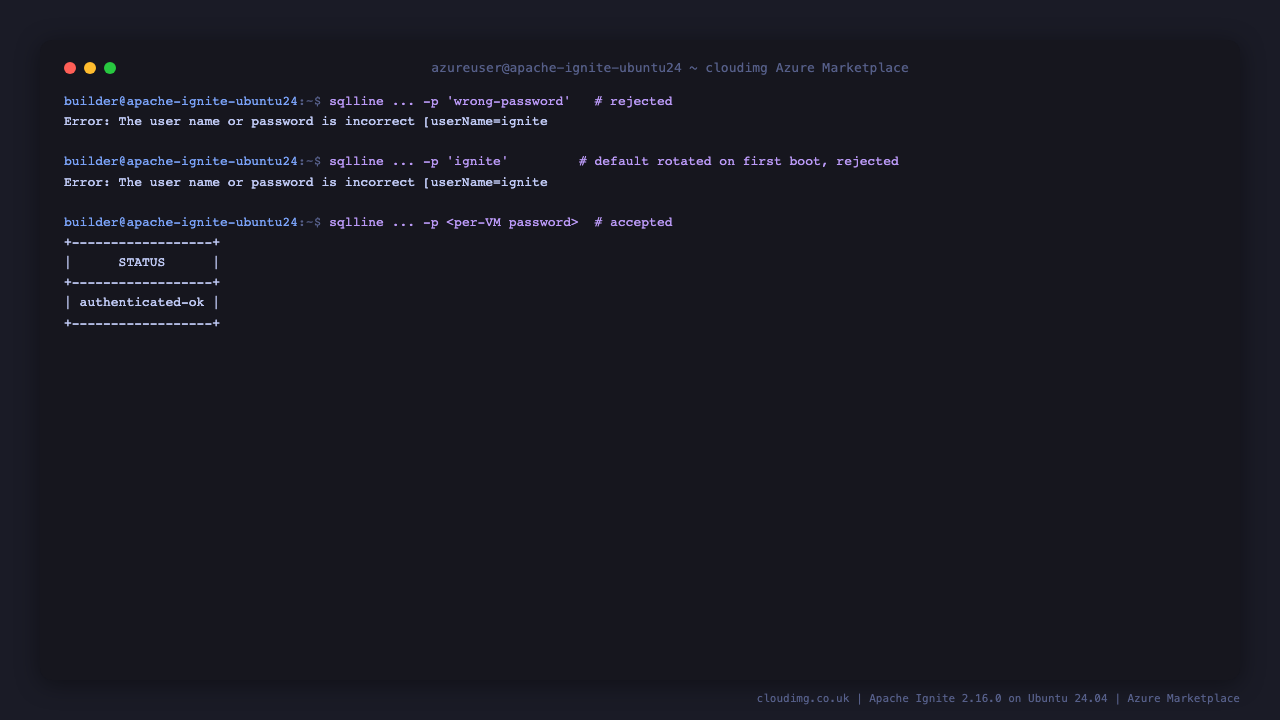

Step 8 - The authentication wall

Ignite authentication is enabled. The default ignite/ignite credential is rotated to a unique per-VM password on first boot, so neither the default password nor any wrong password authenticates - only the per-VM password in your credentials file works. You can see the rejection by attempting a connection with a wrong password (substitute any wrong value); the connection is refused with an authentication error, while the per-VM password from Step 6 connects successfully.

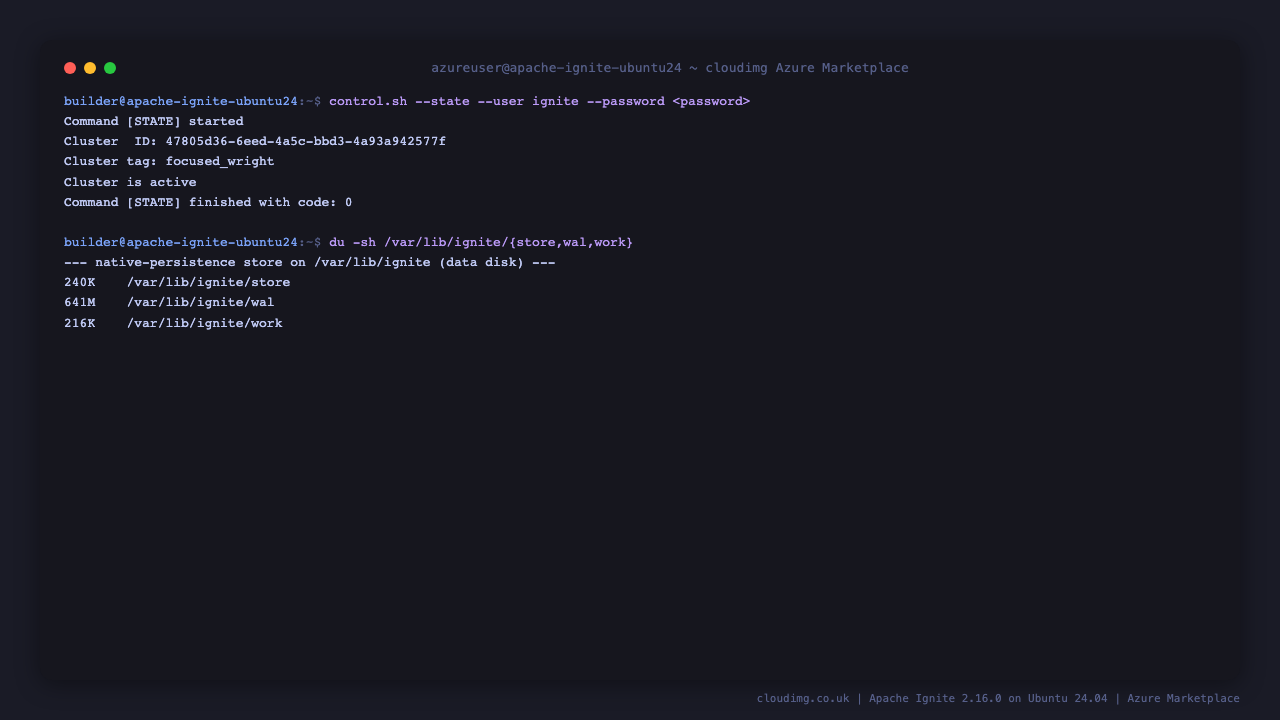

Step 9 - Inspect the cluster with control.sh

The bundled control.sh utility reports cluster state and topology. Because authentication is enabled, pass your per-VM credentials (substitute the real password for <IGNITE_PASSWORD>):

/opt/ignite/bin/control.sh --state --user ignite --password '<IGNITE_PASSWORD>'

It reports the cluster ID, tag and that the state is ACTIVE.

Step 10 - Connect remotely over an SSH tunnel

Ignite listens on 127.0.0.1 only (ports 10800, 47500, 47100) and is not exposed publicly - this is the secure default. To reach the SQL port from your workstation, open an SSH tunnel and point a local JDBC client (or a local sqlline) at localhost:10800:

# On your workstation:
ssh -L 10800:127.0.0.1:10800 azureuser@<vm-public-ip>

# In another terminal, point a thin-client / JDBC tool at:
#   jdbc:ignite:thin://127.0.0.1:10800/  user=ignite  password=<IGNITE_PASSWORD>

For production remote access without a tunnel, bind Ignite to a private NIC and front it with TLS. Never expose 10800 to the internet without transport encryption.

Maintenance

• Persistence: the work directory, persistence store and WAL live on the dedicated data disk at /var/lib/ignite, so the cluster state survives reboots and the volume is independently resizable.
• Password: rotate it from a sqlline session with ALTER USER "ignite" WITH PASSWORD '<new-password>'; and update your credentials store.
• Configuration: edit /etc/ignite/ignite-config.xml (data region sizes, ports, persistence paths) and JVM options in /etc/ignite/ignite-env.sh, then sudo systemctl restart ignite.
• Cluster control: use /opt/ignite/bin/control.sh for state, baseline and topology operations (pass --user/--password).
• Security patches: unattended-upgrades remains enabled so the OS continues to receive security updates automatically.
