Apache JMeter on Ubuntu 24.04 on Azure User Guide

Overview

Apache JMeter is the de-facto open-source tool for load and performance testing. The cloudimg image ships JMeter as a headless / server appliance: JMeter's GUI is a desktop Swing application and is not installed for interactive use here, so the product surface is non-GUI command-line test execution and the JMeter distributed-mode remote engine. The image installs Apache JMeter 5.6.3 from the official Apache binary distribution to /opt/jmeter, installs OpenJDK 17 as the runtime, runs the distributed-mode jmeter-server engine as a systemd service under a dedicated unprivileged jmeter user, ships a bundled sample test plan, and keeps test plans, results and HTML dashboard reports on a dedicated Azure data disk at /var/lib/jmeter. Backed by 24/7 cloudimg support.

What is included:

• Apache JMeter 5.6.3 (Apache-2.0) from the official Apache binary distribution at /opt/jmeter
• Headless (non-GUI) test execution: jmeter -n -t plan.jmx -l results.jtl
• The distributed-mode remote engine jmeter-server running as a systemd service (jmeter-server.service) under a dedicated unprivileged jmeter user
• OpenJDK 17 (Ubuntu 24.04 main) as the JVM runtime
• RMI registry on 127.0.0.1:1099 and the server engine port on 127.0.0.1:1100, both loopback-only, with RMI SSL enabled against a per-VM keystore generated on first boot
• A bundled sample test plan at /opt/jmeter/sample.jmx
• HTML dashboard report generation from .jtl results
• Test plans, results and reports on a dedicated 30 GiB Azure data disk at /var/lib/jmeter
• 24/7 cloudimg support

The distributed-mode engine listens on 127.0.0.1 only and the RMI ports are never opened to the internet. Run headless tests locally on the VM, or attach a remote JMeter controller over an SSH tunnel using the per-VM keystore as the trust boundary.

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B4ms (4 vCPU / 16 GiB RAM) is a good starting point for the JVM-based engine. NSG inbound: allow 22/tcp from your management network. No inbound application ports are needed because tests run locally or the remote engine is reached over the SSH tunnel.

Step 1 - Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Apache JMeter by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) only. Then Review + create -> Create.

Step 2 - Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name jmeter \
  --image <marketplace-image-urn> \
  --size Standard_B4ms \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

Step 3 - Connect to your VM

ssh azureuser@<vm-public-ip>

Step 4 - Confirm JMeter is installed and the engine is running

/opt/jmeter/bin/jmeter --version 2>/dev/null | head -8
systemctl is-active jmeter-server.service

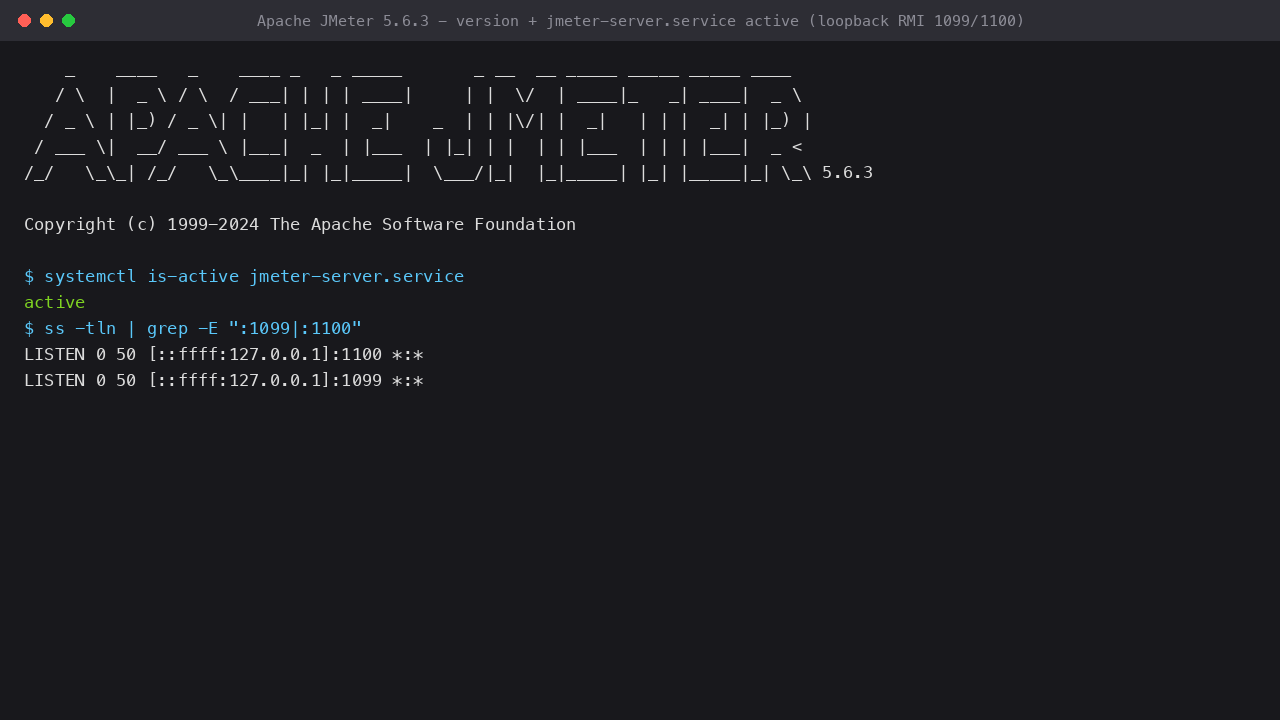

You should see the JMeter 5.6.3 banner and active:

    _    ____   _    ____ _   _ _____       _ __  __ _____ _____ _____ ____
   / \  |  _ \ / \  / ___| | | | ____|     | |  \/  | ____|_   _| ____|  _ \
  / _ \ | |_) / _ \| |   | |_| |  _|    _  | | |\/| |  _|   | | |  _| | |_) |
 / ___ \|  __/ ___ \ |___|  _  | |___  | |_| | |  | | |___  | | | |___|  _ <
/_/   \_\_| /_/   \_\____|_| |_|_____|  \___/|_|  |_|_____| |_| |_____|_| \_\ 5.6.3

active

Step 5 - Confirm the distributed-mode engine binds to loopback only

The distributed-mode jmeter-server engine listens on the RMI registry port 1099 and the server engine port 1100, both bound to loopback:

ss -tln | grep -E ':1099|:1100'

LISTEN 0 50 [::ffff:127.0.0.1]:1100 *:*
LISTEN 0 50 [::ffff:127.0.0.1]:1099 *:*

Both ports are bound to 127.0.0.1 and an nftables guard drops any non-loopback traffic to them. They are never exposed to the internet.

Step 6 - Read the per-VM endpoint notes

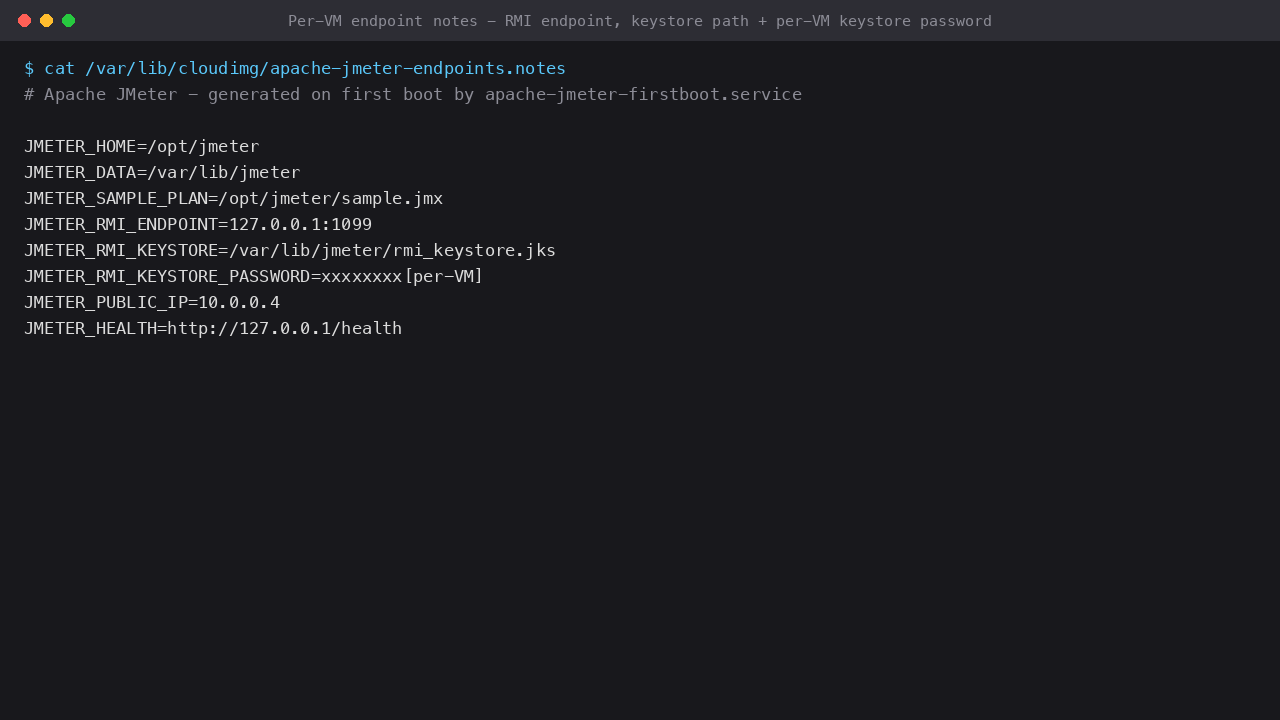

Each VM writes its endpoint details on first boot to an information file, including the RMI endpoint, the per-VM RMI SSL keystore path, and the per-VM keystore password used to attach a remote controller:

cat /var/lib/cloudimg/apache-jmeter-endpoints.notes

The file records JMETER_HOME, the loopback RMI endpoint, the keystore path, the per-VM JMETER_RMI_KEYSTORE_PASSWORD, the public IP, and the SSH-tunnel guidance.

Step 7 - Review the bundled sample test plan

A sample test plan ships at /opt/jmeter/sample.jmx (a 5-thread x 20-loop thread group with a Summary Report listener). Confirm it is present:

ls -l /opt/jmeter/sample.jmx

Step 8 - Run a headless (non-GUI) test

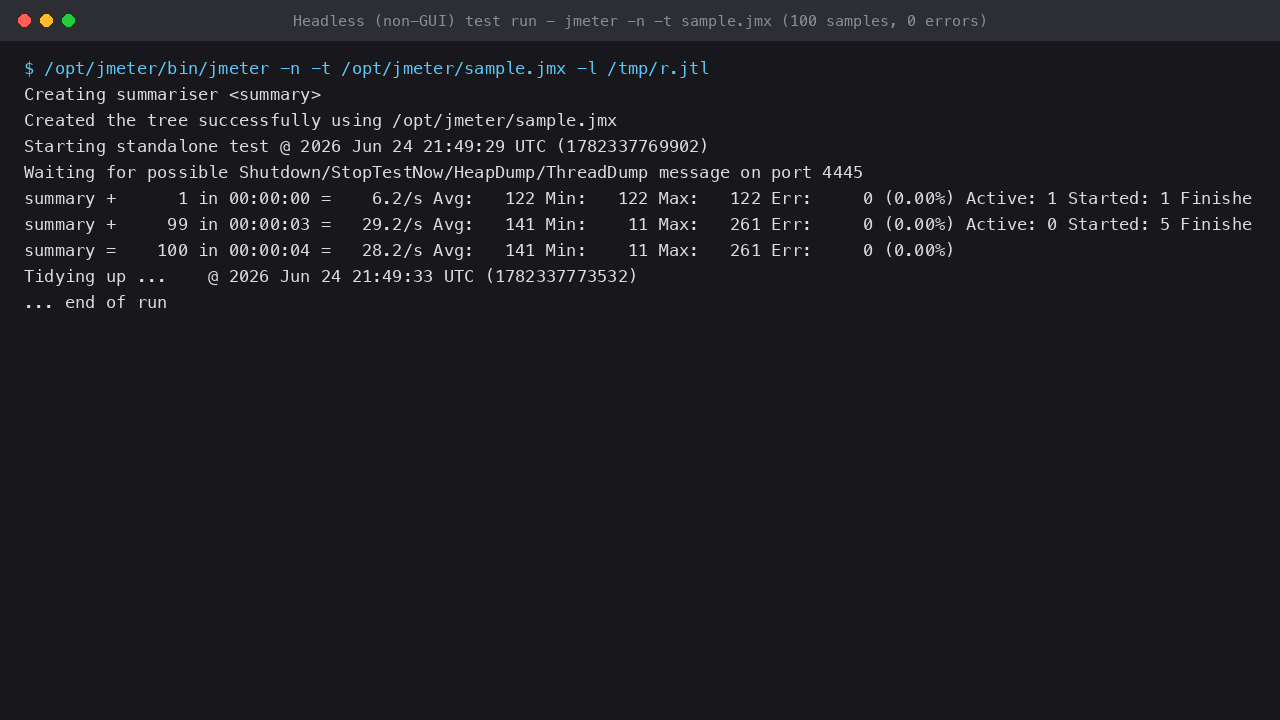

Run the bundled sample plan headless with jmeter -n and write the results to a .jtl file. The run prints a live summary and an end-of-run line:

sudo -u jmeter /opt/jmeter/bin/jmeter -n -t /opt/jmeter/sample.jmx -l /var/lib/jmeter/results/run.jtl 2>/dev/null | grep -vE 'WARN Status' | tail -8

You should see the run reach ... end of run with the read and write counts and zero errors:

Starting standalone test @ 2026 Jun 24 21:49:29 UTC (1782337769902)
Waiting for possible Shutdown/StopTestNow/HeapDump/ThreadDump message on port 4445
summary +      1 in 00:00:00 =    6.2/s Avg:   122 Min:   122 Max:   122 Err:     0 (0.00%) Active: 1 Started: 1 Finished: 0
summary +     99 in 00:00:03 =   29.2/s Avg:   141 Min:    11 Max:   261 Err:     0 (0.00%) Active: 0 Started: 5 Finished: 5
summary =    100 in 00:00:04 =   28.2/s Avg:   141 Min:    11 Max:   261 Err:     0 (0.00%)
Tidying up ...    @ 2026 Jun 24 21:49:33 UTC (1782337773532)
... end of run

Step 9 - Generate an HTML dashboard report

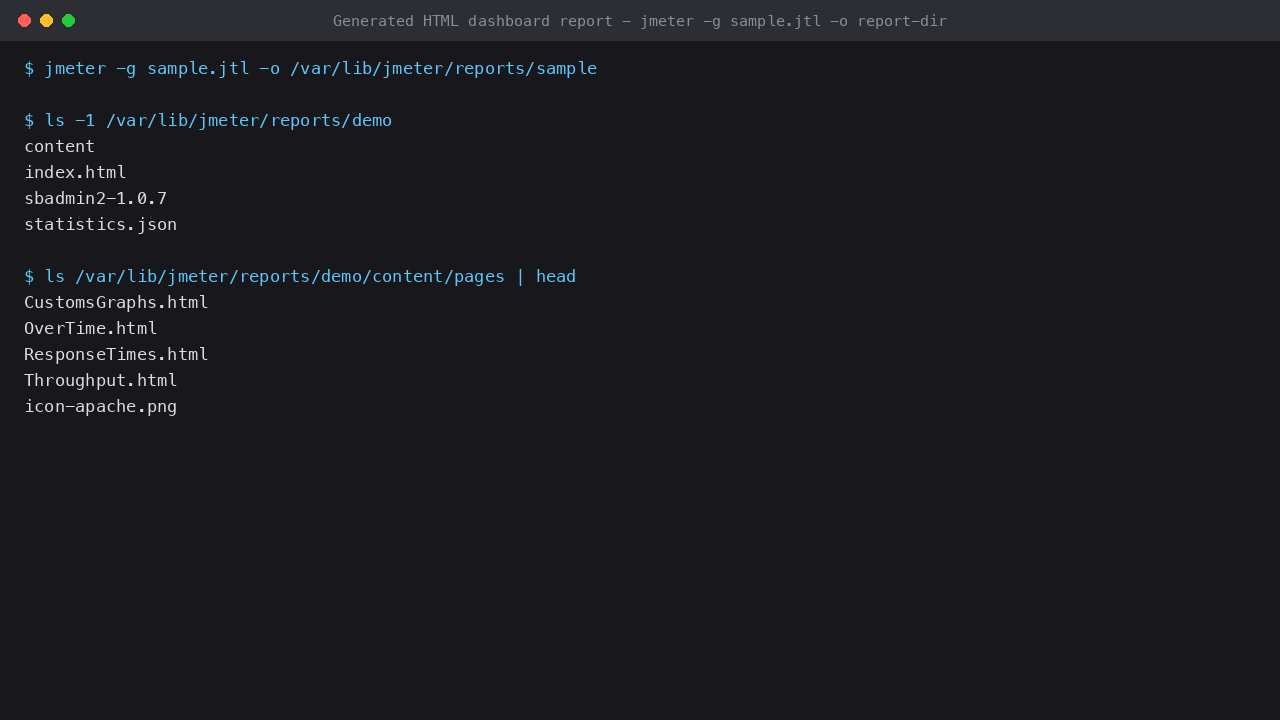

Generate a JMeter HTML dashboard report from the .jtl results with jmeter -g, then list the report directory:

sudo -u jmeter /opt/jmeter/bin/jmeter -g /var/lib/jmeter/results/run.jtl -o /var/lib/jmeter/reports/run 2>/dev/null | grep -iE 'report|dashboard' | head -2
ls -1 /var/lib/jmeter/reports/run

The report directory contains index.html, the content graphs, and statistics.json:

content
index.html
sbadmin2-1.0.7
statistics.json

Open index.html in a browser (copy the report directory off the VM, or serve it over an SSH tunnel) to see the response-time, throughput and over-time dashboards.

Step 10 - Run your own test plan

Copy your own .jmx plan to the data disk and run it headless, writing results and generating a report:

# Copy your plan to the VM (from your workstation):
scp my-plan.jmx azureuser@<vm-public-ip>:/var/lib/jmeter/test-plans/

# On the VM:
sudo -u jmeter /opt/jmeter/bin/jmeter -n -t /var/lib/jmeter/test-plans/my-plan.jmx -l /var/lib/jmeter/results/my-run.jtl
sudo -u jmeter /opt/jmeter/bin/jmeter -g /var/lib/jmeter/results/my-run.jtl -o /var/lib/jmeter/reports/my-run

Step 11 - Drive this VM as a remote engine (distributed mode)

The jmeter-server engine is the remote half of JMeter's distributed (master/worker) mode. The RMI endpoint listens on 127.0.0.1:1099 only and is secured with RMI SSL against the per-VM keystore at /var/lib/jmeter/rmi_keystore.jks. To drive this VM from a controller, open an SSH tunnel, copy the keystore to the controller, point the controller's jmeter.properties at it, and target the tunnelled endpoint:

# On your workstation:
ssh -L 1099:127.0.0.1:1099 azureuser@<vm-public-ip>
scp azureuser@<vm-public-ip>:/var/lib/jmeter/rmi_keystore.jks ./rmi_keystore.jks

# Then on the controller (with the keystore + per-VM password configured):
jmeter -n -t my-plan.jmx -R 127.0.0.1:1099 -l results.jtl

Never expose 1099 or 1100 to the internet; the per-VM keystore and loopback binding are the security boundary.

Maintenance

• Data: test plans, .jtl results and HTML reports live on the dedicated data disk at /var/lib/jmeter, so they survive reboots and the volume is independently resizable.
• Engine: the distributed-mode remote engine runs as jmeter-server.service; restart it with sudo systemctl restart jmeter-server.service.
• Tuning: edit /opt/jmeter/bin/user.properties for engine and RMI tuning, then restart the service.
• Security patches: unattended-upgrades remains enabled so the OS continues to receive security updates automatically.
• Security boundary: the RMI registry and server engine ports bind to loopback only with RMI SSL against a per-VM keystore - keep 1099/1100 off the public internet and reach the remote engine over the SSH tunnel.
