Apache Ozone on Ubuntu 24.04 on Azure User Guide

Overview

Apache Ozone is the scalable, distributed object store for Hadoop and cloud-native workloads. It exposes both an S3-compatible API and an HDFS-compatible (ofs) API over a single namespace that scales to billions of objects. The cloudimg image installs Ozone 1.4.1 as a single-VM all-roles cluster: the Ozone Manager (OM), the Storage Container Manager (SCM), one Datanode, the Recon management UI and the S3 Gateway all run on one Azure VM, so a single VM gives you a fully functional Ozone cluster for development, testing, single-tenant object storage and proof-of-concept workloads with no multi-node cluster to stand up. All Ozone services bind to loopback; the Recon management UI is fronted by an nginx reverse proxy on TCP 80 with HTTP Basic auth, and a unique administrator password and per-VM S3 credentials are generated on the first boot of every VM. Backed by 24/7 cloudimg support.

What is included:

• Apache Ozone 1.4.1 (Apache-2.0) as a single-VM all-roles cluster (OM + SCM + Datanode + Recon + S3 Gateway)
• OpenJDK 17
• A dedicated 50 GiB Azure data disk at /var/lib/ozone holding the OM and SCM metadata, the HDDS datanode container data and the Recon database — separate from the OS disk and re-provisioned with every VM
• All Ozone services bound to 127.0.0.1 (OM 9862/9874, SCM 9860/9863/9876, Datanode 9882, Recon 9888, S3 Gateway 9878)
• nginx reverse proxy on :80 with HTTP Basic auth in front of the Recon management UI, plus an unauthenticated /health endpoint
• Per-VM admin password and per-VM S3 access key and secret generated at first boot, in a root-only file
• ozone-scm, ozone-om, ozone-datanode, ozone-recon, ozone-s3g and nginx as systemd units, enabled and active
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B4ms (4 vCPU / 16 GiB RAM) is a good starting point — Ozone runs five JVMs and is memory hungry. NSG inbound: allow 22/tcp from your management network and 80/tcp from the users who reach the Recon UI (front port 80 with TLS for public exposure — see Enabling HTTPS).

Step 1 — Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Apache Ozone by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTP (80). Review the dedicated 50 GiB data disk on the Disks tab, then Review + create -> Create.

Step 2 — Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name ozone \
  --image <marketplace-image-urn> \
  --size Standard_B4ms \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name ozone --port 80 --priority 1010

Step 3 — Connect to your VM

ssh azureuser@<vm-public-ip>

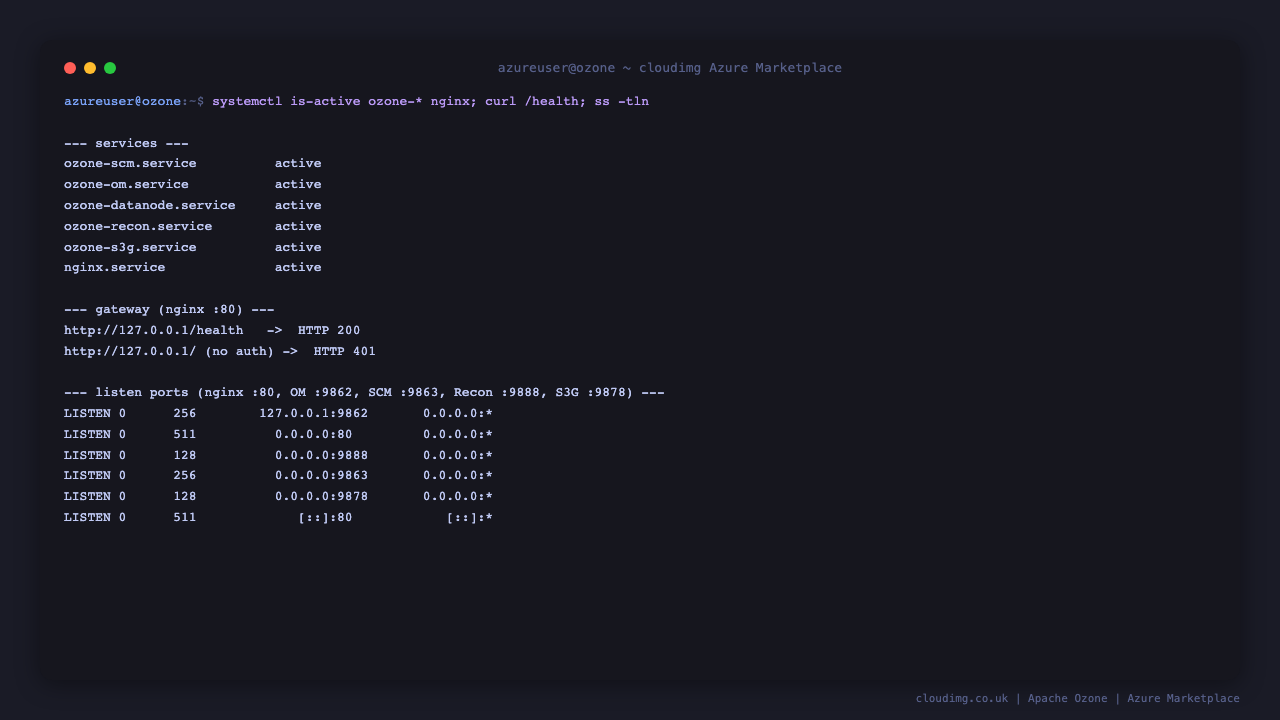

Step 4 — Confirm the services are running

systemctl is-active ozone-scm.service ozone-om.service ozone-datanode.service ozone-recon.service ozone-s3g.service nginx.service

All six services report active.

Step 5 — Confirm the gateway answers

The nginx reverse proxy serves an unauthenticated /health endpoint for liveness checks and fronts the Ozone Recon management UI behind HTTP Basic auth:

curl -s -o /dev/null -w 'health endpoint -> HTTP %{http_code}\n' http://127.0.0.1/health
curl -s -o /dev/null -w 'Recon UI (no auth) -> HTTP %{http_code}\n' http://127.0.0.1/

The /health endpoint returns HTTP 200; the Recon UI returns HTTP 401 until you supply the per-VM credentials.

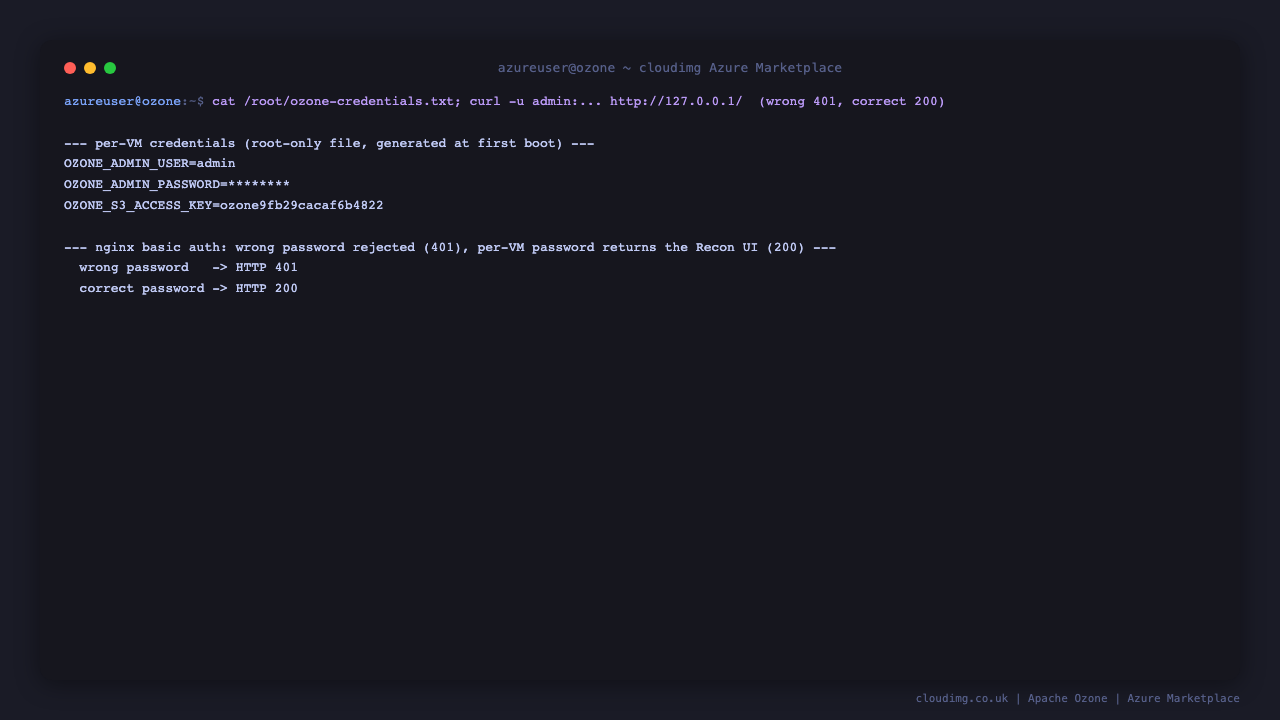

Step 6 — Retrieve your admin password and S3 credentials

The administrator password and the per-VM S3 access key and secret are generated uniquely on the first boot of your VM and written to a root-only file:

sudo grep -E '^OZONE_(ADMIN|S3)_' /root/ozone-credentials.txt

OZONE_ADMIN_USER is admin and OZONE_ADMIN_PASSWORD is the password that protects the Recon management UI. OZONE_S3_ACCESS_KEY and OZONE_S3_SECRET_KEY are the credentials for the loopback S3 gateway.

Step 7 — Open the Recon management UI

The Recon UI sits behind nginx HTTP Basic auth. Read the per-VM password into a shell variable and confirm a wrong password is rejected while the real one returns the UI. Run the password-bearing request with your own password substituted in — for example, to fetch the UI with the credentials from Step 6:

curl -s -o /dev/null -w '%{http_code}\n' -u admin:<OZONE_ADMIN_PASSWORD> http://127.0.0.1/

A wrong password returns HTTP 401; the correct one returns HTTP 200 (the Recon overview page). In a browser, open http://<vm-public-ip>/ and sign in as admin with the password from Step 6.

Step 8 — Create a volume, bucket and key with the ozone shell

Ozone organises objects as volume / bucket / key. The ozone sh command-line creates them and puts and gets keys. Run it as the ozone service user:

echo "hello ozone" | sudo -u ozone tee /tmp/demo.txt
sudo -u ozone /opt/ozone/bin/ozone sh volume create /demovol
sudo -u ozone /opt/ozone/bin/ozone sh bucket create /demovol/demobucket
sudo -u ozone /opt/ozone/bin/ozone sh key put /demovol/demobucket/demokey /tmp/demo.txt
sudo -u ozone /opt/ozone/bin/ozone sh key list /demovol/demobucket
sudo -u ozone /opt/ozone/bin/ozone sh key get /demovol/demobucket/demokey /tmp/demo-out.txt

key list shows demokey and key get writes the object back to /tmp/demo-out.txt, confirming the data plane round-trips end to end.

Step 9 — Use the S3 gateway

Ozone exposes the same namespace over an S3-compatible API on the gateway (loopback 127.0.0.1:9878). From your workstation, open an SSH tunnel to the gateway and point the AWS CLI at it with the per-VM S3 credentials from Step 6:

ssh -L 9878:127.0.0.1:9878 azureuser@<vm-public-ip>

Then, in another terminal on your workstation, with OZONE_S3_ACCESS_KEY and OZONE_S3_SECRET_KEY exported as AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY:

aws --endpoint http://localhost:9878 s3 ls

The S3 gateway lists the buckets that back your Ozone volumes, so existing S3 tooling works unchanged against Ozone.

Step 10 — Review datanodes, pipelines and keys in Recon

The Recon UI (Step 7) is the management console for the cluster. The Datanodes view lists the in-VM datanode, its capacity and the containers it holds; the Pipelines view shows the single write pipeline (factor ONE for a single datanode); and the Buckets / keys views list every volume, bucket and object with its size and replication.

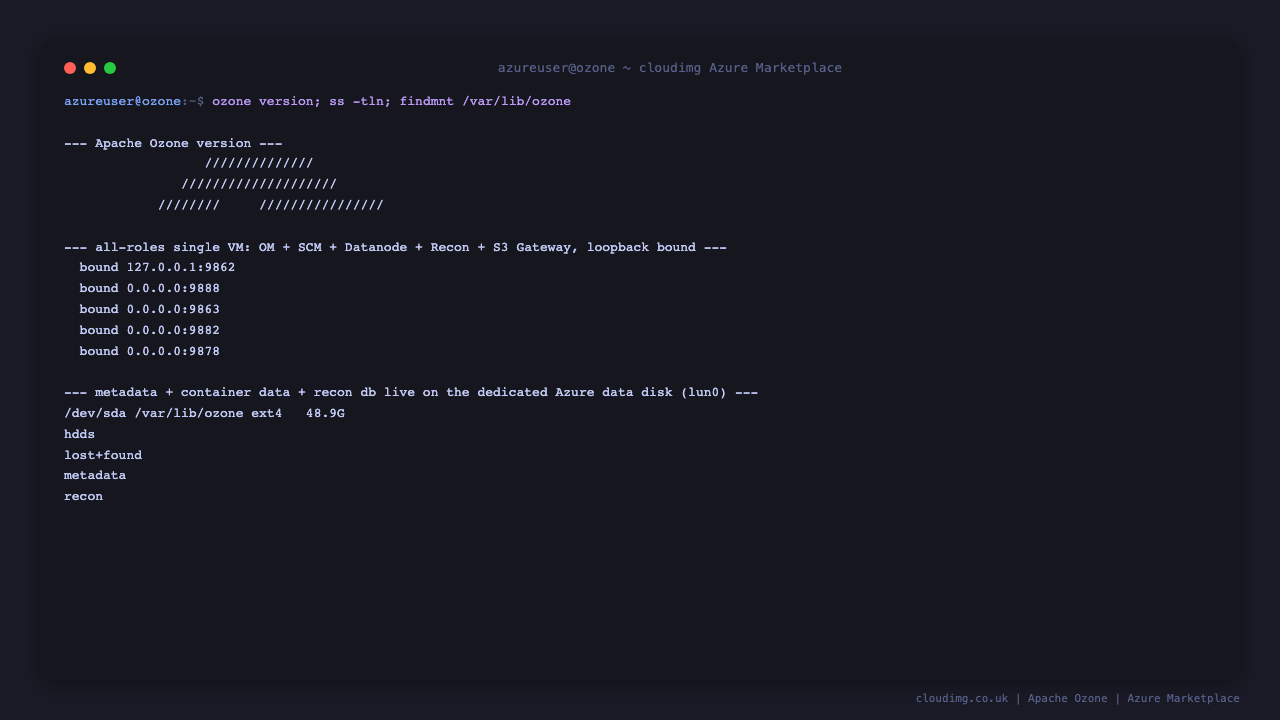

Confirm the Ozone version

/opt/ozone/bin/ozone version 2>/dev/null | head -3

Enabling HTTPS

For production, terminate TLS at nginx with a real domain pointed at the VM's public IP. Install certbot and request a certificate (replace the domain):

sudo apt-get update && sudo apt-get install -y certbot python3-certbot-nginx
sudo certbot --nginx -d your-domain.example.com

Backup and maintenance

All Ozone data — the OM and SCM metadata, the HDDS datanode containers and the Recon database — lives on the dedicated data disk at /var/lib/ozone. Snapshot that disk in Azure to back up your store, and keep the OS patched with sudo apt update && sudo apt upgrade. Ozone restarts cleanly with sudo systemctl restart ozone-scm ozone-om ozone-datanode ozone-recon ozone-s3g nginx. For larger datasets, resize the data disk in the Azure portal and grow the filesystem.

Support

This image is backed by 24/7 cloudimg support. Contact us by email and chat for help with volume and bucket design, the ozone shell, the S3 gateway, replication tuning, scaling, TLS and backups.
