BHIMA on Ubuntu 24.04 on Azure User Guide

Overview

BHIMA (Basic Hospital Information Management Application) is an open-source hospital information system built for health facilities in low-resource settings. It pairs a full double-entry accounting ledger with the daily operations of a clinic or hospital: patient registration and billing, debtors and cash management, medical stock and inventory across depots, employees and payroll, and the financial and operational reports a facility reports on. The cloudimg image installs BHIMA 1.39 from the official upstream release alongside Node.js 24 LTS, MySQL 8, and Redis, all reverse-proxied by nginx and wired together for predictable single-VM behaviour.

What is included:

• BHIMA 1.39.0 (the official upstream release build) at /opt/bhima/bin, run by the bhima system user
• Node.js 24 LTS from NodeSource
• MySQL 8 from Ubuntu 24.04 main, tuned with BHIMA's required sql_mode (STRICT_ALL_TABLES,NO_UNSIGNED_SUBTRACTION)
• Redis from Ubuntu 24.04 main as the express-session store
• nginx reverse-proxying TCP 80 to the app on 127.0.0.1:8080
• bhima.service (Node app) and bhima-firstboot.service (one-shot per-VM credential rotation)
• A populated demonstration dataset (Test Enterprise, chart of accounts, patients, and posted transactions) so every module has content on first boot
• Per-VM admin, database, and session secrets generated at first boot — the upstream superuser/superuser demo login is rejected
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key, a VNet + subnet, and a Network Security Group that exposes TCP 22 to your management CIDR and TCP 80 to your users (or to your CDN / Front Door / Application Gateway with TLS terminated upstream). Standard_B2s (2 vCPU, 4 GB RAM) is comfortable for a single-facility deployment. For busy multi-department hospitals, move to a D-series VM.

Step 1: Deploy from the cloudimg gallery

In the Azure Portal, create a new VM from cloudimgGallery/bhima-ubuntu-24-04, choose Standard_B2s, attach your SSH key, and place the VM in a subnet whose NSG allows inbound TCP 22 (SSH) and TCP 80 (HTTP). Wait for provisioning to finish, then copy the public IP from the VM Overview blade.

Step 2: SSH to the VM

ssh azureuser@<vm-ip>

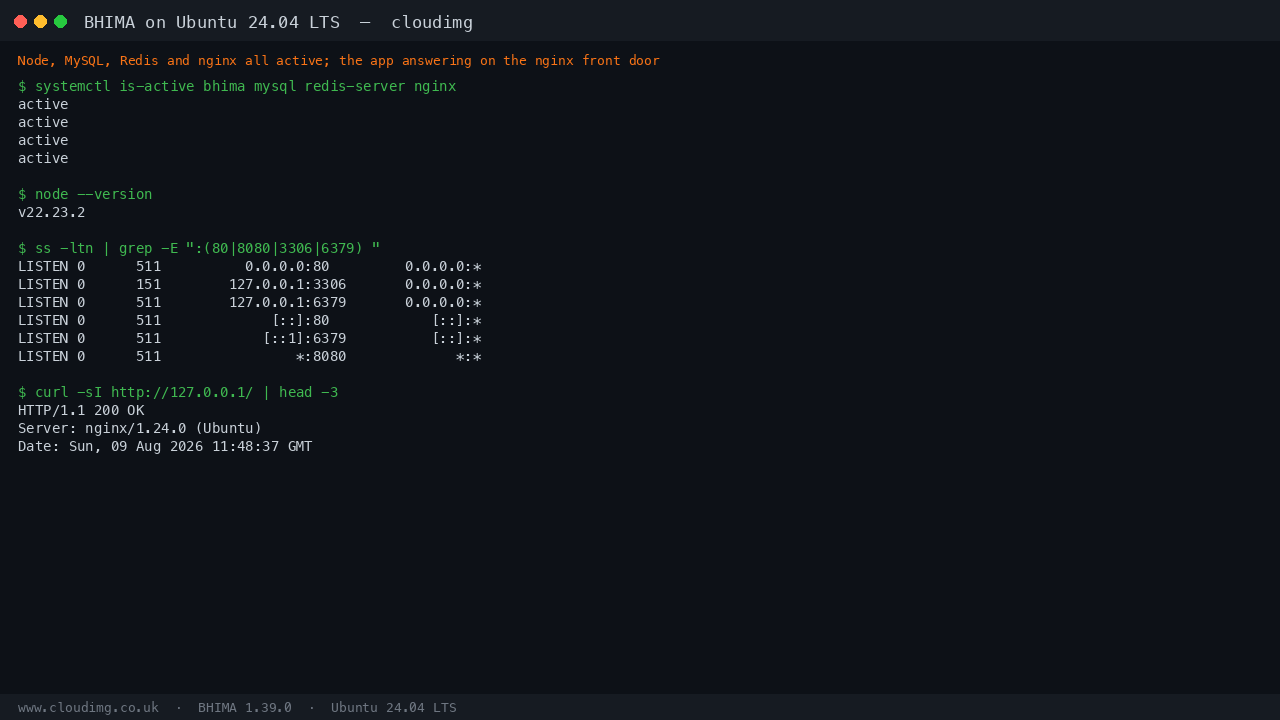

Step 3: Confirm the stack is running

systemctl is-active bhima.service mysql.service redis-server.service nginx.service
node --version
ss -ltn | grep -E ':(80|8080|3306|6379) '
curl -sI http://127.0.0.1/ | head -4

Expected output:

active
active
active
active
v24.19.0
LISTEN 0  511      0.0.0.0:80    0.0.0.0:*
LISTEN 0  151    127.0.0.1:3306  0.0.0.0:*
LISTEN 0  511    127.0.0.1:6379  0.0.0.0:*
LISTEN 0  511            *:8080         *:*
HTTP/1.1 200 OK
Server: nginx/1.24.0 (Ubuntu)

Port 80 is nginx (public), 8080 is the BHIMA Node process, 3306 is MySQL and 6379 is Redis (both bound to localhost).

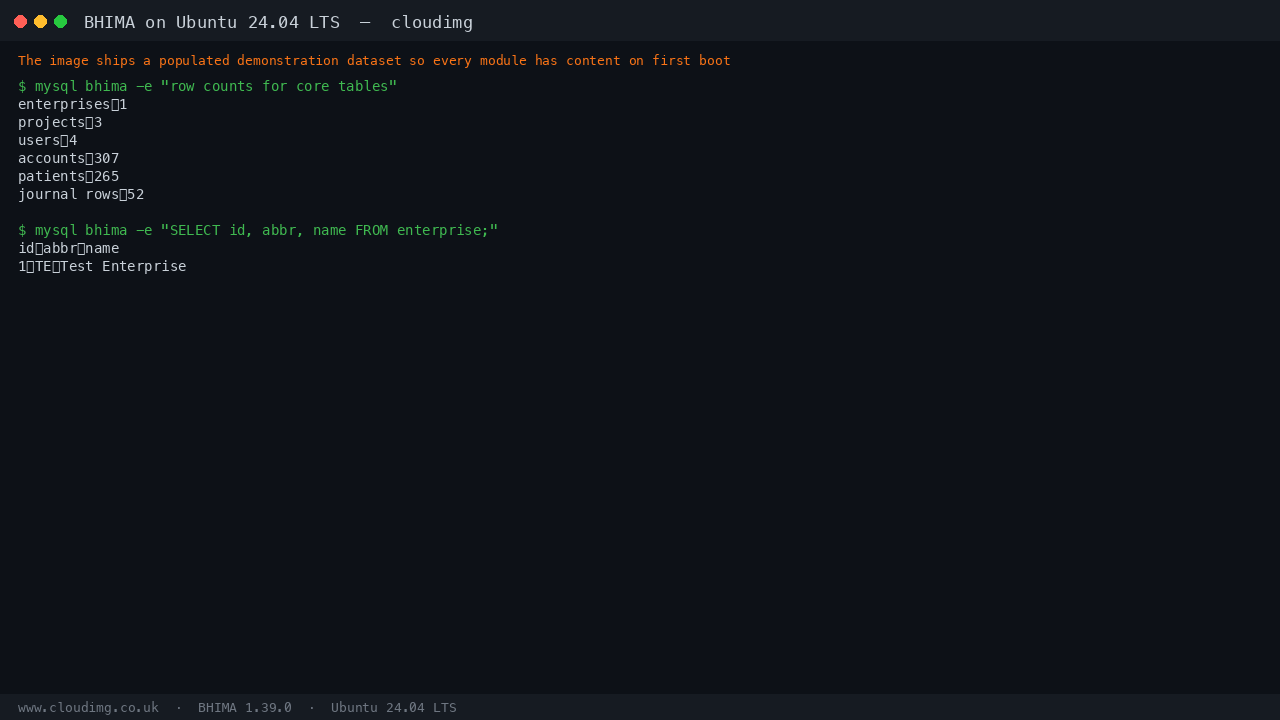

Step 4: Explore the demonstration dataset

The image ships a populated demonstration dataset so you can explore every module immediately rather than staring at an empty install. Confirm the row counts:

RP=$(sudo grep '^MYSQL_ROOT_PASSWORD=' /stage/scripts/bhima-credentials.log | cut -d= -f2-)
sudo mysql -uroot -p"$RP" bhima -N -e "SELECT 'enterprises', COUNT(*) FROM enterprise
  UNION ALL SELECT 'projects', COUNT(*) FROM project
  UNION ALL SELECT 'users', COUNT(*) FROM user
  UNION ALL SELECT 'accounts', COUNT(*) FROM account
  UNION ALL SELECT 'patients', COUNT(*) FROM patient
  UNION ALL SELECT 'journal rows', COUNT(*) FROM posting_journal;"

Expected output:

enterprises   1
projects      3
users         4
accounts      307
patients      265
journal rows  52

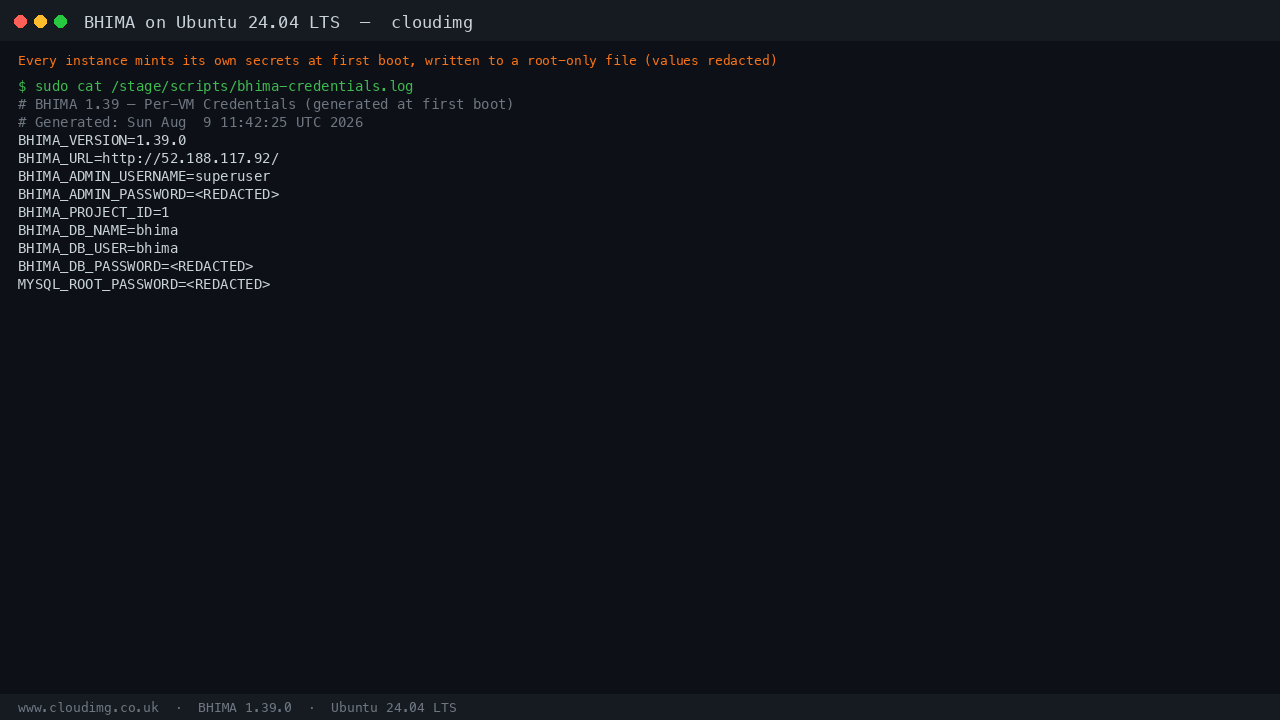

Step 5: Read the per-VM credentials

Each VM generates its own admin, database, and session secrets at first boot and writes them to a root-only file:

sudo cat /stage/scripts/bhima-credentials.log

The file is mode 0600, root-owned. It contains BHIMA_ADMIN_USERNAME / BHIMA_ADMIN_PASSWORD (the application administrator), BHIMA_DB_PASSWORD, MYSQL_ROOT_PASSWORD, and the URL for this VM. Copy these into your secrets manager and keep the file off-VM.

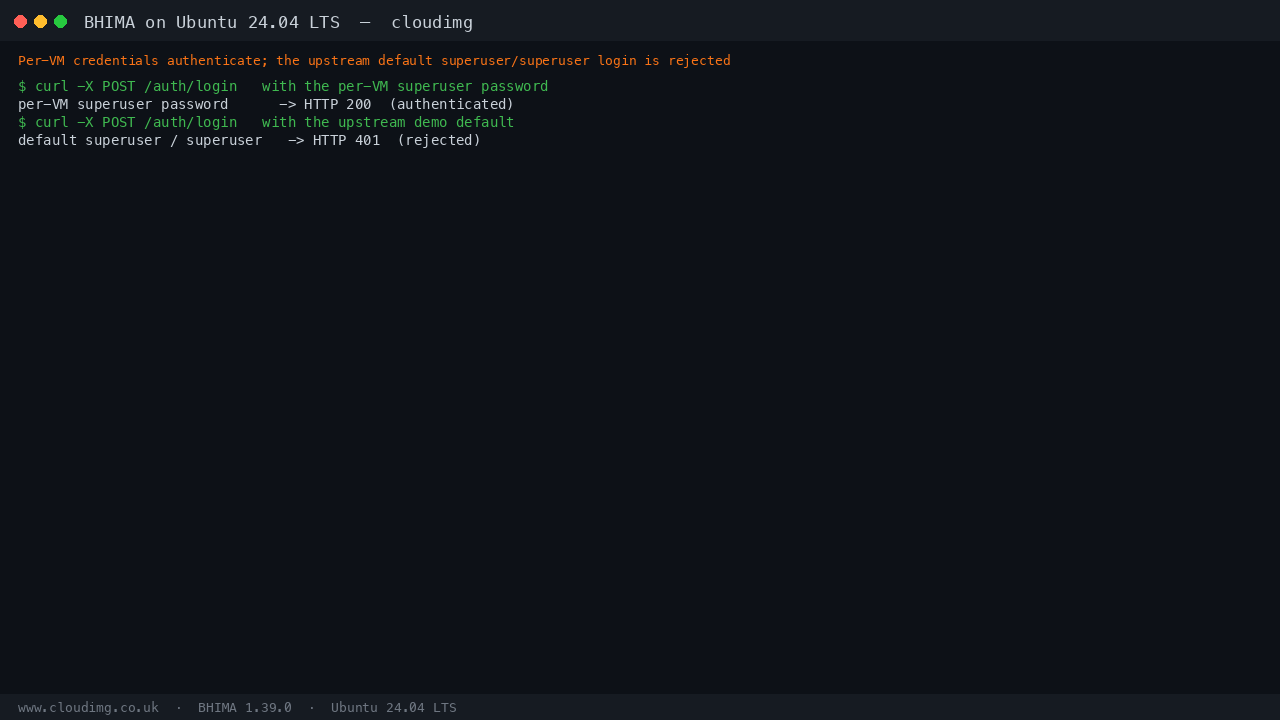

Step 6: Verify the credential rotation

The image is hardened so no two VMs share a login: the per-VM superuser password authenticates, and the upstream superuser/superuser demo default is rejected.

AP=$(sudo grep '^BHIMA_ADMIN_PASSWORD=' /stage/scripts/bhima-credentials.log | cut -d= -f2-)
curl -s -o /dev/null -w 'per-VM password    -> HTTP %{http_code}\n' -X POST \
  -H 'Content-Type: application/json' \
  --data "{\"username\":\"superuser\",\"password\":\"$AP\",\"project\":1}" http://127.0.0.1/auth/login
curl -s -o /dev/null -w 'upstream default   -> HTTP %{http_code}\n' -X POST \
  -H 'Content-Type: application/json' \
  --data '{"username":"superuser","password":"superuser","project":1}' http://127.0.0.1/auth/login

Expected output:

per-VM password    -> HTTP 200
upstream default   -> HTTP 401

Step 7: Sign in

Browse to http://<vm-ip>/ from your laptop. BHIMA shows its sign-in form: enter the username superuser, the BHIMA_ADMIN_PASSWORD from Step 5, and choose the project Test Project A. (Use the language dropdown at the top of the form to switch between English and French.)

Step 8: The enterprise dashboard

After signing in, BHIMA lands you on the enterprise dashboard, showing the active project, the enterprise currency and exchange rates, and the current fiscal year.

Step 9: Chart of accounts

Open Finance → Account Management to see the full chart of accounts that ships with the demonstration dataset — a structured, multi-level account tree you can edit, extend, or replace with your own.

Step 10: The posting journal

Open Finance → Journal to see BHIMA's double-entry accounting in action: every transaction is recorded with matching debit and credit lines against real accounts, and the journal totals balance.

Step 11: Components

Step 12: Production hardening

• Front the VM with TLS: terminate HTTPS at Azure Application Gateway or Front Door, or run certbot --nginx on the VM after pointing your DNS at the public IP.
• The demonstration dataset: the shipped Test Enterprise data is for evaluation. When you are ready to run a real facility, create your own enterprise, fiscal year and chart of accounts inside BHIMA — see the upstream documentation at https://docs.bhi.ma for starting a clean production database.
• Rotate or add users: sign in as superuser, then create your own named administrator and staff accounts under Administration → Users and disable the demo accounts.
• Back up MySQL: schedule mysqldump bhima and copy /opt/bhima/bin/client/upload to Azure Blob Storage or AWS S3.
• Restrict the NSG: lock TCP 22 to your management CIDR and front TCP 80/443 with your CDN only.
• Patch monthly: sudo apt-get update && sudo apt-get -y upgrade && sudo reboot. Watch https://github.com/Third-Culture-Software/bhima/releases for BHIMA releases.

Licensing

BHIMA is licensed under the GNU General Public License v2.0 (GPL-2.0) — free to use. cloudimg provides commercial support separately. support@cloudimg.co.uk.
