Apache BifroMQ MQTT Broker on Ubuntu 24.04 on Azure User Guide

Overview

Apache BifroMQ (Incubating) is a distributed MQTT broker written in Java, built around native multi tenancy. It implements MQTT 3.1, 3.1.1 and 5.0, and every connection is resolved to a tenant whose topics, subscriptions and sessions are isolated from every other tenant on the same broker.

This cloudimg image deploys BifroMQ 4.0.0-incubating as a hardened single node broker. An authenticated MQTT endpoint is answering on TCP 1883 by the time first boot completes — no configuration required.

What is included:

• Apache BifroMQ 4.0.0-incubating, installed from the official Apache distribution and SHA-512 verified
• OpenJDK 21 (headless) runtime
• mosquitto-clients (mosquitto_pub, mosquitto_sub) for testing on the box
• MQTT over TCP on port 1883, supporting MQTT 3.1, 3.1.1 and 5.0
• Username and password authentication enforced on every connection
• A unique MQTT password generated on each VM's first boot
• Administrative HTTP API and metrics bound to loopback and firewalled
• JVM heap sized for the VM rather than left at a default that would exhaust it
• 24/7 cloudimg support

A note on security, and why it matters for this product

Left at its own defaults, BifroMQ loads a development authentication provider that accepts every connection without checking the password, and grants every publish and subscribe. A stock deployment is an open broker. This image replaces that with real credential checking, and closes a related upstream behaviour where a broker whose authentication service is unreachable would silently grant every action rather than deny it. If you build your own BifroMQ deployment from upstream, these are the two things to get right first.

Prerequisites

Step 1: Deploy the VM

Deploy from the Azure Portal by choosing the cloudimg BifroMQ image, or from the CLI:

az group create --name bifromq-rg --location eastus

az network nsg create --resource-group bifromq-rg --name bifromq-nsg

az network nsg rule create --resource-group bifromq-rg --nsg-name bifromq-nsg \
  --name allow-ssh --priority 1000 --destination-port-ranges 22 \
  --source-address-prefixes <your-mgmt-cidr> --access Allow --protocol Tcp

az network nsg rule create --resource-group bifromq-rg --nsg-name bifromq-nsg \
  --name allow-mqtt --priority 1010 --destination-port-ranges 1883 \
  --source-address-prefixes <your-mgmt-cidr> --access Allow --protocol Tcp

az vm create --resource-group bifromq-rg --name bifromq-vm \
  --size Standard_B2s --admin-username azureuser --generate-ssh-keys \
  --nsg bifromq-nsg --public-ip-sku Standard

Scope both rules to the narrowest source range that works for you. MQTT on 1883 is authenticated, but there is no reason to expose it to the whole internet.

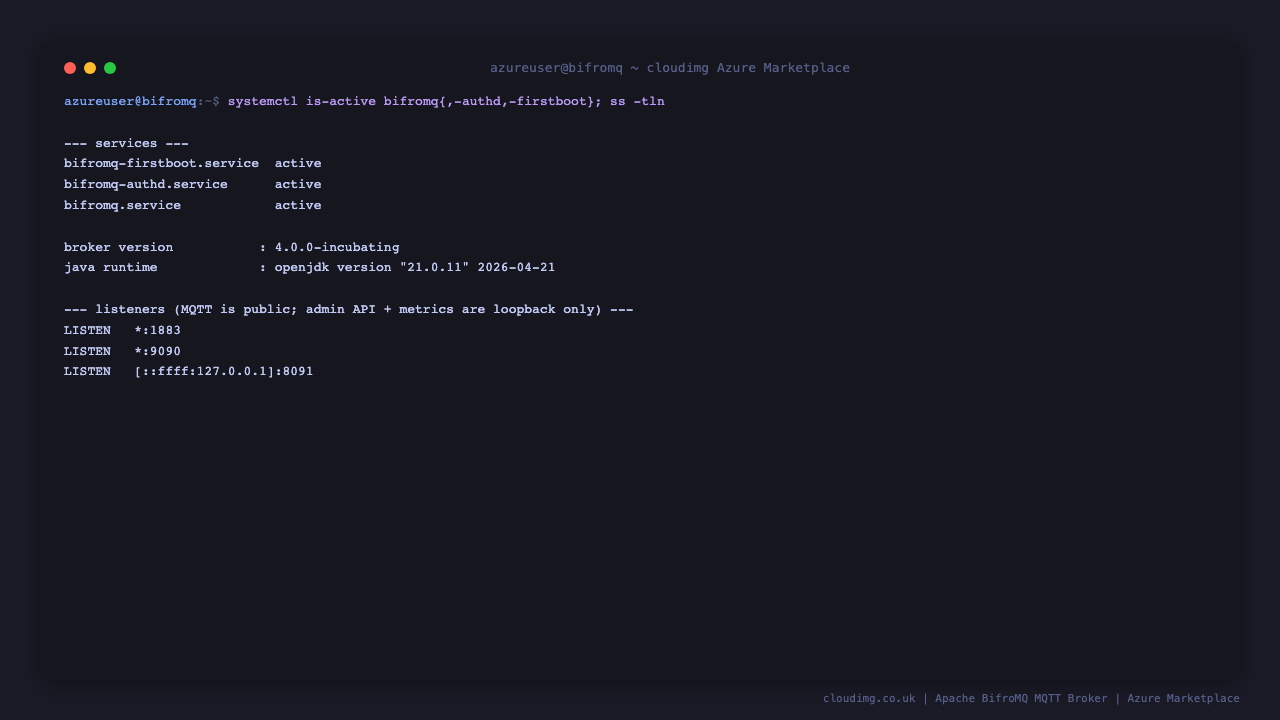

Step 2: Connect and confirm the broker is running

sudo systemctl status bifromq.service --no-pager

Three services make up the appliance: bifromq-firstboot.service generates this VM's credential, bifromq-authd.service is the local authentication service, and bifromq.service is the broker itself.

sudo systemctl is-active bifromq-firstboot.service bifromq-authd.service bifromq.service
sudo ss -tln | grep -E ':1883|:8091'

Give the broker a moment on first boot. BifroMQ is a JVM application with embedded RocksDB storage. Port 1883 accepts connections within a few seconds, but the broker needs roughly one to two minutes after boot before it will serve traffic. During that window a client is refused with Connection Refused: broker unavailable, and subscriptions can be refused for slightly longer than publishes. This is warm up, not a fault — retry and it will connect.

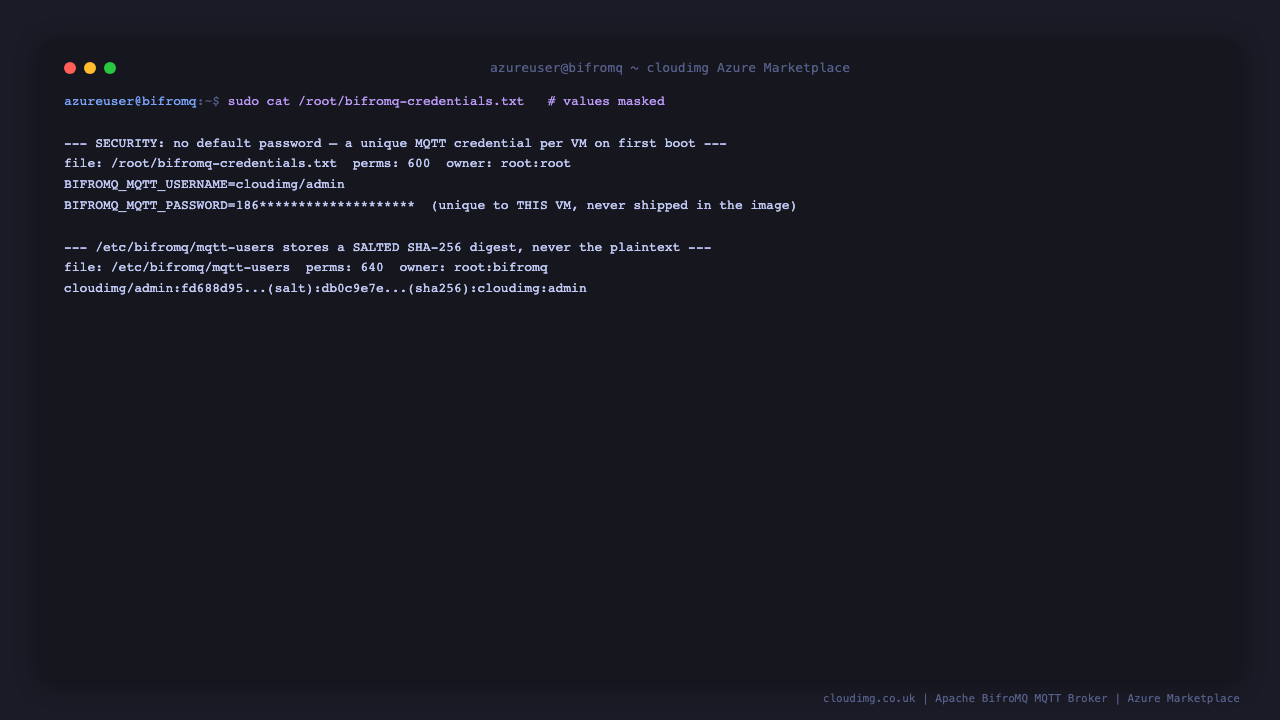

Step 3: Read this VM's MQTT credentials

There is no default password in the image. A unique one is generated on each VM's first boot and written to a root only file:

sudo cat /root/bifromq-credentials.txt

The username is cloudimg/admin. The part before the slash is the tenant, and it matters — see Step 5.

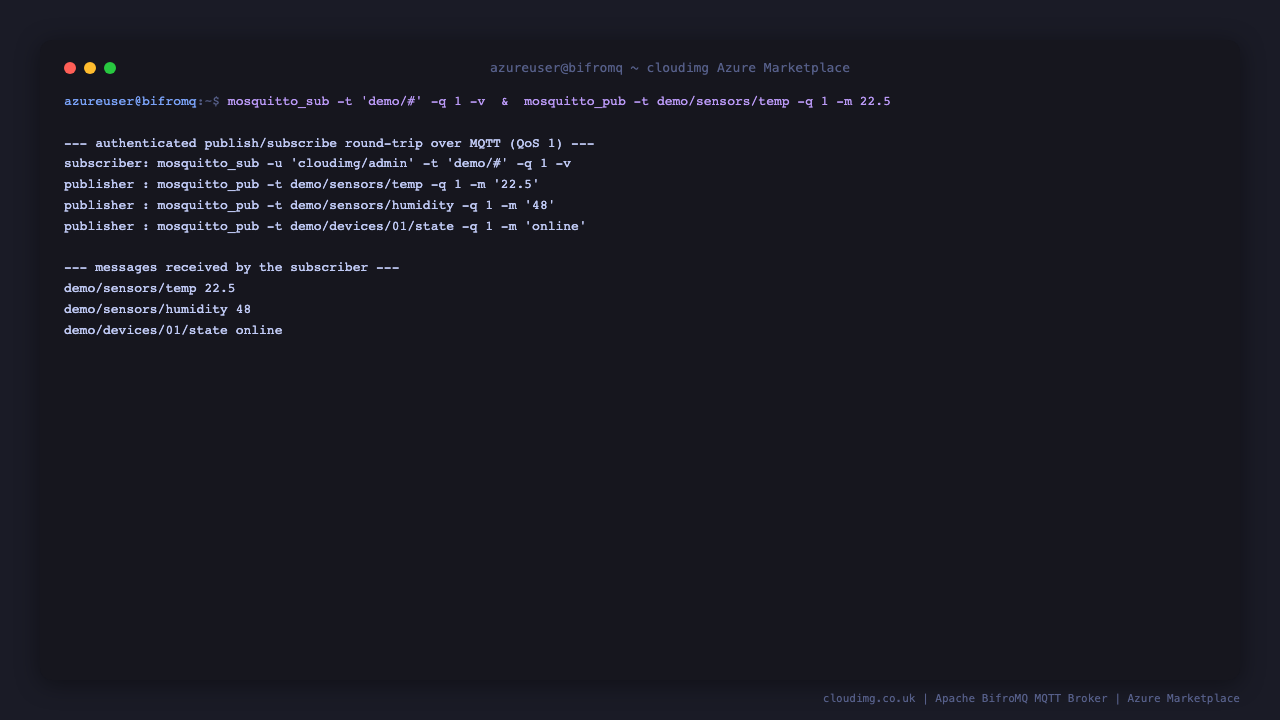

Step 4: Publish and subscribe

This runs a complete round trip on the VM itself. It reads the credentials, subscribes in the background, publishes one message, and prints what arrived:

U=$(sudo grep '^BIFROMQ_MQTT_USERNAME=' /root/bifromq-credentials.txt | cut -d= -f2-)
P=$(sudo grep '^BIFROMQ_MQTT_PASSWORD=' /root/bifromq-credentials.txt | cut -d= -f2-)

timeout 20 mosquitto_sub -h 127.0.0.1 -p 1883 -i demo-sub -u "$U" -P "$P" \
  -t 'demo/#' -q 1 -v > /tmp/mqtt-demo.txt 2>&1 &
sleep 4
mosquitto_pub -h 127.0.0.1 -p 1883 -i demo-pub -u "$U" -P "$P" \
  -t demo/sensors/temp -q 1 -m '22.5'
sleep 3
cat /tmp/mqtt-demo.txt

Expected output:

demo/sensors/temp 22.5

To connect from your own machine instead, use the VM's public IP:

mosquitto_sub -h <vm-ip> -p 1883 -u 'cloudimg/admin' -P '<your-password>' -t 'demo/#' -q 1 -v
mosquitto_pub -h <vm-ip> -p 1883 -u 'cloudimg/admin' -P '<your-password>' -t demo/hello -q 1 -m 'hi'

Two things that will save you an afternoon

Use QoS 1 where delivery matters. BifroMQ routes messages through an asynchronous subscription table. A QoS 0 publish that arrives before a subscription has fully propagated is dropped silently. That is correct MQTT behaviour — QoS 0 is explicitly best effort with no delivery guarantee — but on a freshly created subscription it is very noticeable. Every example in this guide uses -q 1.

Publisher and subscriber must share a tenant. The tenant is the part of the username before the slash. Two clients in different tenants cannot see each other's messages, and neither one gets an error — you simply get silence, which is easy to mistake for a broken broker. With the single credential this image ships, both ends use cloudimg/admin and this does not arise; it becomes relevant as soon as you add tenants of your own.

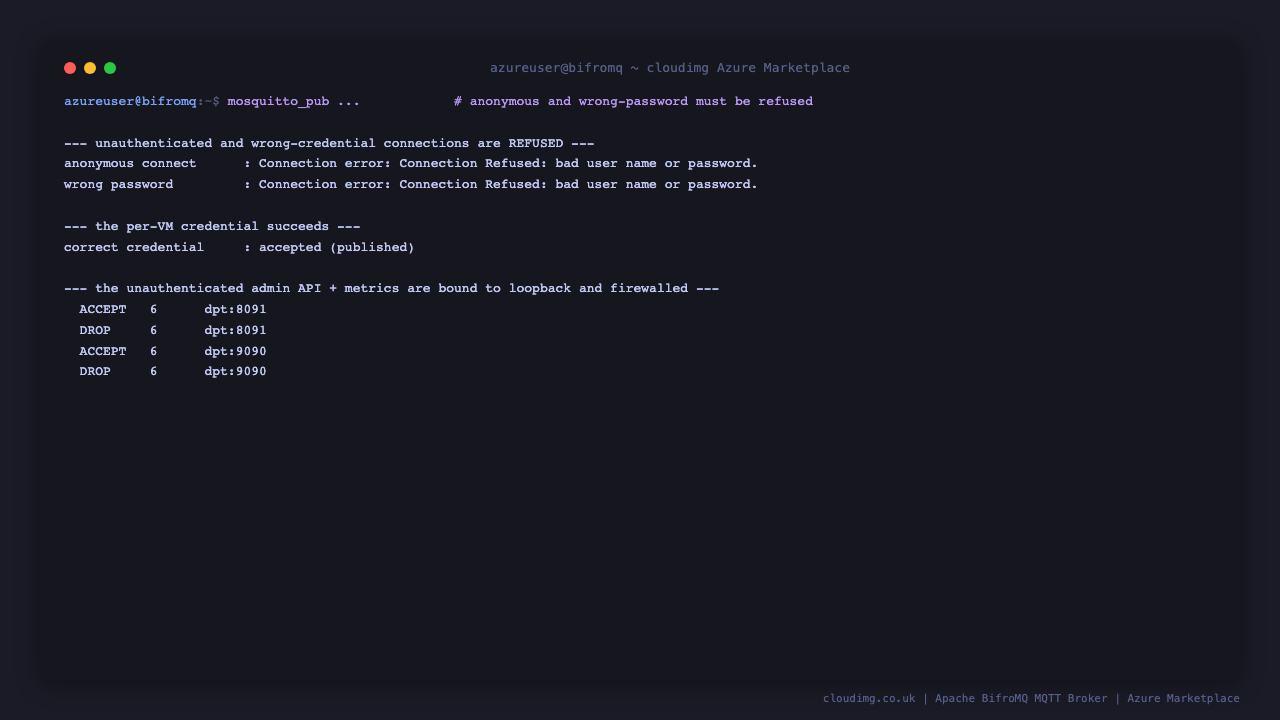

Step 5: Confirm authentication is actually enforced

Worth doing once, because an MQTT broker that silently accepts everything looks identical to a working one until it matters. Both of these must be refused:

U=$(sudo grep '^BIFROMQ_MQTT_USERNAME=' /root/bifromq-credentials.txt | cut -d= -f2-)

if mosquitto_pub -h 127.0.0.1 -p 1883 -u "$U" -P 'wrong-password' \
     -t demo/hello -q 1 -m nope 2>/dev/null; then
  echo 'PROBLEM: a wrong password was accepted'
else
  echo 'Wrong password correctly rejected'
fi

if mosquitto_pub -h 127.0.0.1 -p 1883 -t demo/hello -q 1 -m nope 2>/dev/null; then
  echo 'PROBLEM: an anonymous connection was accepted'
else
  echo 'Anonymous connection correctly rejected'
fi

Expected output:

Wrong password correctly rejected
Anonymous connection correctly rejected

Step 6: The administrative API

BifroMQ has no web console or CLI — management is through an HTTP API. That API performs no authentication of its own, and it can publish to any topic and terminate any session, so this image binds it to loopback and enforces that with a firewall rule. The plugin metrics endpoint on 9090 is treated the same way.

Check broker health locally:

curl -s http://127.0.0.1:8091/cluster

To reach the API from your own machine, tunnel over SSH rather than opening the port:

ssh -L 8091:127.0.0.1:8091 azureuser@<vm-ip>

Then browse to http://127.0.0.1:8091/cluster locally. Do not add an NSG rule for 8091 or 9090.

Step 7: Where everything lives

Logs are verbose and split by level. Start with:

sudo tail -n 20 /var/log/bifromq/info.log

Step 8: Changing the MQTT password

Credentials live in /etc/bifromq/mqtt-users, one record per line, as username:salt:hash:tenant:user. The password is stored as a salted SHA-256 digest, never in plain text. To rotate it, generate a new salt and digest and replace the record:

NEWPW='choose-a-strong-password'
SALT=$(openssl rand -hex 16)
DIGEST=$(SALT_HEX="$SALT" PW="$NEWPW" python3 -c "
import binascii, hashlib, os
print(hashlib.sha256(binascii.unhexlify(os.environ['SALT_HEX']) + os.environ['PW'].encode()).hexdigest())
")
printf 'cloudimg/admin:%s:%s:cloudimg:admin\n' "$SALT" "$DIGEST" | \
  sudo tee /etc/bifromq/mqtt-users > /dev/null
sudo chown root:bifromq /etc/bifromq/mqtt-users
sudo chmod 640 /etc/bifromq/mqtt-users
echo 'Password rotated'

The change takes effect on the next connection; the file is re-read per request, so no restart is needed. Update /root/bifromq-credentials.txt too if you want it to stay accurate.

To add a second tenant, append another record with a different username and tenant, for example acme/sensor:...:acme:sensor.

Step 9: Scaling up

The JVM is deliberately sized for a 4 GB Standard_B2s. BifroMQ's own start script would otherwise claim about 70% of system memory as heap plus a further 20% as direct memory, which does not fit on a small VM once RocksDB's off heap usage is included.

If you move to a larger VM size, raise the heap to match by editing JVM_HEAP_OPTS in /etc/default/bifromq. Keep -XX:MaxDirectMemorySize set explicitly — if you remove it, direct memory silently defaults to the maximum heap size and doubles the footprint. Leave headroom for RocksDB, which allocates outside the heap. Restart with sudo systemctl restart bifromq.service.

Step 10: Enabling TLS

The image ships without a certificate, so MQTT over TLS is disabled. To enable it, place your certificate and key on the VM, then set tlsListener.enable: true with the certFile and keyFile paths under mqttServiceConfig.server.tlsListener in /opt/bifromq/current/conf/standalone.yml, restart the broker, and open TCP 1884 in the NSG. Clients then connect with --cafile against port 1884.

Security notes

• Keep 1883 scoped in the NSG to the networks your devices actually use.
• Never open 8091 or 9090. Both are unauthenticated. Use the SSH tunnel in Step 6.
• Rotate the shipped password if the VM will be long lived (Step 8).
• Use TLS (Step 10) for anything crossing an untrusted network — plain MQTT sends credentials in the clear.
• Patch regularly. Unattended security upgrades are enabled; reboot periodically to pick up kernel updates.

Licensing

Apache BifroMQ is licensed under Apache-2.0 and is free to use. BifroMQ is currently undergoing incubation at the Apache Software Foundation; incubation status does not necessarily reflect the completeness or stability of the code, and indicates that the project has yet to be fully endorsed by the ASF. cloudimg provides the packaging, hardening and commercial support separately — support@cloudimg.co.uk.
