CentOS Stream 9 with GNOME Desktop on Azure User Guide

Overview

This guide covers the deployment and configuration of CentOS Stream 9 with the GNOME desktop on Microsoft Azure using cloudimg's pre configured virtual machine image from the Azure Marketplace.

CentOS Stream is a free, open source Linux distribution maintained by the CentOS Project and sponsored by Red Hat. Stream 9 is the continuously delivered branch that sits just ahead of Red Hat Enterprise Linux 9, so it shows what the next RHEL 9 minor release will contain while remaining compatible with the RHEL 9 platform. This image is genuine CentOS Stream 9 with the distribution's own desktop added: the AppStream environment group @graphical-server-environment, which CentOS calls Server with GUI. You reach the desktop with any VNC viewer through TigerVNC, the VNC server CentOS Stream ships in its own AppStream repository, and each user gets their own full GNOME session running on the virtual machine.

The image is built so that a freshly deployed machine exposes nothing but SSH. VNC ships switched off, no account has a password, no VNC password exists anywhere in the image, and when you do turn VNC on the server listens on localhost only, so you reach it through an SSH tunnel rather than over the internet.

What's included:

• CentOS Stream 9 on the 5.14 kernel, with every available update applied at build time
• The GNOME desktop from the CentOS Stream AppStream repository: GNOME Shell 40.10, the GDM 40 login screen and mutter 40.9
• Desktop applications from the same group, including Files (Nautilus), Terminal, Firefox, Text Editor, Calculator, System Monitor, Disks, Logs and Software
• TigerVNC 1.16 (tigervnc-server), configured for per user desktops on localhost only, with every offered security type requiring the VNC password
• cloudimg-vnc, a small helper that shows the VNC state and starts or stops a user's desktop in one command
• Guest sleep disabled, so the desktop never offers a Suspend that would leave an Azure virtual machine unreachable
• dnf-automatic armed to apply updates automatically, so the machine keeps patching itself
• SELinux in enforcing mode and the Azure provisioning path unchanged (cloud-init, the Azure Linux Agent, NetworkManager)
• A 30 GiB operating system disk, sized for a desktop rather than a headless server
• Generation 1 Hyper V virtual machine support
• 24/7 cloudimg support

The image carries around 1,180 packages and uses about 5.5 GiB of the 30 GiB operating system disk, leaving the rest for your own software and data.

Platform: Microsoft Azure (Generation 1 Hyper V, x64) Default user: azureuser

A note on virtual machine generation. This image is a Generation 1 image, because the upstream CentOS Stream cloud image boots through the legacy BIOS path rather than UEFI. Generation 1 is supported across the common Azure VM families used for desktops, including the B, D and E v3 and v5 series. When you pick a size, choose one that supports Generation 1; a few of the newest families are Generation 2 only.

End of life: 31 May 2027

CentOS Stream 9 reaches end of life on 31 May 2027. The CentOS Project publishes that date on centos.org, and endoflife.date lists the same date for the end of both support and security updates for CentOS Stream 9. After that date the CentOS Project stops publishing updates for Stream 9, and this image will no longer receive security fixes from its repositories.

The upgrade path is CentOS Stream 10, supported until 31 May 2030. There is no in place upgrade between CentOS Stream major versions: deploy a new virtual machine from CentOS Stream 10 (cloudimg publishes CentOS Stream 10 with GNOME Desktop), move your data and configuration across, then retire this machine. Plan any long lived workload on this image with that date in mind.

Why VNC, and how it is locked down

On CentOS Stream 9 the distribution's own remote desktop options are limited. GNOME Remote Desktop on this release only shares a session that someone is already logged into at the machine, so it cannot give you a remote login on a cloud server, and xrdp is only available from EPEL, a third party repository this image does not use. TigerVNC is the first party way to run headless GNOME desktops on CentOS Stream 9, and it is what Red Hat documents for RHEL 9.

VNC's own password protocol is old: it uses only the first 8 characters of the password. That is why this image never exposes VNC to the network. The policy file /etc/tigervnc/vncserver-config-mandatory forces two settings for every user, and TigerVNC loads it after each user's own configuration, so a user's settings cannot undo it:

• localhost makes the VNC server listen on 127.0.0.1 and ::1 only. You connect through an SSH tunnel, which is encrypted and authenticated with your SSH key.
• securitytypes=tlsvnc,vncauth offers only security types that require the VNC password. None (no password) is never offered.

GDM runs with Wayland disabled (WaylandEnable=False in /etc/gdm/custom.conf), which RHEL 9 requires for TigerVNC desktops. Sessions are X11.

The two passwords, and which one goes where

Neither password exists until you create it, and both belong to you:

1. Your VNC password. You set it yourself by running vncpasswd as your own user, without sudo. It is stored at ~/.config/tigervnc/passwd, readable only by you. Your VNC viewer asks for it when it connects. Only the first 8 characters count.
2. Your account password. You set it yourself with sudo passwd <your-user>. The VNC session logs you straight into GNOME, but the desktop still asks for this password when the screen locks and when an application needs administrator rights. The image ships with no account password at all.

SSH stays key only throughout. Setting either password does not enable password logins over SSH.

Security posture

This image ships with no known credential:

• No account has a password. The root account is locked and your administrator account is created at first boot with only the SSH key you supply.
• SSH is key only (PasswordAuthentication no).
• No VNC password exists for any account. No VNC desktop is configured, the unauthenticated inetd mode xvnc.socket is disabled, and a new virtual machine listens on SSH port 22 only. Port 22 is the only port the listing advertises.
• When VNC is on, it listens on localhost only and every offered security type requires the VNC password.
• The helper refuses to start a desktop for a user who has no account password or no VNC password.
• Guest sleep is disabled, so the desktop menu offers Restart, Power Off and Log Out but never Suspend.
• SSH host keys are removed before capture and regenerated on each machine at first boot, and /etc/machine-id is regenerated per machine, so no two machines share a host identity. Firmware update tooling generates its own client key per machine as well.
• SELinux is left in enforcing mode, the CentOS Stream default, and GDM automatic login is not enabled.

Known issue: TigerVNC and CVE-2025-49177

CVE-2025-49177 is not fixed in the TigerVNC package on CentOS Stream 9, and Red Hat has said it will not fix it in TigerVNC on RHEL 9. Checked on 17 September 2026:

• Red Hat (Security Data API for CVE-2025-49177) lists tigervnc on Red Hat Enterprise Linux 9 as "Will not fix", severity Important, CVSS 3.1 score 6.1 with vector AV:L/AC:L/PR:L/UI:N/S:U/C:H/I:N/A:L, which is a local attack vector. Red Hat describes it as: "A flaw was found in the XFIXES extension. The XFixesSetClientDisconnectMode handler does not validate the request length, allowing a client to read unintended memory from previous requests." On mitigation Red Hat says: "Mitigation for this issue is either not available or the currently available options don't meet the Red Hat Product Security criteria".
• CentOS Stream does not publish security advisories; its package sources are public instead. The CentOS Stream 9 TigerVNC source (the c9s branch of gitlab.com/redhat/centos-stream/rpms/tigervnc, version 1.16.2-4, the same build this image ships as tigervnc-server-1.16.2-4.el9) records fixes for CVE-2025-49175, CVE-2025-49176, CVE-2025-49178, CVE-2025-49179 and CVE-2025-49180 in its changelog, and no entry for CVE-2025-49177. The changelog of the installed package agrees. For comparison, the CentOS Stream 9 Xwayland source does record it: "CVE fix for: CVE-2025-49175 (RHEL-97288), CVE-2025-49176 (RHEL-97334), CVE-2025-49177 (RHEL-97357)" in xorg-x11-server-Xwayland 23.2.7-4, which is the newer X server generation.

What cloudimg measured on this image, recorded as facts rather than as a claim that you are unaffected: both the VNC server (Xvnc) and the login screen's Xorg server report the X.Org 1.20.11 code base, and when a client asks either of them for XFIXES protocol version 6.0 they negotiate version 5.0; the XFixesSetClientDisconnectMode request belongs to XFIXES version 6. Xvnc runs as the desktop's own user and accepts X clients only through its local socket and that user's X authority cookie, with no X11 TCP port. VNC is off until you enable it. If your security policy does not accept an unfixed vendor CVE, do not enable VNC on this image. If CentOS Stream publishes a fixed package, dnf-automatic applies it automatically.

Prerequisites

Before deploying this image, ensure you have:

1. An active Microsoft Azure subscription
2. Access to the Azure Portal or Azure CLI
3. An SSH key pair for Linux VM access
4. A VNC viewer: TigerVNC Viewer (Windows, macOS, Linux), RealVNC Viewer, Remmina on Linux, or the built in Screen Sharing app on macOS

Recommended VM Size: Standard_B2ms (2 vCPU, 8 GB RAM) or larger. Measured on this image: the login screen plus one idle GNOME VNC session uses about 1.45 GiB of memory, which fits in the 4 GB of Standard_B2s for light use, but a browser and a few applications quickly need the extra room. There is no GPU requirement: the desktop renders in software.

Step 1: Deploy the Virtual Machine

Option A: Azure Portal

1. Navigate to the Azure Marketplace and search for "CentOS Stream 9 with GNOME Desktop cloudimg"
2. Select the image and click Create
3. Configure the basics:
4. Subscription: Select your Azure subscription
5. Resource Group: Create new or select existing
6. Virtual Machine Name: Enter a name for your VM
7. Region: Select your preferred Azure region
8. Size: Standard_B2ms or larger (a size that supports Generation 1)
9. Under Administrator Account, select SSH public key and enter your key
10. Under Inbound Port Rules, allow SSH (port 22) only. Do not open any VNC port: the desktop is reached through an SSH tunnel
11. Click Review + Create, then Create

Option B: Azure CLI

Run this on your own workstation, substituting your resource group, VM name and preferred region. Accept the Marketplace terms once per subscription, then create the machine:

az vm image terms accept --urn cloudimg1647283583153:centos-stream-9-gui:default:latest

az vm create \
  --resource-group myResourceGroup \
  --name my-centos-desktop \
  --image cloudimg1647283583153:centos-stream-9-gui:default:latest \
  --size Standard_B2ms \
  --admin-username azureuser \
  --generate-ssh-keys \
  --public-ip-sku Standard

Step 2: Connect via SSH

Run these on your own workstation, not on the VM. Find the public IP, then connect:

az vm show --resource-group myResourceGroup --name my-centos-desktop --show-details --query publicIps -o tsv
ssh azureuser@<vm-ip>

There is no password to enter. If SSH asks you for one, the key you supplied at create time is not the key your client is offering.

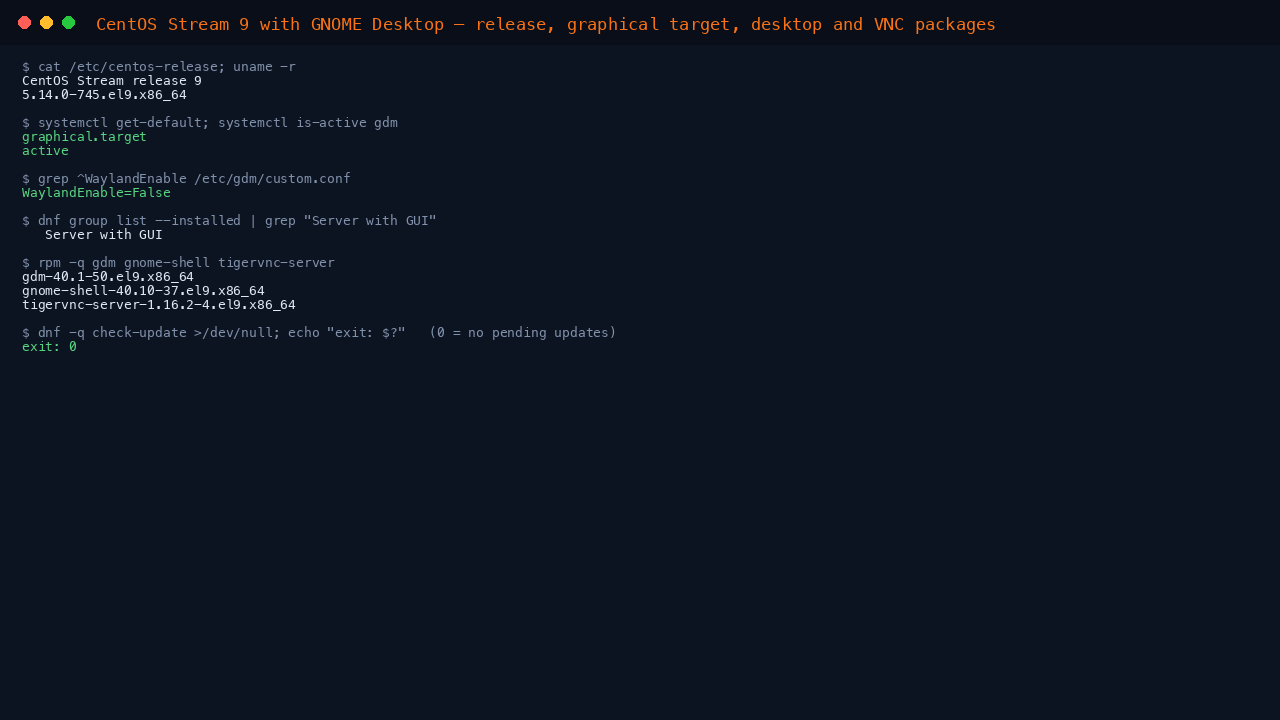

Step 3: Confirm the release and the desktop

Check that the machine is CentOS Stream 9, that it boots to the graphical target, that the GNOME login screen (GDM) is running with Wayland disabled, and which desktop and VNC packages are installed:

cat /etc/centos-release
uname -srm
systemctl get-default
systemctl is-active gdm.service
grep '^WaylandEnable' /etc/gdm/custom.conf
rpm -q --qf '%{NAME} %{VERSION}\n' gdm gnome-shell mutter xorg-x11-server-Xorg tigervnc-server

Expected output:

CentOS Stream release 9
Linux 5.14.0-745.el9.x86_64 x86_64
graphical.target
active
WaylandEnable=False
gdm 40.1
gnome-shell 40.10
mutter 40.9
xorg-x11-server-Xorg 1.20.11
tigervnc-server 1.16.2

CentOS Stream is continuously delivered, so there is no minor version number: /etc/centos-release always reads CentOS Stream release 9, and the kernel and package versions move forward as you update.

The desktop and TigerVNC come from the distribution's own repositories, not from a third party repository:

dnf group list --installed 2>/dev/null | grep -i 'Server with GUI' || true
dnf repolist
echo "packages installed: $(rpm -qa | wc -l)"
df -h /

dnf repolist shows exactly appstream, baseos and extras-common. No EPEL repository is configured.

The machine boots through the legacy BIOS path, and the operating system disk keeps its first megabyte free for Azure, with the boot loader in a dedicated BIOS boot partition. The Azure Linux Agent names the operating system disk /dev/disk/azure/root, which is safer than a /dev/sdX letter: on a Generation 1 machine the operating system disk and the temporary resource disk can swap letters between boots.

test -d /sys/firmware/efi && echo "firmware: UEFI (Gen2)" || echo "firmware: legacy BIOS (Generation 1)"
sudo parted -s /dev/disk/azure/root print | grep -E '^Partition Table|bios_grub'

firmware: legacy BIOS (Generation 1)
Partition Table: gpt
 1      1049kB  2097kB  1049kB               BIOS boot partition  bios_grub

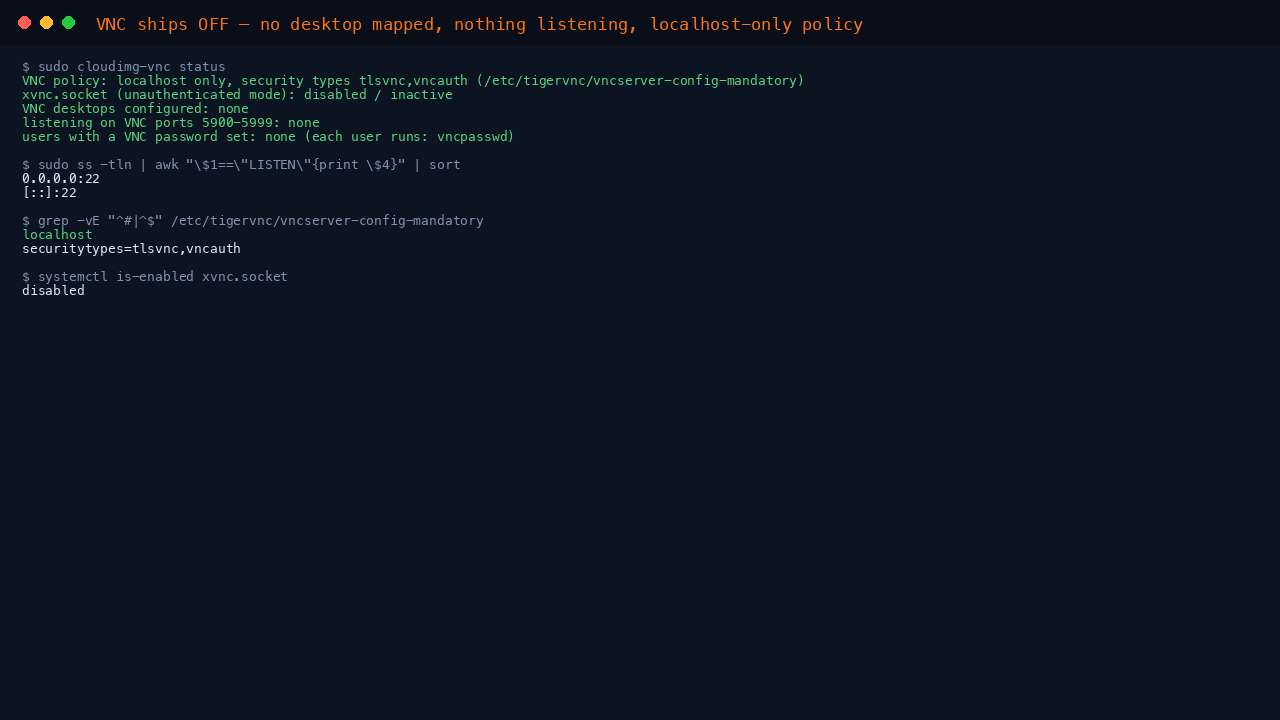

Step 4: Check that VNC is off

A new virtual machine has VNC switched off. The helper shows the whole picture in one command:

sudo cloudimg-vnc status

Expected output on a new VM:

VNC policy: localhost only, security types tlsvnc,vncauth (/etc/tigervnc/vncserver-config-mandatory)
xvnc.socket (unauthenticated mode): disabled / inactive
VNC desktops configured: none
listening on VNC ports 5900-5999: none
users with a VNC password set: none (each user runs: vncpasswd)

The helper lives at /usr/local/sbin/cloudimg-vnc. On CentOS Stream, sudo replaces your PATH with its own secure_path, which does not include /usr/local/sbin, so the image also ships /usr/sbin/cloudimg-vnc as a symlink and sudo cloudimg-vnc works as written. Its subcommands are status, enable [<user>], disable [<user>] and details; <user> defaults to your administrator account.

Confirm the policy and the network side as well:

grep -vE '^#|^$' /etc/tigervnc/vncserver-config-mandatory
sudo ss -tln | awk '$1=="LISTEN"{print $4}' | sort

localhost
securitytypes=tlsvnc,vncauth
0.0.0.0:22
[::]:22

SSH on port 22 is the only service listening.

Step 5: Set your two passwords

First your account password. Run this yourself on the VM and enter the new password twice when prompted:

sudo passwd azureuser

Then your VNC password. Run vncpasswd as yourself, without sudo, enter the password twice, and answer n to the view-only question:

vncpasswd

Password:
Verify:
Would you like to enter a view-only password (y/n)? n
A view-only password is not used

Only the first 8 characters of a VNC password are used, and vncpasswd stores it in ~/.config/tigervnc/passwd with mode 0600. Your SSH access is unaffected: SSH remains key only.

Step 6: Start your VNC desktop

sudo cloudimg-vnc enable

Expected output:

VNC desktop for azureuser enabled on display :1: listening on localhost port 5901 only
from your own machine: ssh -N -L 5901:localhost:5901 azureuser@<vm-ip>
then point a VNC viewer at localhost:5901 and enter azureuser's VNC password

The helper adds :1=azureuser to /etc/tigervnc/vncserver.users, runs systemctl enable --now vncserver@:1.service, waits until port 5901 is listening, and refuses and stops the desktop again if the port is bound anywhere other than localhost. The desktop starts again after a reboot.

If a password is missing it refuses and tells you which one:

refusing to start a VNC desktop for azureuser: the account has no password yet.
The GNOME lock screen and administrator prompts inside the desktop ask for it. Set it first:
  sudo passwd azureuser

refusing to start a VNC desktop for azureuser: no VNC password is set.
As azureuser (without sudo) run:  vncpasswd

Step 7: Connect through an SSH tunnel

On your own workstation, open the tunnel and leave it running:

ssh -N -L 5901:localhost:5901 azureuser@<vm-ip>

Azure drops a TCP connection that has carried no traffic for about four minutes, and an SSH tunnel with nothing flowing through it looks exactly like that: the ssh process keeps running, but the forward silently stops working. Measured on this image: a tunnel opened without keepalives stopped forwarding after 270 seconds idle, while the same tunnel with -o ServerAliveInterval=60 still authenticated after 280 seconds idle. If you leave the tunnel open between sessions, add the keepalive:

ssh -N -o ServerAliveInterval=60 -L 5901:localhost:5901 azureuser@<vm-ip>

Then point your VNC viewer at localhost:5901 (TigerVNC and RealVNC accept localhost:5901; some viewers want the display form localhost:1; on macOS open Screen Sharing and connect to vnc://localhost:5901). Enter your VNC password, and your GNOME desktop opens.

TigerVNC Viewer marks the password dialog "This connection is not secure". It says that because the server has no certificate for the viewer to verify: TigerVNC's TLSVnc security type uses anonymous TLS. Through the SSH tunnel the connection is encrypted and the server is authenticated by SSH, which is why the image only allows VNC over the tunnel.

Step 8: Use the desktop

GNOME opens in the Activities overview. Press Escape for the desktop, or the Super key to return to the overview. The top right system menu offers Restart, Power Off and Log Out. Suspend is deliberately absent, because a suspended Azure virtual machine stops answering while Azure still reports it as running:

The application grid holds the applications that come with the Server with GUI group:

A terminal inside the session behaves exactly as your SSH session does, and your administrator account keeps its sudo rights. The session type is X11, and the VNC server is listening on the loopback addresses only:

To add software, use dnf as on any CentOS Stream machine, for example sudo dnf install -y libreoffice, then open the application from the grid.

Closing your VNC viewer leaves the session running on the VM; connect again and you return to it.

Step 9: Desktops for more users

Each user gets their own display and port. Create the user with a password, have them run vncpasswd, then enable their desktop. The helper assigns the next free display (:2 is port 5902):

sudo useradd -m alice
sudo passwd alice
sudo -u alice -H vncpasswd
sudo cloudimg-vnc enable alice

Alice then tunnels her own port, for example ssh -N -L 5902:localhost:5902 alice@<vm-ip> once her SSH key is in place.

Step 10: Turn VNC off again

sudo cloudimg-vnc disable

VNC desktop for azureuser disabled: display :1 removed, nothing listening on port 5901

This stops the session, disables vncserver@:1.service and removes the mapping, so nothing listens after a reboot. sudo cloudimg-vnc status shows the state at any time.

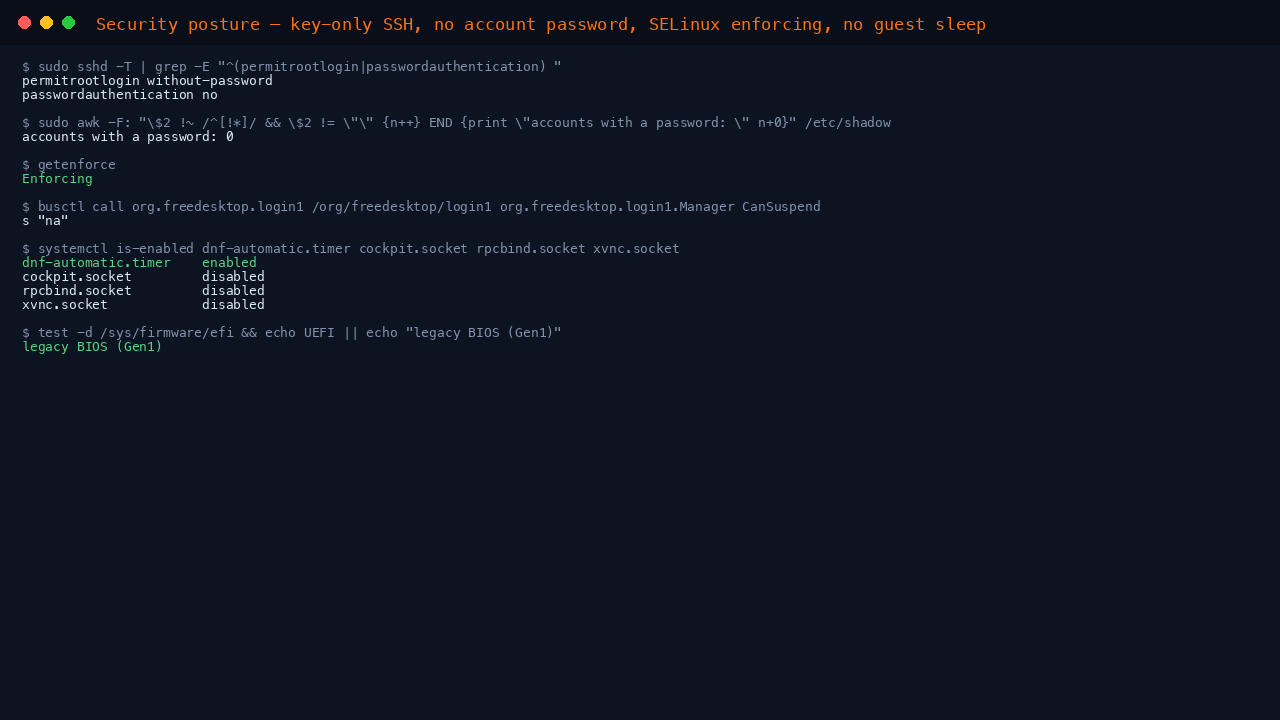

Step 11: Verify the security posture

Confirm SELinux is enforcing, that SSH is key only, that no account has a password until you set one, and that guest sleep is disabled:

getenforce
sudo sshd -T | grep -E '^(passwordauthentication|kbdinteractiveauthentication) '
sudo passwd -S root | awk '{print $1, $2}'
sudo awk -F: '$2 !~ /^[!*]/ && $2 != "" {n++} END {print "accounts with a password: " n+0}' /etc/shadow
busctl call org.freedesktop.login1 /org/freedesktop/login1 org.freedesktop.login1.Manager CanSuspend

Expected output on a new VM (after Step 5 the password count reads 1, your own account):

Enforcing
passwordauthentication no
kbdinteractiveauthentication no
root LK
accounts with a password: 0
s "na"

LK means the root account is locked, and na means logind will not suspend the machine. The sleep policy and the SSH policy are both pinned by drop in files, so a later package update to the main configuration cannot quietly loosen them:

grep -vE '^#|^$' /etc/systemd/sleep.conf.d/20-cloudimg-no-guest-sleep.conf
grep -vE '^#' /etc/ssh/sshd_config.d/60-cloudimg-hardening.conf

[Sleep]
AllowSuspend=no
AllowHibernation=no
AllowSuspendThenHibernate=no
AllowHybridSleep=no
PermitRootLogin prohibit-password
PasswordAuthentication no
KbdInteractiveAuthentication no
ChallengeResponseAuthentication no

Step 12: Patching and updates

Every available update was applied when this image was built, and dnf-automatic is armed so the machine downloads and applies updates on its own schedule:

systemctl is-enabled dnf-automatic.timer
grep -E '^(upgrade_type|download_updates|apply_updates) ' /etc/dnf/automatic.conf

Expected output:

enabled
upgrade_type = default
download_updates = yes
apply_updates = yes

Why default and not security. CentOS Stream publishes no security advisory metadata: its repositories carry no updateinfo data, so a security only selection has nothing to select. cloudimg measured this on the image build: with one package update pending, dnf upgrade --security and dnf-automatic set to upgrade_type = security both reported "No security updates needed, but 1 update available" and installed nothing, while upgrade_type = default installed the update. On CentOS Stream the only way to keep a machine patched unattended is to apply every update, which is what this image does. If you would rather review updates yourself, set apply_updates = no in /etc/dnf/automatic.conf, or opt out entirely with sudo systemctl disable --now dnf-automatic.timer.

Check whether anything is pending at any time. The advisory count is always zero on CentOS Stream, so the check-update exit code is the view that matters:

dnf -q check-update >/dev/null 2>&1; echo "check-update exit=$? (0 = nothing pending, 100 = updates available)"
echo "advisories published for this release: $(dnf -q updateinfo list --all 2>/dev/null | wc -l)"

check-update exit=0 (0 = nothing pending, 100 = updates available)
advisories published for this release: 0

Automatic updates never restart the machine for you, so check whether a restart is owed after a kernel update and pick your own window:

dnf needs-restarting -r || true

You can always update on your own schedule with sudo dnf -y upgrade, and reboot if a new kernel was installed.

GNOME Software may show "Software Updates Ready to Install" on your first login even though dnf reports nothing pending. That notification comes from the firmware updater (fwupd), not from a package: it can offer firmware variable updates published through the Linux Vendor Firmware Service. It is not an operating system package, it is not part of this image, and whether to apply a firmware update to your virtual machine is your decision. fwupdmgr get-updates shows exactly what it offers.

Step 13: Networking, the firewall, and services that ship switched off

The Azure Network Security Group is the enforced firewall for this image, and you do not need to open any port for the desktop: it travels inside SSH.

The Server with GUI group brings several daemons with it that a cloud server does not need, and the base image had rpcbind listening. They are left installed but disabled, never masked, so the image exposes only port 22 and you can turn any of them back on with a single command:

for u in cockpit.socket avahi-daemon.service cups.service bluetooth.service firewalld.service rpcbind.socket xvnc.socket; do
  echo "$u: $(systemctl is-enabled "$u" 2>/dev/null || true)"
done

cockpit.socket: disabled
avahi-daemon.service: disabled
cups.service: disabled
bluetooth.service: disabled
firewalld.service: disabled
rpcbind.socket: disabled
xvnc.socket: disabled

To enable any of them, for example the Cockpit web console, run sudo systemctl enable --now cockpit.socket and open the port in your Network Security Group. Do not enable xvnc.socket: it serves a login screen over VNC on port 5900 with no VNC password (-SecurityTypes=None).

firewalld is installed but switched off, so your NSG rules take effect exactly as written. If your policy requires a host firewall, enable it yourself and allow SSH through it:

sudo systemctl enable --now firewalld
sudo firewall-cmd --permanent --add-service=ssh
sudo firewall-cmd --reload

The VNC desktop needs no firewalld rule, because the tunnel arrives over SSH. The network stack is NetworkManager, configured by cloud-init exactly as on CentOS Stream 9 Server.

Verify what you are running

Three commands answer the three questions that matter: which release this is, that it is a desktop image, and whether VNC is currently on.

cat /etc/centos-release
systemctl get-default
sudo cloudimg-vnc status

Common Use Cases

• A cloud workstation for enterprise Linux development with a full GNOME desktop, reached through an SSH tunnel
• Previewing and testing what the next RHEL 9 minor release will bring, with a desktop, before it reaches RHEL
• Running graphical administration and data tools close to your Azure resources
• Training labs and demonstrations that need a desktop rather than a shell, one desktop per user
• A secure jump desktop that exposes nothing but SSH

Troubleshooting

"Connection refused" on localhost:5901

VNC is off on a fresh VM by design. Run sudo cloudimg-vnc enable first, check the SSH tunnel is still running in its own terminal window, and check the port matches your display (:1 is 5901, :2 is 5902). sudo cloudimg-vnc status shows what is listening.

The viewer hangs connecting to localhost:5901 after the tunnel sat idle

The VNC server is fine; the tunnel's TCP connection was dropped by Azure after about four idle minutes, while the ssh -N process on your workstation kept running. Stop that ssh process, open the tunnel again, and use -o ServerAliveInterval=60 so it stays alive while idle (Step 7). Your desktop session on the VM is unaffected and is still there when you reconnect.

The viewer says "Authentication failure"

The viewer wants your VNC password, the one you set with vncpasswd, not your account password. Only its first 8 characters count. Set it again with vncpasswd and reconnect; the running desktop does not need restarting.

Connecting directly to the VM's public IP on port 5901 does not work

That is the security design: the VNC server listens on localhost only. Use the SSH tunnel from Step 7. The localhost setting in /etc/tigervnc/vncserver-config-mandatory also overrides any interface or localhost setting in a user's own ~/.config/tigervnc/config.

The screen is locked and asks for a password

The lock screen wants your account password from sudo passwd <your-user>. If you never set one, the helper would not have started the desktop; if you removed it afterwards, set it again over SSH.

A desktop you start again can also open straight at the lock screen. GNOME remembers, per display, that the previous desktop on that display was locked when it stopped (for example after it locked while idle), and it keeps that promise for the next desktop on the same display while you are still logged in over SSH. Click or press a key and enter your account password.

The desktop does not start for a user

journalctl -u vncserver@:1 shows the service, and the session log is in the user's ~/.local/state/tigervnc/. TigerVNC cannot start a VNC desktop for a user who is already logged into another graphical session on the same machine, so log that session out first.

"This connection is not secure" in TigerVNC Viewer

Expected, and explained in Step 7: the server has no certificate, and the SSH tunnel provides the encryption and server authentication.

The VM size I picked will not deploy

This is a Generation 1 image. If Azure reports that the size does not support the image's generation, pick a size from a family that supports Generation 1, such as the B series (Standard_B2ms) or the D and E v5 series.

Cannot connect via SSH

1. Verify the VM is in Running state in the Azure Portal
2. Check that port 22 is allowed in the Network Security Group
3. Ensure you are using the administrator username you named at create time
4. Verify your SSH key matches the one you supplied at create time. Password login over SSH is disabled by design.

A service is blocked and the logs mention SELinux

SELinux is enforcing, which is the secure default and should stay that way. Denials are recorded in the audit log, so look there rather than in the journal:

sudo ausearch -m AVC -ts recent </dev/null 2>/dev/null || echo "no recent AVC denials"

Most denials on a fresh machine come from software installed into a non standard path. Relabel with sudo restorecon -Rv /path before considering any policy change. vncpasswd already creates ~/.config/tigervnc with the correct vnc_home_t label.

Important Notes

CentOS Stream is free and open source, but it is not covered by a single licence: the distribution is a collection of thousands of independently packaged components, each carrying its own terms, predominantly GPL and LGPL, with MIT, BSD, Apache 2.0, MPL and others. The GNOME desktop, GDM and TigerVNC are free software packaged in the CentOS Stream AppStream repository. Every package's terms are readable on the machine with rpm -qi <package> and under /usr/share/licenses/. No subscription, entitlement or licence key is required to run this image, and no Red Hat subscription is involved.

CentOS Stream 9 reaches end of life on 31 May 2027 (see the End of life section above). The upgrade path is CentOS Stream 10 on a new virtual machine.

CentOS is a trademark of Red Hat, Inc. and GNOME is a trademark of the GNOME Foundation. Both names are used here nominatively, only to identify the distribution and the desktop environment this image contains. cloudimg is not affiliated with, endorsed by or sponsored by Red Hat, the CentOS Project or the GNOME Foundation.

Support

For assistance with this image, contact cloudimg support:

• Website: www.cloudimg.co.uk
• Product Catalogue: www.cloudimg.co.uk/products
• User Guides: www.cloudimg.co.uk/guides
• SLA: 24 hour response guaranteed
