Observability Azure

Coroot Community Edition on Ubuntu 24.04 on Azure User Guide

Last updated: 2026-07-19 | Product: Coroot Community Edition on Ubuntu 24.04 LTS on Azure

Overview

Coroot Community Edition is an open source observability and application performance monitoring platform built on eBPF. A zero instrumentation node agent captures metrics, distributed traces, logs and continuous CPU profiles straight from the Linux kernel, and Coroot correlates them into automatic service maps, health and latency SLOs, deployment tracking and root cause hints, all explorable from a built in web dashboard. It bundles its own metrics store (Prometheus) and telemetry store (ClickHouse) so a single VM gives you a full picture of how your services talk to each other and where time and errors are spent, without adding tracing libraries to your code.

The cloudimg image runs the pinned Coroot Community Edition 1.23.3 stack as official upstream containers under one systemd service, then locks it down for a marketplace appliance. The Coroot server is bound to loopback 127.0.0.1:8080 and fronted by an nginx reverse proxy on port 80, while the bundled Prometheus and ClickHouse run on a private Docker network and are never published to a host port. Coroot has a built in admin login with no default password, so a unique admin password is generated on the first boot of your VM and used to seed the admin account before the port is ever public. The privileged eBPF node agent ships host CPU, memory, disk, network, container and process telemetry into Coroot automatically. Backed by 24/7 cloudimg support.

What is included:

Coroot Community Edition 1.23.3 (server plus web dashboard) running as the coroot systemd service via docker compose
A bundled Prometheus (metrics) and ClickHouse (traces, logs and profiles), both on a private network with no host port
The privileged eBPF coroot-node-agent collecting host and process telemetry with zero instrumentation
nginx on :80 fronting the dashboard, with Coroot bound to loopback only and an unauthenticated /healthz for load balancer probes
A per-VM admin password generated on first boot and seeded into Coroot, with no default login baked into the image
A fully patched Ubuntu 24.04 LTS base with unattended security upgrades enabled

Coroot is a trademark of Coroot, Inc. This image is provided by cloudimg and is not affiliated with, endorsed by, or sponsored by Coroot, Inc.

Prerequisites

An Azure subscription and permission to create a VM
An SSH key pair (ssh-keygen -t ed25519)
Inbound access to port 22 (SSH) and port 80 (the web dashboard) on the VM, and optionally 443 if you add TLS
A recommended size of Standard_B4ms (4 vCPU, 16 GiB) or larger, because the bundled ClickHouse telemetry store benefits from memory headroom

Step 1 - Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Coroot by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size (choose Standard_B4ms or larger); under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTP (80). Then Review + create -> Create.

Step 2 - Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name coroot \
  --image <marketplace-image-urn> \
  --size Standard_B4ms \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name coroot --port 80 --priority 1010

Step 3 - Connect to your VM

ssh azureuser@<vm-public-ip>

Step 4 - Confirm the services are running

systemctl is-active docker.service coroot.service nginx.service

All three report active. The coroot.service unit runs the whole stack with docker compose: the Coroot server on the loopback address 127.0.0.1:8080, the bundled Prometheus and ClickHouse on a private Docker network, and the privileged eBPF node agent. nginx fronts the dashboard on port 80.

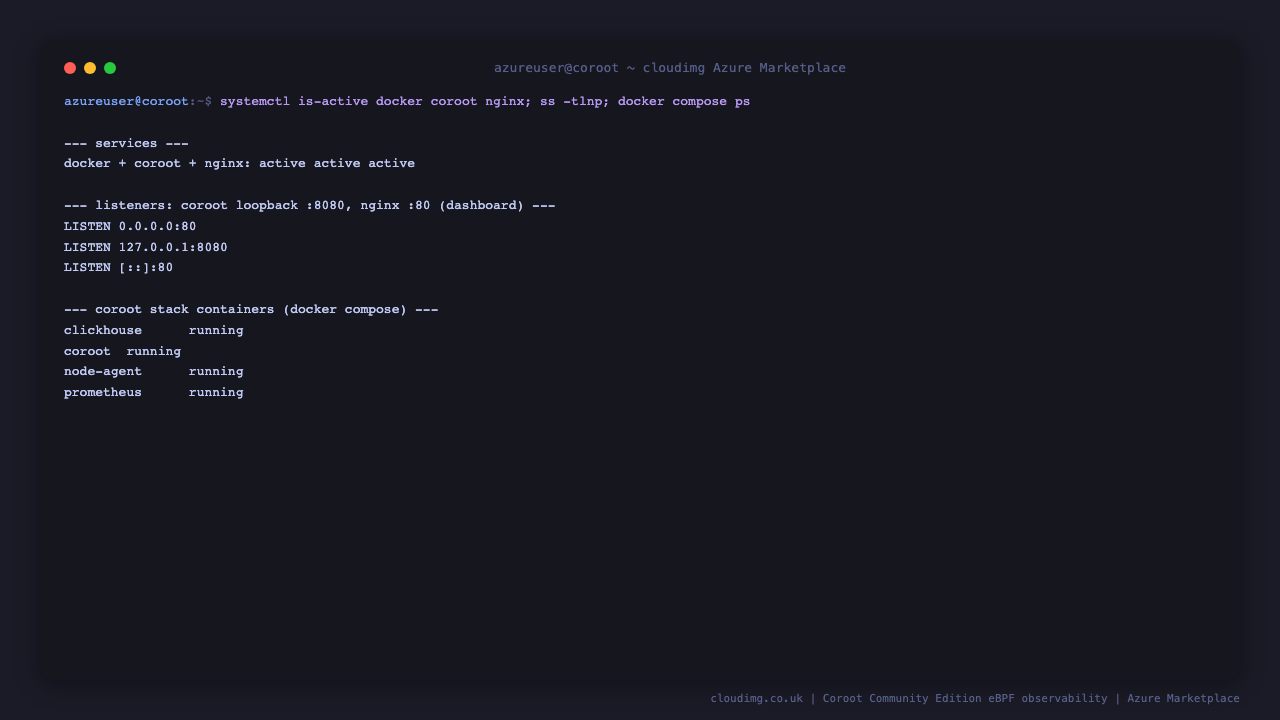

The docker, coroot and nginx services all reporting active, the Coroot server listening on loopback 127.0.0.1:8080, nginx on port 80, and the four Coroot containers running under docker compose

Step 5 - Retrieve your admin password

Coroot has a built in admin login. The username is admin and a unique password is generated on the first boot of your VM, used to seed the admin account, and written to a root-only file:

sudo cat /root/coroot-credentials.txt

This file contains coroot.username, coroot.password and the coroot.url to open in a browser. There is no default login: the admin account only exists with the per-VM password, so no two deployments share a credential and nothing usable is baked into the image. Store the password somewhere safe.

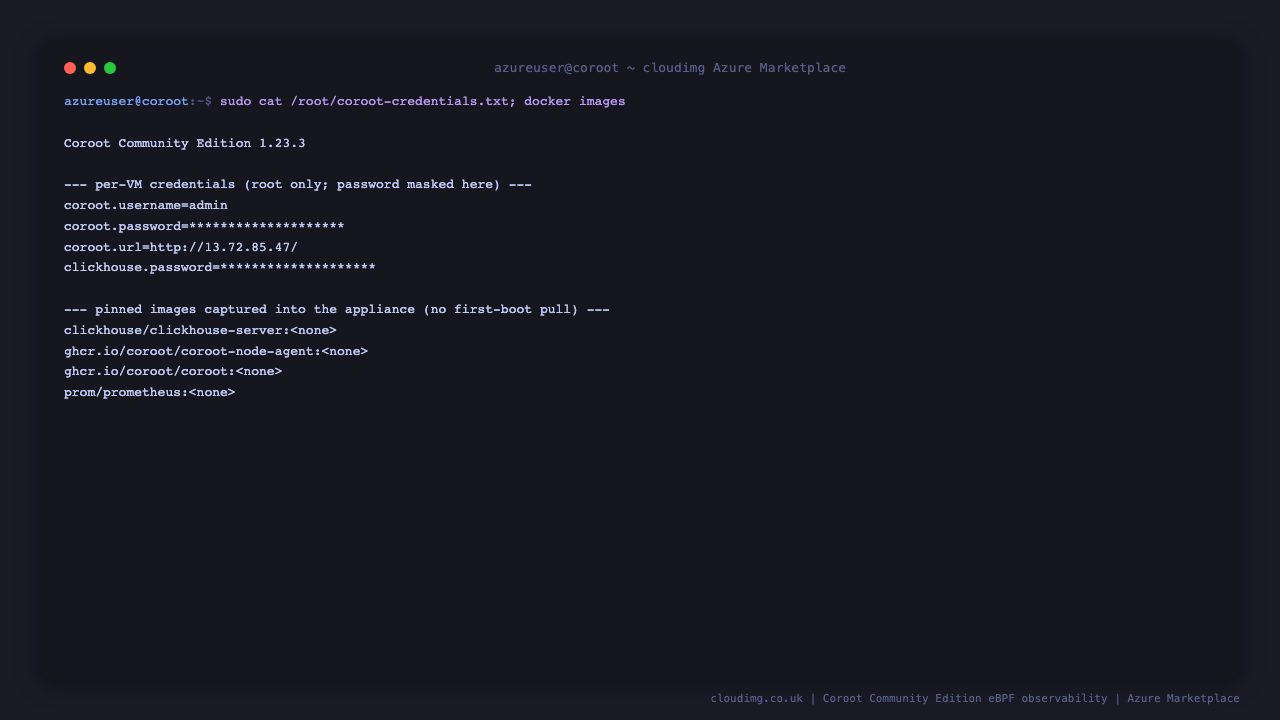

The Coroot version, the per-VM credentials file showing the admin username and generated password and the dashboard URL, and the four pinned container images captured into the appliance

Step 6 - Confirm the health endpoint

nginx serves an unauthenticated health endpoint for load balancers and probes:

curl -s http://localhost/healthz

It returns ok. Coroot's own /health endpoint is also unauthenticated and returns 200, so either is safe for an Azure Load Balancer health probe. Everything else requires the admin login.

Step 7 - Confirm the authentication gate

Coroot's API sits behind the admin session. The following reads the per-VM password from the credentials file and proves the round-trip: an unauthenticated API call is rejected with 401, a wrong password login is rejected, the correct password logs in and receives a coroot_session cookie, and an authenticated API call with that cookie returns 200:

PW=$(sudo sed -n 's/^coroot.password=//p' /root/coroot-credentials.txt)
echo "health  : $(curl -s -o /dev/null -w '%{http_code}' http://127.0.0.1/health)"
echo "unauth  : $(curl -s -o /dev/null -w '%{http_code}' http://127.0.0.1/api/project/)"
echo "wrongpw : $(curl -s -o /dev/null -w '%{http_code}' -X POST -H 'Content-Type: application/json' -d '{"email":"admin","password":"wrong-password"}' http://127.0.0.1/api/login)"
curl -s -o /dev/null -c /tmp/coroot.cookie -X POST -H 'Content-Type: application/json' \
  -d "{\"email\":\"admin\",\"password\":\"$PW\"}" http://127.0.0.1/api/login
echo "login   : $(curl -s -o /dev/null -w '%{http_code}' -c /tmp/coroot.cookie -X POST -H 'Content-Type: application/json' -d "{\"email\":\"admin\",\"password\":\"$PW\"}" http://127.0.0.1/api/login)"
echo "authed  : $(curl -s -o /dev/null -w '%{http_code}' -b /tmp/coroot.cookie http://127.0.0.1/api/project/)"

It prints health : 200, unauth : 401, wrongpw : 404, login : 200, then authed : 200. The API is only reachable with the per-VM admin session because Coroot itself is bound to loopback and nginx is the only way in.

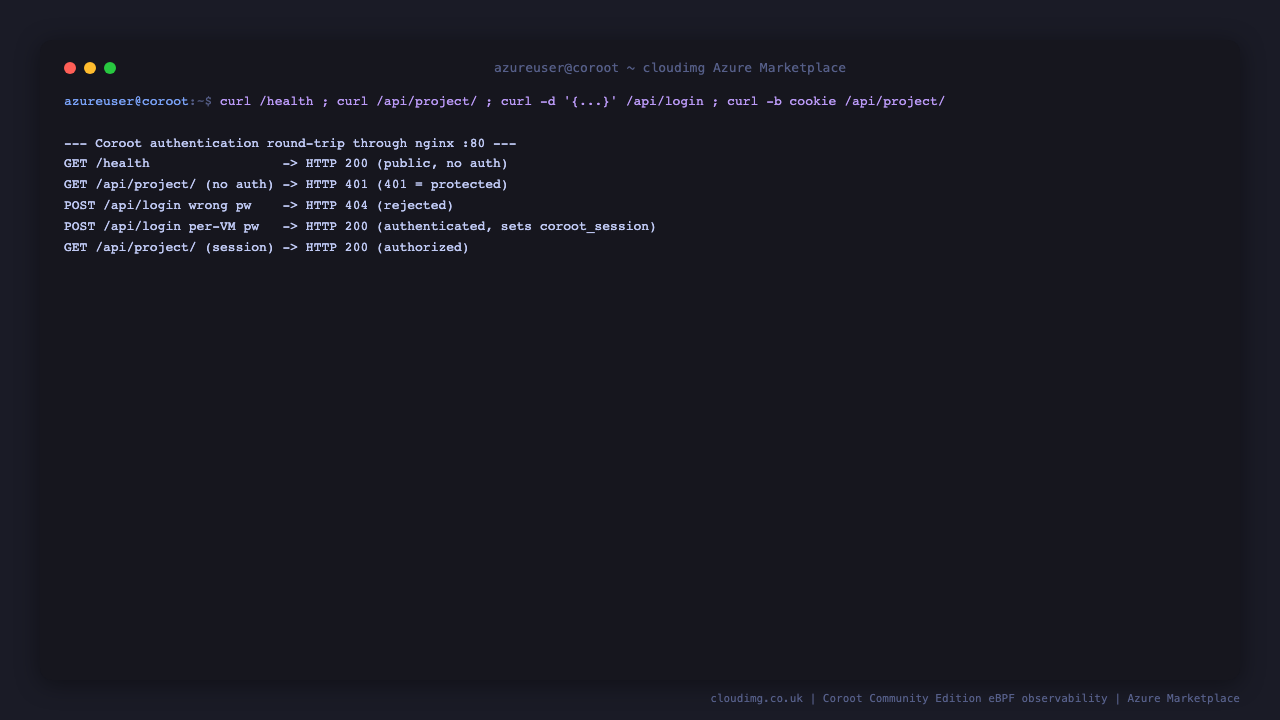

The Coroot authentication round-trip: the health endpoint returning 200 with no auth, an unauthenticated API call returning 401, a wrong password login rejected, the per-VM password logging in with 200 and a coroot_session cookie, and an authenticated API call returning 200

Step 8 - Confirm the eBPF node agent is collecting telemetry

The bundled node agent uses eBPF to collect metrics, traces, logs and CPU profiles from the kernel with no instrumentation. Once logged in, the API reports the nodes it has discovered:

PW=$(sudo sed -n 's/^coroot.password=//p' /root/coroot-credentials.txt)
curl -s -c /tmp/coroot.cookie -o /dev/null -X POST -H 'Content-Type: application/json' \
  -d "{\"email\":\"admin\",\"password\":\"$PW\"}" http://127.0.0.1/api/login
PID=$(curl -s -b /tmp/coroot.cookie http://127.0.0.1/api/user | python3 -c 'import json,sys; print(json.load(sys.stdin)["projects"][0]["id"])')
curl -s -b /tmp/coroot.cookie "http://127.0.0.1/api/project/$PID/overview/nodes" \
  | python3 -c 'import json,sys; d=json.load(sys.stdin); print("node agent status:", d["context"]["status"]["node_agent"])'

It prints node agent status: {'status': 'ok', 'nodes': 1}. As the agent reports in, the service map and dashboards in the web UI fill with the host, its processes and their interconnections.

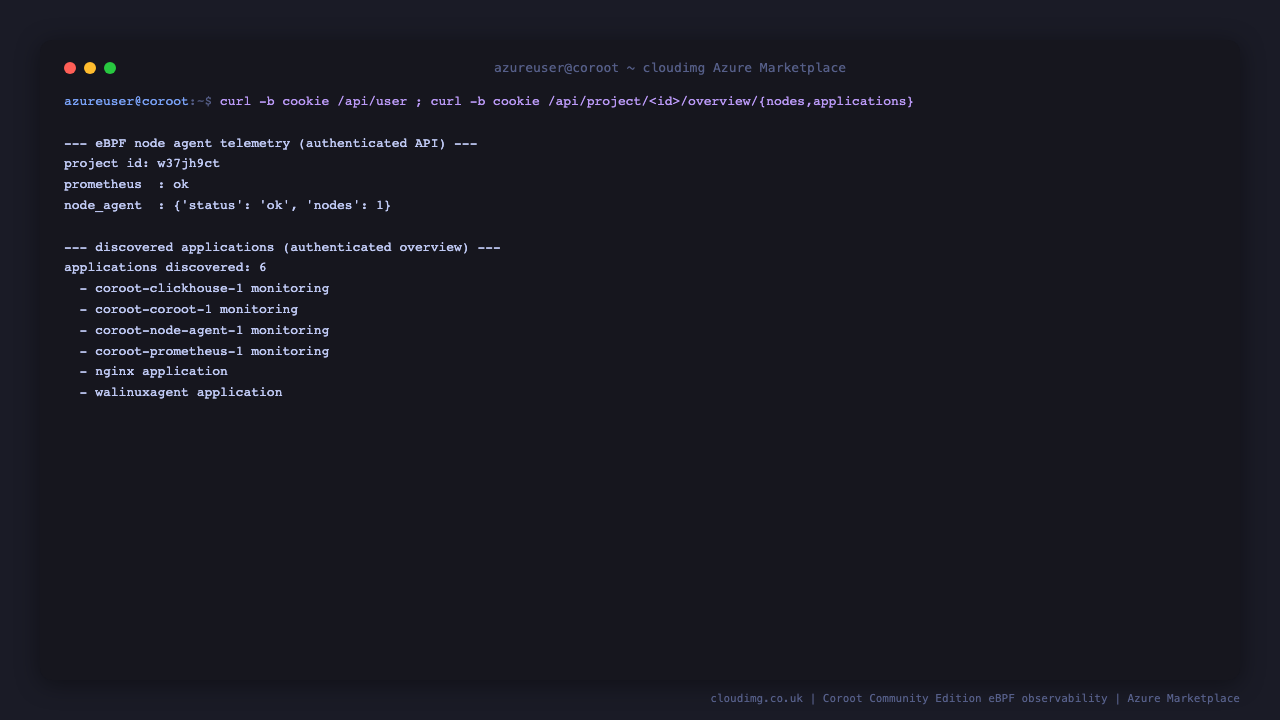

An authenticated call to the Coroot nodes overview API showing the node agent status and the discovered node, confirming eBPF telemetry is flowing into Coroot

Step 9 - Sign in to the Coroot dashboard

Open coroot.url from your credentials file (http://<vm-public-ip>/) in a browser. Coroot presents a sign in page; enter the username admin and the per-VM password from your credentials file, then click Log In.

The Coroot Community Edition sign in page in a browser, asking for an email and password with a Log In button

Step 10 - Explore the Applications overview

After signing in, Coroot opens the Applications overview. It lists every service the eBPF agent has discovered, each with a health indicator and columns for its SLO, running instances, CPU, memory, storage and network, all built automatically from kernel level telemetry with no instrumentation added to your code.

The Coroot Applications overview listing the automatically discovered services with their health, SLO, instances, CPU, memory and network columns

Step 11 - Follow the service map

The Service Map draws the discovered services and the calls between them as a live topology, so you can see how requests flow through your system and where latency and errors originate, again reconstructed automatically from eBPF telemetry.

The Coroot Service Map showing the discovered services and the connections between them as an automatically built topology

Step 12 - Inspect node and infrastructure metrics

The Nodes view lists every host the agent runs on with its CPU, memory, disk and network metrics collected over eBPF. Selecting a node drills into detailed per-host charts, and the Traces, Logs and Profiling sections expose the distributed traces, logs and continuous CPU profiles Coroot stores in the bundled ClickHouse.

The Coroot Nodes overview showing the discovered host with its CPU, memory, network and disk telemetry collected by the eBPF node agent

Maintenance

Change the admin password. Sign in to the dashboard, open the user menu and change the password there, or reset it from the server:

sudo docker exec -it coroot-coroot-1 coroot set-admin-password

Adjust telemetry retention. Traces, logs, profiles and metrics retention are configured in the dashboard under Project Settings. The bundled Prometheus keeps metrics for 30 days by default.

Point more agents at Coroot. To observe additional hosts or a Kubernetes cluster, install the Coroot node agent (or the Coroot Operator) on them and set its collector endpoint to http://<vm-public-ip>/. See the Coroot documentation for agent installation on other platforms.

Add a domain and TLS. For production, point a DNS name at the VM and terminate HTTPS at nginx with a certificate from Let's Encrypt (certbot --nginx) so the dashboard is served over https://.

Service management.

systemctl status coroot nginx --no-pager
sudo docker compose -f /etc/coroot/compose.yaml ps

Coroot's containers log to the Docker journal; view them with sudo docker compose -f /etc/coroot/compose.yaml logs.

Support

This image is maintained by cloudimg with 24/7 support. If you need help deploying or operating Coroot on Azure, contact the cloudimg team through the Azure Marketplace listing. For Coroot's features, agents and configuration, see the Coroot documentation.
