Debian 13 with KDE Plasma Desktop on Azure User Guide

Overview

This guide covers the deployment and configuration of Debian 13 "trixie" with the KDE Plasma desktop on Microsoft Azure using cloudimg's pre configured virtual machine image from the Azure Marketplace.

Debian is one of the oldest and most widely used Linux distributions, produced by the Debian Project. Debian 13 "trixie" was released on 9 August 2025 and has security support from the Debian Security Team followed by Debian LTS, to 30 June 2030. This image is the cloudimg Debian 13 base with Debian's own KDE Plasma 6.3 desktop added (the task-kde-desktop selection Debian's installer uses), the SDDM display manager, and xrdp 0.10 set up as the remote desktop server: you connect with any RDP client, sign in with your own account name and password, and get a full Plasma session running on the virtual machine.

Everything the image adds comes from Debian's own main archive, the same archive and the same security update stream as the rest of the operating system.

How Plasma runs over RDP. Plasma 6 starts a Wayland session by default on a local screen, but an RDP server needs an X11 session to draw into. Debian 13 still ships Plasma's X11 session, Plasma (X11), together with its X11 window manager (kwin_x11), and that is the session every remote desktop connection to this image starts. The image checks on every build that a real RDP sign in lands in a working Plasma X11 session that stays up.

The image is built so that a freshly deployed machine exposes nothing but SSH. Remote desktop ships switched off, no account has a password, and nothing listens on the RDP port until you decide to turn it on.

What's included:

• Debian 13 "trixie" with the KDE Plasma 6.3 desktop: Dolphin file manager, Konsole terminal, Kate text editor, System Settings, System Monitor and KWalletManager, with the SDDM display manager
• The Plasma (X11) session and the kwin_x11 window manager, which is what an RDP session runs
• xrdp 0.10.1 with xorgxrdp, configured for remote desktop sessions over TLS. The session manager talks to the server over a local UNIX socket, so it adds no network port of its own
• xrdp at 0.10.1-3.1+deb13u2 or later, the Debian security release that fixes CVE-2025-68670 and the later 2026 xrdp advisories
• A per-VM TLS certificate and a per-VM xrdp RSA key, generated at first boot and readable by root only
• cloudimg-remote-desktop, a small helper to show the remote desktop state, switch it on and off, and print your VM's connection details
• Every available security update applied at build time, with unattended-upgrades armed so the machine keeps patching itself
• LLMNR switched off in systemd-resolved, so the machine does not listen on port 5355 as a stock Debian 13 machine does
• In guest sleep switched off, so the desktop cannot put the virtual machine into a state it cannot wake from
• The Azure provisioning path unchanged: cloud-init, the Azure Linux Agent and systemd-networkd, on Debian's cloud kernel
• Gen2 Hyper V virtual machine support
• 24/7 cloudimg support

What's deliberately NOT included: a web browser (install one with sudo apt install firefox-esr), an office suite (sudo apt install libreoffice), the Discover software centre (software is installed with apt), NetworkManager and its Plasma applet (networking is managed by systemd-networkd, the Azure default), power management, printing, Bluetooth, the Avahi service discovery daemon, KDE Connect, and any remote access server other than xrdp (no KRdp, KRFB or VNC server). None of these add anything on a cloud server by default, and several would open network listeners.

Platform: Microsoft Azure (Gen2 Hyper V, x64) Default user: azureuser

Security posture

This image ships with no known credential:

• No account has a password. The root account is locked, and azureuser is created at first boot with only the SSH key you supply.
• SSH is key only (PasswordAuthentication no). Setting an account password for the desktop does not enable password logins over SSH.
• The remote desktop server is installed but disabled: a new virtual machine listens on SSH port 22 only.
• At first boot the machine generates its own TLS certificate and key for xrdp, and its own xrdp RSA key. Nothing is shared between two machines, and nothing is baked into the image.
• Remote desktop cannot be switched on until an administrator account has a password, so an RDP login box is never exposed with nothing to protect it.
• xrdp-sesman is configured to refuse root logins, and every session module except the local Xorg one has been removed from xrdp.ini, so the RDP login box cannot be used to make your VM open outbound connections elsewhere.
• The machine identity and the SSH host keys are regenerated uniquely on every instance, and AppArmor is enabled.

There is only one password, and it is yours. Unlike RDP servers that carry a credential of their own, xrdp authenticates you through PAM against your ordinary Linux account. The password the RDP login box asks for is the one you set with sudo passwd, and until you set it nobody can sign in at all.

Prerequisites

Before deploying this image, ensure you have:

1. An active Microsoft Azure subscription
2. Access to the Azure Portal or Azure CLI
3. An SSH key pair for Linux VM access
4. An RDP client: Windows App or Remote Desktop Connection on Windows, Windows App on macOS, or Remmina or FreeRDP on Linux

Recommended VM Size: Standard_B2ms (2 vCPU, 8 GB RAM) or larger. The desktop also runs on a Standard_B2s (2 vCPU, 4 GB): on this build the machine used about 600 MB with the login screen up and about 1.4 GB with one Plasma session signed in, so 4 GB is enough for a terminal, a file manager and an editor, but not for much more once you add a web browser. There is no GPU requirement: the desktop renders in software.

Step 1: Deploy the Virtual Machine

Option A: Azure Portal

1. Navigate to the Azure Marketplace and search for "Debian 13 with KDE Plasma Desktop cloudimg"
2. Select the image and click Create
3. Configure the basics:
4. Subscription: Select your Azure subscription
5. Resource Group: Create new or select existing
6. Virtual Machine Name: Enter a name for your VM
7. Region: Select your preferred Azure region
8. Size: Standard_B2ms or larger
9. Under Administrator Account, select SSH public key and enter your key
10. Under Inbound Port Rules, allow SSH (port 22) only. You do not need to open port 3389: the recommended way to reach the desktop is through an SSH tunnel (Step 6)
11. Click Review + Create, then Create

Option B: Azure CLI

cloudimg images carry a Marketplace purchase plan, so accept its terms once per subscription, then create the VM:

az vm image terms accept --urn cloudimg1647283583153:debian-13-gui-kde:default:latest

az vm create \
  --resource-group myResourceGroup \
  --name my-debian-kde \
  --image cloudimg1647283583153:debian-13-gui-kde:default:latest \
  --size Standard_B2ms \
  --admin-username azureuser \
  --generate-ssh-keys \
  --public-ip-sku Standard

Step 2: Connect via SSH

Run these on your own workstation, not on the VM. Find the public IP, then connect:

az vm show --resource-group myResourceGroup --name my-debian-kde --show-details --query publicIps -o tsv
ssh azureuser@<vm-ip>

There is no password to enter. If SSH asks you for one, the key you supplied at create time is not the key your client is offering.

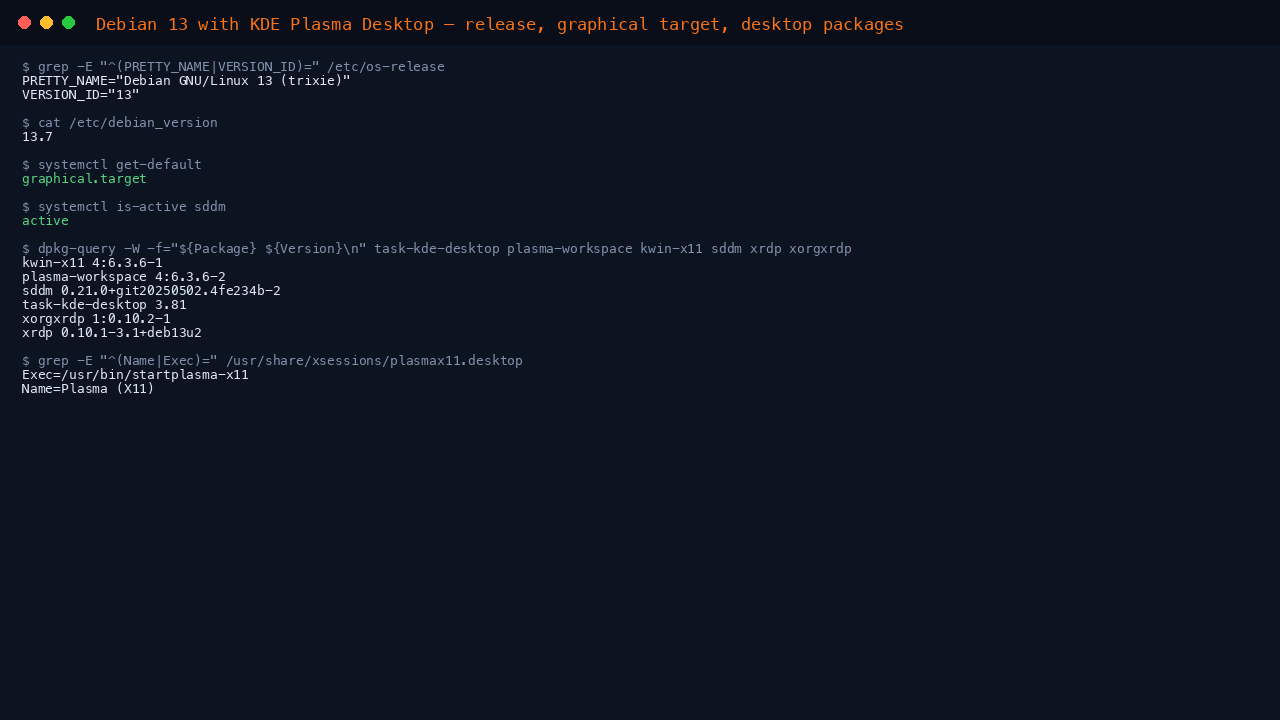

Step 3: Confirm the release and the desktop

Check the release and point release, that the machine booted to the graphical target, that the SDDM display manager is running, and which desktop packages are installed:

grep -E '^(PRETTY_NAME|VERSION_ID)=' /etc/os-release
cat /etc/debian_version
systemctl get-default
systemctl is-active sddm
dpkg-query -W -f='${Package} ${Version}\n' task-kde-desktop plasma-workspace kwin-x11 sddm xrdp xorgxrdp

Expected output (the point release and package revisions move forward as Debian publishes updates):

PRETTY_NAME="Debian GNU/Linux 13 (trixie)"
VERSION_ID="13"
13.7
graphical.target
active
kwin-x11 4:6.3.6-1
plasma-workspace 4:6.3.6-2
sddm 0.21.0+git20250502.4fe234b-2
task-kde-desktop 3.81
xorgxrdp 1:0.10.2-1
xrdp 0.10.1-3.1+deb13u2

Confirm the session an RDP connection starts. xrdp runs the system's default X session manager, and on this image that is Plasma's X11 session:

grep -E '^(Name|Exec)=' /usr/share/xsessions/plasmax11.desktop
update-alternatives --query x-session-manager | grep '^Value:'

Expected output:

Exec=/usr/bin/startplasma-x11
Name=Plasma (X11)
Value: /usr/bin/startplasma-x11

Plasma's Wayland session is installed as well, because it is part of Debian's Plasma packaging. It is only used if you sign in at a local screen, which an Azure VM does not have; every RDP connection uses Plasma (X11).

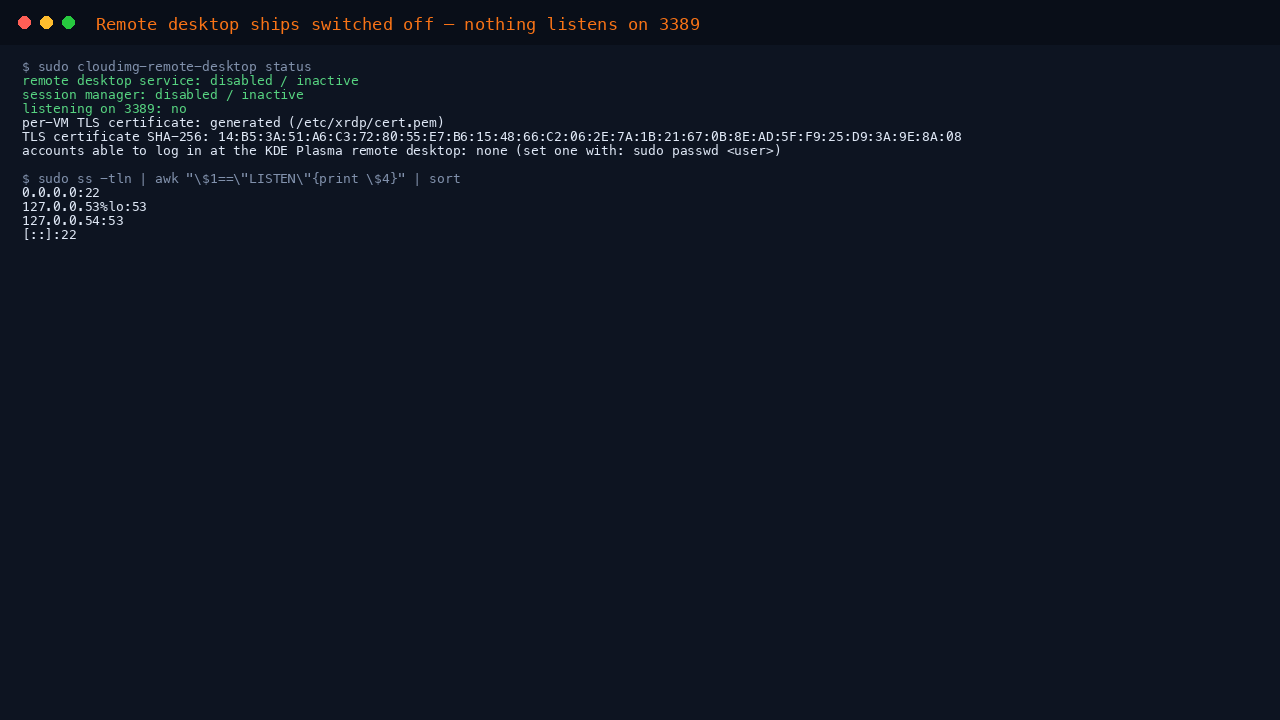

Step 4: Check that remote desktop is off

A new virtual machine has remote desktop switched off. The helper shows the whole picture:

sudo cloudimg-remote-desktop status
sudo ss -tln | awk '$1=="LISTEN"{print $4}' | sort

Expected output (the certificate fingerprint is unique to your VM):

remote desktop service: disabled / inactive
session manager: disabled / inactive
listening on 3389: no
per-VM TLS certificate: generated (/etc/xrdp/cert.pem)
TLS certificate SHA-256: 14:B5:3A:51:A6:C3:72:80:55:E7:B6:15:48:66:C2:06:2E:7A:1B:21:67:0B:8E:AD:5F:F9:25:D9:3A:9E:8A:08
accounts able to log in at the KDE Plasma remote desktop: none (set one with: sudo passwd <user>)
0.0.0.0:22
127.0.0.53%lo:53
127.0.0.54:53
[::]:22

The only listener reachable from outside the machine is SSH on port 22. The two port 53 entries are the local DNS resolver, bound to loopback addresses only.

Step 5: Set your password and turn remote desktop on

The xrdp login box asks for your account password, and a new VM has none. Choose your own. Run this yourself on the VM, and enter the new password twice when prompted:

sudo passwd azureuser

Your SSH access is unaffected: SSH remains key only. Now switch remote desktop on:

sudo cloudimg-remote-desktop enable

Expected output:

remote desktop enabled: listening on port 3389
TLS certificate SHA-256: 14:B5:3A:51:A6:C3:72:80:55:E7:B6:15:48:66:C2:06:2E:7A:1B:21:67:0B:8E:AD:5F:F9:25:D9:3A:9E:8A:08
sign in with your own account name and the password you set with sudo passwd
safest route: ssh -L 3389:localhost:3389 <user>@<vm-ip>, then point your RDP client at localhost:3389

If no administrator account has a password yet, the helper refuses and tells you which command to run first. The setting survives reboots. Under the hood it runs systemctl enable --now xrdp.service, which starts the session manager with it.

Print this VM's connection details:

sudo cloudimg-remote-desktop credentials

The output lists RDP_USERNAME (your admin account name), RDP_PORT and the TLS certificate fingerprints. Note what it says about the password: there isn't a separate one. RDP_PASSWORD_SOURCE records that the password is your own account password.

Step 6: Connect with your RDP client

The recommended route keeps port 3389 closed to the internet and carries RDP inside your SSH connection. On your workstation, open a tunnel and leave it running:

ssh -N -L 3389:localhost:3389 azureuser@<vm-ip>

Then point your RDP client at localhost:3389:

• Windows: Remote Desktop Connection (mstsc) or Windows App, computer localhost:3389
• macOS: Windows App, add a PC with the name localhost:3389
• Linux: Remmina (RDP), server localhost:3389, or FreeRDP 3: xfreerdp3 /v:localhost:3389 /u:azureuser /gfx /bpp:32

On first connection the client shows the server's certificate: it is self signed and unique to your VM, so compare its fingerprint with RDP_TLS_SHA256 (or RDP_TLS_SHA1, which is what Windows displays as the thumbprint) before you accept it.

The xrdp login box appears. The Session list has one entry, Xorg, which is the one you want:

Enter your account name and the password you set in Step 5. The first sign in takes a little longer while Plasma creates your settings, then the Plasma desktop appears:

Disconnecting your RDP client leaves the session running on the VM; connect again with the same account and you return to it. xrdp asks for your password again every time you connect, so a disconnected session is not left unprotected.

If you prefer a direct connection instead of the tunnel, allow port 3389 in the VM's network security group from your own public address only, never from the whole internet. For example, from your workstation (replace the placeholders):

az network nsg rule create --resource-group myResourceGroup --nsg-name my-debian-kdeNSG \
  --name allow-rdp-from-me --priority 1010 --access Allow --protocol Tcp \
  --direction Inbound --destination-port-ranges 3389 --source-address-prefixes <your-public-ip>/32

Step 7: Use the desktop

Click the application launcher at the bottom left of the panel to see what is installed:

Press Ctrl+Alt+T to open Konsole, the terminal (it is also in the launcher under System). azureuser keeps its Azure administrator rights, so sudo works in the desktop exactly as it does over SSH:

To add software, use apt in Konsole as on any Debian machine, for example sudo apt install libreoffice or sudo apt install firefox-esr.

A few things to know about Plasma's defaults on this image:

• The panel's pinned icons are Plasma's stock set: System Settings, the Discover software centre, the file manager and the web browser. Discover is not installed (use apt), so its pin shows a plain document icon and does nothing; right click it and choose Unpin from Task Manager. The web browser pin opens a browser once you install one.
• The screen locks after 5 minutes of inactivity, which is Plasma's default. Unlock it with your account password. To change the delay or turn it off, open System Settings and search for Screen Locking.
• There is no Sleep button. An Azure VM that suspends itself cannot be woken again from the inside, so the image switches in guest sleep off (Step 9). To stop paying for compute, stop and deallocate the VM from Azure instead.
• Resolution follows your RDP client. Resize the client window or set the display size in the client before connecting.

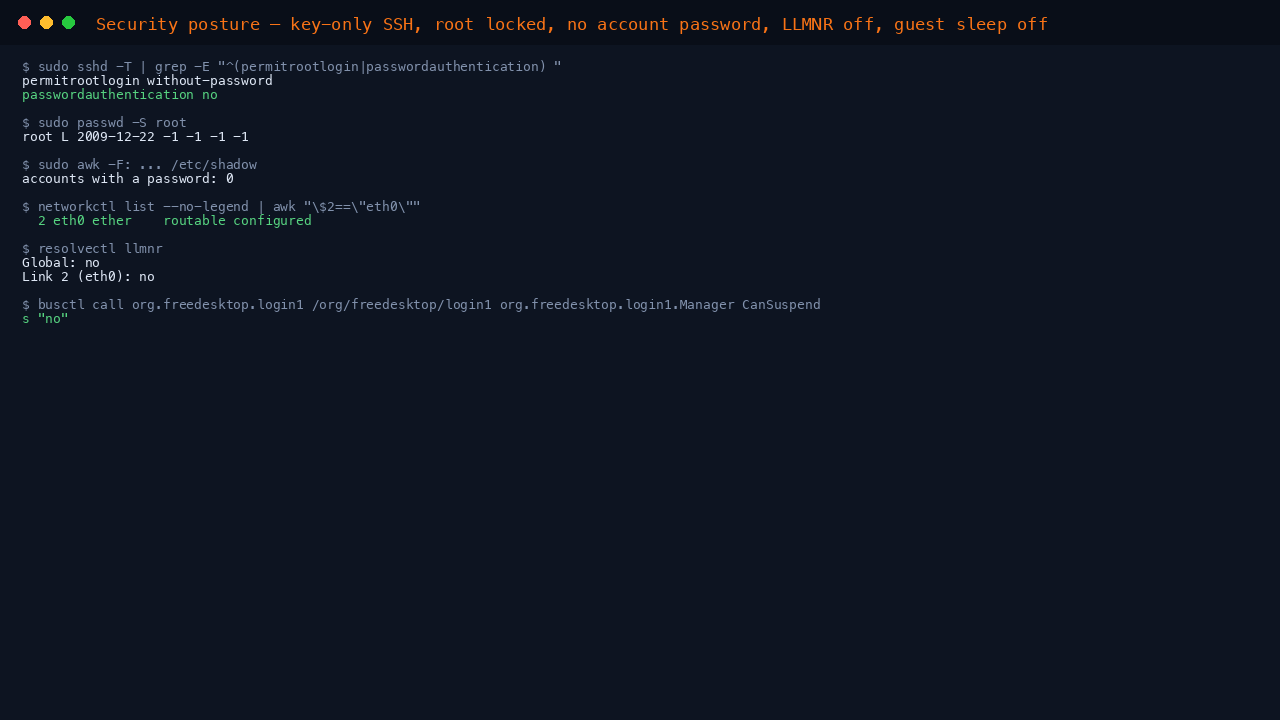

Step 8: Verify the security posture

Confirm that SSH is key only, root is locked, and no account has a password until you set one:

sudo sshd -T | grep -E '^(permitrootlogin|passwordauthentication) '
sudo passwd -S root
sudo awk -F: '$2 !~ /^[!*]/ && $2 != "" {n++} END {print "accounts with a password: " n+0}' /etc/shadow

Expected output on a new VM (after Step 5 the last line reads 1, your own account):

permitrootlogin without-password
passwordauthentication no
root L 2009-12-22 -1 -1 -1 -1
accounts with a password: 0

without-password is how this OpenSSH release prints prohibit-password: root may not authenticate with a password. L means the root account is locked.

Step 9: Networking, LLMNR and sleep

The Azure network interface is configured by cloud-init and systemd-networkd, exactly as on Debian's own cloud image. The KDE package set on this image does not install NetworkManager, so no second network stack competes for your interface:

networkctl list --no-legend | awk '$2=="eth0"'

Expected output:

  2 eth0 ether    routable configured

Because NetworkManager is not installed, Plasma shows no network applet in the system tray; that is expected. If you want one, install NetworkManager and plasma-nm yourself and test the change from the Azure serial console before you reboot.

Stock Debian 13 enables LLMNR in systemd-resolved, which listens on port 5355 on every interface. This image switches it off with a small drop-in file. Check it:

grep -vE '^[[:space:]]*(#|$)' /etc/systemd/resolved.conf.d/20-cloudimg-no-llmnr.conf
resolvectl llmnr

Expected output:

[Resolve]
LLMNR=no
MulticastDNS=no
Global: no
Link 2 (eth0): no

To turn LLMNR back on, delete that file and run sudo systemctl restart systemd-resolved.

In guest sleep is switched off the same way. A virtual machine that suspends itself stops answering SSH and RDP while the Azure portal still shows it as running, and only a restart from Azure brings it back, so every sleep mode is disabled and Plasma offers no Sleep button. Shut down and restart work normally. Check it:

grep -vE '^[[:space:]]*(#|$)' /etc/systemd/sleep.conf.d/20-cloudimg-no-guest-sleep.conf
busctl call org.freedesktop.login1 /org/freedesktop/login1 org.freedesktop.login1.Manager CanSuspend

Expected output:

[Sleep]
AllowSuspend=no
AllowHibernation=no
AllowSuspendThenHibernate=no
AllowHybridSleep=no
s "no"

The Azure Network Security Group is the enforced firewall. No host firewall is installed; if you add one, allow SSH first, and allow 3389 only if you connect directly rather than through the tunnel.

Step 10: Turn remote desktop off, or change your password

To switch remote desktop off again (the setting survives reboots), run this yourself:

sudo cloudimg-remote-desktop disable

To change the password the RDP login box asks for, change your account password; they are the same thing:

sudo passwd azureuser

To replace this VM's TLS certificate with one of your own, write it to /etc/xrdp/cert.pem and /etc/xrdp/key.pem (the key readable by group xrdp) and restart the service with sudo systemctl restart xrdp.

Step 11: Check the patch level

The image is fully updated at build time. Refresh the package lists and confirm no upgrades are pending (grep -c exits non-zero on a zero count, hence the || true):

sudo apt-get update -qq
echo "pending upgrades: $(apt-get -s dist-upgrade | grep -c '^Inst ' || true)"

Expected output on a freshly built image:

pending upgrades: 0

unattended-upgrades installs Debian security updates automatically. You can still update on your own schedule with sudo apt-get update && sudo apt-get -y dist-upgrade, and reboot if a new kernel was installed. Debian publishes point releases every couple of months, so after a while this count will naturally be above zero until you upgrade.

Common Use Cases

• A full featured Linux cloud workstation with the KDE Plasma desktop, reachable from any RDP client
• Running graphical administration, development and data tools close to your Azure resources
• Training labs and demonstrations that need a complete desktop rather than a shell
• A secure jump desktop, reachable only through an SSH tunnel

Troubleshooting

The RDP client connects but the screen is black, or the session closes immediately

Check what the session manager recorded, on the VM:

sudo tail -n 30 /var/log/xrdp-sesman.log

A healthy sign in logs Access permitted for user: <your account>, then Starting X server on display 10 and Session in progress on display :10. If instead you see pam_authenticate failed: Authentication failure followed by AUTHFAIL: user=<your account>, the password is wrong or the account has none yet, so set it with sudo passwd <user> over SSH and try again.

The first sign in to a new account takes longer than later ones while Plasma creates its settings; give it up to a minute before assuming something is wrong.

I connected a second time and was immediately disconnected

You get one Plasma desktop session per account. If you disconnect and reconnect later, xrdp returns you to the session you left, which is the normal path and it works. A second connection while the first is still attached starts a second Plasma session for the same account, and Plasma does not support running two desktop sessions for one user at the same time.

If you need two desktops at once, sign in as two different accounts: create the second one with sudo adduser <name> and give it a password. To abandon a session you can no longer reach, sign out from inside it, or end it from SSH with sudo pkill -u <your-account> ksmserver, then connect again.

The RDP login box will not accept my password

The account has no password yet, or you typed a different account's name. Set it again with sudo passwd azureuser over SSH, then retry. The username is your Linux account name, not an email address.

I get "connection refused" on localhost:3389

The tunnel is not up, or remote desktop is still off. Check sudo cloudimg-remote-desktop status on the VM, and confirm your ssh -N -L 3389:localhost:3389 command is still running on your workstation.

The desktop feels slow

Plasma renders in software on a VM without a GPU. Move to a larger size such as Standard_D4s_v5 for heavier work, and use a smaller window or a lower colour depth in your RDP client. Desktop effects can be reduced in System Settings (search for Desktop Effects).

Cannot connect via SSH

1. Verify the VM is in Running state in the Azure Portal
2. Check that port 22 is allowed in the Network Security Group
3. Ensure you are using the correct username: azureuser
4. Verify your SSH key matches the one you supplied at create time. Password login over SSH is disabled by design.

Azure agent not running

systemctl is-active walinuxagent

If it does not print active, start it yourself with sudo systemctl enable --now walinuxagent.

Important Notes

• One password, and it is yours. xrdp signs you in with your own Linux account password. The image ships none; you set it with sudo passwd.
• Remote desktop ships off. A new machine listens on SSH only. The listing does not pre-open 3389 in your network security group.
• Use an SSH tunnel rather than exposing 3389 to the internet.
• RDP sessions run Plasma (X11). Plasma's Wayland session is installed but is only used at a local screen, which an Azure VM does not have.
• Everything is from Debian main. The desktop, SDDM and xrdp are Debian packages from the same archive and the same security update stream as the rest of the operating system.
• Debian 13 "trixie" has security support to 30 June 2030.
• Debian is free and open source. It is not covered by a single licence: it is a distribution assembled from thousands of independently licensed packages, each carrying its own terms, including the GPL, LGPL, MIT, BSD, Apache 2.0 and MPL. KDE Plasma and the KDE applications are free software, mostly under the GPL and LGPL; xrdp and xorgxrdp are under the Apache Licence 2.0. Every package's terms are readable with dpkg -s <package> and under /usr/share/doc/<package>/copyright. No subscription or licence key is required to run this image.
• cloudimg is not affiliated with, endorsed by or sponsored by the Debian Project or KDE e.V. "Debian" is a trademark of Software in the Public Interest, Inc.; "KDE" and "Plasma" are trademarks of KDE e.V. The names are used here nominatively, only to identify the software this image contains.

Support

For assistance with this image, contact cloudimg support:

• Website: www.cloudimg.co.uk
• Product Catalogue: www.cloudimg.co.uk/products
• User Guides: www.cloudimg.co.uk/guides
• SLA: 24 hour response guaranteed
