Falco Runtime Security Sensor on AWS User Guide

This image ships Falco 0.44.1 on Ubuntu 24.04 LTS, watching every syscall on the instance from the first boot of every machine you launch. Falco is installed unmodified from the Falco project's own signed apt repository, so the engine stays patchable through the normal apt path for the life of the release.

Falco is the graduated Cloud Native Computing Foundation project for runtime threat detection. It taps the kernel's syscall stream, enriches each event with process, user and file context, and evaluates the result against a behavioural rule set. When something matches, it emits an alert describing what happened, which process did it, and as whom.

The distinction that matters is between behaviour and signatures. A vulnerability scanner tells you what could be exploited. A network sensor tells you what reached the machine. Falco tells you what a process is doing right now on a host that is already running, and because its rules describe behaviour rather than a catalogue of known-bad files, they keep working against tooling nobody has catalogued yet.

What Falco does and does not do. Falco detects and alerts. It does not block, kill, quarantine or remediate anything by itself, and this image ships no response tooling. Treat its output as a high signal feed into whatever you already use for triage. Falco holds no compliance certification and this image makes no compliance claim, no third party threat intelligence feed is bundled, and nothing from Sysdig's commercial products is present.

Connecting to your instance

OS variant	SSH login user	Notes
Ubuntu 24.04 LTS	ubuntu	ssh -i /path/to/key.pem ubuntu@<public-ip>

Falco needs no inbound port of its own, so the security group needs TCP 22 alone. The engine's health endpoint is bound to the loopback interface and is deliberately not reachable from your VPC.

What this image detects out of the box

The image ships Falco's bundled default rule set: 25 rules covering a large part of the way real intrusions look from the inside. A sample:

grep '^- rule:' /etc/falco/falco_rules.yaml | sed 's/^- rule: /  /' | head -8

Others cover kernel module injection, ptrace attaching to a running process, a new binary being written and immediately executed, private keys or cloud credentials being searched for, log files being cleared, and container escape attempts. Every alert carries MITRE ATT&CK tags, so findings map onto a framework your team probably already uses.

Count what is loaded:

grep -c '^- rule:' /etc/falco/falco_rules.yaml

What makes this image different

The driver is modern eBPF, never a kernel module. This is the single most consequential decision in the image, and it is the one most likely to be got wrong. Falco needs a kernel side event source, and it offers two: a kernel module built through DKMS, or a modern eBPF probe. The module is compiled against the running kernel, which means the first time your instance installs a new kernel through unattended upgrades and reboots, the module is gone or fails to rebuild, and the sensor silently stops seeing events while still reporting healthy. This image ships the modern eBPF driver instead. It is compiled once and relocated at load time against the running kernel's own type information, so it needs no compiler, no kernel headers and no DKMS, and it survives kernel upgrades untouched. No kernel module is ever built or loaded on this image, and that is verified at build time and again on a freshly launched instance from the captured AMI.

Alerts land on their own EBS volume. A runtime security sensor's alert stream is the one unbounded growth surface on this kind of image, because a noisy workload can emit alerts steadily. The alert log therefore sits on a dedicated, independently resizable EBS volume mounted at /var/log/falco, recorded in /etc/fstab by filesystem UUID so it reproduces identically on every instance you launch. If it shared the root disk, filling it would both wedge the instance and stop the sensor recording, which is a silent security failure.

There are no credentials anywhere in this image, because the product has none. Falco has no login, no web interface and no user database. Its only HTTP surface is an embedded webserver serving liveness and version endpoints, and this image binds that webserver to the loopback interface only, so it is not reachable from your VPC at all. There is no default password to rotate and nothing to leak. Administration is over SSH with the key pair you chose at launch.

Alerts actually reach somewhere you can read them. Falco's systemd unit discards standard output, and file output is disabled in the packaged default, so a stock install can run perfectly while recording nothing anywhere you would ever look. This image enables JSON file output to a root only alert log, unbuffered, so alerts land the moment they fire.

The engine refuses to start on an instance that has not been checked. The captured AMI was built on one kernel and boots on whatever your instance runs. A first boot service verifies that this kernel can actually host the eBPF probe, that the configuration is loopback bound and accepted by the engine itself, and that the alert log is writable, before the engine is allowed to start. Two independent mechanisms enforce it, and both are tested to fail closed rather than assumed to work.

No build time alert history survives. A runtime security sensor's log is a record of everything that ran on the machine. The build of this image is torn down before capture: the alert log, the first boot marker, the instance note and all rule update state are removed, and the packaged rule set is restored verbatim.

1. Launch the instance

In the AWS Marketplace, subscribe to Falco Runtime Security Sensor | cloudimg Support, then choose Launch new instance. Select the Ubuntu 24.04 LTS delivery option, an instance type, your key pair, and a security group allowing inbound TCP 22 from your management network only.

The recommended instance type is m5.large. Falco's cost is proportional to syscall volume rather than to the size of the machine, so size the instance for the workload you are protecting, not for Falco.

To launch from the AWS CLI instead, substituting the AMI id shown on the listing's Launch page for your region:

aws ec2 run-instances \
  --image-id ami-xxxxxxxxxxxxxxxxx \
  --instance-type m5.large \
  --key-name my-key-pair \
  --security-group-ids sg-xxxxxxxxxxxxxxxxx \
  --metadata-options 'HttpTokens=required' \
  --tag-specifications 'ResourceType=instance,Tags=[{Key=Name,Value=my-falco-sensor}]'

The AMI carries two block device mappings: the root volume and the dedicated alert log volume that mounts at /var/log/falco. Both are created automatically.

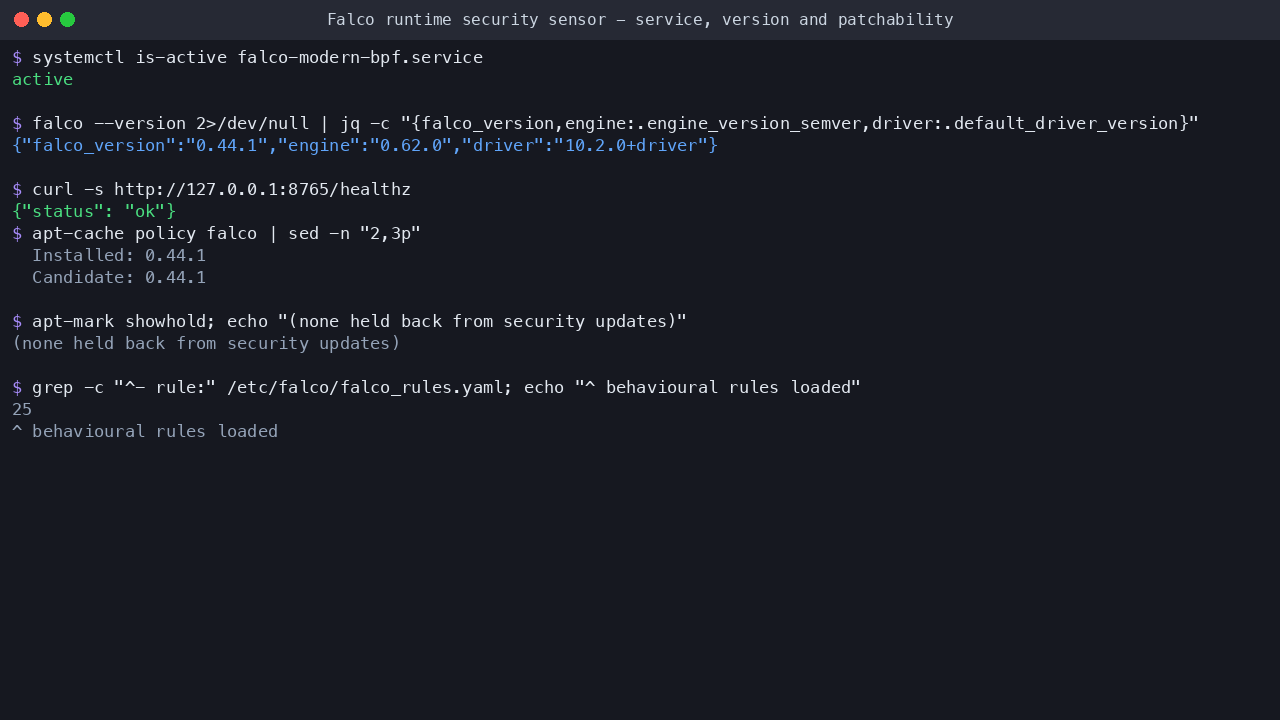

2. Connect and confirm the engine is running

SSH in as ubuntu using the key pair you chose at launch, as shown in the Connecting to your instance table above.

Confirm the engine is up:

systemctl is-active falco-modern-bpf.service

Check the health endpoint. It answers on the loopback interface only:

curl -s http://127.0.0.1:8765/healthz

Confirm the versions of the engine, its rules engine and its driver:

falco --version 2>/dev/null | python3 -c 'import sys,json;d=json.load(sys.stdin);print("falco",d["falco_version"],"| engine",d["engine_version_semver"],"| driver",d["default_driver_version"])'

Note on readiness. The health endpoint answers within about a second of the service starting, because it reports on the webserver rather than on the probe. The eBPF probe takes a few seconds longer to attach. If you are scripting a readiness check, wait for the engine's own log line rather than for the health endpoint, as shown in the next section.

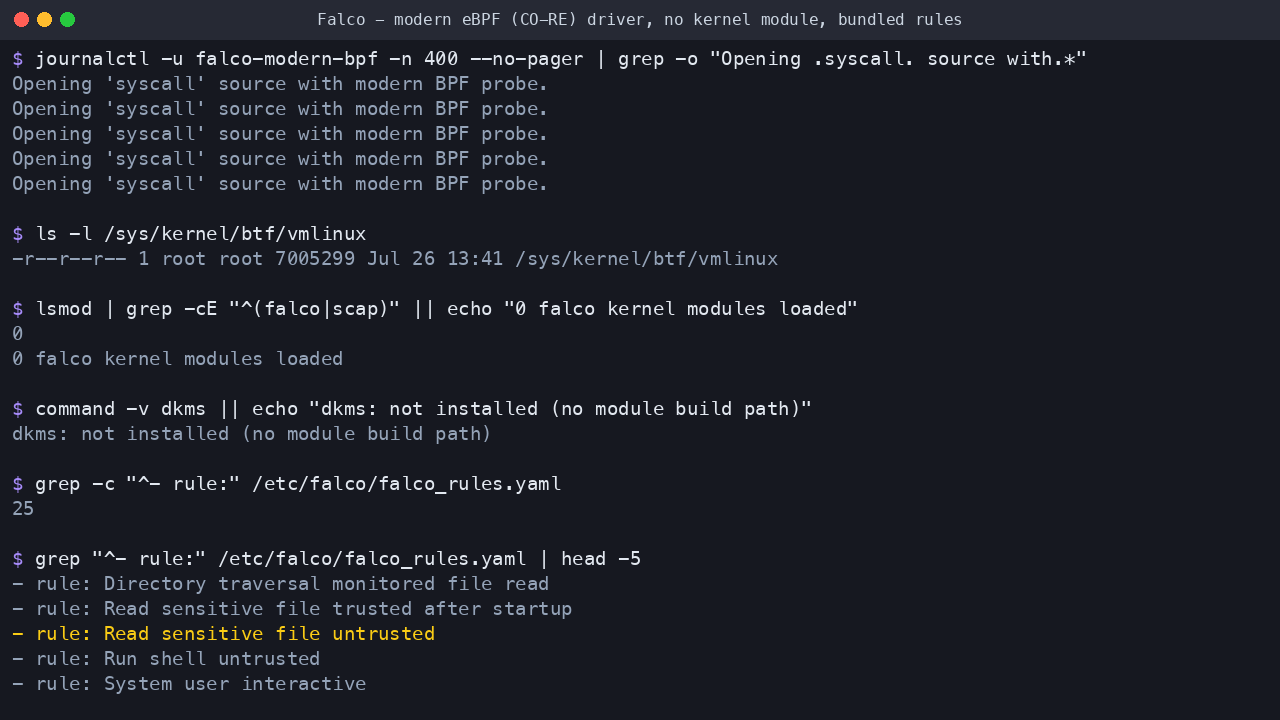

3. Confirm the driver is modern eBPF

This is the check worth doing on any Falco deployment, because an instance running the kernel module driver looks identical until the day it stops working.

The engine announces which probe it opened:

sudo journalctl -u falco-modern-bpf.service -n 500 --no-pager | grep -E "Opening 'syscall'|Enabled event sources" | sed 's/^.*falco\[[0-9]*\]: //' | tail -2

The kernel exposes the type information the probe relocates against:

ls -l /sys/kernel/btf/vmlinux

No Falco kernel module is loaded, and there is no mechanism on the instance to build one:

lsmod | awk '{print $1}' | grep -cE '^(falco|scap)' || true

(grep -c prints 0 and exits non zero when it finds nothing, which is the answer you want here, so the || true keeps the command's exit status honest in a script.)

DKMS is not installed, so no out of tree module can be built on this instance at all:

dpkg-query -W -f='${Status}\n' dkms 2>/dev/null || echo "dkms not installed"

Why this matters for kernel upgrades. Because the driver is CO-RE eBPF and not a DKMS module, a kernel upgrade needs no action from you: there is nothing to rebuild. Install kernel updates and reboot on your normal schedule, and the sensor keeps working. After any reboot you can re-run the three checks above to confirm the probe attached to the new kernel.

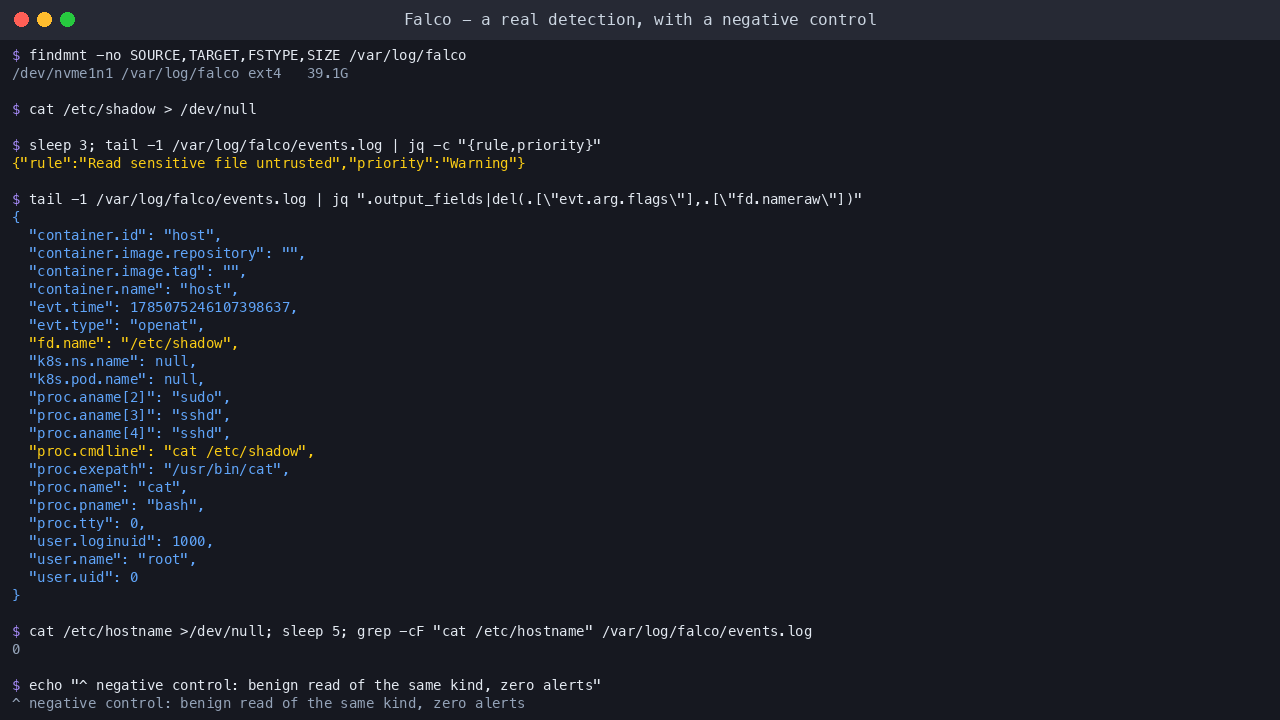

4. See a real detection

Falco writes alerts as JSON, one object per line, to a root only log at /var/log/falco/events.log on the dedicated volume. To watch alerts arrive live, run sudo tail -f /var/log/falco/events.log in a second session and leave it open.

Confirm the alert log really is on its own volume, not the root disk:

findmnt -no SOURCE,TARGET,FSTYPE,SIZE /var/log/falco

Now trigger a rule deliberately. Reading the shadow password file is a benign stand in for credential theft, and it matches the shipped rule Read sensitive file untrusted:

sudo cat /etc/shadow > /dev/null

An alert appears within a second or two:

sleep 3; sudo grep -F 'command=cat /etc/shadow' /var/log/falco/events.log | tail -1 | python3 -m json.tool | head -32

The alert names the rule, its priority, the file that was read, the process and its command line, the parent process, and the user. That is the whole detection chain, from a syscall in the kernel to a structured record you can act on.

Now the control that shows the rule is keyed on the file rather than on the command. Read a harmless file with the same binary, from the same shell:

sudo cat /etc/hostname > /dev/null; sleep 6; sudo grep -cF 'command=cat /etc/hostname' /var/log/falco/events.log || echo 0

No alert. The rule fired on reading a credentials file, not on running cat.

5. Send alerts somewhere useful

The alert log is newline delimited JSON, which every log shipper understands with no parsing configuration. Point your existing agent, such as the CloudWatch agent, Fluent Bit or Vector, at /var/log/falco/events.log and you are done. Nothing of the sort is installed or configured by this image; the forwarding side is yours to choose.

To check what a shipper would see, or to filter interactively:

sudo tail -20 /var/log/falco/events.log | python3 -c 'import sys,json
for line in sys.stdin:
    e = json.loads(line)
    print(e["time"], e["priority"], "|", e["rule"])'

To count alerts by rule over the whole log:

sudo cat /var/log/falco/events.log | python3 -c 'import sys,json,collections
c = collections.Counter()
for line in sys.stdin:
    c[json.loads(line)["rule"]] += 1
for rule, n in c.most_common():
    print(f"{n:6}  {rule}")'

Falco can also emit alerts over gRPC, to a program on standard input, or to an HTTP endpoint. Those outputs are configured in the same drop in file described in section 7. If you want fan out to Slack, Teams, PagerDuty, S3 or a SIEM without writing an integration, the Falco project's companion tool Falcosidekick consumes the HTTP output and forwards to more than fifty destinations. Falcosidekick is a separate component and is not installed on this image — you install and configure it yourself.

6. Tune the rules for your workload

Every environment produces some benign activity that looks suspicious in the abstract. Falco is designed for this: rules are tuned in your own file, never by editing the shipped rule set.

Add exceptions and your own rules to /etc/falco/falco_rules.local.yaml, which the engine loads after the bundled rules and which is never overwritten by an update. For example, to stop a backup agent triggering the sensitive file rule, append a macro that describes it and add it to the rule's exceptions.

Validate any change before restarting, so a typo cannot take the sensor down:

sudo falco --dry-run 2>&1 | tail -3

Then reload the engine in place with sudo systemctl reload falco-modern-bpf.service.

Rules can also be enabled or disabled wholesale by name or by tag through the rules configuration key. Falco's rule reference at falco.org documents every shipped rule, its condition and its tuning options.

7. Configuration and how to change it safely

All cloudimg configuration for this image lives in a single drop in file:

grep -vE '^\s*#|^$' /etc/falco/config.d/10-cloudimg.yaml

Change configuration by adding files to /etc/falco/config.d/, not by editing /etc/falco/falco.yaml. The main configuration file is a packaged file, and editing it in place means every future upgrade of Falco stops to ask an administrator which version to keep. On an instance that patches itself unattended there is nobody to answer, so the upgrade stalls and the security engine quietly stops being patched. Files in config.d are loaded in name order after the defaults and are never touched by an upgrade, which is why this image leaves the packaged files byte identical.

Confirm the engine's own packaged configuration files are byte identical to the package:

sudo dpkg --verify falco | grep -E 'falco\.yaml|falco_rules' || echo "falco.yaml and falco_rules.local.yaml unmodified"

One packaged file does legitimately differ, and it is worth knowing why rather than being surprised by it later:

sudo dpkg --verify falco

/etc/falcoctl/falcoctl.yaml is rewritten by the Falco package's own post-install step when the driver is selected, not by cloudimg. The engine's configuration files are untouched, which is what keeps unattended upgrades from ever stopping to ask about a conflict.

Take care before changing webserver.listen_address. The health endpoint has no authentication, because there is nothing on it worth authenticating. Binding it to 0.0.0.0 exposes an unauthenticated endpoint to your VPC. This image refuses to start the engine if that binding is changed, and you will see exactly why in the service log.

8. Keeping detections current

Threat detection content ages. Falco ships a companion service that pulls the current published rule set and reloads the engine, so your detections do not freeze on the day the image was built:

systemctl is-active falcoctl-artifact-follow.service

Note that this service reports as disabled if you ask systemctl is-enabled. That is correct and not a problem: it has no [Install] section of its own because the engine's own unit pulls it in with Wants=, so it starts whenever Falco starts. Check is-active, not is-enabled.

It needs outbound HTTPS to the container registry that publishes the rules. If your instance has no outbound internet access, the engine runs on its bundled rules indefinitely, which is a supported configuration: you can also copy rule files in yourself and reload.

The engine itself is patched through the normal apt path. It is installed from the Falco project's signed repository, and that repository is wired into this instance's unattended upgrades configuration, so security updates to Falco arrive the same way updates to the rest of the operating system do:

apt-cache policy falco | sed -n '1,4p'

Nothing is held back:

apt-mark showhold || echo "(empty)"

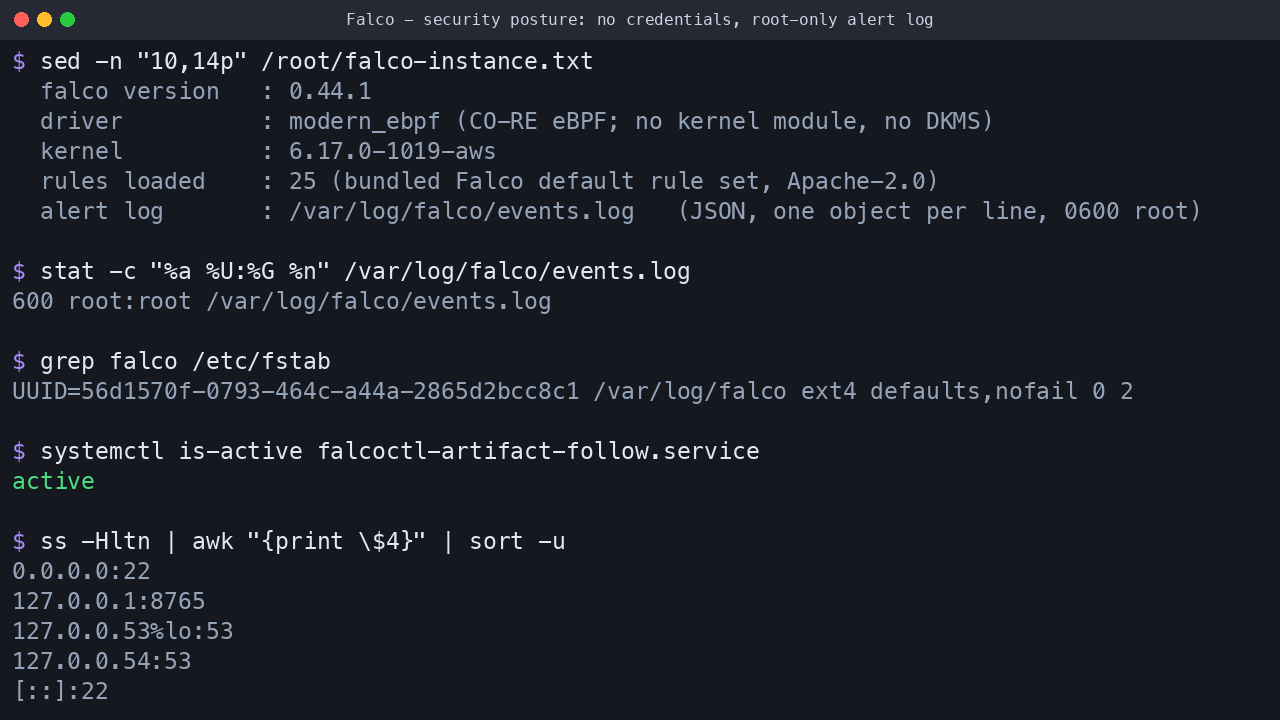

9. Security posture of this image

Read the per instance note written on this machine's own first boot. It records the engine version, the driver in use, the kernel, the number of rules loaded, and where alerts are written, and it states plainly that this product has no credentials:

sudo head -20 /root/falco-instance.txt

The alert log is readable only by root:

stat -c '%a %U:%G %n' /var/log/falco/events.log

Nothing but SSH listens on a network address. The Falco health endpoint is on the loopback interface, alongside the local DNS stub resolver:

ss -Hltn | awk '{print $4}' | sort -u

10. Where Falco fits

Falco is a host runtime sensor. It sees everything that happens on the instance it runs on, and nothing that happens on any other instance. That makes it complementary to, rather than a replacement for, the other controls you are likely running:

Control	Answers
Vulnerability scanning	What on this instance could be exploited
Network intrusion detection	What reached this instance over the wire
Falco	What a process on this instance is actually doing

Deploy it on the workloads whose compromise would matter most: bastion hosts, public facing application servers, build agents, and any instance handling credentials or customer data. On a fleet, run it on every instance and ship the alerts to one place, since the value compounds when you can compare behaviour across hosts.

Support

Every cloudimg image is backed by 24/7 support via email and live chat. If anything in this guide does not behave as described on your deployment, contact support@cloudimg.co.uk with the output of sudo head -20 /root/falco-instance.txt and we will pick it up from there.
