Gitblit on Ubuntu 24.04 on Azure User Guide

Overview

Gitblit is an open-source, pure-Java Git server. It hosts repositories over HTTP, HTTPS, SSH and the git protocol, provides a web interface for browsing commits, branches and files, and includes an admin panel with its own flat-file user and permission model — no external database. The cloudimg image installs Gitblit 1.10.0 on OpenJDK 17 at /opt/gitblit, runs it as a dedicated gitblit system user with its data at /var/lib/gitblit, binds the application to loopback and fronts it with an nginx reverse proxy that terminates a per-VM TLS certificate on :443, and generates a unique admin password, TLS certificate and SSH host key on the first boot of every VM. Backed by 24/7 cloudimg support.

What is included:

• Gitblit 1.10.0 Git server on OpenJDK 17 at /opt/gitblit, data at /var/lib/gitblit
• nginx reverse proxy terminating a per-VM self-signed TLS certificate on :443, in front of Gitblit on loopback :8080
• Git over HTTPS (:443) and Git over SSH (Gitblit's built-in daemon on :29418)
• Authenticated-only access by default — every repository requires a sign-in to view, clone or push
• Per-VM admin password (GITBLIT_ADMIN_PASSWORD) generated at first boot, in a root-only file, with the stock admin/admin default removed
• Per-VM TLS certificate and per-VM Gitblit SSH host key generated at first boot
• gitblit.service + nginx.service as systemd units, enabled and active
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B2s (2 vCPU / 4 GiB RAM) is a solid starting point; scale up for many concurrent users or large repositories. NSG inbound: allow 22/tcp from your management network, 443/tcp for the web UI and Git-over-HTTPS, and — if you use Git-over-SSH — 29418/tcp, from the networks that need them.

Step 1 — Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Gitblit by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTPS (443). Then Review + create → Create.

Step 2 — Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name gitblit \
  --image <marketplace-image-urn> \
  --size Standard_B2s \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name gitblit --port 443 --priority 1010

Step 3 — Connect to your VM

ssh azureuser@<vm-public-ip>

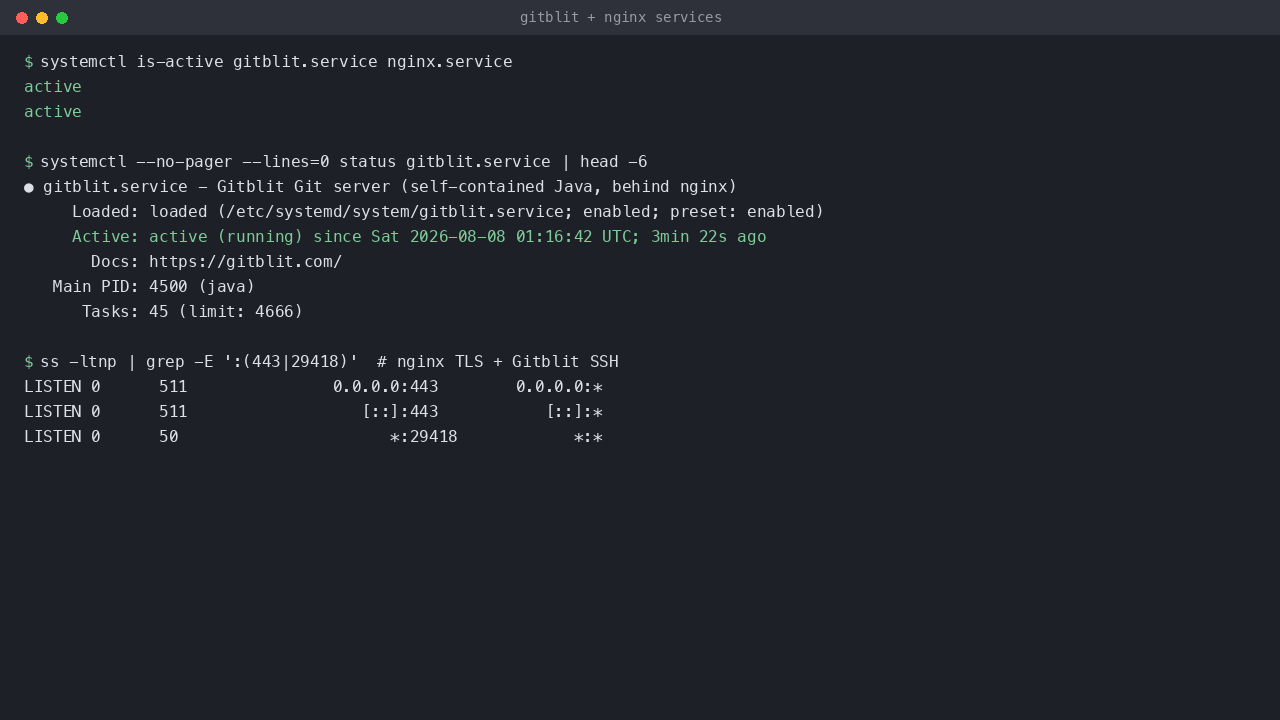

Step 4 — Confirm the services are running

systemctl is-active gitblit.service nginx.service

Both services report active. Gitblit can take up to a minute to fully start on first boot while the JVM warms up and generates its per-VM SSH host key.

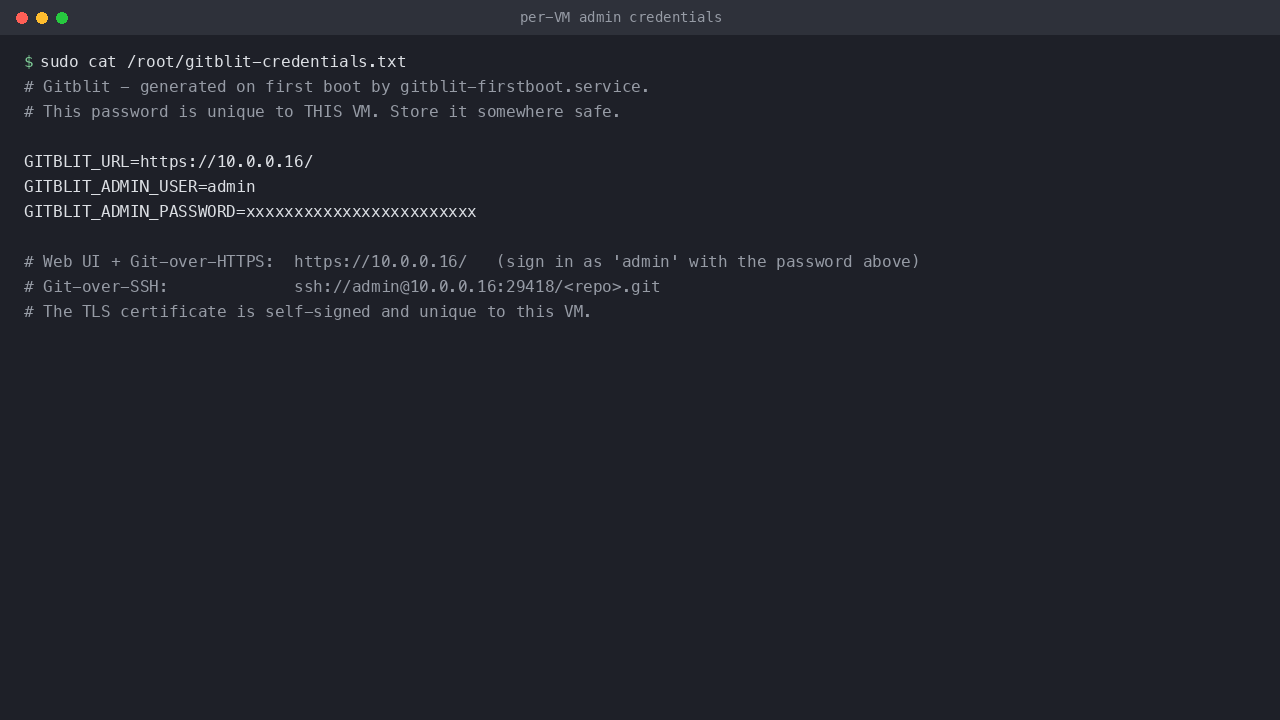

Step 5 — Retrieve your admin password

The admin password is generated uniquely on the first boot of your VM and written to a root-only file. The stock admin/admin default is removed at build time and never ships.

sudo cat /root/gitblit-credentials.txt

The GITBLIT_ADMIN_PASSWORD value is the password; sign in to the web UI as admin with it.

Step 6 — Sign in to the web UI

Browse to https://<vm-public-ip>/ and sign in as admin with the password from Step 5. The certificate is self-signed and unique to this VM, so your browser shows a one-time warning — accept it, or install a CA-signed certificate (see Using your own TLS certificate below). Because the appliance is authenticated-only, an unauthenticated visitor sees only the sign-in prompt.

After signing in you land on your dashboard, which lists your repositories and recent activity.

Step 7 — Create your first repository

Click repositories → create repository, give it a name (for example myrepo), and save. Alternatively, Gitblit creates a repository automatically the first time an admin pushes to a new URL (see Step 8). Once it has content you can browse its commit history, branches and files directly in the web UI.

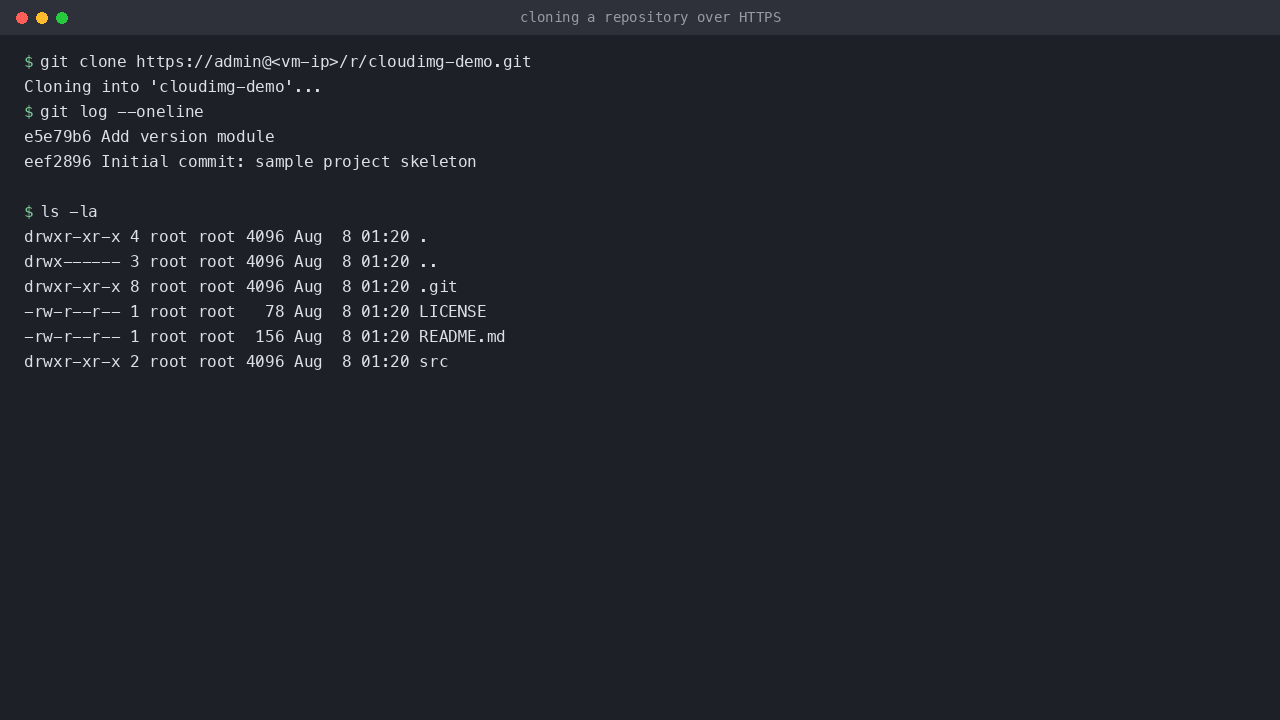

Step 8 — Clone and push over HTTPS

From your workstation, clone over HTTPS and authenticate as admin. Because the certificate is self-signed, either install it as trusted or set GIT_SSL_NO_VERIFY=true for that clone:

git -c http.sslVerify=false clone https://admin@<vm-public-ip>/r/myrepo.git

To verify the full round-trip on the VM itself — create a repository by pushing to a new URL (Gitblit creates it on first push), then clone it back — run:

PW=$(sudo grep '^GITBLIT_ADMIN_PASSWORD=' /root/gitblit-credentials.txt | cut -d= -f2-)
REPO="guide-demo-$(date -u +%s)"
WK=$(mktemp -d); cd "$WK"
git -c init.defaultBranch=master init -q app && cd app
printf '# %s\n' "$REPO" > README.md
git -c user.email=you@example.com -c user.name=you add README.md
git -c user.email=you@example.com -c user.name=you commit -qm "Initial commit"
git -c http.sslVerify=false push "https://admin:$PW@127.0.0.1/r/${REPO}.git" master
cd "$WK"
git -c http.sslVerify=false clone -q "https://admin:$PW@127.0.0.1/r/${REPO}.git" verify
grep -q "$REPO" verify/README.md && echo "ROUND_TRIP_OK: pushed commit is present after re-clone"

Step 9 — Use Git over SSH (optional)

Gitblit runs its own SSH daemon on :29418. In the web UI open your profile → edit → add SSH key and paste your public key, then clone using the SSH URL shown on each repository's summary page:

git clone ssh://admin@<vm-public-ip>:29418/myrepo.git

The SSH host key is unique to your VM (generated on first boot), so the first connection prints a normal host-key confirmation.

Access model and opt-in to public read

The appliance ships authenticated-only: git.defaultAccessRestriction = VIEW means every repository requires a sign-in to view, clone or push, and web.authenticateViewPages = true means the web UI shows nothing to anonymous visitors. To allow anonymous (public) read of repositories, edit /var/lib/gitblit/gitblit.properties and set the global default, or set it per-repository in the web UI's repository settings, then restart Gitblit:

# Allow anonymous clone/read globally (opt-in):
git.defaultAccessRestriction = PUSH
web.authenticateViewPages = false

Manage users, teams and per-repository permissions from users and each repository's edit → permissions panel.

Using your own TLS certificate

The image generates a per-VM self-signed certificate at /etc/ssl/gitblit/. For production, point a domain at the VM and install a CA-signed certificate — for example with certbot (replace the domain), then reload nginx:

sudo apt-get update && sudo apt-get install -y certbot
sudo certbot certonly --standalone -d your-domain.example.com
sudo sed -i 's#/etc/ssl/gitblit/gitblit.crt#/etc/letsencrypt/live/your-domain.example.com/fullchain.pem#; s#/etc/ssl/gitblit/gitblit.key#/etc/letsencrypt/live/your-domain.example.com/privkey.pem#' /etc/nginx/sites-available/cloudimg-gitblit-ssl
sudo systemctl reload nginx

Backup and maintenance

All repositories, configuration and the flat-file user database live under /var/lib/gitblit — snapshot the OS disk in Azure to back it up. Keep the OS patched with sudo apt update && sudo apt upgrade. Gitblit restarts cleanly with sudo systemctl restart gitblit, and its configuration is in /var/lib/gitblit/gitblit.properties.

Support

This image is backed by 24/7 cloudimg support. Contact us by email and chat for help with repository hosting, user and permission management, Git-over-SSH, TLS and backups.
