Grafana Alloy on Ubuntu 24.04 on Azure User Guide

Overview

Grafana Alloy is a vendor neutral distribution of the OpenTelemetry Collector. It collects, processes and forwards telemetry, metrics, logs, traces and profiles, using a single declarative configuration built from composable components, and it can ship that data to Prometheus, Grafana Cloud, Mimir, Loki, Tempo, Pyroscope and any OpenTelemetry compatible backend. A built in web UI renders the live component graph and the health of every component, so you can see exactly how telemetry flows through your pipeline. It is a single Go binary managed by systemd, so it stays lightweight and starts instantly.

The cloudimg image installs Grafana Alloy 1.17.1 from Grafana's official package repository and puts the web UI behind an nginx reverse proxy. Because the Alloy UI has no built in authentication, the appliance is secure by default: Alloy is bound to loopback only, and nginx fronts it on port 80 behind an HTTP Basic Auth gate whose password is generated uniquely and at random on the first boot of every VM, so no shared or default credential is ever baked into the image. A sensible, fully self contained demo pipeline scrapes Alloy's own metrics, tags and batches them and logs a summary locally, so every component is healthy and the component graph is populated on first boot, with nothing leaving the VM. You replace the demo pipeline with your own whenever you are ready.

What is included:

• Grafana Alloy 1.17.1 single Go binary (/usr/bin/alloy), installed from Grafana's official apt repository and version pinned
• alloy.service running as the alloy user, with the web UI bound to loopback 127.0.0.1:12345
• nginx.service reverse proxy on TCP 80 with a per VM HTTP Basic Auth gate (user admin), TLS ready
• grafana-alloy-firstboot.service generating the per VM password and resolving this VM's URL into the MOTD and a root only info note on first boot
• An unauthenticated static /healthz endpoint for load balancer and probe checks
• A self contained demo pipeline in /etc/alloy/config.alloy so the component graph is live and populated out of the box
• Ubuntu 24.04 LTS base, latest patches, unattended security upgrades enabled

Prerequisites

An active Azure subscription, an SSH key, and a VNet with a subnet. Recommended VM size: Standard_B2s (Alloy is light for a demo pipeline; scale up for heavier collection workloads).

Step 1: Deploy from the Azure Portal

Search the Azure Marketplace for Grafana Alloy, choose the plan, and create the VM. In the networking step attach an NSG that allows inbound TCP 22 (SSH) and TCP 80 (the UI, behind HTTP Basic Auth) from your client networks only. Put a TLS reverse proxy or certificate in front of port 80 for production.

Step 2: Deploy from the Azure CLI

RG="grafana-alloy-prod"; LOCATION="eastus"; VM_NAME="alloy-01"
GALLERY_IMAGE_ID="/subscriptions/<sub-id>/resourceGroups/azure-cloudimg/providers/Microsoft.Compute/galleries/cloudimgGallery/images/grafana-alloy-ubuntu-24-04/versions/<version>"
SSH_KEY="$(cat ~/.ssh/id_rsa.pub)"
az group create --name "$RG" --location "$LOCATION"
az network vnet create -g "$RG" --name al-vnet --address-prefix 10.108.0.0/16 --subnet-name al-subnet --subnet-prefix 10.108.1.0/24
az network nsg create -g "$RG" --name al-nsg
az network nsg rule create -g "$RG" --nsg-name al-nsg --name allow-ssh --priority 100 \
  --source-address-prefixes "<your-mgmt-cidr>" --destination-port-ranges 22 --access Allow --protocol Tcp
az network nsg rule create -g "$RG" --nsg-name al-nsg --name allow-web --priority 110 \
  --source-address-prefixes "<your-mgmt-cidr>" --destination-port-ranges 80 --access Allow --protocol Tcp
az vm create -g "$RG" --name "$VM_NAME" --image "$GALLERY_IMAGE_ID" \
  --size Standard_B2s --storage-sku StandardSSD_LRS \
  --admin-username azureuser --ssh-key-values "$SSH_KEY" \
  --vnet-name al-vnet --subnet al-subnet --nsg al-nsg --public-ip-sku Standard

Step 3: Connect via SSH

ssh azureuser@<vm-ip>

alloy.service, nginx.service and grafana-alloy-firstboot.service all start automatically on first boot.

Step 4: Retrieve the Per-VM Password

On first boot the appliance generates a random HTTP Basic Auth password for user admin, unique to this VM, and writes it to a root only file. There is no shared or default credential in the image. Read it over SSH:

sudo cat /root/grafana-alloy-credentials.txt

The file holds this VM's URL, username and password:

ALLOY_URL=http://<vm-ip>/
ALLOY_USERNAME=admin
ALLOY_PASSWORD=<unique-per-vm-password>

Keep this password safe — it is the only credential for the web UI, and every VM gets a different one.

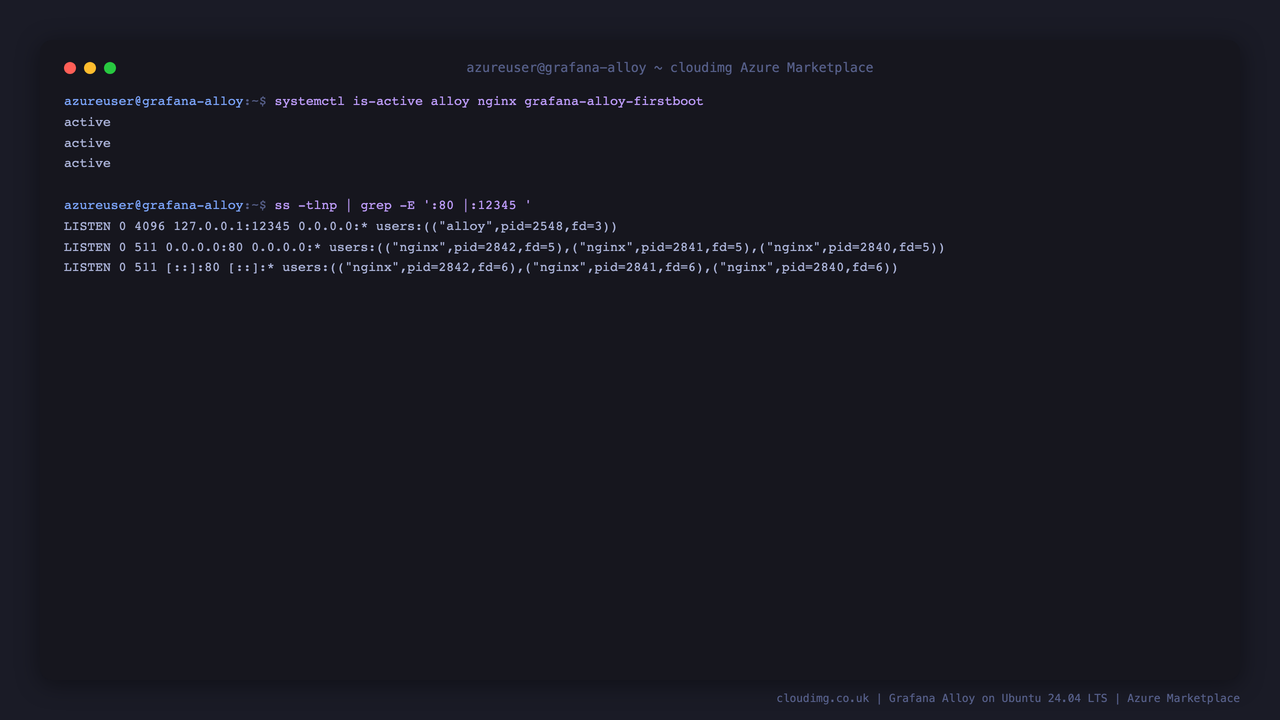

Step 5: Verify the Services

sudo systemctl is-active alloy nginx grafana-alloy-firstboot
sudo test -f /var/lib/cloudimg/grafana-alloy-firstboot.done && echo FIRSTBOOT_DONE
sudo ss -tlnp | grep -E ':80 |:12345 '

Expected output — all three services are active, nginx is bound to the public port 80 and the Alloy UI is bound to loopback 127.0.0.1:12345 only:

active
active
active
FIRSTBOOT_DONE
LISTEN 0 4096 127.0.0.1:12345 0.0.0.0:*  users:(("alloy",...))
LISTEN 0 511  0.0.0.0:80      0.0.0.0:*  users:(("nginx",...))

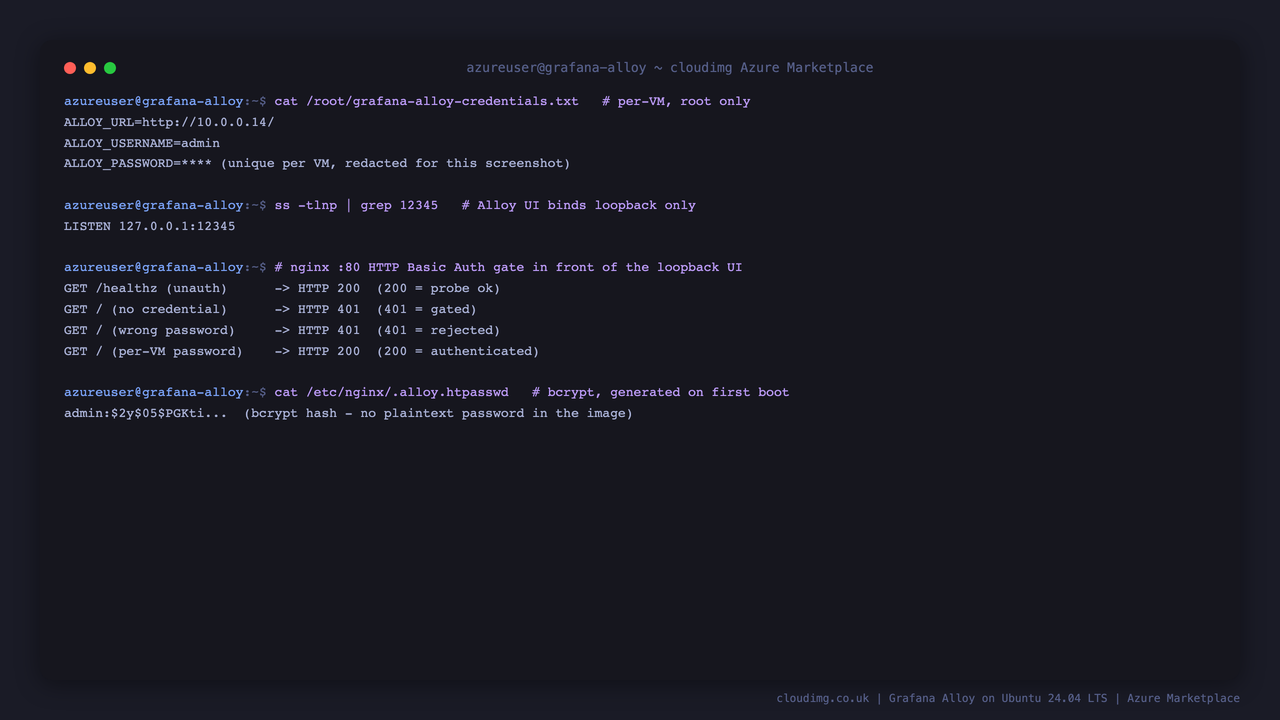

Step 6: Secure by Default — the Auth Gate

The Alloy UI has no built in login, so nginx fronts it with an HTTP Basic Auth gate. An unauthenticated /healthz is available for load balancer probes, but the UI itself is gated: unauthenticated and wrong password requests are rejected with 401, and only the per VM password is accepted. Read your password from the file and prove the gate:

PW=$(sudo grep '^ALLOY_PASSWORD=' /root/grafana-alloy-credentials.txt | cut -d= -f2-)
curl -s -o /dev/null -w 'GET /healthz (unauth)   -> HTTP %{http_code}\n' http://127.0.0.1/healthz
curl -s -o /dev/null -w 'GET / (no credential)   -> HTTP %{http_code}\n' http://127.0.0.1/
curl -s -o /dev/null -w 'GET / (wrong password)  -> HTTP %{http_code}\n' -u admin:wrong http://127.0.0.1/
curl -s -o /dev/null -w 'GET / (per-VM password) -> HTTP %{http_code}\n' -u "admin:$PW" http://127.0.0.1/

The health probe is open, the UI is gated, a wrong password is rejected, and the per VM password authenticates:

GET /healthz (unauth)   -> HTTP 200
GET / (no credential)   -> HTTP 401
GET / (wrong password)  -> HTTP 401
GET / (per-VM password) -> HTTP 200

Step 7: Open the Component Graph

Open http://<vm-ip>/ in a browser and sign in as admin with the password from Step 4. The Graph view visualizes the live pipeline: telemetry flows left to right through each component, from collection through processing to the sink.

Step 8: Inspect the Collection Stage

Click any node to open its detail page. Each component shows a Healthy badge, its latest health message, its arguments and its exports. The prometheus.scrape component is the collection stage — here it scrapes Alloy's own metrics endpoint every 15 seconds and forwards the results to the next component.

Step 9: Inspect the Processing Stage

The otelcol.processor.batch component is a processing stage: it batches telemetry before it is exported. Its detail page shows a Healthy badge, its output wiring and its dependants, so you can trace exactly how one component feeds the next.

Step 10: Inspect the Sink Stage

The otelcol.exporter.debug component is the pipeline sink. In this self contained demo it logs a summary of the telemetry to Alloy's own log rather than shipping it off the VM, so nothing leaves the instance and the whole pipeline is healthy on first boot. Its detail page lists the components that depend on it.

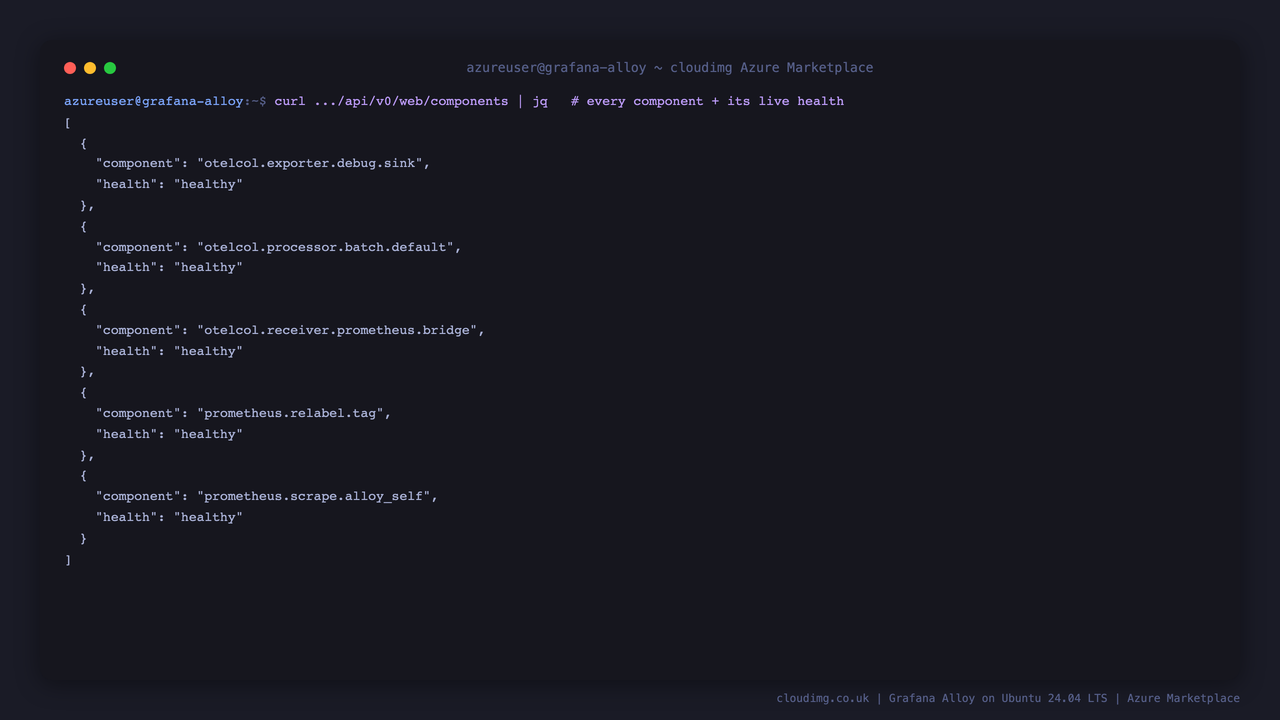

Step 11: Check Component Health via the API

Everything the UI shows is also available as JSON at /api/v0/web/components, so you can wire Alloy's health into your own tooling. Read your password from the file and query it:

PW=$(sudo grep '^ALLOY_PASSWORD=' /root/grafana-alloy-credentials.txt | cut -d= -f2-)
curl -s -u "admin:$PW" http://127.0.0.1/api/v0/web/components \
  | jq '[.[] | {component: .localID, health: .health.state}]'

Every component in the demo pipeline reports healthy:

[
  { "component": "otelcol.exporter.debug.sink",       "health": "healthy" },
  { "component": "otelcol.processor.batch.default",    "health": "healthy" },
  { "component": "otelcol.receiver.prometheus.bridge", "health": "healthy" },
  { "component": "prometheus.relabel.tag",             "health": "healthy" },
  { "component": "prometheus.scrape.alloy_self",       "health": "healthy" }
]

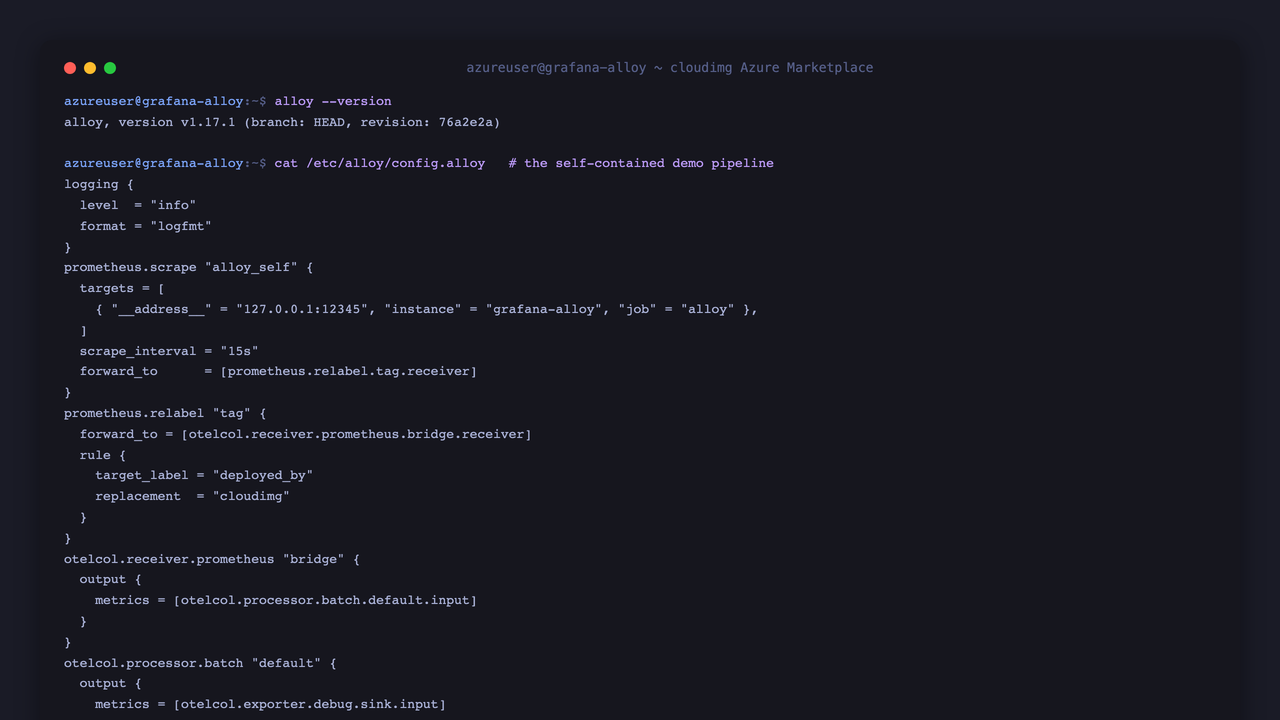

Step 12: The Demo Pipeline Config

The whole pipeline is defined in one declarative file, /etc/alloy/config.alloy. View it and validate it:

cat /etc/alloy/config.alloy
alloy fmt /etc/alloy/config.alloy >/dev/null && echo "config valid"

The config wires five components into a single flow and validates cleanly:

config valid

Step 13: Customize the Pipeline

Replace the demo pipeline with your own. Edit /etc/alloy/config.alloy with sudo nano /etc/alloy/config.alloy — for example, to scrape a local application and forward its metrics to Grafana Cloud or your own Prometheus, using a components pattern like this:

prometheus.scrape "my_app" {
  targets = [
    { "__address__" = "127.0.0.1:8080", "job" = "my-app" },
  ]
  forward_to = [prometheus.remote_write.default.receiver]
}

prometheus.remote_write "default" {
  endpoint {
    url = "https://<your-prometheus>/api/v1/write"
  }
}

Validate your changes with alloy fmt /etc/alloy/config.alloy, then apply them with sudo systemctl reload alloy (Alloy reloads its config without a full restart). The full component reference is at grafana.com/docs/alloy.

Step 14: Managing the Service

sudo systemctl show alloy --property=ActiveState,SubState,MainPID,NRestarts

Alloy is managed by systemd, so it restarts automatically on failure and on boot:

ActiveState=active
SubState=running
MainPID=...
NRestarts=0

Reload its config after an edit with sudo systemctl reload alloy, or restart it fully with sudo systemctl restart alloy. Logs, including the demo sink's telemetry summaries, are available with sudo journalctl -u alloy -f.

Step 15: Add TLS (Optional)

For production, terminate TLS at nginx. Point a DNS record at the VM, then use the packaged nginx with a certificate from Let's Encrypt:

sudo apt-get install -y certbot python3-certbot-nginx
sudo certbot --nginx -d <your-domain>

certbot installs the certificate, rewrites the nginx server block to listen on 443 and sets up automatic renewal. The HTTP Basic Auth gate stays in front of the UI over TLS.

Step 16: Security Recommendations

• Restrict the NSG so ports 80 and 22 only reach trusted networks.
• Terminate TLS at nginx (Step 15) so the UI and its Basic Auth credentials travel encrypted.
• Rotate the Basic Auth password if needed by regenerating /etc/nginx/.alloy.htpasswd with sudo htpasswd -B /etc/nginx/.alloy.htpasswd admin and reloading nginx.
• Keep the UI private — the Alloy UI can trigger config reloads and expose pipeline internals, so treat access as privileged even behind Basic Auth.
• Review your pipeline's exporters so telemetry only leaves the VM to the backends you intend.
• Patch the OS monthly with sudo apt-get update && sudo apt-get upgrade; unattended security upgrades are already enabled.

Step 17: Support and Licensing

Grafana Alloy is licensed under the Apache License 2.0 — no per CPU or per user fee. cloudimg provides commercial support separately.

• Email: support@cloudimg.co.uk
• Website: www.cloudimg.co.uk
• Support hours: 24/7, 24h response SLA
