Harness Open Source DevOps Platform on AWS User Guide

Overview

Harness Open Source, formerly Gitness and built by the team behind Drone, is an all in one self hosted software delivery platform. It brings together Git repository hosting, pull requests and code review, CI and CD pipelines, and a built in artifact registry inside a single web application backed by an embedded database, so a team can host code and ship it without stitching together several separate services. The cloudimg image installs Docker CE from the official Docker repository and runs the official Harness image as a container (managed by Docker with a restart policy), pinned by its @sha256 digest. The web UI and Git over HTTP are served on the loopback connector 127.0.0.1:3000 behind an nginx reverse proxy on port 80, the built in Harness SSH server handles Git over SSH on port 3022, and the container mounts the host Docker socket so pipeline steps run as containers on the instance. Because Harness makes the first account that registers an administrator, this image seeds the admin with a unique password generated on the first boot of every instance and switches off open self registration, so no default credential works and no attacker can register the first account and seize the server. All persistent data lives on a dedicated EBS data volume. Backed by 24/7 cloudimg support.

What is included:

• Harness Open Source running as a container managed by Docker, the official image pinned by @sha256 digest
• Docker CE preinstalled from the official Docker apt repository, with the socket mounted so pipeline steps run as containers
• The Harness web UI and Git over HTTP on :80, fronted by nginx; Git over SSH on :3022
• An embedded SQLite database, so there is no separate database server to run
• A unique administrator password generated on first boot and recorded in a root only file
• Open self registration switched off, so no second account can be created from the sign in page
• A database created fresh per instance with no baked users, tokens or secrets
• A dedicated EBS data volume mounted at /var/lib/harness holding the database, repositories and registry blobs
• docker.service + nginx.service as systemd units, enabled and active
• An unauthenticated /healthz endpoint for load balancer health checks
• 24/7 cloudimg support

Prerequisites

An AWS account, an EC2 key pair in the target region, and a VPC with a public subnet. m5.large (2 vCPU / 8 GiB RAM) is the recommended instance type for the core Git hosting, web UI, registry and pipeline execution. Security group inbound: allow 22/tcp from your management network for SSH, 80/tcp for the web UI and Git over HTTP, and 3022/tcp for Git over SSH. Harness serves plain HTTP on port 80; for production, terminate TLS in front of it with your own domain and consider adding 443/tcp (see Maintenance).

Step 1 - Launch the AMI from the console

In the EC2 console choose Launch instance, then under Application and OS Images select My AMIs (or AWS Marketplace AMIs) and pick the cloudimg Harness Open Source image. Choose an m5.large instance type, select your key pair, and configure the security group to allow 22/tcp, 80/tcp and 3022/tcp as described above. Leave the default root volume; the image already declares a dedicated data volume for /var/lib/harness. Launch the instance and wait for the status checks to pass.

Step 2 - Launch from the AWS CLI

aws ec2 run-instances \
  --image-id <harness-open-source-ami-id> \
  --instance-type m5.large \
  --key-name <your-key-pair> \
  --security-group-ids <sg-with-22-80-3022> \
  --subnet-id <your-public-subnet> \
  --associate-public-ip-address \
  --tag-specifications 'ResourceType=instance,Tags=[{Key=Name,Value=harness}]'

Step 3 - Connect to your instance

Connect over SSH using your key pair and the login user for the OS variant you launched:

Step 4 - Confirm the services are running

systemctl is-active docker.service nginx.service
docker ps --filter name=harness --format 'table {{.Names}}\t{{.Status}}'

Both systemd units report active, and Docker shows the harness container Up. Docker manages the Harness service (the web UI and Git over HTTP bound to the loopback connector 127.0.0.1:3000, and Git over SSH on 3022), and nginx fronts it on port 80. The container mounts the host Docker socket so CI and CD pipeline steps run as containers.

Step 5 - Retrieve your administrator credentials

Harness makes the first account that registers an administrator, so this image pre-seeds that admin with a unique password generated on the first boot of your instance and written to a root only file:

sudo cat /root/harness-credentials.txt

This file contains HARNESS_URL, HARNESS_USERNAME (which is admin) and HARNESS_PASSWORD. Store the password somewhere safe. The official Harness image is pinned by its @sha256 digest, so every instance runs the exact same verified build.

Step 6 - Confirm there is no default credential and no open sign up

nginx serves an unauthenticated health endpoint for load balancers:

curl -s http://localhost/healthz

It returns ok. Now confirm the security posture. The admin signs in with the per instance password, the well known admin / admin default is rejected, and public self registration is disabled:

curl -s -o /dev/null -w 'admin + per-VM password: %{http_code}\n' -X POST 'http://127.0.0.1/api/v1/login?include_cookie=false' -H 'Content-Type: application/json' -d '{"login_identifier":"admin","password":"<HARNESS_PASSWORD>"}'
curl -s -o /dev/null -w 'admin / admin (default): %{http_code}\n' -X POST 'http://127.0.0.1/api/v1/login?include_cookie=false' -H 'Content-Type: application/json' -d '{"login_identifier":"admin","password":"admin"}'
curl -s -o /dev/null -w 'public self-registration: %{http_code}\n' -X POST 'http://127.0.0.1/api/v1/register?include_cookie=false' -H 'Content-Type: application/json' -d '{"uid":"attacker","email":"a@b.c","display_name":"a","password":"Sup3rSecret1"}'

The per instance password returns 200 (authenticated), the default admin / admin returns 404 (Harness deliberately hides whether the user exists on a bad password), and the public register endpoint returns 403 with User sign-up is disabled. So no default or blank credential works and no one can register the first account and seize the server.

Step 7 - Sign in to the web UI

Browse to http://<instance-public-ip>/. Harness shows its sign in page. Enter the user id admin and the password from Step 5, then Sign In. Open self registration is disabled, so the sign in page is the only way in and only your seeded admin can authenticate.

Step 8 - Browse your repositories

After signing in, select a project (Harness groups repositories, pipelines and secrets into projects, also called spaces). Inside a project the Repositories page lists every repository with its description and last update, alongside the Artifact Registries, Gitspaces, Secrets, Members and Settings sections in the left rail. Choose New Repository to create one, giving it a name, an optional description, a default branch and optionally a licence, a .gitignore and a README.

Step 9 - Browse code and push over HTTP or SSH

Open a repository to browse its files, commits, branches and tags, with the README rendered and a summary of commit, branch, tag and open pull request counts. Each repository exposes a clone URL over HTTP (through nginx on port 80) and over the Harness SSH server (port 3022). Clone, commit and push as usual, authenticating with your admin credentials or a personal access token you create under your profile.

# Over HTTP (through nginx on port 80)
git clone http://<instance-public-ip>/git/<space>/<repo>.git

# Over SSH (the Harness built-in SSH server on port 3022; add your SSH key to your Harness profile first)
git clone ssh://git@<instance-public-ip>:3022/<space>/<repo>.git

cd <repo>
git add .
git commit -m "First commit"
git push origin main

Step 10 - Open a pull request

Push a feature branch, then open a pull request to propose merging it into your default branch. The pull request view shows the commits and changes, whether the branch merges cleanly, review requirements, and a conversation timeline, with a Squash and merge action when it is ready.

Step 11 - Run CI and CD pipelines

Harness runs pipeline steps as Docker containers on this instance through the host Docker socket, which the Harness container has mounted:

docker inspect harness --format '{{range .Mounts}}{{.Source}} -> {{.Destination}};{{end}}' | tr ';' '\n' | grep docker.sock

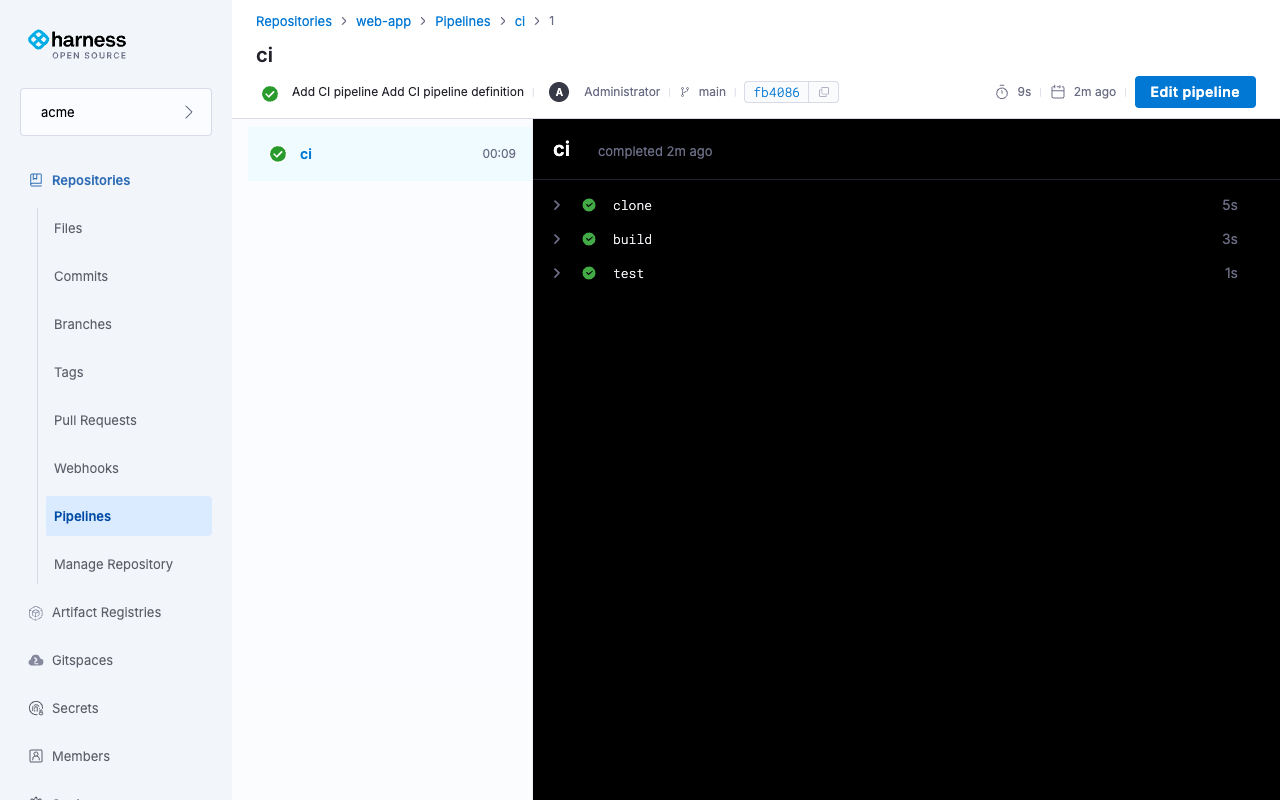

You see /var/run/docker.sock -> /var/run/docker.sock. Define a pipeline in a repository (Harness stores pipeline definitions as code under .harness/), and its steps execute in containers on this instance, so you get CI and CD next to your Git hosting with nothing else to install. Each execution shows every stage with live logs and per step timing.

Maintenance

• Admin password: the administrator password is generated on first boot and stored in /root/harness-credentials.txt. To change it, sign in and use the web UI (your profile, then Password). A password you set in the UI persists across reboots.
• Data: all repositories, pull requests, pipeline definitions, registry blobs and the embedded SQLite database live under /var/lib/harness on a dedicated EBS data volume; snapshot or back that volume up to preserve your data, and grow it independently of the OS disk as your repositories and registry grow.
• Upgrades: Harness runs as the harness container from the official image pinned by digest. To upgrade an already running instance, pull the new tag with sudo docker pull harness/harness:<new-tag>, then recreate the container with the same -v /var/run/docker.sock:/var/run/docker.sock -v /var/lib/harness:/data binding and the environment file at /etc/cloudimg/harness.env.
• TLS: Harness serves plain HTTP on port 80; front it with TLS (for example certbot with your own domain) before production use, and open 443/tcp on the security group.
• Security patches: unattended-upgrades remains enabled so the OS continues to receive security updates automatically.
• License: Harness Open Source is Apache 2.0 licensed. This image ships the open source project; the cloudimg charge covers packaging, security patching, image maintenance and support.

Support

cloudimg provides 24/7 expert support for this image. Contact support@cloudimg.co.uk.
