Kafbat UI for Apache Kafka on Ubuntu 24.04 on Azure User Guide

Overview

Kafbat UI is a fast, open source web interface for managing and observing Apache Kafka clusters. From a single browser console you can inspect brokers and their configuration, browse topics and partitions, read and search live messages, monitor consumer groups and their lag, and work with schemas and connectors. Because Kafbat UI is a management console rather than a broker, it needs a Kafka cluster to talk to, so this cloudimg image bundles one: a single node Apache Kafka 4.3 broker running in KRaft mode (no ZooKeeper) alongside Kafbat UI, giving you a complete, self contained Kafka workbench that is useful the moment the instance boots.

The image ships Kafbat UI 1.5.0 as a Spring Boot service behind an nginx reverse proxy on port 80, on a hardened, fully patched Ubuntu 24.04 LTS base. The bundled Kafka broker listens only on the loopback interface, so it is never exposed to the network; the only client that talks to it is Kafbat UI on the same host. Kafbat UI is secured with its built in login form, and a unique administrator password is generated on the first boot of every VM. A set of demo topics with sample messages and a consumer group are seeded at first boot so the console shows real data straight away. Backed by 24/7 cloudimg support.

What is included:

• Kafbat UI 1.5.0 served by nginx on port 80, running as a Spring Boot service on a bundled Eclipse Temurin 25 JRE
• A bundled single node Apache Kafka 4.3.1 broker in KRaft mode (no ZooKeeper), already formatted and running
• Kafbat UI login form enabled by default, with a per VM administrator password generated on first boot and recorded in a root only file
• No shipped default login: authentication is switched on and no known or blank credential authenticates
• The Kafka broker bound to 127.0.0.1 only (ports 9092 and 9093), never exposed to the network
• Demo topics (demo-orders, demo-payments, demo-users) with sample messages and a demo-consumer consumer group, seeded on first boot
• kafka.service, kafbat-ui.service and nginx.service as enabled systemd units
• An unauthenticated /actuator/health endpoint for Azure Load Balancer health probes
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet plus subnet in the target region. Standard_B2s (2 vCPU / 4 GiB RAM) is a sensible starting point and is what the image is tuned for; size up for larger clusters or heavier browsing. NSG inbound: allow 22/tcp from your management network and 80/tcp for the console. Kafbat UI serves plain HTTP on port 80; for production, terminate TLS in front of it with your own domain. The bundled Kafka broker is never exposed: it listens on 127.0.0.1 only, so ports 9092 and 9093 stay off the network.

Step 1 - Deploy the image

Option A: Azure portal

1. In the Azure portal, open Create a resource and search for Kafbat UI for Apache Kafka on Ubuntu 24.04 LTS by cloudimg.
2. Select the plan and click Create.
3. On the Basics tab, choose your subscription, resource group and region, name the VM, and select Standard_B2s.
4. Set Authentication type to SSH public key, with azureuser as the username, and provide your public key.
5. On the Networking tab, allow inbound 22/tcp (from your IP) and 80/tcp.
6. Review and create. When deployment completes, note the VM's public IP address.

Option B: Azure CLI

az vm create \
  --resource-group my-kafbat-rg \
  --name kafbat-ui \
  --image cloudimg:kafbat-ui-ubuntu-24-04:default:latest \
  --size Standard_B2s \
  --admin-username azureuser \
  --generate-ssh-keys \
  --public-ip-sku Standard

Open port 80 to reach the console (and 22 for SSH):

az vm open-port --resource-group my-kafbat-rg --name kafbat-ui --port 80 --priority 900

Step 2 - Confirm the services are running

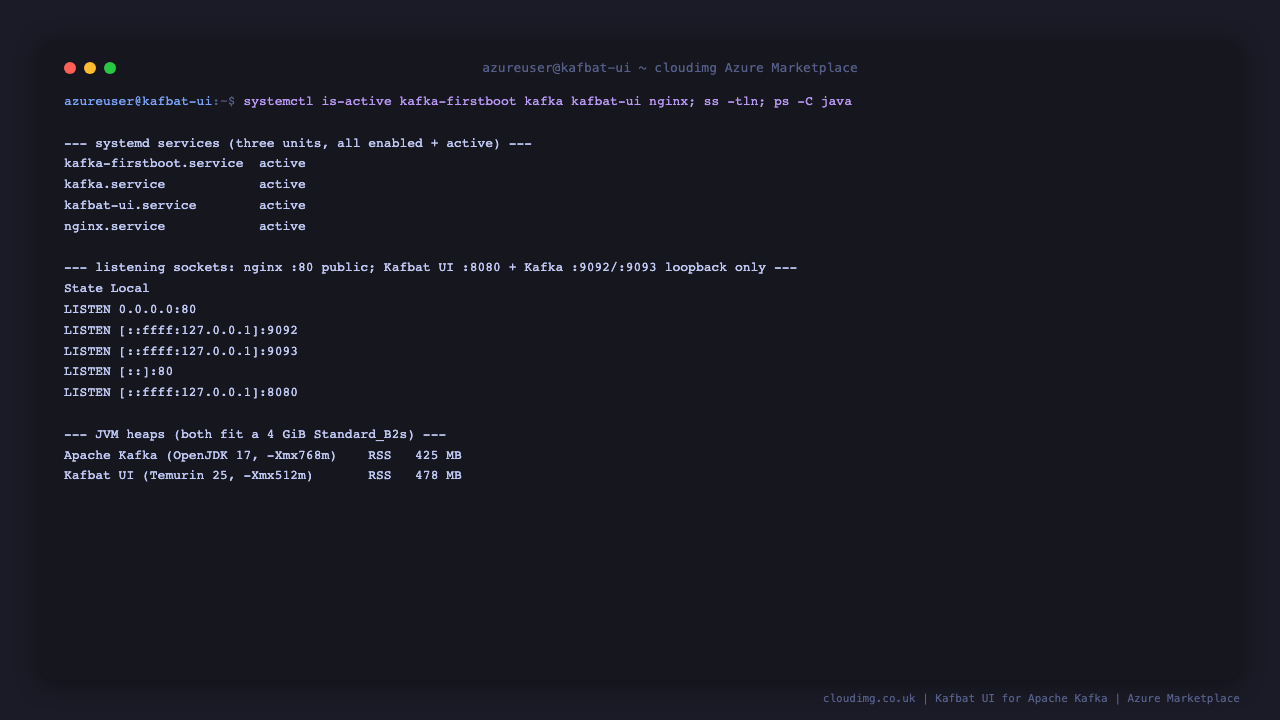

SSH in as azureuser and confirm the three systemd units are active. kafka.service is the bundled broker, kafbat-ui.service is the web console, and nginx.service is the reverse proxy on port 80.

systemctl is-active kafka kafbat-ui nginx

Expected output:

active
active
active

The web console reports readiness on an unauthenticated health endpoint that Azure Load Balancer probes can use:

curl -s http://127.0.0.1/actuator/health

{"status":"UP"}

The bundled broker and the console bind to the loopback interface only; nginx on port 80 is the sole external surface. You can confirm the listening sockets:

ss -tln | grep -E ':80 |:8080 |:9092 |:9093 '

Step 3 - Retrieve the per VM administrator password

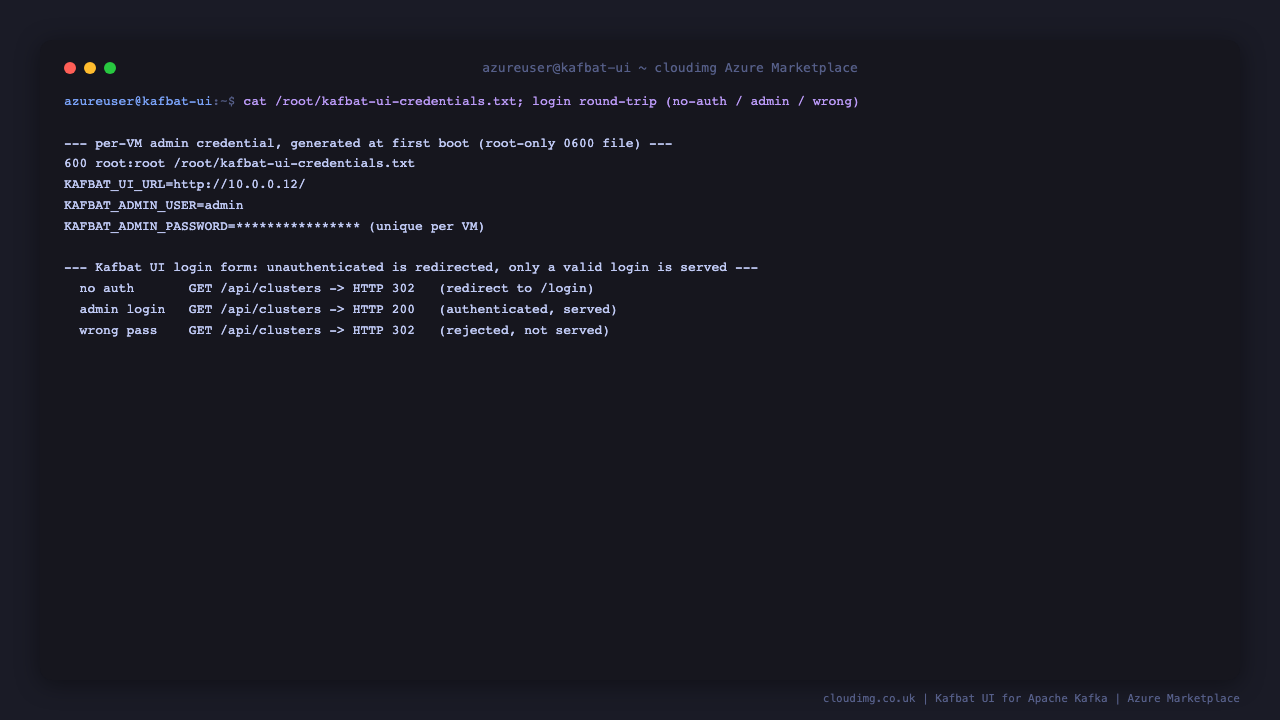

Kafbat UI ships with authentication switched on. There is no default or shared password: on the first boot of every VM a one shot service generates a random administrator password unique to that instance and writes it to a root only file. Read it with sudo:

sudo cat /root/kafbat-ui-credentials.txt

The file records the console URL, the administrator username (admin) and the generated password:

# Kafbat UI for Apache Kafka - Per-VM Credentials
KAFBAT_UI_URL=http://YOUR_VM_IP/
KAFBAT_ADMIN_USER=admin
KAFBAT_ADMIN_PASSWORD=<KAFBAT_ADMIN_PASSWORD>

The file is 0600 root:root, so only the root user can read it. Keep this password safe: it is the single administrator credential for the console.

Step 4 - Sign in to the console

Open http://YOUR_VM_IP/ in your browser. Kafbat UI presents its login form because authentication is enabled. Enter the username admin and the password from /root/kafbat-ui-credentials.txt, then click Log in. Any attempt to reach the console or its API without signing in is redirected to the login page, so the console is never served anonymously.

Step 5 - Explore the cluster

After signing in, open Brokers to see the bundled cluster. This is a single node KRaft deployment: one broker that is also the active controller, so there is no separate ZooKeeper to run. The dashboard shows the broker count, the active controller, the controller type (KRaft), and the online, in sync and out of sync partition counts across the cluster.

Step 6 - Browse topics

Open Topics to list the topics on the broker. The image seeds three demo topics on first boot so the console has real data to explore: demo-orders (3 partitions), demo-payments and demo-users. Each row shows the partition count, replication factor, message count and on disk size. The internal __consumer_offsets topic that Kafka uses to track consumer progress is shown too. From here you can create, configure, purge or delete topics, and click into any topic for its details.

Step 7 - Read live messages

Click a topic and open its Messages tab to read what is on the topic. Here demo-orders shows its seeded order events: each message has an offset, a partition, a timestamp, a key (for example order-028) and a JSON value preview. You can change the ordering, filter by partition, choose a key or value deserializer, and search, which is how you inspect what producers are actually writing.

Step 8 - Monitor consumer groups

Open Consumers to see consumer groups and their lag. The seeded demo-consumer group has read part of demo-orders and committed its offsets, and a few more messages were produced afterwards, so it shows a small non zero lag. Consumer lag, the gap between the latest offset and the last committed offset, is the key signal that a consumer is keeping up with its topics.

Step 9 - Work with the bundled Kafka broker from the command line

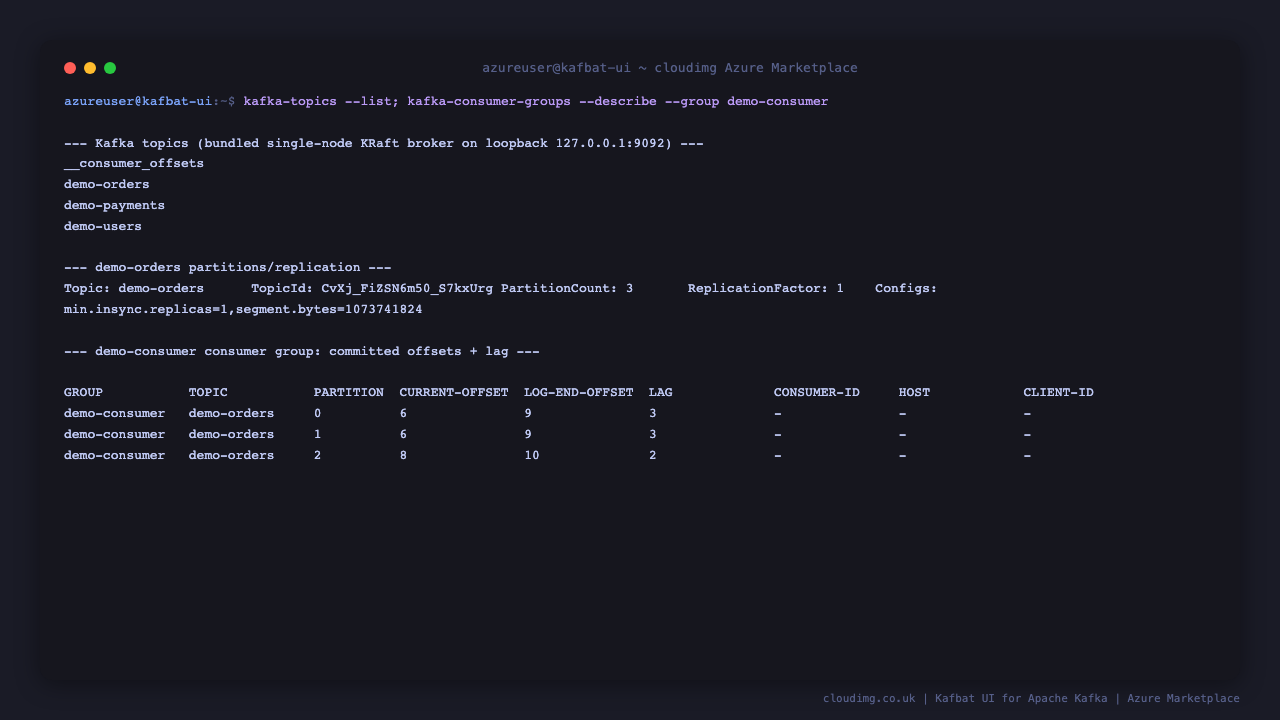

The bundled broker is a full Apache Kafka install under /opt/kafka, so the standard Kafka command line tools are available on the VM. The broker listens on 127.0.0.1:9092. List the topics:

/opt/kafka/bin/kafka-topics.sh --bootstrap-server 127.0.0.1:9092 --list

__consumer_offsets
demo-orders
demo-payments
demo-users

Describe a topic to see its partitions and configuration:

/opt/kafka/bin/kafka-topics.sh --bootstrap-server 127.0.0.1:9092 --describe --topic demo-orders

Inspect the demo consumer group's committed offsets and lag from the CLI, the same data the Consumers view shows:

/opt/kafka/bin/kafka-consumer-groups.sh --bootstrap-server 127.0.0.1:9092 --describe --group demo-consumer

You can produce and consume your own messages too. Create a topic, produce a couple of records, then read them back:

/opt/kafka/bin/kafka-topics.sh --bootstrap-server 127.0.0.1:9092 --create --if-not-exists --topic my-events --partitions 1 --replication-factor 1
printf 'hello\nworld\n' | /opt/kafka/bin/kafka-console-producer.sh --bootstrap-server 127.0.0.1:9092 --topic my-events
/opt/kafka/bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092 --topic my-events --from-beginning --timeout-ms 8000 2>/dev/null

Refresh the Topics view in the browser and your new my-events topic appears alongside the demo topics.

Step 10 - Security model

This image is secure by default. Kafbat UI ships with no authentication, so cloudimg switches on its login form and rotates a per VM administrator password at first boot; the shipped image carries only a placeholder, never a usable credential. You can prove the login wall directly: an unauthenticated API request is redirected to the login page, a request with the correct password is served, and a request made with the wrong password is not served.

PW=$(sudo grep '^KAFBAT_ADMIN_PASSWORD=' /root/kafbat-ui-credentials.txt | cut -d= -f2-)
echo "no auth   -> $(curl -s -o /dev/null -w '%{http_code}' http://127.0.0.1/api/clusters)"
CJ=$(mktemp); curl -s -o /dev/null -c "$CJ" --data-urlencode username=admin --data-urlencode "password=$PW" http://127.0.0.1/login
echo "admin     -> $(curl -s -o /dev/null -w '%{http_code}' -b "$CJ" http://127.0.0.1/api/clusters)"
rm -f "$CJ"

no auth   -> 302
admin     -> 200

The 302 is the redirect to the login page; the 200 is the authenticated request being served. The bundled Kafka broker is bound to loopback only, so it is never reachable from the network, and the NSG needs to open only ports 22 and 80.

Step 11 - Base image and versions

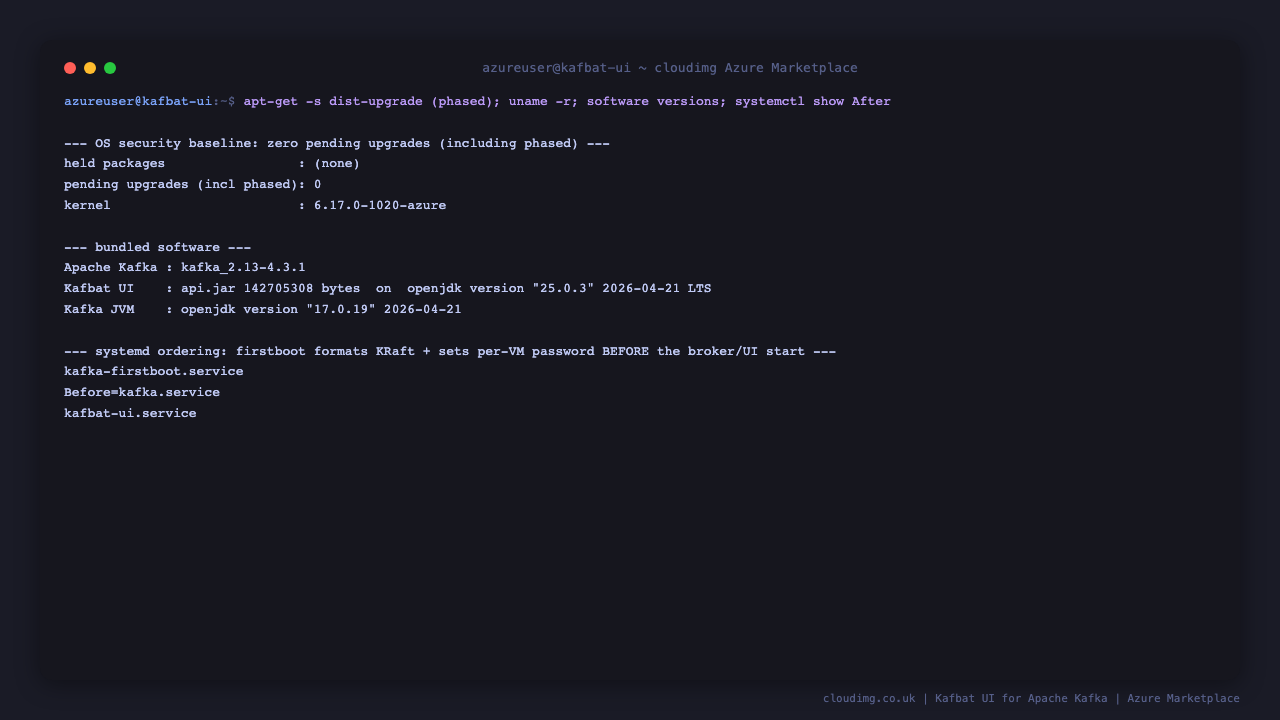

The base is a hardened, fully patched Ubuntu 24.04 LTS with unattended security upgrades enabled, so the image keeps receiving security updates on your VMs. You can confirm the fully patched state and the bundled software versions:

echo "kernel: $(uname -r)"
echo "kafka:  $(ls -d /opt/kafka_*/ | sed 's#.*/opt/##;s#/##')"
/opt/kafbat-ui/jre/bin/java -version 2>&1 | head -1

Apache Kafka runs on the system OpenJDK 17, and Kafbat UI runs on a bundled Eclipse Temurin 25 JRE (Kafbat UI 1.5.0 requires Java 25). A first boot service formats the KRaft storage and sets the per VM administrator password before the broker and console start, so ordering is deterministic on every boot.

Managing the services

Restart the console, the broker or the proxy with systemd:

sudo systemctl restart kafbat-ui
sudo systemctl restart kafka
sudo systemctl restart nginx

The Kafka broker keeps its log and metadata directories under /var/lib/kafka/data, and the console reads its configuration from /etc/default/kafbat-ui. The Kafka broker connection Kafbat UI uses is 127.0.0.1:9092.

Support

Every cloudimg image is backed by 24/7 support. If you have any questions about this deployment, contact the cloudimg team at support@cloudimg.co.uk.
