MariaDB 10.11 LTS on Ubuntu 24.04 on Azure User Guide

| Product: MariaDB 10.11 LTS on Ubuntu 24.04 LTS on Azure

Overview

This guide covers the deployment and configuration of MariaDB 10.11 LTS on Ubuntu 24.04 on Azure using cloudimg Azure Marketplace images. MariaDB is the community-developed, drop-in-compatible fork of MySQL maintained by the MariaDB Foundation.

MariaDB 10.11 is the final 10.x long-term-support release, supported through February 2028. It is the right choice for production workloads with stacks pinned to the 10.x branch — older application schemas, ORM compatibility constraints, Galera 10.x clusters, MaxScale 10.x deployments, and Percona toolkit pinned to 10.x. For greenfield deployments without a 10.x dependency, consider the cloudimg MariaDB 11 LTS image instead — that line ships the newer engine and receives patches into 2029.

The image ships MariaDB 10.11 from the official MariaDB Foundation APT repository at mariadb.org pinned to noble (Ubuntu 24.04). On every fresh customer virtual machine, mariadb-firstboot.service rotates the root password from the build-time temp value to a per-VM strong password, applies hardening (anonymous users dropped, test database dropped, remote root login disabled), creates the default cloudimg database with utf8mb4 character set, and provisions a cloudimg user with all privileges on it. Credentials are written to /stage/scripts/mariadb-credentials.log (mode 0600). No two virtual machines ever share a password; no password is baked into the image.

What is included:

  • MariaDB 10.11 LTS server from the official MariaDB Foundation APT repository

  • Listener on TCP 3306 bound to 127.0.0.1 by default (Ubuntu noble packaging default; see Step 9 to allow remote connections)

  • mariadb, mariadb-admin, mariadb-dump clients (with legacy mysql-prefixed symlinks)

  • Per-VM root password generated on first boot, written to /stage/scripts/mariadb-credentials.log

  • Default cloudimg database (utf8mb4, utf8mb4_unicode_ci collation)

  • cloudimg user with all privileges on the cloudimg database

  • Hardening applied at firstboot: anonymous users dropped, test database dropped, remote root login disabled

  • Systemd service mariadb.service for automatic startup

  • Idempotent firstboot service mariadb-firstboot.service

  • Ubuntu 24.04 LTS base with latest security patches applied at build time

  • Azure Linux Agent for seamless cloud integration and SSH key injection

  • 24/7 cloudimg support with guaranteed 24 hour response SLA

Prerequisites

  • An active Azure subscription

  • A subscription to the MariaDB 10.11 LTS on Ubuntu 24.04 listing on Azure Marketplace

  • An SSH public key for VM authentication

  • A virtual network and subnet in the target region

Recommended virtual machine size: Standard_D2s_v3 (2 vCPU, 8 GB RAM) for production. MariaDB benefits from RAM for the InnoDB buffer pool. Standard_B2s is sufficient for development.

Step 1: Deploy from the Azure Portal

Navigate to Marketplace in the Azure Portal, search for MariaDB 10.11 LTS, and select the cloudimg publisher entry. Click Create.

On the Networking tab attach a network security group that allows inbound TCP 22 from your management IP range and TCP 3306 only from application server subnets or the virtual network CIDR. Do not expose port 3306 to the public internet. The root password is written in plain text on the VM by design so you can read it without a second trip; an internet-exposed MariaDB port would make brute-force attacks trivial.

Click Review + create, wait for validation, then Create. Deployment takes around two minutes.

Step 2: Deploy from the Azure CLI

RG="mariadb-prod"
LOCATION="eastus"
VM_NAME="mariadb-01"
ADMIN_USER="azureuser"
GALLERY_IMAGE_ID="/subscriptions/<sub-id>/resourceGroups/azure-cloudimg/providers/Microsoft.Compute/galleries/cloudimgGallery/images/mariadb-10-11-lts-ubuntu-24-04/versions/<version>"
SSH_KEY="$(cat ~/.ssh/id_rsa.pub)"

az group create --name "$RG" --location "$LOCATION"

az network vnet create \
  --resource-group "$RG" \
  --name mariadb-vnet --address-prefix 10.92.0.0/16 \
  --subnet-name mariadb-subnet --subnet-prefix 10.92.1.0/24

az network nsg create --resource-group "$RG" --name mariadb-nsg

az network nsg rule create \
  --resource-group "$RG" --nsg-name mariadb-nsg \
  --name allow-ssh --priority 100 \
  --source-address-prefixes "<your-mgmt-cidr>" \
  --destination-port-ranges 22 --access Allow --protocol Tcp

az network nsg rule create \
  --resource-group "$RG" --nsg-name mariadb-nsg \
  --name allow-mariadb-vnet --priority 110 \
  --source-address-prefixes 10.92.0.0/16 \
  --destination-port-ranges 3306 --access Allow --protocol Tcp

az vm create \
  --resource-group "$RG" --name "$VM_NAME" \
  --image "$GALLERY_IMAGE_ID" \
  --size Standard_D2s_v3 --storage-sku StandardSSD_LRS \
  --admin-username "$ADMIN_USER" --ssh-key-values "$SSH_KEY" \
  --vnet-name mariadb-vnet --subnet mariadb-subnet --nsg mariadb-nsg \
  --public-ip-address ""

The --public-ip-address "" flag keeps the database off the public internet.

Step 3: Connect via SSH

ssh azureuser@<private-ip>

mariadb.service will already be running and mariadb-firstboot.service will already have run, generating per-VM credentials and creating the cloudimg database.

Step 4: Verify the MariaDB Service

sudo systemctl status mariadb.service --no-pager

Expected: active (running). Confirm the firstboot sentinel:

sudo test -f /var/lib/cloudimg/mariadb-firstboot.done && echo FIRSTBOOT_DONE

Confirm the listener:

sudo ss -tln | grep 3306

mariadb.service active and listening on TCP 3306

Step 5: Retrieve Credentials

sudo cat /stage/scripts/mariadb-credentials.log

You will see:

ROOT_USER=root
ROOT_PASSWORD=<ROOT_PASSWORD>
CLOUDIMG_USER=cloudimg
CLOUDIMG_PASSWORD=<CLOUDIMG_PASSWORD>
CLOUDIMG_DATABASE=cloudimg
PORT=3306

Store the passwords in your secret store. The file is mode 0600 (root only).

Step 6: Connect Locally with the mariadb Client

Export the root password to a shell variable for the session:

export ROOT_PW="$(sudo awk -F= '/^ROOT_PASSWORD=/{print $2}' /stage/scripts/mariadb-credentials.log)"

Connect:

mariadb -u root -p"${ROOT_PW}"

You should see the MariaDB prompt:

Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 7
Server version: 10.10.11-MariaDB-ubu2404 ...

MariaDB [(none)]>

Run SELECT VERSION(); to confirm, then \q to exit.

Step 7: Confirm the Version

mariadb -u root -p"${ROOT_PW}" -BNe "SELECT VERSION()"

Expected: 10.10.11-MariaDB-ubu2404 (or similar 10.11).

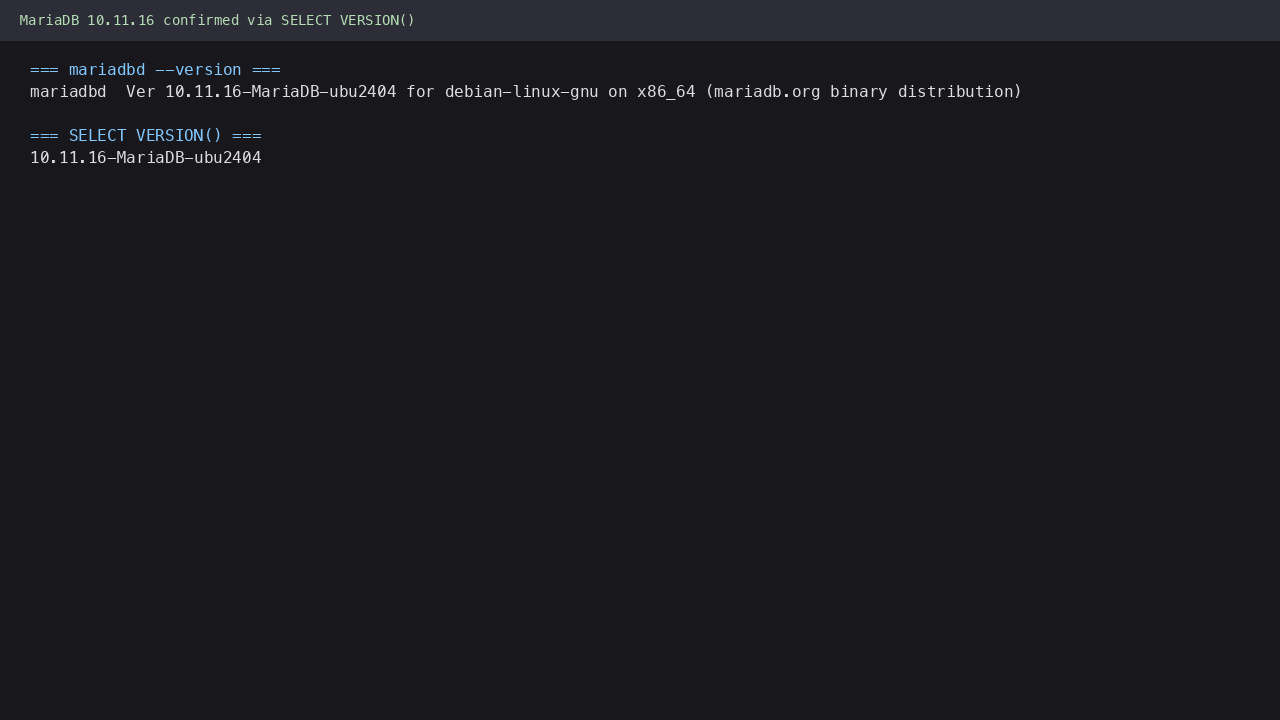

MariaDB 10.11 LTS confirmed via SELECT VERSION() on the running server

Step 8: Round-trip Test as the cloudimg User

The cloudimg user has all privileges on the cloudimg database:

export CL_PW="$(sudo awk -F= '/^CLOUDIMG_PASSWORD=/{print $2}' /stage/scripts/mariadb-credentials.log)"
mariadb -u cloudimg -p"${CL_PW}" cloudimg -e "
  CREATE TABLE IF NOT EXISTS probe (id INT, val VARCHAR(64));
  INSERT INTO probe VALUES (1, 'cloudimg-ok');
  SELECT val FROM probe WHERE id=1;
  DROP TABLE probe;
"

You should see cloudimg-ok.

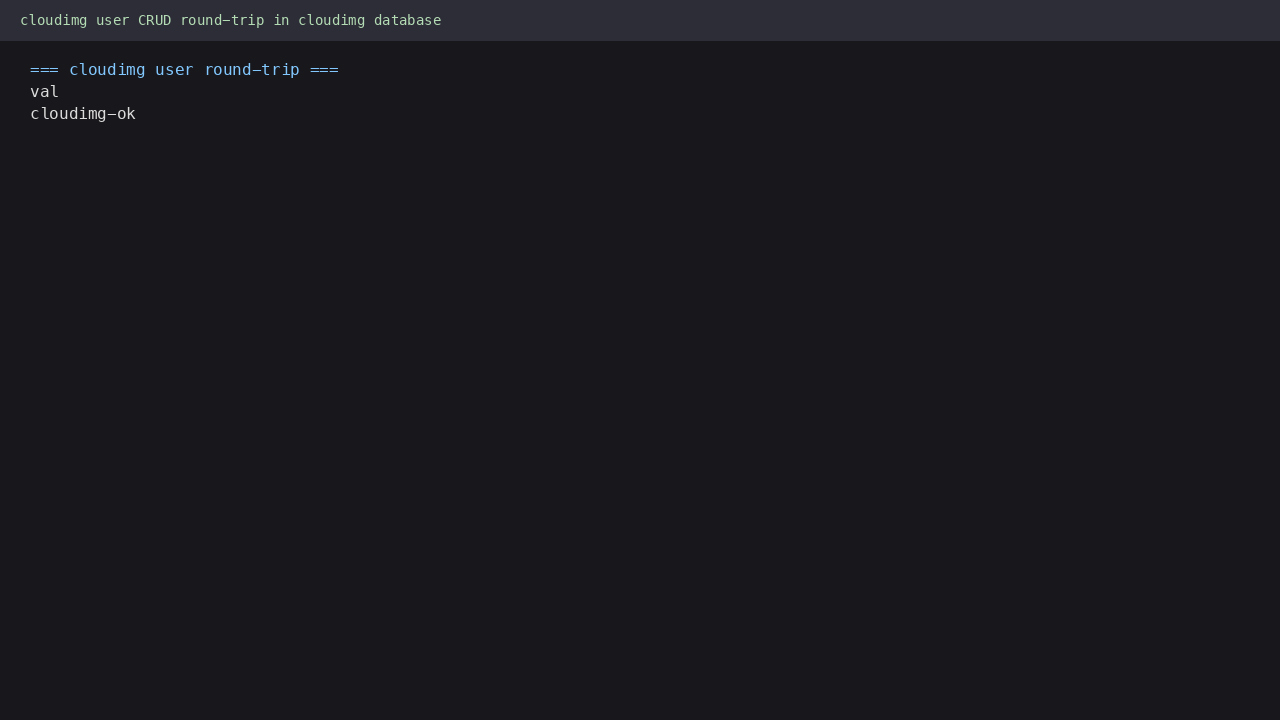

cloudimg user CREATE/INSERT/SELECT/DROP round-trip in the cloudimg database

Step 9: Connect from a Remote Application

The shipped image binds MariaDB to 127.0.0.1 only (Ubuntu noble packaging default — listener on 127.0.0.1:3306, not 0.0.0.0:3306). To accept connections from other hosts in your virtual network, edit /etc/mysql/mariadb.conf.d/50-server.cnf and change the bind-address line:

sudo sed -i 's/^bind-address.*/bind-address = 0.0.0.0/' /etc/mysql/mariadb.conf.d/50-server.cnf
sudo systemctl restart mariadb.service
sudo ss -tln | grep 3306

Confirm the listener is now bound on 0.0.0.0:3306 not 127.0.0.1:3306.

Then from any host inside the same virtual network, on port 3306 with the cloudimg credentials:

mariadb -h <private-ip> -P 3306 -u cloudimg -p'<CLOUDIMG_PASSWORD>' cloudimg

The MariaDB Connector libraries also speak the MySQL wire protocol natively for legacy MySQL clients.

Security note: binding to 0.0.0.0 only matters at the network layer if your NSG actually allows inbound 3306 from somewhere. Keep bind-address=127.0.0.1 if all consumers are on the same VM (the typical LAMP single-server pattern). Use 0.0.0.0 only when you have application servers on different VMs in the same VNet, and pair it with an NSG rule restricting 3306 to those subnets — never to the public internet.

Step 10: Server Components

Component Path

MariaDB server daemon /usr/sbin/mariadbd

mariadb CLI client /usr/bin/mariadb

mariadb-admin /usr/bin/mariadb-admin

mariadb-dump backup /usr/bin/mariadb-dump

Data directory /var/lib/mysql/

Server config /etc/mysql/mariadb.conf.d/

Error log /var/log/mysql/error.log

Systemd unit /lib/systemd/system/mariadb.service

Firstboot script /usr/local/sbin/mariadb-firstboot.sh

Firstboot service /etc/systemd/system/mariadb-firstboot.service

Credentials file /stage/scripts/mariadb-credentials.log

Firstboot sentinel /var/lib/cloudimg/mariadb-firstboot.done

Inspect installed package version:

dpkg-query -W -f='${Package} ${Version}\n' mariadb-server

Step 11: Managing the MariaDB Service

Status:

sudo systemctl status mariadb.service --no-pager

Stop:

sudo systemctl stop mariadb.service

Start:

sudo systemctl start mariadb.service

Restart:

sudo systemctl restart mariadb.service

View error log:

sudo tail -n 50 /var/log/mysql/error.log

Step 12: Tuning for Production

Default config ships with safe defaults that work on small instances. For production VMs, edit /etc/mysql/mariadb.conf.d/50-server.cnf:

  • innodb_buffer_pool_size — set to ~70% of available RAM (default 128M is too small for production)

  • max_connections — default 151; raise for high-concurrency workloads

  • innodb_log_file_size — default 96M; raise to 512M+ for write-heavy workloads

After editing:

sudo systemctl restart mariadb.service

Step 13: Backups

Use mariadb-dump for logical backups:

sudo mariadb-dump -u root -p"${ROOT_PW}" --all-databases --single-transaction --routines --triggers --events > backup-$(date +%F).sql

For point-in-time recovery, enable binary logging and use mariabackup for hot physical backups.

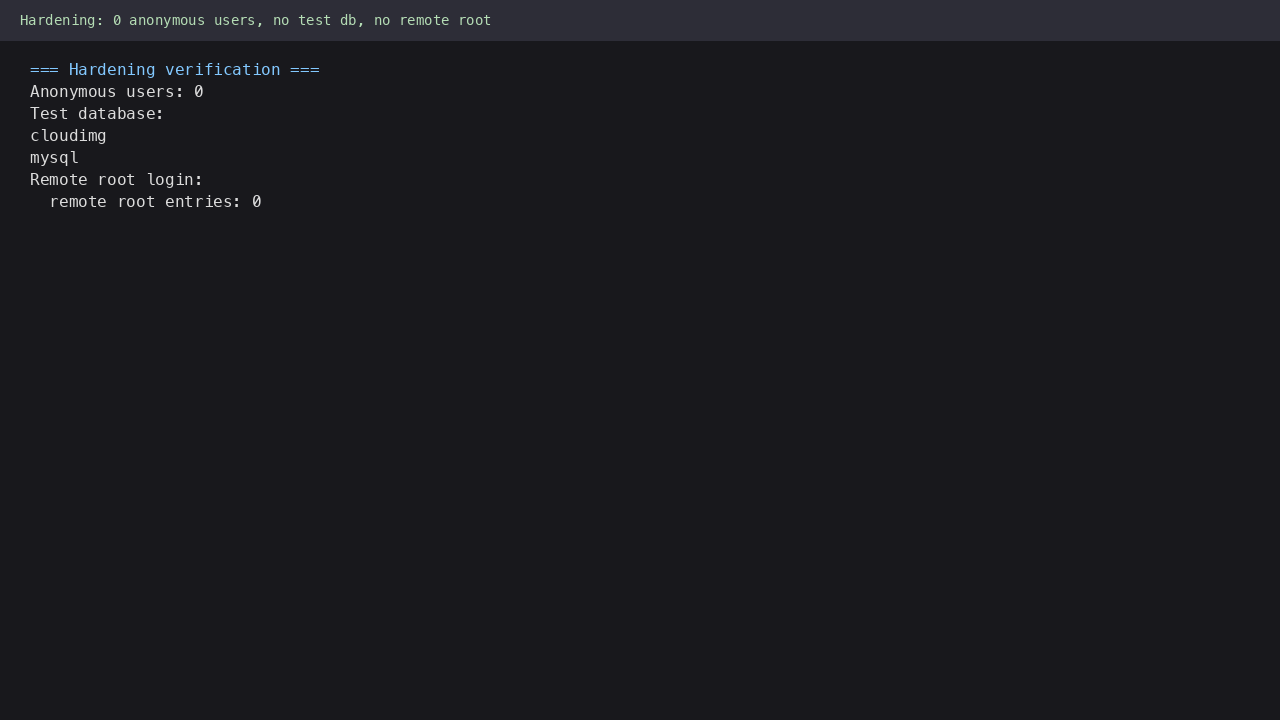

Hardening applied at firstboot — 0 anonymous users, no test database, remote root login disabled

Step 14: Troubleshooting

Cannot connect on port 3306

  • Confirm service running: sudo systemctl status mariadb.service

  • Confirm listener bound: sudo ss -tln | grep 3306

  • Check error log: sudo tail -n 50 /var/log/mysql/error.log

  • Confirm NSG allows TCP 3306 from your client source IP

Authentication errors

  • Re-read password: sudo awk -F= '/^ROOT_PASSWORD=/{print $2}' /stage/scripts/mariadb-credentials.log

  • Confirm shell variable not truncated

  • Confirm firstboot completed: sudo test -f /var/lib/cloudimg/mariadb-firstboot.done && echo OK

Firstboot did not run

  • Check service: sudo systemctl status mariadb-firstboot.service --no-pager

  • Review journal: sudo journalctl -u mariadb-firstboot.service --no-pager -n 100

  • If MariaDB failed to start, check error log: sudo tail -n 50 /var/log/mysql/error.log

Service fails to start

  • Check journal: sudo journalctl -u mariadb.service --no-pager -n 100

  • Check filesystem space: df -h /var/lib/mysql

  • Verify data directory ownership: sudo ls -la /var/lib/mysql | head; should be mysql:mysql

Step 15: Security Recommendations

  • Rotate the root password on a schedule using ALTER USER 'root'@'localhost' IDENTIFIED BY '<new-password>';

  • Create application-specific users with minimal privileges; never connect application code as root or as the cloudimg superuser

  • Restrict port 3306 to trusted application server subnets only in your NSG

  • Enable binary logging for replication and point-in-time recovery: add log_bin = /var/log/mysql/mariadb-bin under [mysqld] in /etc/mysql/mariadb.conf.d/50-server.cnf

  • Enable TLS for connections by configuring SSL certificates in [mariadb] and requiring REQUIRE SSL on user grants

  • Back up regularly with mariadb-dump (logical) or mariabackup (physical)

  • Keep MariaDB updated: sudo apt-get update && sudo apt-get upgrade mariadb-server periodically

  • Shred the credentials file once the passwords are stored in your secret store: sudo shred -u /stage/scripts/mariadb-credentials.log

Step 16: Support and Licensing

MariaDB Server is released under the GNU General Public License version 2. There is no per-core, per-seat, or per-server fee for MariaDB Community. MariaDB is a registered trademark of MariaDB Corporation Ab.

cloudimg provides commercial support for this image separately from the upstream project.

  • Email: support@cloudimg.co.uk

  • Website: www.cloudimg.co.uk

  • Support hours: 24/7 with guaranteed 24 hour response SLA
