Mosquitto + Node-RED on Ubuntu 24.04 on Azure User Guide

Overview

This image pairs Eclipse Mosquitto, the lightweight open source MQTT message broker, with Node-RED, the flow based low code programming tool, on a single Ubuntu 24.04 LTS VM. It is the canonical IoT starter stack: devices publish telemetry to Mosquitto, and Node-RED subscribes, transforms and routes those messages visually.

The integration is pre wired and proven at every boot. Node-RED's broker connection already points at the local Mosquitto with this VM's own generated credentials, a demo flow round trips a real message through the broker on first boot, and both the broker password and the editor admin password are unique to your VM.

What is included:

• Eclipse Mosquitto 2.0.18 MQTT broker on port 1883, authentication required (anonymous access disabled)
• Node-RED 5.0.4 on Node.js 22 LTS, run as a dedicated systemd service bound to loopback
• nginx on port 80 fronting the flow editor (websocket proxied), with an unauthenticated /health endpoint for probes
• A demo flow, already deployed: an inject node publishes to topic cloudimg/demo through the real broker, and a subscriber node receives it, shows it in the debug sidebar and appends it to a log file
• Per VM credentials generated on first boot: the broker user cloudimg and the editor user admin, both written to a root only file
• Licence texts for both components shipped in the image under /usr/share/cloudimg/licenses/mosquitto-node-red/
• 24/7 cloudimg support

Prerequisites

An active Azure subscription, an SSH key pair, and a VNet + subnet in the target region. Standard_B2s (2 vCPU / 4 GiB RAM) is comfortable for this stack; scale up for very high message rates or heavy flows. NSG inbound: allow 22/tcp from your management network, 80/tcp for the flow editor, and 1883/tcp for MQTT devices (restrict the source ranges to your device networks).

Step 1 - Deploy from the Azure Marketplace

Sign in to the Azure Portal, choose Create a resource, search the Marketplace for Mosquitto Node-RED by cloudimg, and select Create. On Basics pick your subscription, resource group, region and size; under Administrator account choose SSH public key and paste your key; under Inbound port rules allow SSH (22) and HTTP (80). Then Review + create -> Create. After the VM deploys, open port 1883 for your MQTT devices (Step 2 shows the CLI form).

Step 2 - Deploy from the Azure CLI

az vm create \
  --resource-group <your-rg> \
  --name mosquitto-node-red \
  --image <marketplace-image-urn> \
  --size Standard_B2s \
  --admin-username azureuser \
  --ssh-key-values ~/.ssh/id_ed25519.pub \
  --vnet-name <your-vnet> --subnet <your-subnet> \
  --public-ip-sku Standard

az vm open-port --resource-group <your-rg> --name mosquitto-node-red --port 80 --priority 1010
az vm open-port --resource-group <your-rg> --name mosquitto-node-red --port 1883 --priority 1020

Step 3 - Connect to your VM

ssh azureuser@<vm-public-ip>

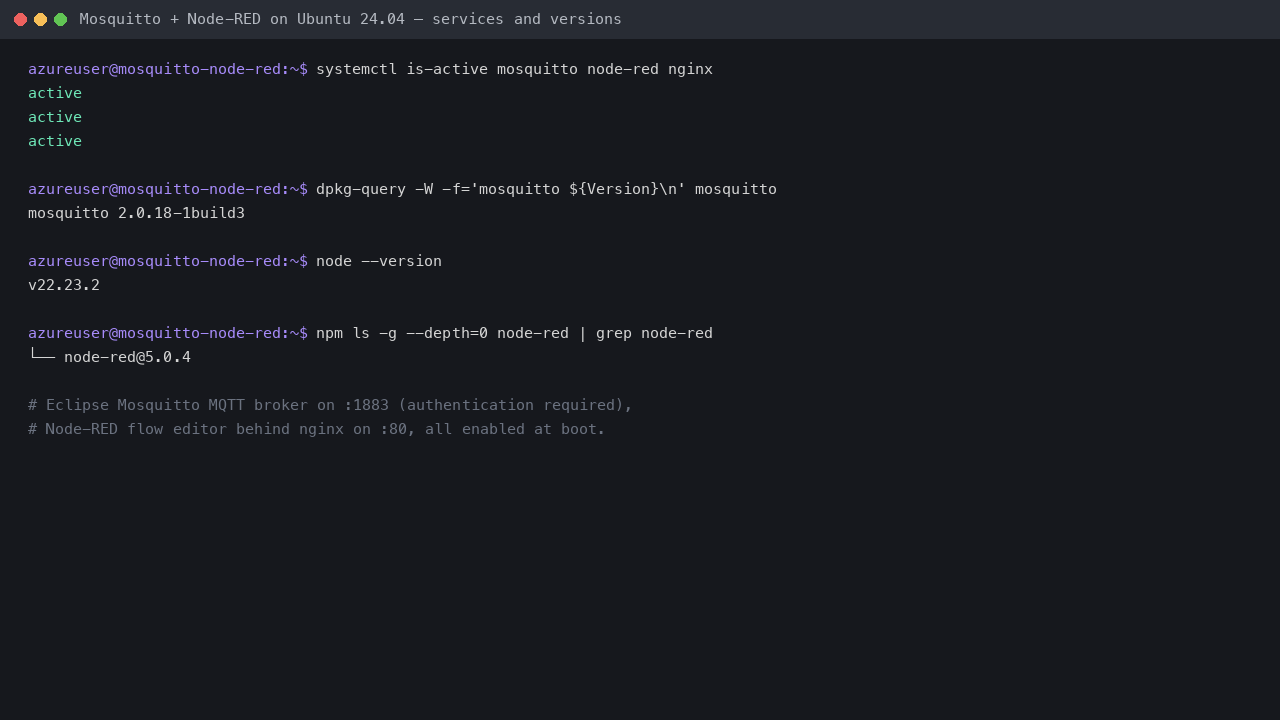

Step 4 - Confirm the services are running

systemctl is-active mosquitto node-red nginx

All three report active:

active
active
active

Step 5 - Retrieve your credentials

Both passwords are generated uniquely on the first boot of your VM and written to a root only file:

sudo cat /root/mosquitto-node-red-credentials.txt

The file contains the broker credentials (MOSQUITTO_USER / MOSQUITTO_PASSWORD, broker user cloudimg) and the flow editor credentials (NODE_RED_ADMIN_USER / NODE_RED_ADMIN_PASSWORD, editor user admin), plus ready to copy connection examples. Store both passwords somewhere safe.

Step 6 - Check the health endpoint

nginx serves an unauthenticated health endpoint for load balancers and probes:

curl -s http://localhost/health

It returns ok.

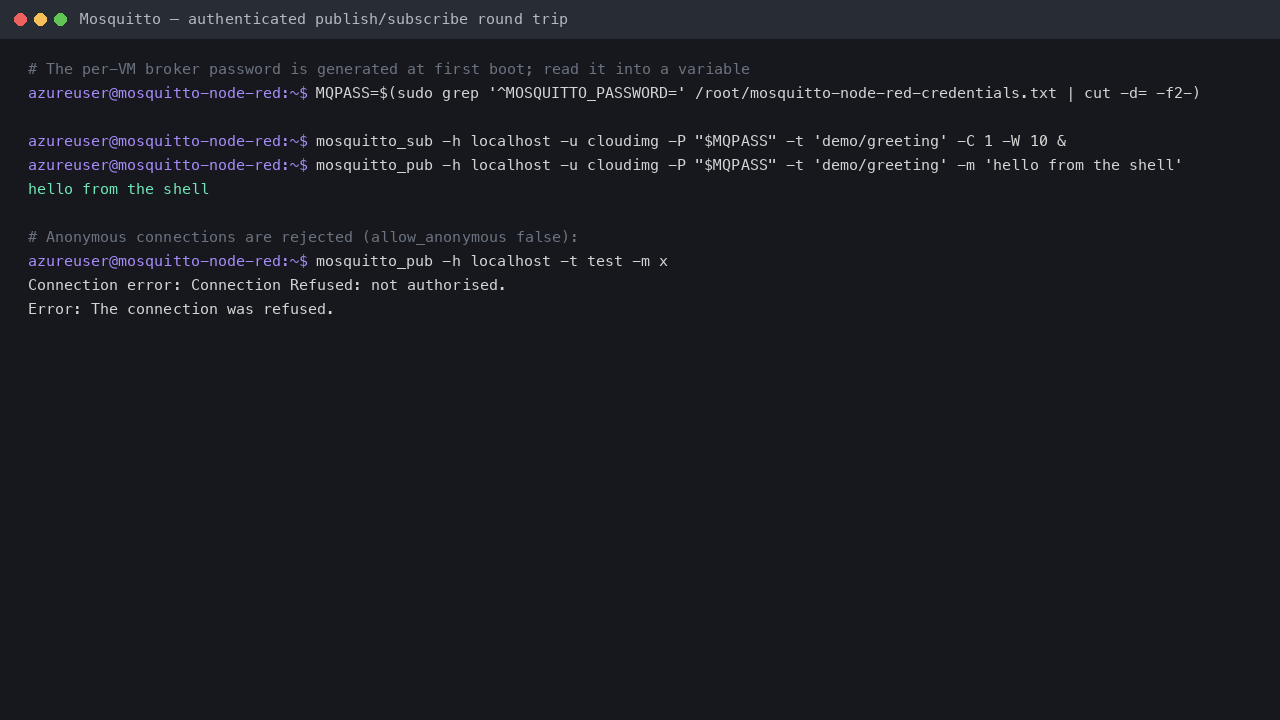

Step 7 - Publish and subscribe through the broker

The broker requires authentication; anonymous connections are rejected. Read the generated password into a variable, then round trip a message:

MQPASS=$(sudo grep '^MOSQUITTO_PASSWORD=' /root/mosquitto-node-red-credentials.txt | cut -d= -f2-)
mosquitto_sub -h localhost -u cloudimg -P "$MQPASS" -t 'demo/greeting' -C 1 -W 10 &
sleep 1
mosquitto_pub -h localhost -u cloudimg -P "$MQPASS" -t 'demo/greeting' -m "hello from the shell"
wait

The subscriber prints the published message:

hello from the shell

Anonymous access is off. An unauthenticated client is refused:

$ mosquitto_pub -h localhost -t test -m x
Connection error: Connection Refused: not authorised.

Step 8 - Open the flow editor

Browse to http://<vm-public-ip>/ and sign in as admin with the NODE_RED_ADMIN_PASSWORD from Step 5.

The editor opens on the MQTT Demo flow that ships with the image. Both MQTT nodes show a green connected badge: Node-RED is already authenticated against the local Mosquitto with this VM's generated credentials, with no configuration needed.

Click the button on the Send test message inject node to publish a message to cloudimg/demo through the real broker; the subscribe cloudimg/demo node receives it and shows it in the debug sidebar.

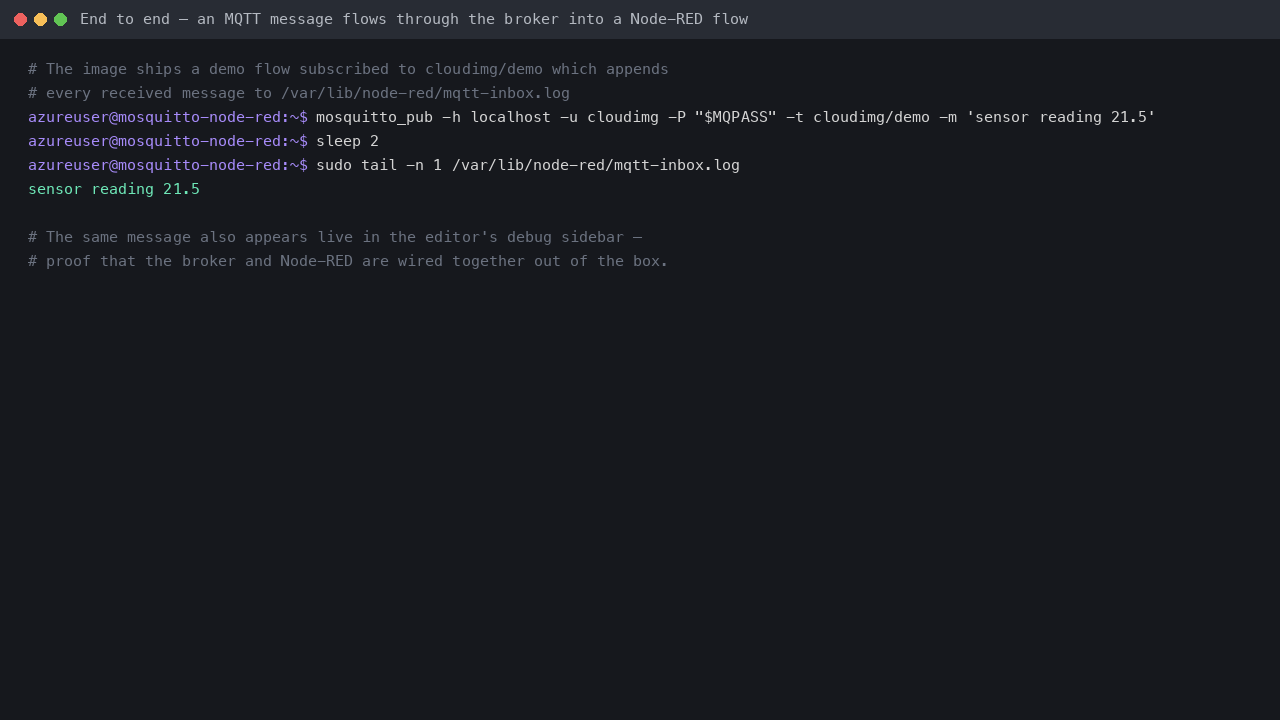

Step 9 - Watch an MQTT message arrive in Node-RED

Prove the end to end chain from the shell. The demo flow appends every message it receives on cloudimg/demo to /var/lib/node-red/mqtt-inbox.log:

MQPASS=$(sudo grep '^MOSQUITTO_PASSWORD=' /root/mosquitto-node-red-credentials.txt | cut -d= -f2-)
mosquitto_pub -h localhost -u cloudimg -P "$MQPASS" -t cloudimg/demo -m "sensor reading 21.5"
sleep 2
sudo tail -n 1 /var/lib/node-red/mqtt-inbox.log

The last line of the log is the message you just published:

sensor reading 21.5

The same message appears live in the editor's debug sidebar:

Step 10 - Connect devices and external clients

With port 1883 open in your NSG, any MQTT client can connect using the broker credentials from Step 5:

# From a device or workstation:
mosquitto_pub -h <vm-public-ip> -u cloudimg -P '<MOSQUITTO_PASSWORD>' -t sensors/temperature -m '21.5'
mosquitto_sub -h <vm-public-ip> -u cloudimg -P '<MOSQUITTO_PASSWORD>' -t 'sensors/#' -v

To route a new topic into Node-RED, add an mqtt in node in the editor, select the existing Local Mosquitto broker configuration, set your topic (for example sensors/#) and click Deploy.

To add more broker users, use mosquitto_passwd (without -c, which would recreate the file) and reload:

sudo mosquitto_passwd -b /etc/mosquitto/passwd sensor01 '<new-password>'
sudo systemctl reload mosquitto

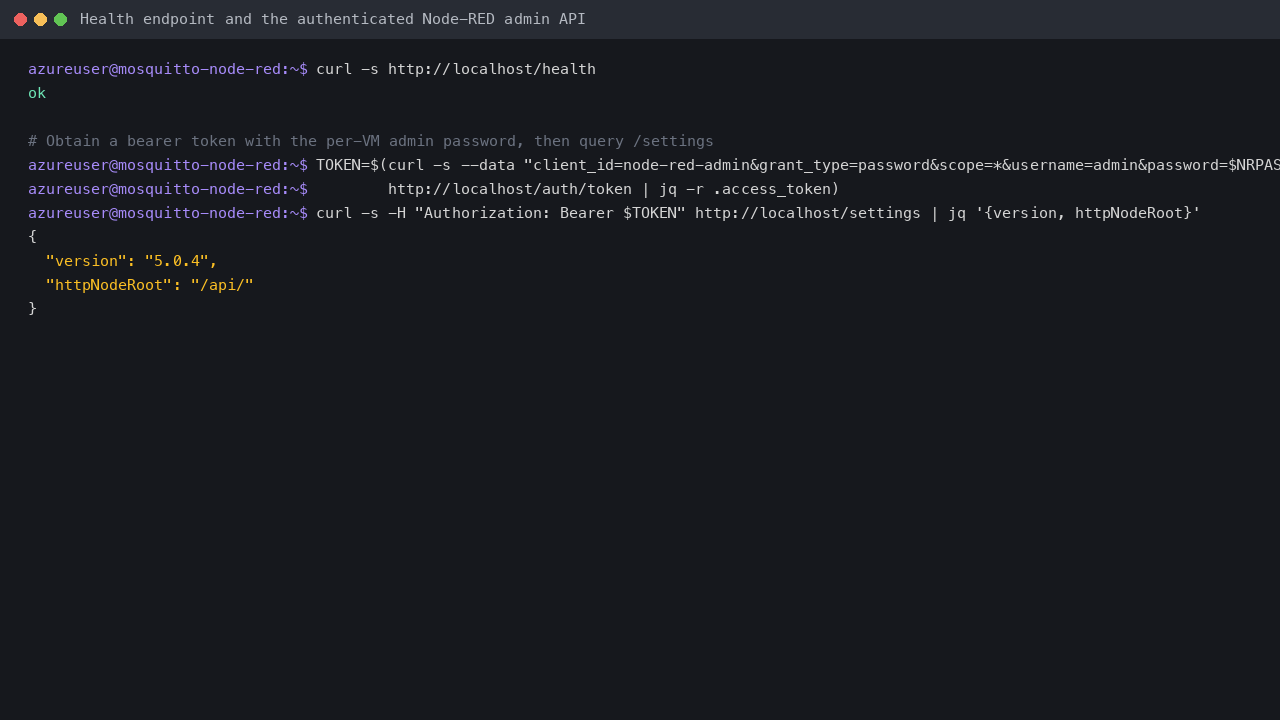

Step 11 - Confirm the runtime from the command line

The Node-RED admin API is protected by the same editor login. Obtain a bearer token and query the runtime settings:

NRPASS=$(sudo grep '^NODE_RED_ADMIN_PASSWORD=' /root/mosquitto-node-red-credentials.txt | cut -d= -f2-)
TOKEN=$(curl -s --data "client_id=node-red-admin&grant_type=password&scope=*&username=admin&password=${NRPASS}" http://localhost/auth/token | jq -r .access_token)
curl -s -H "Authorization: Bearer ${TOKEN}" http://localhost/settings | jq '{version, httpNodeRoot}'

{
  "version": "5.0.4",
  "httpNodeRoot": "/api/"
}

Step 12 - Install extra palette nodes

Node-RED has a catalogue of thousands of community nodes for databases, dashboards, cloud services and protocols. Install them from the editor via Menu -> Manage palette -> Install.

After installing nodes from the command line instead (sudo -u node-red npm --prefix /var/lib/node-red install <node>), restart Node-RED so it loads them:

sudo systemctl restart node-red

Server Components

Key Paths

Managing the services

systemctl status mosquitto --no-pager -l | head -n 5

● mosquitto.service - Mosquitto MQTT Broker
     Loaded: loaded (/usr/lib/systemd/system/mosquitto.service; enabled; preset: enabled)
     Active: active (running)

Restart either component after configuration changes:

sudo systemctl restart mosquitto
sudo systemctl restart node-red
sudo systemctl reload nginx

Enabling HTTPS

nginx terminates plain HTTP on port 80. For public exposure of the editor, add a DNS name for the VM and extend the nginx site with a TLS server block (for example with certbot), or front the VM with an Azure Application Gateway. Keep Node-RED itself bound to loopback so the only public editor surface is the authenticated, TLS terminated proxy. For MQTT over TLS, add a listener 8883 block with certificate paths to /etc/mosquitto/conf.d/cloudimg.conf and open 8883 instead of 1883.

Troubleshooting

The editor rejects your password. Re read NODE_RED_ADMIN_PASSWORD from the credentials file; it is unique to this VM. If you have rotated it, restart Node-RED after editing /var/lib/node-red/settings.js.

MQTT clients cannot connect from outside. Confirm port 1883 is open in the NSG and that your client passes -u cloudimg -P '<password>'. The broker logs to the journal: sudo journalctl -u mosquitto -n 20.

The demo flow shows no messages. Check the broker connection badges in the editor. Both MQTT nodes should read connected; the runtime journal (sudo journalctl -u node-red -n 20) shows the connection log line Connected to broker: node-red-cloudimg@mqtt://127.0.0.1:1883.

First boot state. The one shot mosquitto-node-red-firstboot.service generates all credentials before the runtime starts. Its log is in the journal: sudo journalctl -u mosquitto-node-red-firstboot -n 30.

Security Recommendations

• Restrict NSG source ranges for ports 80 and 1883 to your own networks; do not leave them open to the internet.
• Add TLS (see Enabling HTTPS) before exposing the editor or the broker publicly.
• Create dedicated broker users per device with mosquitto_passwd instead of sharing the cloudimg account.
• Rotate the editor and broker passwords periodically; the credentials file documents both.
• The OS keeps patching itself via unattended upgrades; reboot when /var/run/reboot-required appears.

Support

cloudimg provides 24/7 expert support for this image. Contact support@cloudimg.co.uk.
