Prometheus on AWS User Guide

This guide covers connecting to your Prometheus instance, verifying the service, using the web interface, writing PromQL queries, adding scrape targets, and configuring alerting.

Prerequisites

• An AWS account with an active subscription to the cloudimg Prometheus AMI.
• An EC2 instance launched from the AMI with port 9090 open in its security group.
• An SSH key pair associated with the instance.

Connecting to Your Instance

Connect via SSH on port 22 using the key pair you selected at launch:

OS variant	SSH login user
Ubuntu 24.04	ubuntu

ssh -i /path/to/your-key.pem ubuntu@<instance-public-ip>

Endpoint Information

On first boot, Prometheus writes a summary of the endpoint URLs to /root/prometheus-info.txt. View it with:

sudo cat /root/prometheus-info.txt

Example output:

prometheus.version=3.11.3
prometheus.web.ui=http://172.31.95.189:9090
prometheus.config=/etc/prometheus/prometheus.yml
prometheus.data=/var/lib/prometheus/data

Checking the Service Status

Verify that the Prometheus service is running:

sudo systemctl status prometheus.service

Expected output:

● prometheus.service - Prometheus
     Loaded: loaded (/etc/systemd/system/prometheus.service; enabled; preset: enabled)
     Active: active (running) since Wed 2026-05-27 19:48:50 UTC; 1min ago
       Docs: https://prometheus.io/docs/
   Main PID: 32366 (prometheus)
      Tasks: 8 (limit: 4586)
     Memory: 31.2M (peak: 31.6M)
        CPU: 326ms
     CGroup: /system.slice/prometheus.service
             └─32366 /usr/local/bin/prometheus \
                --config.file=/etc/prometheus/prometheus.yml \
                --storage.tsdb.path=/var/lib/prometheus/data \
                --web.listen-address=0.0.0.0:9090

Check the installed version:

prometheus --version

prometheus, version 3.11.3 (branch: HEAD, revision: eb173f5256d4022afba1e9bc3d19740a76859fae)
  build user:       root@83aad33dd38e
  build date:       20260427-14:45:32
  go version:       go1.26.2
  platform:         linux/amd64
  tags:             netgo,builtinassets

Web Interface

Browse to the Prometheus expression browser at:

http://<instance-public-ip>:9090

The web interface provides query execution, target health monitoring and built-in alerting rules management.

Targets Page

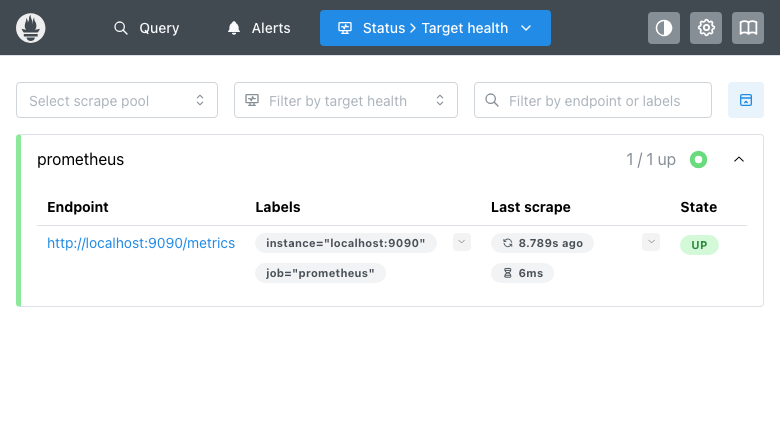

Navigate to Status > Target health (or /targets) to view all configured scrape targets and their current health:

By default, Prometheus scrapes its own metrics endpoint at localhost:9090/metrics every 15 seconds. The target health shows UP when the last scrape succeeded.

Expression Browser / PromQL

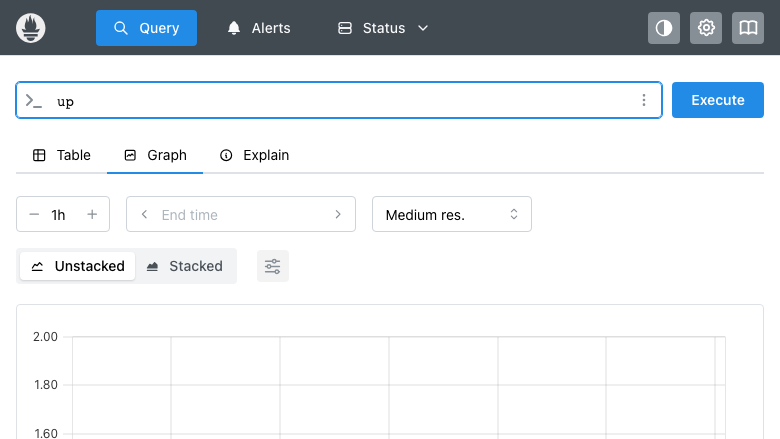

Navigate to the Query tab (or /graph) to run PromQL queries:

PromQL Basics

PromQL (Prometheus Query Language) is used to select and aggregate time series data.

Check which targets are up (returns 1 for UP, 0 for DOWN):

up

Query the total number of HTTP requests (if you have a web server scraped):

http_requests_total

Rate of requests per second over the last 5 minutes:

rate(http_requests_total[5m])

Average CPU usage across all scraped instances:

avg(rate(process_cpu_seconds_total[5m])) by (job)

Run queries via the API:

curl -fsS 'http://localhost:9090/api/v1/query?query=up'

Configuration File

The main Prometheus configuration is at /etc/prometheus/prometheus.yml:

sudo cat /etc/prometheus/prometheus.yml

# cloudimg Prometheus 3 default config
# Add additional scrape jobs below the existing 'prometheus' self-monitoring entry.

global:
  scrape_interval: 15s
  evaluation_interval: 15s
  external_labels:
    monitor: cloudimg-prometheus

scrape_configs:
  # Prometheus monitors itself
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']

  # Example: uncomment + edit to scrape a node-exporter
  # - job_name: 'node'
  #   static_configs:
  #     - targets: ['10.0.1.20:9100']

  # Example: uncomment + edit to scrape a Grafana instance
  # - job_name: 'grafana'
  #   static_configs:
  #     - targets: ['<grafana-ip>:3000']

After editing the configuration, validate it with promtool:

sudo -u prometheus promtool check config /etc/prometheus/prometheus.yml

Reload the configuration without restarting the service:

curl -X POST http://localhost:9090/-/reload

Adding Scrape Targets

To scrape metrics from another instance, edit /etc/prometheus/prometheus.yml and add a new job under scrape_configs. For example, to scrape a node-exporter:

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']

  - job_name: 'node'
    static_configs:
      - targets: ['10.0.1.20:9100', '10.0.1.21:9100']

Then reload the configuration:

curl -X POST http://localhost:9090/-/reload

Verify the new target appears on the Targets page within one scrape interval (15 seconds).

Data Storage

Prometheus TSDB data is stored on a dedicated 30 GiB EBS volume mounted at /var/lib/prometheus/data. The volume persists independently of the OS disk and can be resized via the AWS Console without stopping the instance.

Check available disk space:

df -h /var/lib/prometheus/data

Filesystem      Size  Used Avail Use% Mounted on
/dev/nvme1n1     30G   72K   28G   1% /var/lib/prometheus/data

The volume is mounted via its filesystem UUID in /etc/fstab for stability across reboots:

UUID=7cd3f9af-4bc9-48ab-a211-f157cafd753d /var/lib/prometheus/data ext4 defaults,nofail 0 2

Retention Configuration

By default, Prometheus retains 15 days of data. To change the retention period, edit the systemd service file:

sudo systemctl edit prometheus.service

Add an override to set a custom retention period, for example 30 days:

[Service]
ExecStart=
ExecStart=/usr/local/bin/prometheus \
    --config.file=/etc/prometheus/prometheus.yml \
    --storage.tsdb.path=/var/lib/prometheus/data \
    --web.console.templates=/etc/prometheus/consoles \
    --web.console.libraries=/etc/prometheus/console_libraries \
    --web.listen-address=0.0.0.0:9090 \
    --web.enable-lifecycle \
    --storage.tsdb.retention.time=30d

Then reload systemd and restart:

sudo systemctl daemon-reload
sudo systemctl restart prometheus.service

Alerting Overview

Prometheus evaluates alerting rules defined in separate rule files. To create an alerting rule, create a rules file:

sudo nano /etc/prometheus/rules/alerts.yml

Example rule that fires when a target is down for more than 5 minutes:

groups:
  - name: availability
    rules:
      - alert: TargetDown
        expr: up == 0
        for: 5m
        labels:
          severity: critical
        annotations:
          summary: "Target {{ $labels.job }} is down"
          description: "{{ $labels.instance }} has been down for more than 5 minutes."

Reference the rules file in prometheus.yml:

rule_files:
  - /etc/prometheus/rules/*.yml

Then reload Prometheus to pick up the new rules:

curl -X POST http://localhost:9090/-/reload

View active alerts at http://<instance-public-ip>:9090/alerts.

Health Endpoints

Prometheus exposes two health check endpoints:

Endpoint	Purpose
/-/healthy	Returns Prometheus Server is Healthy. if the server is running
/-/ready	Returns Prometheus Server is Ready. when ready to serve traffic

curl http://localhost:9090/-/healthy

Prometheus Server is Healthy.

Service Management

Action	Command
Start	sudo systemctl start prometheus.service
Stop	sudo systemctl stop prometheus.service
Restart	sudo systemctl restart prometheus.service
Reload config	curl -X POST http://localhost:9090/-/reload
Status	sudo systemctl status prometheus.service
View logs	sudo journalctl -u prometheus.service -f

Support

For technical support with this image, contact cloudimg at support@cloudimg.co.uk. cloudimg provides 24/7 support for deployment, configuration, PromQL queries, alerting rules and Grafana integration.
