Rocky Linux 10 Arm64 on Azure User Guide

| Product: Rocky Linux 10 Arm64 on Azure

Overview

This guide covers the deployment and configuration of Rocky Linux 10 on 64-bit Arm (AArch64/arm64) on Microsoft Azure using cloudimg's pre configured virtual machine image from the Azure Marketplace.

Rocky Linux is a community enterprise operating system, produced by the Rocky Enterprise Software Foundation to be binary compatible with Red Hat Enterprise Linux. This is the native Arm build of Rocky Linux 10, running the 6.12 kernel and following the RHEL 10 lifecycle. It runs on Azure's Arm virtual machine sizes, which are powered by the Azure Cobalt 100 processor (the Dpsv6 and Dplsv6 families), where many workloads deliver the same performance at a lower cost than on x86.

What's included:

  • Rocky Linux 10, native 64-bit Arm (arm64 / AArch64) with the standard 4k page size kernel, binary compatible with RHEL 10
  • Every available update applied at build time, and again immediately before capture
  • Automatic updates installed, armed and enabled, so the machine keeps patching itself
  • Azure Linux Agent (waagent) and cloud-init for Azure integration
  • Chronyd for NTP time synchronisation against the Azure host clock
  • SELinux in enforcing mode
  • BaseOS, AppStream and Extras repositories enabled, so your update path is intact
  • SSH as the only network listener, with no swap on the operating system disk
  • Gen2 Hyper V virtual machine support
  • 24/7 cloudimg support

Platform: Microsoft Azure (Gen2 Hyper V, Arm64, Azure Cobalt 100) Default user: azureuser

This is the Rocky Linux 10 major release, on Arm

This listing tracks the Rocky Linux 10 major release, not a frozen minor. RHEL family security fixes roll into the latest minor stream, so the image is built from whichever Rocky Linux 10 point release is current at build time and brought fully up to date. Your own dnf update then rolls the machine forward within Rocky Linux 10 in the normal way, so you keep receiving security fixes. Rocky Linux 10 reached general availability on 11 June 2025, has active support until 31 May 2030 and security support until 31 May 2035.

Because this is the Arm build, it is a genuinely separate product from the x86 Rocky Linux 10 images: it carries aarch64 packages and an aarch64 kernel, and it only runs on Arm virtual machine sizes. It uses the flat partition layout, not the LVM variant, and the standard 4k page size kernel.

What this image changes from the stock Rocky Linux 10 Arm image

Everything below was measured on the stock vendor image before it was changed, and every change is reversible in one command. Nothing is removed: the packages stay installed so you can turn any of it back on.

  • The Cockpit web console is switched off. The stock image enables cockpit.socket, which listens on *:9090 on every interface. An operating system base image should expose one service, and that service is SSH, so cockpit.socket ships disabled. Re-enable it with sudo systemctl enable --now cockpit.socket and open 9090 in your Network Security Group.
  • rngd is switched off. The rng-tools entropy daemon is enabled by default but has no usable entropy source on Azure Cobalt 100: there is no backing hardware random number generator and the Neoverse N2 core does not implement the Armv8.5 RNDR instruction, so rngd fails at every boot and leaves the machine reporting degraded. The Linux 6.12 kernel seeds its random pool without it, so the unit ships disabled. Re-enable it with sudo systemctl enable --now rngd.service if you attach an entropy source.
  • Automatic updates are installed and armed. The stock image has no dnf-automatic at all.
  • SSH is hardened by a drop in file that sorts ahead of every other SSH configuration file, so a later package update cannot quietly loosen it.

Both changes are recorded on the machine itself, at /var/lib/cloudimg/cockpit-disabled and /var/lib/cloudimg/rngd-disabled, together with the command that restores each one.

Security posture

This image ships with no known credential. There is no default password and no baked in SSH key:

  • The root account password is locked, so no one can log in as root with a password.
  • No account on the image has a usable password at all.
  • PasswordAuthentication and keyboard interactive authentication are disabled in the SSH daemon, so every login is by key.
  • PermitRootLogin is set to prohibit-password, so root can never log in with a password. No root key ships in the image, so in practice root has no SSH login at all until you add one deliberately. Use sudo from azureuser instead.
  • SSH host keys are removed before capture and regenerated on each machine at first boot, so no two machines you launch share a host identity.
  • /etc/machine-id is cleared before capture and regenerated per machine.
  • The only key that works is the public key you supply when you create the virtual machine. Azure injects it into the administrator account you name at first boot.
  • SELinux is left in enforcing mode, the Rocky Linux default.

Prerequisites

Before deploying this image, ensure you have:

  1. An active Microsoft Azure subscription
  2. Access to the Azure Portal or Azure CLI
  3. An SSH key pair for Linux VM access
  4. Familiarity with Azure VM management

Recommended VM Size: Standard_D2ps_v6 (2 vCPU, 8 GB RAM, Azure Cobalt 100) or larger. This is an Arm64 image, so it must be launched on an Arm virtual machine size, such as the Dpsv6 or Dplsv6 families. An x86 size such as Standard_B2s will not accept this image.

Step 1: Deploy the Virtual Machine

Option A: Azure Portal

  1. Navigate to the Azure Marketplace and search for "Rocky Linux 10 Arm64 cloudimg"
  2. Select the image and click Create
  3. Configure the basics:
  4. Subscription: Select your Azure subscription
  5. Resource Group: Create new or select existing
  6. Virtual Machine Name: Enter a name for your VM
  7. Region: Select a region that offers Arm sizes
  8. Size: Standard_D2ps_v6 recommended (an Arm64 size)
  9. Under Administrator Account, select SSH public key and enter your key
  10. Under Inbound Port Rules, allow SSH (port 22)
  11. Click Review + Create, then Create

Option B: Azure CLI

Run this on your own workstation, substituting your resource group, VM name and preferred region. Accept the Marketplace terms once per subscription, then create the machine:

az vm image terms accept --urn cloudimg1647283583153:rocky-10-arm64:default:latest

az vm create \
  --resource-group myResourceGroup \
  --name my-rocky-10-arm64-vm \
  --image cloudimg1647283583153:rocky-10-arm64:default:latest \
  --size Standard_D2ps_v6 \
  --admin-username azureuser \
  --generate-ssh-keys \
  --public-ip-sku Standard

The --size must be an Arm64 family (Standard_D2ps_v6 above). Azure rejects an x86 size for an Arm image at create time.

Step 2: Connect via SSH

Run these on your own workstation, not on the VM. Find the public IP, then connect:

az vm show --resource-group myResourceGroup --name my-rocky-10-arm64-vm --show-details --query publicIps -o tsv
ssh azureuser@<vm-ip>

There is no password to enter. If SSH asks you for one, the key you supplied at create time is not the key your client is offering.

Step 3: Confirm the release and the architecture

Check that the machine is Rocky Linux 10:

cat /etc/rocky-release

Rocky Linux release 10.2 (Red Quartz)

The os-release fields carry the same information in a machine readable form, which is what configuration management tools read:

grep -E '^(NAME|VERSION|ID|VERSION_ID|PLATFORM_ID)=' /etc/os-release

NAME="Rocky Linux"
VERSION="10.2 (Red Quartz)"
ID="rocky"
VERSION_ID="10.2"
PLATFORM_ID="platform:el10"

The RHEL compatibility lineage is asserted by the distribution itself:

cat /etc/redhat-release

Rocky Linux release 10.2 (Red Quartz)

The kernel and the page size are where the architecture shows up. aarch64 confirms this is the native 64-bit Arm build, and 4096 confirms the standard 4k page size kernel:

uname -srm
getconf PAGESIZE

Linux 6.12.0-211.54.1.el10_2.aarch64 aarch64
4096

And the processor itself, which on Azure's Arm sizes is the Azure Cobalt 100, built on Arm Neoverse N2 cores:

lscpu | grep -E '^(Architecture|Vendor ID|Model name|BIOS Model name):'

Architecture:                            aarch64
Vendor ID:                               ARM
Model name:                              Neoverse-N2
BIOS Model name:                         Cobalt 100 None CPU @ 3.4GHz

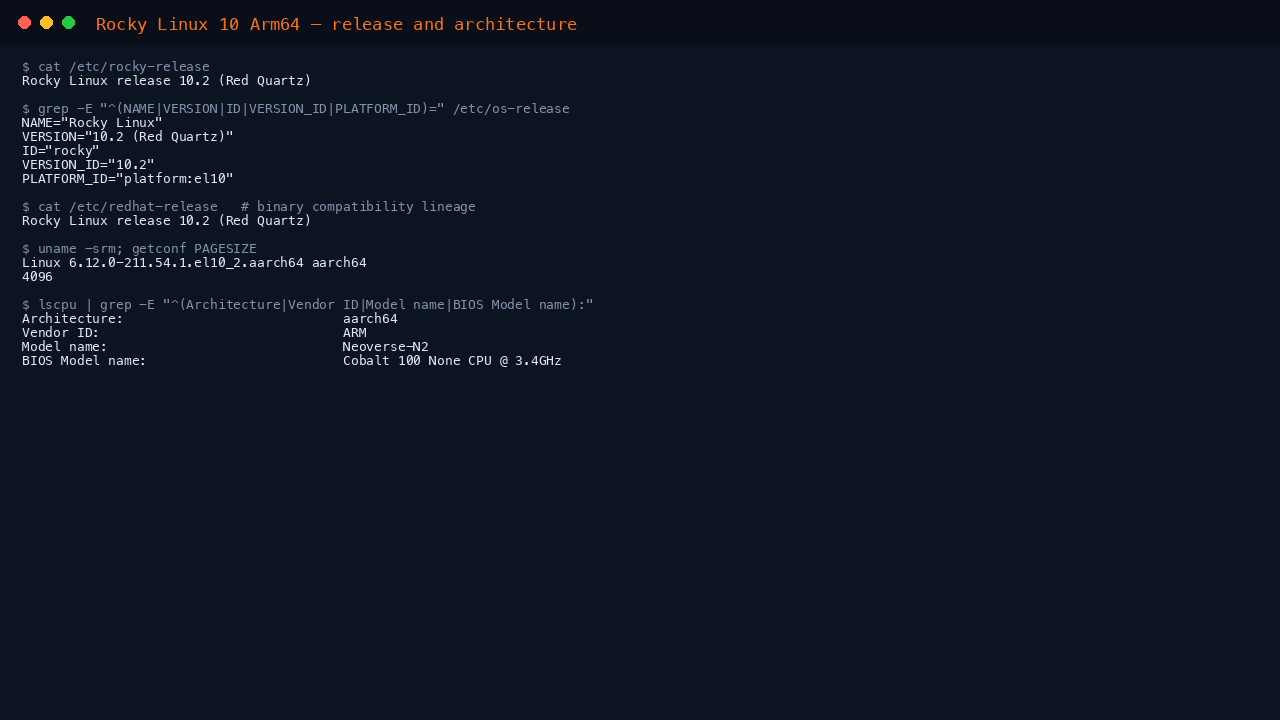

The terminal shows cat of etc rocky-release reporting Rocky Linux release 10.2 Red Quartz, the os-release fields NAME Rocky Linux, VERSION 10.2, ID rocky, VERSION_ID 10.2 and PLATFORM_ID platform el10, the redhat-release compatibility line, uname reporting the 6.12.0 el10_2 kernel on aarch64 with a 4096 byte page size, and lscpu reporting an ARM Neoverse-N2 Azure Cobalt 100 processor

The version reported is the current Rocky Linux 10 point release the image was patched to. This listing tracks the 10 major release, so dnf update rolls it forward across future point releases.

Step 4: Check the patch level and automatic updates

Every available update was applied when this image was built. dnf check-update exits 100 when updates are pending and 0 when none are:

dnf -q check-update >/dev/null 2>&1; echo "exit=$?"

exit=0

Nothing is waiting on a reboot either:

dnf needs-restarting -r

No core libraries or services have been updated since boot-up.
Reboot should not be necessary.

Exactly one kernel is installed, the one the machine is running. The superseded kernel the vendor base carried is removed before capture, so the image is not flagged for an advisory against a kernel it does not run:

rpm -q kernel-core

kernel-core-6.12.0-211.54.1.el10_2.aarch64

Your update path is intact. BaseOS, AppStream and Extras are enabled, which is the Rocky Linux 10 cloud image default:

dnf repolist --enabled

repo id                         repo name
appstream                       Rocky Linux 10 - AppStream
baseos                          Rocky Linux 10 - BaseOS
extras                          Rocky Linux 10 - Extras

CRB (CodeReady Builder) and the Rocky security repository are present but disabled, matching the vendor default. Enable CRB when you need build time dependencies, with sudo dnf config-manager --set-enabled crb.

Automatic updates

The stock Rocky Linux 10 Arm64 cloud image does not include dnf-automatic. This image installs it and enables its timer, so the machine applies updates on its own schedule:

systemctl is-enabled dnf-automatic.timer

enabled

systemctl cat dnf-automatic.timer | grep -E 'OnCalendar|RandomizedDelaySec'

OnCalendar=*-*-* 6:00
RandomizedDelaySec=60m

The policy applies all available updates, not only those tagged as security errata, and never reboots automatically, so a kernel update waits for a window you choose rather than restarting a production machine without warning:

grep -E '^(apply_updates|upgrade_type|download_updates|reboot) ' /etc/dnf/automatic.conf

upgrade_type = default
download_updates = yes
apply_updates = yes
reboot = never

upgrade_type is deliberately default rather than security. A security only policy depends on errata metadata being present for every update, and where it is not, it silently applies nothing, so default is the setting that actually keeps the machine current. Because reboot = never, check periodically whether a restart is owed after a kernel update, using the needs-restarting -r command above. To opt out entirely, run sudo systemctl disable --now dnf-automatic.timer.

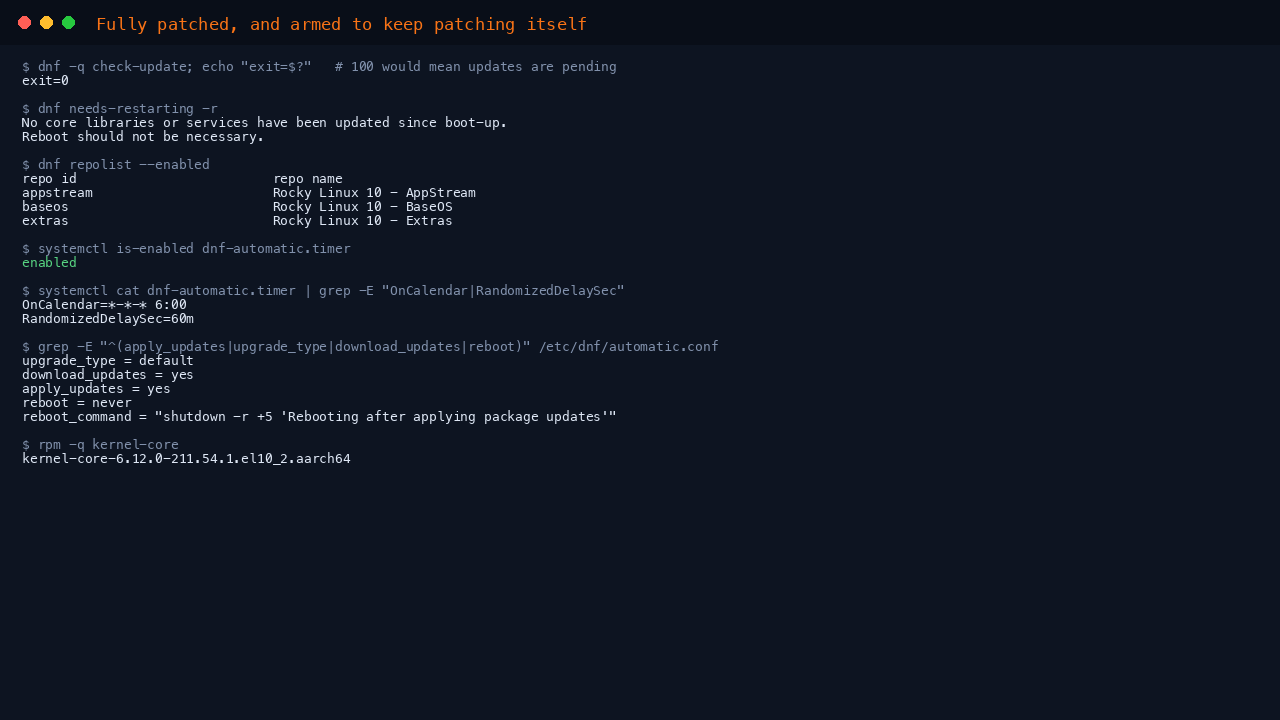

The terminal shows dnf check-update returning exit code 0 meaning no updates are pending, needs-restarting reporting no reboot necessary, dnf repolist listing appstream, baseos and extras as enabled, dnf-automatic.timer reported as enabled with its six o clock schedule, the automatic.conf policy showing upgrade_type default, download_updates yes, apply_updates yes and reboot never, and a single installed kernel-core package

Step 5: Verify the security posture

Confirm SELinux is enforcing:

getenforce

Enforcing

Confirm the root account is locked. The L in the second field means locked:

passwd -S root

root L 2009-12-22 -1 -1 -1 -1

Confirm no account on the machine has a usable password. This prints nothing on a clean image:

sudo awk -F: '($2 !~ /^[!*]/) && ($2 != "") {print $1}' /etc/shadow

Read the SSH daemon's effective policy rather than the config file, since the running daemon is what a client actually meets. without-password is how OpenSSH reports prohibit-password:

sudo sshd -T | grep -E '^(permitrootlogin|passwordauthentication|pubkeyauthentication|kbdinteractiveauthentication) '

permitrootlogin without-password
pubkeyauthentication yes
passwordauthentication no
kbdinteractiveauthentication no

That policy is pinned by a drop in file that sorts ahead of every other SSH configuration file, so a later package update to the main configuration cannot quietly loosen it:

grep -vE '^#' /etc/ssh/sshd_config.d/00-cloudimg-hardening.conf

PermitRootLogin prohibit-password
PasswordAuthentication no
KbdInteractiveAuthentication no
PermitEmptyPasswords no

There is no swap on the operating system disk. A swap file baked into a Marketplace image is not permitted, so this prints nothing:

swapon --show

Confirm what is listening. SSH on port 22 is the only service reachable from the network. The only other socket is chronyd, bound to the loopback address for time synchronisation:

ss -tln
ss -uln

State  Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0      128          0.0.0.0:22        0.0.0.0:*
LISTEN 0      128             [::]:22           [::]:*
State  Recv-Q Send-Q Local Address:Port Peer Address:Port
UNCONN 0      0          127.0.0.1:323       0.0.0.0:*
UNCONN 0      0              [::1]:323          [::]:*

Two listeners the stock vendor image leaves open are closed here. The Cockpit web console would otherwise bind *:9090 on every interface, and rpcbind, which NFS version 3 relies on, would bind port 111. Both units ship disabled rather than removed:

systemctl is-enabled rpcbind.socket cockpit.socket || true

disabled
disabled

The base operating system still ships nfs-utils for NFS version 4 client mounts, which need no extra listener. If you need NFS version 3, enable it with sudo systemctl enable --now rpcbind.socket and open only what you need in your Network Security Group. If you want the Cockpit console, sudo systemctl enable --now cockpit.socket brings it back, and you then open 9090 in the Network Security Group.

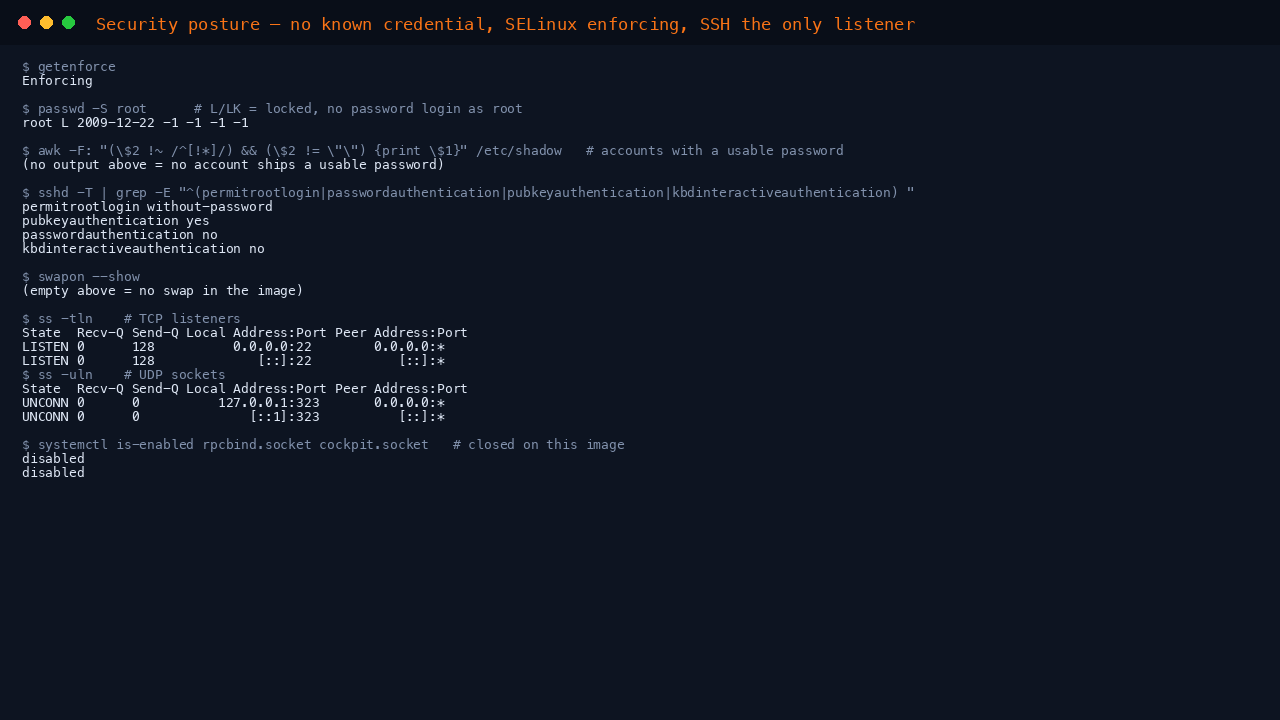

The terminal shows getenforce reporting Enforcing, passwd -S root reporting the root account as L meaning locked, no accounts holding a usable password, the effective sshd policy reporting permitrootlogin without-password, pubkeyauthentication yes, passwordauthentication no and kbdinteractiveauthentication no, swapon showing no swap, ss listing sshd on port 22 as the only TCP listener and chronyd on the loopback address as the only UDP socket, and rpcbind and cockpit sockets both disabled

Step 6: Verify Azure integration

The Azure Linux Agent handles extensions and the portal's recovery features, and cloud-init provisions the machine:

systemctl is-active waagent
rpm -q WALinuxAgent cloud-init chrony

active
WALinuxAgent-2.14.0.1-3.el10.noarch
cloud-init-24.4-7.el10_2.1.rocky.0.1.noarch
chrony-4.8-2.el10.aarch64

Cloud-init should report done, which means provisioning finished cleanly:

cloud-init status

status: done

The kernel puts a console on ttyAMA0, the Arm PL011 serial port, which is what makes boot diagnostics and the portal's serial console work when you cannot reach the machine over SSH. On x86 images this is ttyS0; on Arm it is ttyAMA0:

grep -o 'console=ttyAMA0' /proc/cmdline

console=ttyAMA0

Nothing failed on boot. On the stock vendor image rngd fails here and the machine reports degraded; with that unit disabled the system reaches running with no failed units:

systemctl is-system-running

running

Time synchronisation runs through chronyd against the Azure host clock (your offsets will differ):

chronyc -n sources | head -3

MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
#* PHC0                          2   3   377     7    +28us[  +29us] +/- 9523ns

The operating system disk uses a flat layout with XFS for the root and boot filesystems, and no LVM:

lsblk -o NAME,SIZE,TYPE,FSTYPE,MOUNTPOINT
df -h /

NAME    SIZE TYPE FSTYPE MOUNTPOINT
sda      10G disk
├─sda1  100M part vfat   /boot/efi
├─sda2 1000M part xfs    /boot
└─sda3  8.9G part xfs    /
/dev/sda3       8.9G  1.3G  7.6G  15% /

The root partition grows to fill the operating system disk you choose at create time, so if you ask for a larger disk than the image's 10 GB you get the space without any manual resize. Standard_D2ps_v6 has no local temporary disk, so there is no scratch disk at /mnt on that size. Arm sizes with a d in the name, such as Standard_D2pds_v6, add a local temporary disk. Treat anything on a temporary disk as disposable, since it is erased whenever the machine is deallocated or moved.

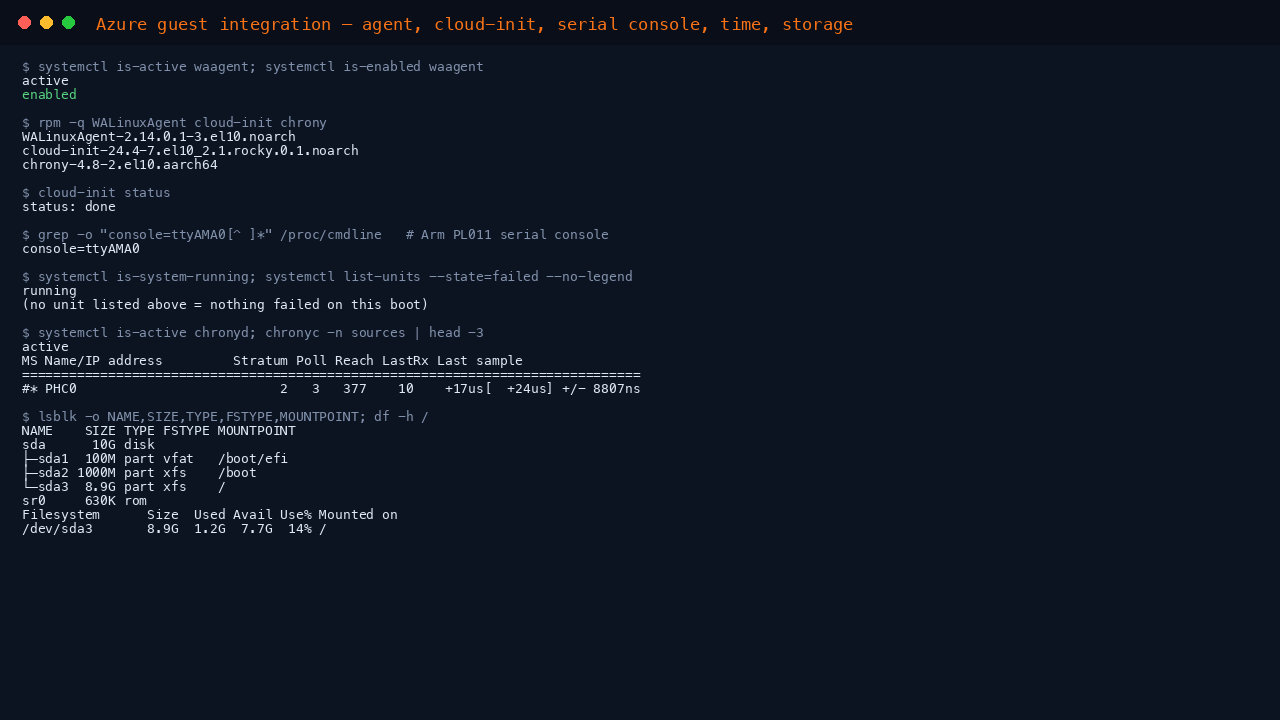

The terminal shows waagent active and enabled at boot, the WALinuxAgent, cloud-init and chrony package versions for aarch64, cloud-init status reporting done, the console equals ttyAMA0 kernel argument for the Arm serial console, systemctl is-system-running reporting running with no failed units, chronyd synchronised against the Azure host clock, and the flat disk layout from lsblk with root usage from df

Step 7: Networking and the firewall

The Azure Network Security Group is the control plane for inbound and outbound traffic, and it is the first and usually the only place you need to open a port.

firewalld is not installed on this image:

rpm -q firewalld || echo "(firewalld absent - the Azure NSG is your only firewall)"

package firewalld is not installed
(firewalld absent - the Azure NSG is your only firewall)

That matches the Rocky Linux cloud image default: with no host firewall in the way, your NSG rules take effect exactly as written, with no second layer to keep in sync. If your policy requires a host firewall as well, install and enable it yourself:

sudo dnf install -y firewalld
sudo systemctl enable --now firewalld
sudo firewall-cmd --permanent --add-port=443/tcp
sudo firewall-cmd --reload

Once firewalld is running, a port must be open in both the Azure NSG and firewalld before traffic reaches your service.

Step 8: Install software

AppStream carries the application packages. Everything in the repositories is built for Arm, so dnf resolves aarch64 packages automatically with nothing extra to configure:

dnf -q list --available nginx 2>/dev/null | tail -2

Available Packages
nginx.aarch64                   2:1.26.3-6.el10_2.6                    appstream

Install a package and enable it in the usual way, for example sudo dnf install -y nginx followed by sudo systemctl enable --now nginx, then open the port in your Network Security Group.

To add another administrator, create the account with sudo adduser <name>, add it to the wheel group with sudo usermod -aG wheel <name>, then copy your public key into /home/<name>/.ssh/authorized_keys with mode 600 and the .ssh directory mode 700, owned by that user. The image ships with no human accounts at all, so the administrator you named at create time is the only login until you add one:

getent group wheel

wheel:x:10:

Common Use Cases

  • RHEL 10 compatible application hosting on cost efficient Azure Cobalt 100 Arm virtual machines
  • Container platforms and cloud native workloads on Arm
  • A RHEL compatible platform for workloads certified against RHEL 10 without a subscription
  • Arm build and CI runners, and fleets managed by Ansible, Puppet or Salt

Troubleshooting

Cannot connect via SSH

Check the Network Security Group allows inbound TCP 22 from your address, confirm the machine is running, and make sure your client is offering the private key that matches the public key you supplied at create time. Password authentication is disabled, so a password prompt means key negotiation already failed. Root cannot log in with a password and no root key ships in the image, so connect as the administrator you named at create time.

az vm show --resource-group myResourceGroup --name my-rocky-10-arm64-vm --show-details --query powerState -o tsv

The VM will not create or will not boot

This is an Arm64 image. It only runs on Arm virtual machine sizes (the Dpsv6 and Dplsv6 Azure Cobalt 100 families and other p sizes). If Azure rejects the size at create time, confirm you selected an Arm size and not an x86 one such as Standard_B2s or Standard_D2s_v5. If the machine never becomes reachable, open Boot diagnostics and the Serial console in the portal, which read from ttyAMA0.

Azure agent not running

Check whether the agent is running and read its recent log:

systemctl is-active waagent
sudo journalctl -u waagent -n 20 --no-pager

If it reports anything other than active, start it:

sudo systemctl enable --now waagent

Package manager issues

Clear the metadata cache and rebuild it:

sudo dnf clean all
sudo dnf makecache

If a repository is unreachable, confirm the machine has outbound HTTPS and that DNS resolves, since Rocky Linux's mirror system is reached over both.

A service is blocked and the logs mention SELinux

SELinux is enforcing, which is the secure default and should stay that way. Look at the denial rather than disabling SELinux:

sudo ausearch -m AVC -ts recent </dev/null 2>/dev/null || echo "no recent AVC denials"

Most denials on a fresh machine come from software installed into a non standard path. Relabel with sudo restorecon -Rv /path before considering any policy change.

The boot log mentions an unmaintained nft_compat driver

Two kernel messages appear at error level on every boot of Rocky Linux 10 on Arm:

journalctl -p err -b --no-pager | grep -c nft_compat

2

They read Warning: Unmaintained driver is detected: nft_compat. They come from the in kernel compatibility layer that lets the old iptables command line drive nftables, which upstream has marked unmaintained. They are informational, they are emitted by a stock Rocky Linux 10 kernel module, and nothing in this image introduces them. They are safe to ignore.

Important Notes

Rocky Linux is free and open source. It is not covered by a single licence: the distribution is a collection of free and open source licences across its package set, predominantly GPL and LGPL, with MIT, BSD, Apache and others. No subscription, entitlement or licence key is required, and no per seat cost applies.

Rocky Linux is a trademark of the Rocky Enterprise Software Foundation. cloudimg is not affiliated with or endorsed by the Rocky Enterprise Software Foundation, and uses the name only to identify the distribution this image contains.

Rocky Linux 10 follows the RHEL 10 lifecycle: it reached general availability on 11 June 2025, active support runs until 31 May 2030 and security support until 31 May 2035. Check the Rocky Linux release notes for the dates that apply to your deployment.

Support

For assistance with this image, contact cloudimg support:
