uWSGI on Ubuntu 24.04 on Azure User Guide

Overview

This guide covers the deployment and configuration of uWSGI on Ubuntu 24.04 on Azure using cloudimg Azure Marketplace images. uWSGI is a fast, production grade application server for hosting Python WSGI web applications. It runs your app in a supervised pool of worker processes, load balances requests across them, automatically restarts crashed workers, and exposes a live stats interface for visibility into worker health and request load — all fronted by nginx over a fast local unix socket.

The image builds a pinned uWSGI 2.0.31 (the latest stable release) from the official source, with the Python 3 (WSGI) plugin compiled in, and runs it in Emperor mode so a single node can host one or many apps, each as an isolated vassal. uWSGI is an application server with no admin console or login — there is nothing to authenticate to — so this image ships a small Python WSGI demo app pre-deployed and served through uWSGI, proving the server is genuinely executing code on every request:

• a plain-WSGI (PEP 3333) Python app at / that renders a live server timestamp and the worker PID, computed in Python on every request

The demo app renders a live epoch and worker PID that change per request, so you can see uWSGI executing real code rather than serving a static file.

What is included:

• uWSGI 2.0.31 (open source, GPL-2.0 with a linking exception) built from the official PyPI source with the Python 3 WSGI plugin embedded

• The uWSGI Emperor running as a systemd service (uwsgi-emperor.service), supervising a vassal that spawns a master plus two workers

• A Python WSGI demo app at /, served by uWSGI over a unix socket and fronted by nginx on :80

• A uWSGI stats server bound to loopback only (127.0.0.1:9191) for live worker inspection

• uwsgi-firstboot.service systemd oneshot that starts the Emperor and nginx, confirms the demo app answers, and writes a non-secret endpoints notes file

• Secure by default: the stats server is never exposed off-box, server_tokens off, there is no admin login surface and no baked credential

• nginx on :80 is the only public entry point

• Ubuntu 24.04 LTS base with latest security patches applied at build time

• Azure Linux Agent for seamless cloud integration and SSH key injection

• 24/7 cloudimg support with guaranteed 24 hour response SLA

Prerequisites

• Active Azure subscription, SSH public key, VNet + subnet in target region

• Subscription to the uWSGI listing on Azure Marketplace

Recommended virtual machine size: Standard_B2s (2 vCPU, 4 GB RAM) for development and light application workloads. Higher concurrency or CPU-bound apps should use Standard_D4s_v5 (4 vCPU, 16 GB RAM) or larger.

Step 1: Deploy from the Azure Portal

Search uWSGI in Marketplace, select the cloudimg publisher, click Create. NSG rules: TCP 22 (admin) and TCP 80 (HTTP) from your client networks. Add TCP 443 if you terminate TLS on the instance.

Step 2: Deploy from the Azure CLI

RG="uwsgi-prod"; LOCATION="eastus"; VM_NAME="uwsgi-01"
GALLERY_IMAGE_ID="/subscriptions/<sub-id>/resourceGroups/azure-cloudimg/providers/Microsoft.Compute/galleries/cloudimgGallery/images/uwsgi-ubuntu-24-04/versions/<version>"
SSH_KEY="$(cat ~/.ssh/id_rsa.pub)"
az group create --name "$RG" --location "$LOCATION"
az network vnet create -g "$RG" --name uwsgi-vnet --address-prefix 10.100.0.0/16 --subnet-name uwsgi-subnet --subnet-prefix 10.100.1.0/24
az network nsg create -g "$RG" --name uwsgi-nsg
az network nsg rule create -g "$RG" --nsg-name uwsgi-nsg --name allow-ssh --priority 100 \
  --source-address-prefixes "<your-mgmt-cidr>" --destination-port-ranges 22 --access Allow --protocol Tcp
az network nsg rule create -g "$RG" --nsg-name uwsgi-nsg --name allow-http --priority 110 \
  --destination-port-ranges 80 --access Allow --protocol Tcp
az vm create -g "$RG" --name "$VM_NAME" --image "$GALLERY_IMAGE_ID" \
  --size Standard_B2s --storage-sku StandardSSD_LRS \
  --admin-username azureuser --ssh-key-values "$SSH_KEY" \
  --vnet-name uwsgi-vnet --subnet uwsgi-subnet --nsg uwsgi-nsg --public-ip-sku Standard

Step 3: Connect via SSH

ssh azureuser@<vm-ip>

uwsgi-emperor.service and nginx.service start automatically on first boot — there is no admin account to set up, because uWSGI has no login.

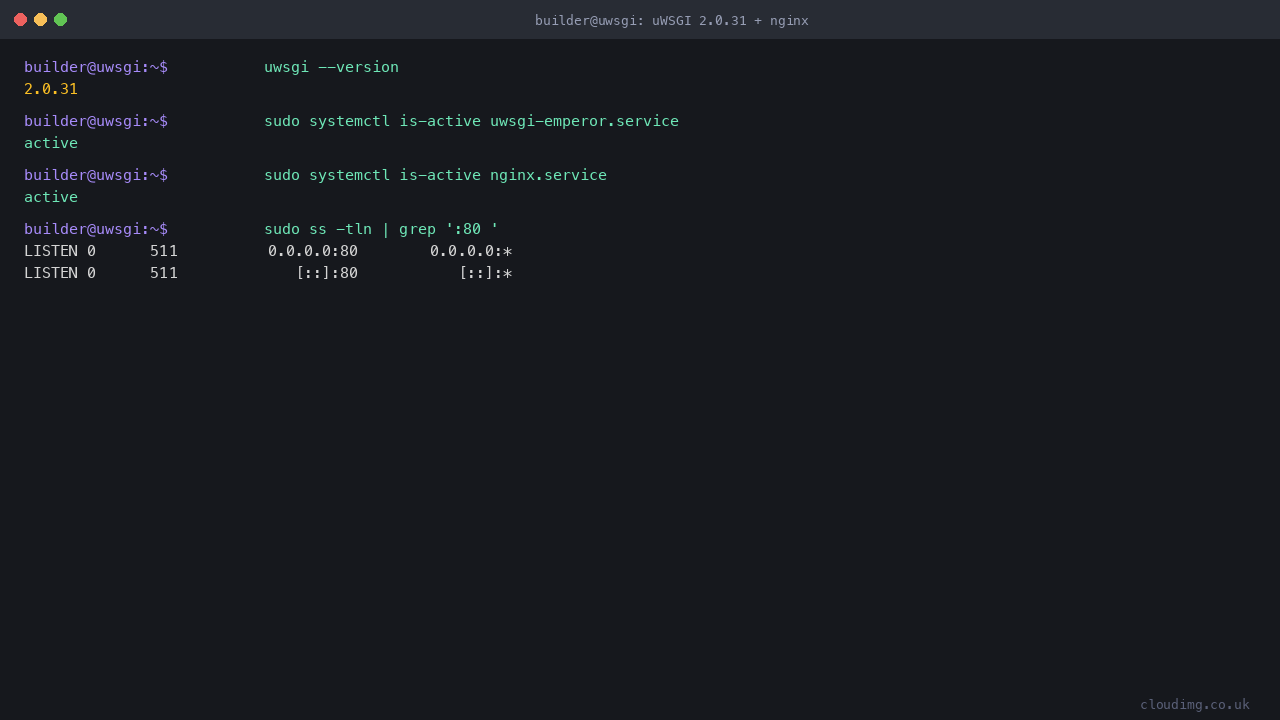

Step 4: Verify uWSGI and nginx

uwsgi --version
sudo systemctl is-active uwsgi-emperor.service
sudo systemctl is-active nginx.service
sudo ss -tln | grep ':80 '

Expected output — the pinned uWSGI is present, both services are active, and nginx is listening on :80:

2.0.31
active
active
LISTEN 0      511          0.0.0.0:80        0.0.0.0:*
LISTEN 0      511             [::]:80           [::]:*

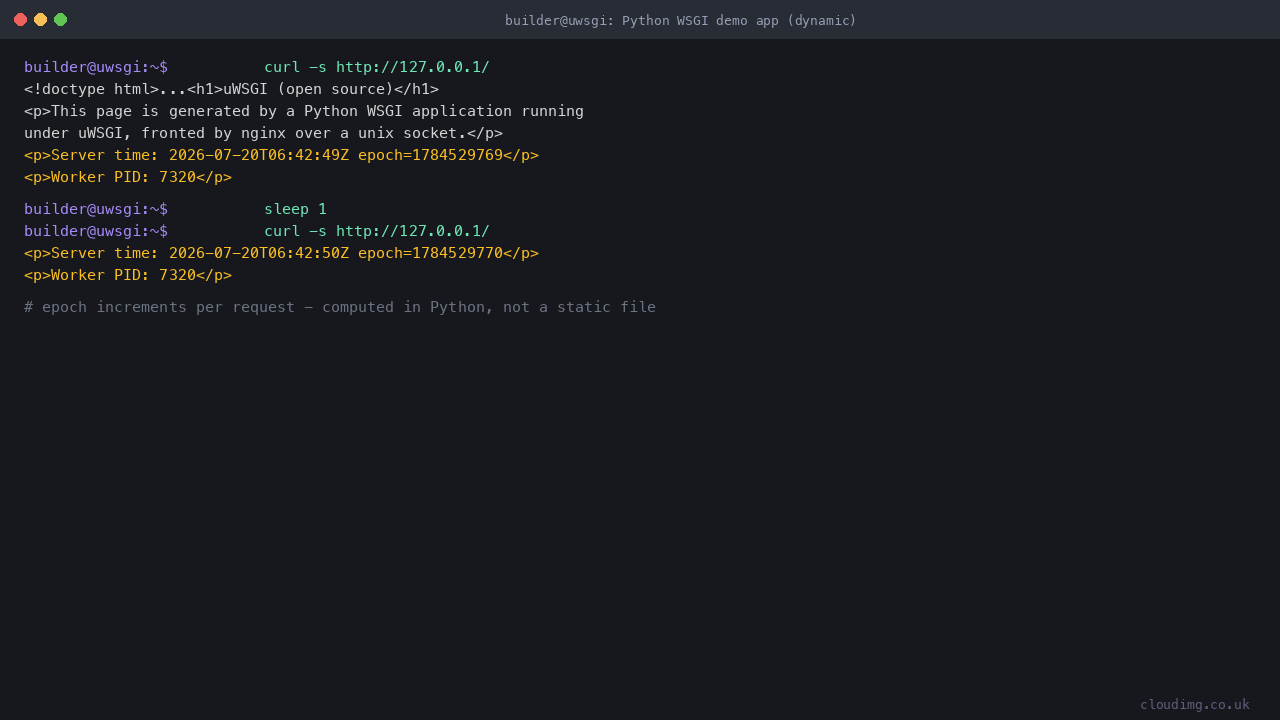

Step 5: Request the Python WSGI Demo App

uWSGI has no admin UI, so the value-proof for this image is the app it serves. Request the demo app at / twice, one second apart:

curl -s http://127.0.0.1/
sleep 1
curl -s http://127.0.0.1/

Expected output — the epoch and Worker PID prove uWSGI is executing the app on every request:

<!doctype html><html><head><meta charset='utf-8'><title>uWSGI on cloudimg</title></head><body><h1>uWSGI (open source)</h1><p>This page is generated by a Python WSGI application running under uWSGI, fronted by nginx over a unix socket.</p><p>Server time: 2026-07-20T06:42:49Z epoch=1784529769</p><p>Worker PID: 7320</p><p>The epoch and PID above are computed in Python on every request &mdash; this is a live application, not a static file.</p></body></html>

The epoch value increments between calls — an in-process, per-request value computed in Python that cannot come from a cached or static file. This is exactly the work an application server does that a plain static web server cannot. The request travels nginx :80 → uwsgi_pass → unix socket /run/uwsgi/demo.sock → a uWSGI worker → your Python callable.

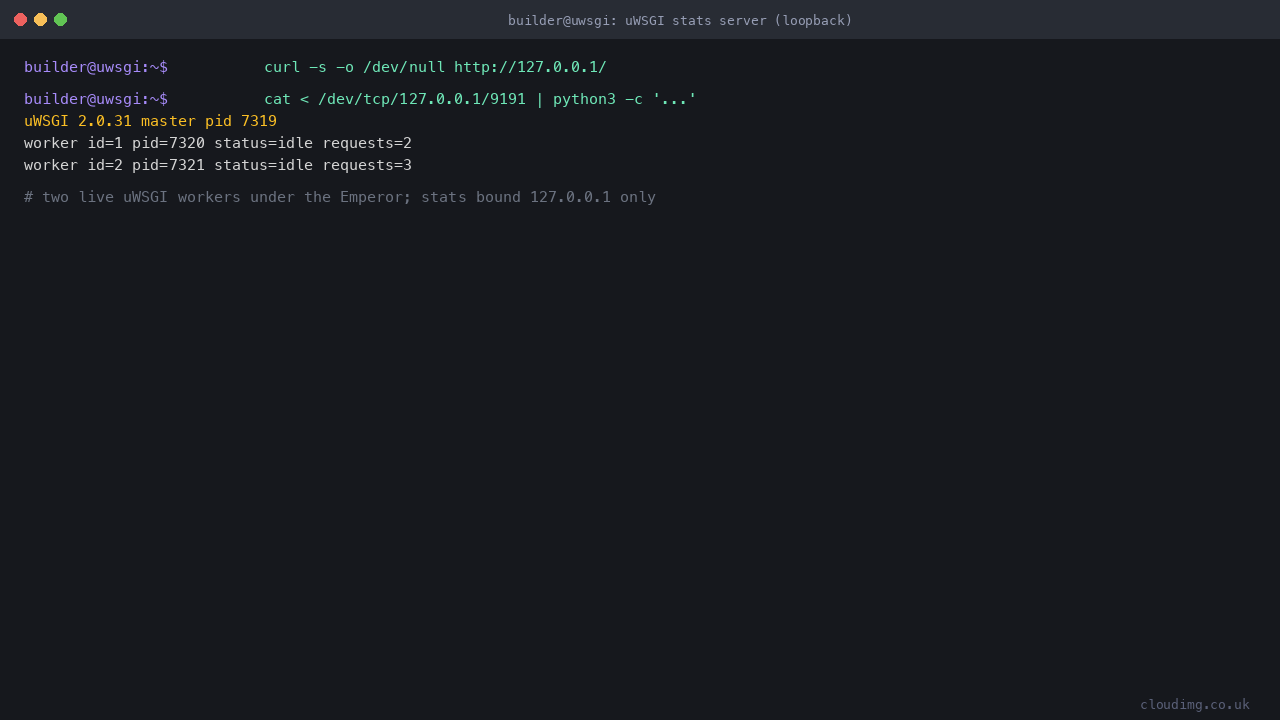

Step 6: Inspect Live Workers with the Stats Server

uWSGI's stats server is its operational window into the worker processes it manages. It is bound to loopback only (127.0.0.1:9191) and never exposed off-box. Warm the app, then read the stats socket:

curl -s -o /dev/null http://127.0.0.1/
python3 - <<'PYEOF'
import socket, json
s = socket.create_connection(('127.0.0.1', 9191), timeout=5); s.settimeout(2)
chunks = []
try:
    while True:
        c = s.recv(65536)
        if not c:
            break
        chunks.append(c)
except socket.timeout:
    pass
d = json.loads(b''.join(chunks))
print('uWSGI', d['version'], 'master pid', d['pid'])
for w in d['workers']:
    print('worker id=%s pid=%s status=%s requests=%s' % (w['id'], w['pid'], w['status'], w['requests']))
PYEOF

Expected output — the master plus two live workers, each with its PID, status and request count:

uWSGI 2.0.31 master pid 7319
worker id=1 pid=7320 status=idle requests=2
worker id=2 pid=7321 status=idle requests=3

uWSGI spawns these workers under the Emperor and automatically restarts any that crash — the master respawns a replacement transparently, and the stats server reflects the new PID.

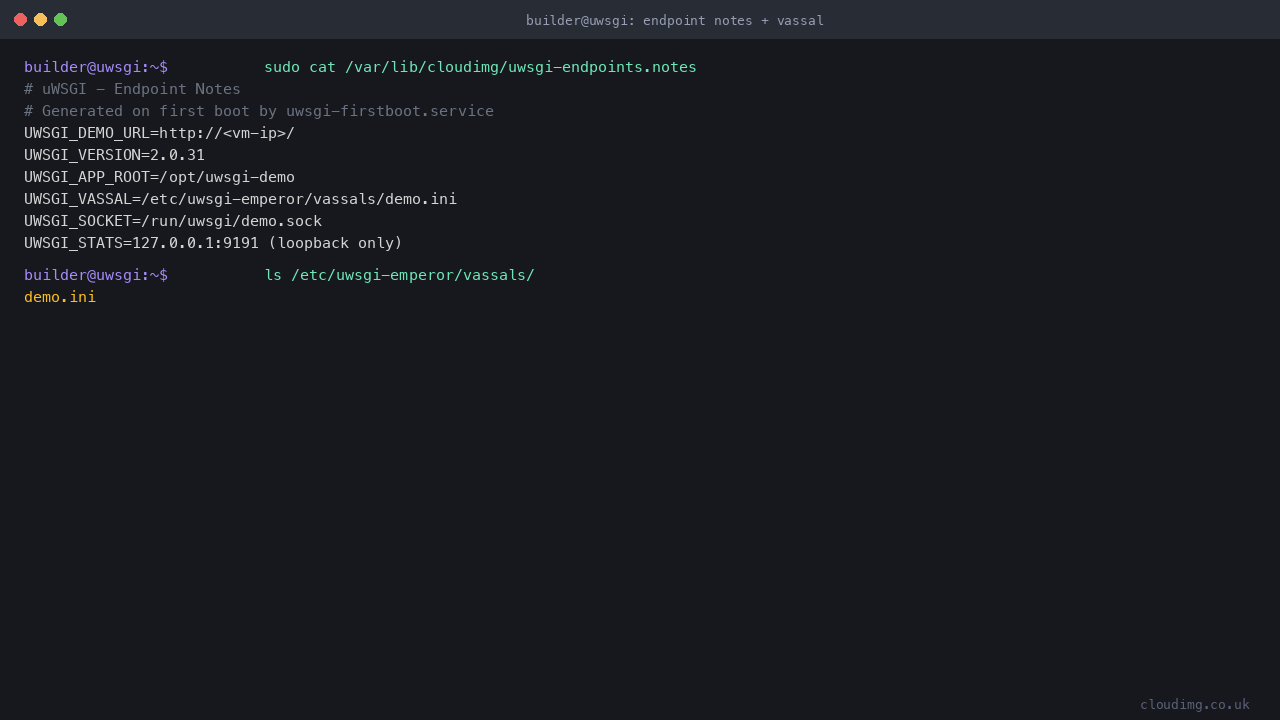

Step 7: Endpoint Notes and the Vassal Config

The firstboot service writes a non-secret notes file documenting the demo URL and how to deploy your own app (uWSGI has no credentials to rotate). The demo app is defined by a single Emperor vassal .ini:

sudo cat /var/lib/cloudimg/uwsgi-endpoints.notes
ls /etc/uwsgi-emperor/vassals/

Expected output — the notes file and the demo vassal:

# uWSGI — Endpoint Notes
# Generated on first boot by uwsgi-firstboot.service
#
UWSGI_DEMO_URL=http://<vm-ip>/
UWSGI_VERSION=2.0.31
UWSGI_APP_ROOT=/opt/uwsgi-demo
UWSGI_VASSAL=/etc/uwsgi-emperor/vassals/demo.ini
UWSGI_SOCKET=/run/uwsgi/demo.sock
UWSGI_STATS=127.0.0.1:9191 (loopback only)
demo.ini

Step 8: Deploy Your Own WSGI App

uWSGI serves any Python WSGI application — Flask, Django, FastAPI (via a WSGI adapter), or a plain callable. Copy your app to the VM and give it its own Emperor vassal:

scp -r ./myapp azureuser@<vm-ip>:/tmp/myapp
ssh azureuser@<vm-ip> 'sudo mv /tmp/myapp /opt/myapp && sudo chown -R uwsgiapp:uwsgiapp /opt/myapp'

Then copy the bundled vassal as a template, point it at your app, and drop it into the vassals directory — the Emperor auto-loads it, no restart needed:

sudo cp /etc/uwsgi-emperor/vassals/demo.ini /etc/uwsgi-emperor/vassals/myapp.ini
sudo sed -i 's#/opt/uwsgi-demo#/opt/myapp#; s#demo.sock#myapp.sock#; s#9191#9192#' /etc/uwsgi-emperor/vassals/myapp.ini

Add a matching nginx location with uwsgi_pass unix:/run/uwsgi/myapp.sock; (the bundled /etc/nginx/sites-available/cloudimg-uwsgi vhost is a working reference), then validate and reload:

sudo nginx -t && sudo systemctl reload nginx

(Run these against your own app on your own VM — not executed as part of this guide's verification.)

Step 9: Server Components

Step 10: Managing uWSGI and nginx

sudo systemctl status uwsgi-emperor.service --no-pager
sudo systemctl status nginx.service --no-pager
sudo systemctl reload nginx.service

To pick up new application code without a full restart, touch the vassal — the Emperor performs a graceful vassal reload:

sudo touch /etc/uwsgi-emperor/vassals/demo.ini

Step 11: Security Recommendations

• Keep the stats server on loopback (already configured) — never bind 127.0.0.1:9191 to a public address

• Add TLS by fronting nginx with Let's Encrypt/Certbot and opening :443

• Restrict the NSG so :80/:443 are reachable only from your client networks if this is an internal service

• Run apps as an unprivileged user — the demo app runs as uwsgiapp; keep your own apps off root

• Remove or replace the demo app (/opt/uwsgi-demo/ and its vassal) once you deploy your own application

• Patch the OS monthly with sudo apt-get update && sudo apt-get upgrade && sudo reboot

Step 12: Support and Licensing

uWSGI is licensed under the GNU General Public License version 2 with a linking exception, which explicitly permits linking and serving your own applications — including closed-source ones — without restriction from the uWSGI license. There is no per-CPU or per-deployment fee for uWSGI itself.

cloudimg provides commercial support for this image separately from the upstream project.

• Email: support@cloudimg.co.uk
• Website: www.cloudimg.co.uk
• Support hours: 24/7 with guaranteed 24 hour response SLA
