WebLogic Server 14.1.2.0.0 on AWS User Guide

Overview

This guide covers launching and using the WebLogic Server 14.1.2.0.0 on Oracle Linux 8 AMI from cloudimg on Amazon EC2. It is one version of the cloudimg Oracle WebLogic Server listing on AWS Marketplace; you pick it as the software version when you subscribe and launch.

Oracle WebLogic Server is Oracle's Jakarta EE / Java EE application server: it runs enterprise Java applications, web services and messaging workloads with clustering, JDBC connection pools, JMS and a full security realm. Release 14.1.2.0.0 supports Java SE 17 and 21 and is administered with the WebLogic Remote Console (the in-server Administration Console was removed in this release).

The cloudimg image adds:

• A domain made on your instance, not on ours. The image contains the WebLogic Server installation only. On the first boot of every instance, a one-time service creates base_domain from Oracle's own domain template with an administrator password generated on that instance. The domain's encryption salt (SerializedSystemIni.dat), its embedded LDAP store and its boot identity are therefore unique to your instance, and no two instances share a credential. The password never appears on a command line or in a log; it is written to /root/weblogic-credentials.txt (readable by root only).
• Fail closed. WebLogic and the HTTPS front end refuse to start until first boot has finished. If first boot ever fails, the partial domain is removed and nothing listens.
• HTTPS from the first boot. The AdminServer listens on 127.0.0.1:7001 only. nginx serves it on port 443 with a certificate generated on your instance; port 80 redirects to HTTPS. Requests for a host name the instance does not serve get no answer, and WebLogic's internal servlets are not published.
• Hardened defaults. Production mode, IIOP off and anonymous T3/IIOP RMI off; WebLogic takes the client address from the connection, never from a header a client can forge; the /management/ API is rate limited. WebLogic and nginx are blocked from the instance metadata service and the AMI requires IMDSv2. SELinux stays enforcing, the oracle account has no password, and the server runs under a locked down systemd unit. The Derby demo database is never started.
• Base media only. WebLogic Server is installed from Oracle's 14.1.2.0.0 release media (verified by checksum and by Oracle's code signature) with no PSU or other Oracle patch applied: you apply Oracle's patches with your own Oracle support (see Step 11).
• Fully patched Oracle Linux 8 at build time, with dnf-automatic applying Oracle Linux security updates every day.

What is on the image: Oracle WebLogic Server 14.1.2.0.0 (WebLogic Server and Coherence) in /u01/app/oracle/product, Oracle JDK 21 (21.0.12.1) in /u01/java/jdk-21, nginx, Oracle Linux 8.10 with the Unbreakable Enterprise Kernel, cloud-init and the AWS Systems Manager agent.

Default user: ec2-user · Architecture: x86_64 · Recommended instance type: m5.large

Licensing

Oracle WebLogic Server is a commercial Oracle product. Using WebLogic Server requires your own Oracle WebLogic Server licence covering the instance under Oracle's cloud licensing policy; the cloudimg charge covers the hardened image, first-boot setup and support, not an Oracle licence. The image includes Oracle JDK 21 under the Oracle No-Fee Terms and Conditions as the Java runtime WebLogic Server is certified on (the WebLogic 14.1.2 installer does not accept OpenJDK). The licence texts are in /usr/share/doc/cloudimg/licenses/.

Prerequisites

• An AWS account subscribed to the listing, an EC2 key pair and a VPC subnet with a route to the internet (or a private route you use for management).
• A security group that allows TCP 443 (HTTPS: WebLogic Remote Console, the REST management API and your applications) and TCP 80 (redirects to HTTPS) from the people and systems that use WebLogic, and TCP 22 (SSH) from your own networks only. Port 7001 is never needed in the security group.

Step 1: Launch the instance

In the AWS Marketplace listing choose Continue to Subscribe, then Continue to Configuration, pick WebLogic Server 14.1.2.0.0 on Oracle Linux 8 as the software version and your Region, then Launch through EC2. Choose m5.large (or larger for production application workloads), your key pair and a security group as above. The root volume holds the WebLogic installation, your domain and its logs; give it room for your applications (for example 30 GiB). The root file system grows to fill the volume on first boot.

With the AWS CLI (replace the values in angle brackets):

aws ec2 run-instances --region <region> --image-id <ami-id-from-the-listing> \
  --instance-type m5.large --key-name <your-key-pair> \
  --security-group-ids <your-security-group> --subnet-id <your-subnet> \
  --metadata-options HttpTokens=required,HttpEndpoint=enabled \
  --block-device-mappings 'DeviceName=/dev/sda1,Ebs={VolumeSize=30,VolumeType=gp3}' \
  --tag-specifications 'ResourceType=instance,Tags=[{Key=Name,Value=weblogic}]'

Step 2: Connect to your instance

Version	SSH user
WebLogic Server 14.1.2.0.0 on Oracle Linux 8	ec2-user

ssh -i <your-key.pem> ec2-user@<public-ip>

Confirm the operating system release:

cat /etc/oracle-release

Oracle Linux Server release 8.10

Step 3: Check the services

On a newly launched instance, first boot creates the domain in two to three minutes (the instance is still loading its disk from the AMI snapshot, which makes the first Java start slow), then the AdminServer reaches RUNNING about 15 seconds later: WebLogic is ready roughly three minutes after launch (measured on two fresh 2 vCPU instances: 2 min 52 s and 3 min 2 s from boot to RUNNING). Until then nginx is not started and port 443 refuses connections. Check the three units:

sudo systemctl is-active weblogic-firstboot.service weblogic.service nginx.service

active
active
active

weblogic-firstboot.service reports active because it is a one-time unit that has finished; on later boots it sees its marker and does nothing. The first boot log shows the host name the instance was configured for and how long the domain took (this example comes from an instance whose disk was already warm):

sudo cat /var/log/weblogic-firstboot.log

[2026-10-20T11:01:25Z] weblogic-firstboot: configured host: ec2-100-55-12-1.compute-1.amazonaws.com
[2026-10-20T11:01:25Z] weblogic-firstboot: creating base_domain (WLST offline from Oracle's wls.jar template)
[2026-10-20T11:01:59Z] weblogic-firstboot: TLS certificate + nginx host for ec2-100-55-12-1.compute-1.amazonaws.com
[2026-10-20T11:02:00Z] weblogic-firstboot: done in 35s; starting WebLogic and nginx

If weblogic.service shows activating, wait a few seconds and run the command again.

Step 4: Get your URL and password

The values generated for this instance are in a root-only file. This shows the file with the password hidden:

sudo sed -E 's/^(WEBLOGIC_PASSWORD=).*/\1<hidden>/' /root/weblogic-credentials.txt

# Oracle WebLogic Server 14.1.2.0.0 - this instance's own credentials (generated on its first boot)
# Generated: 2026-10-20T11:02:00Z
WEBLOGIC_USER=weblogic
WEBLOGIC_PASSWORD=<hidden>
WEBLOGIC_ADMIN_URL=https://ec2-100-55-12-1.compute-1.amazonaws.com/
WEBLOGIC_REST_URL=https://ec2-100-55-12-1.compute-1.amazonaws.com/management/weblogic/latest
WEBLOGIC_WELCOME_URL=https://ec2-100-55-12-1.compute-1.amazonaws.com/console/welcome/
DOMAIN_HOME=/u01/app/oracle/product/user_projects/domains/base_domain
TLS_CERT_SHA256_FINGERPRINT=27:2F:DD:E3:F2:1E:DD:14:B7:7E:A4:D6:86:48:D9:D6:5C:E5:B2:65:65:F6:AF:44:6C:5B:42:51:1E:D8:4D:B3

Print the password itself when you need it (and store it in your secret manager):

sudo sed -n 's/^WEBLOGIC_PASSWORD=//p' /root/weblogic-credentials.txt

The host name is the instance's public DNS name (or its public or private address when it has no public name). To serve WebLogic on your own DNS name, see Step 9.

Step 5: Open WebLogic over HTTPS

The certificate is self-signed and generated on your instance. Check it, and compare its SHA-256 fingerprint with TLS_CERT_SHA256_FINGERPRINT above before you trust it in a browser or in Remote Console:

sudo openssl x509 -in /etc/nginx/ssl/weblogic.crt -noout -subject -enddate -ext subjectAltName

subject=CN = ec2-100-55-12-1.compute-1.amazonaws.com
notAfter=Jan 22 11:05:31 2029 GMT
X509v3 Subject Alternative Name:
    DNS:ec2-100-55-12-1.compute-1.amazonaws.com, IP Address:100.55.12.1, DNS:ip-172-31-83-185.ec2.internal, IP Address:172.31.83.185, DNS:localhost, IP Address:127.0.0.1

From the instance, the welcome page answers over HTTPS with that certificate, and port 80 redirects to HTTPS:

H=$(sudo cat /etc/cloudimg/weblogic-host)
curl -s -o /dev/null -w "%{http_code}\n" --cacert /etc/nginx/ssl/weblogic.crt --resolve "$H:443:127.0.0.1" "https://$H/console/welcome/"
curl -s -o /dev/null -w "%{http_code} %{redirect_url}\n" --resolve "$H:80:127.0.0.1" "http://$H/"

200
301 https://ec2-100-55-12-1.compute-1.amazonaws.com/

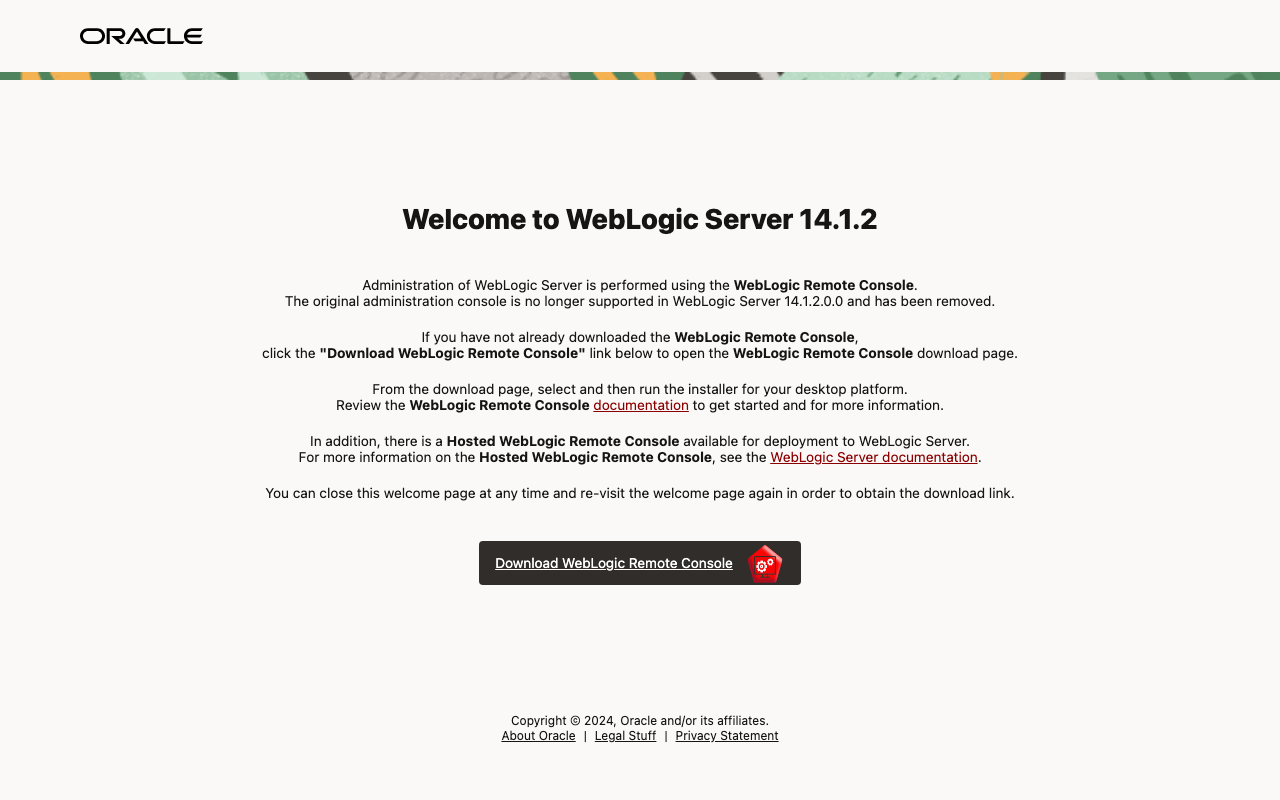

In your browser, open the WEBLOGIC_WELCOME_URL from Step 4 (accept the self-signed certificate after checking its fingerprint). WebLogic Server 14.1.2 serves this welcome page, which links to the WebLogic Remote Console download:

Step 6: Administer the domain with WebLogic Remote Console

Install WebLogic Remote Console on your workstation from the welcome page link. Add an Admin Server Connection with:

• URL: the WEBLOGIC_ADMIN_URL from Step 4 (for example https://ec2-100-55-12-1.compute-1.amazonaws.com/)
• Username: weblogic
• Password: the password from Step 4

Remote Console talks to the AdminServer's REST management API over port 443. Because the certificate is self-signed, either import /etc/nginx/ssl/weblogic.crt into Remote Console's trust store or tick Make Insecure Connection after you have compared the fingerprint. Remote Console covers deployments, data sources, JMS, security realms, users and groups, and monitoring.

Step 7: Use the REST management API

The REST management API uses the same administrator credentials. This reads the password from the credentials file and hands it to curl in a configuration stream, so it never appears on a command line:

H=$(sudo cat /etc/cloudimg/weblogic-host)
PW=$(sudo sed -n 's/^WEBLOGIC_PASSWORD=//p' /root/weblogic-credentials.txt)
curl -s --cacert /etc/nginx/ssl/weblogic.crt --resolve "$H:443:127.0.0.1" -K <(printf 'user = "weblogic:%s"\n' "$PW") \
  "https://$H/management/weblogic/latest/serverRuntime?links=none&fields=name,state,weblogicVersion"
unset PW

{
    "weblogicVersion": "WebLogic Server 14.1.2.0.0  Tue Nov 26 02:40:45 GMT 2024 2171472",
    "state": "RUNNING",
    "name": "AdminServer"
}

The domain itself:

H=$(sudo cat /etc/cloudimg/weblogic-host)
PW=$(sudo sed -n 's/^WEBLOGIC_PASSWORD=//p' /root/weblogic-credentials.txt)
curl -s --cacert /etc/nginx/ssl/weblogic.crt --resolve "$H:443:127.0.0.1" -K <(printf 'user = "weblogic:%s"\n' "$PW") \
  "https://$H/management/weblogic/latest/domainConfig?links=none&fields=name,domainVersion,productionModeEnabled"
unset PW

{
    "productionModeEnabled": true,
    "domainVersion": "14.1.2.0.0",
    "name": "base_domain"
}

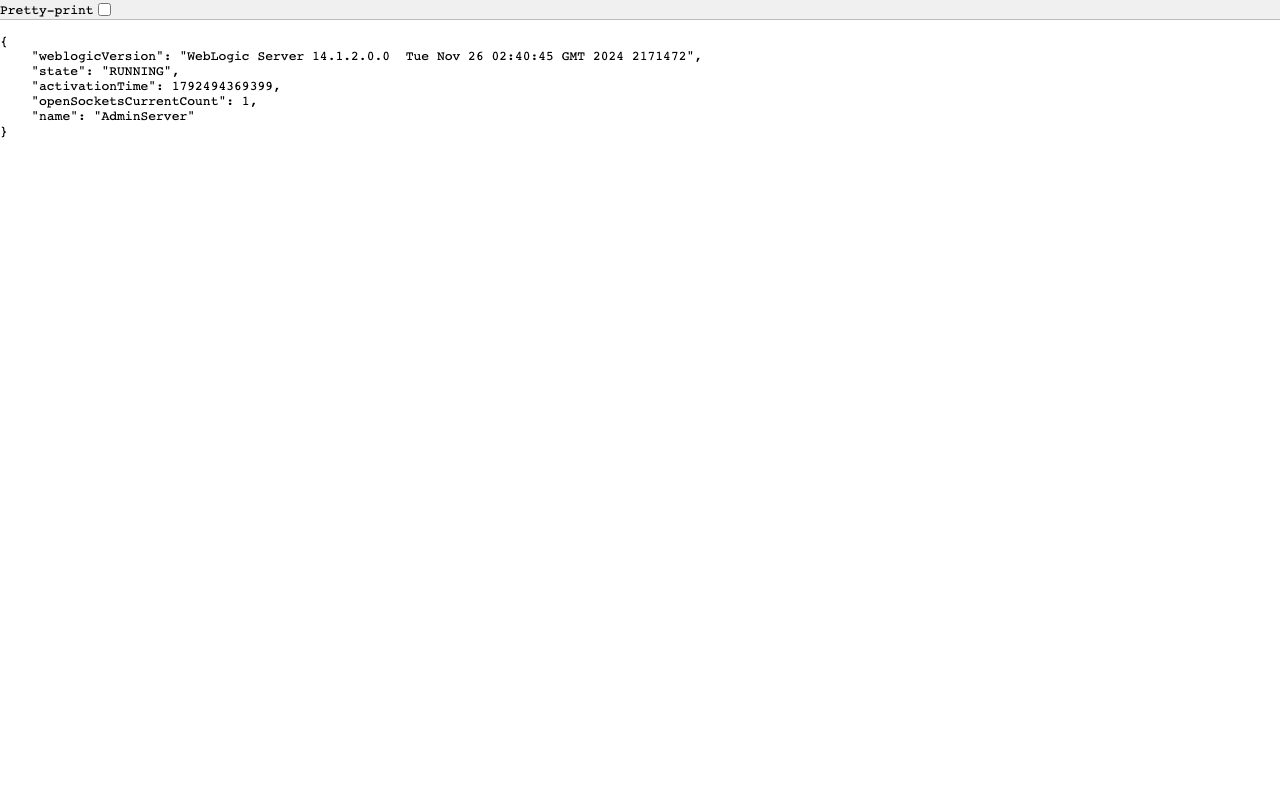

The same request from a browser signed in as weblogic:

A request without credentials is refused (401), and the instance carries a self-test that proves the password, the anonymous refusal and a wrong-password refusal in one go:

H=$(sudo cat /etc/cloudimg/weblogic-host)
curl -s -o /dev/null -w "%{http_code}\n" --cacert /etc/nginx/ssl/weblogic.crt --resolve "$H:443:127.0.0.1" "https://$H/management/weblogic/latest/serverRuntime"
sudo /usr/local/sbin/weblogic-selftest

401
per-instance admin password: AdminServer RUNNING over https://ec2-100-55-12-1.compute-1.amazonaws.com/ (instance certificate verified); anonymous HTTP 401; wrong password HTTP 401
WLS_ROUNDTRIP_OK

State-changing REST requests also need the X-Requested-By header (WebLogic's own protection against cross-site requests).

Step 8: Script administration with WLST

The WebLogic Scripting Tool (WLST) runs as the oracle user and connects to the AdminServer over T3 on the loopback address. This example hands the password to WLST in a file readable only by oracle (never on a command line or in an environment variable), prints the domain and server state, and removes the file:

PWF=$(sudo mktemp /run/wlst-pw.XXXXXX)
sudo sed -n 's/^WEBLOGIC_PASSWORD=//p' /root/weblogic-credentials.txt | sudo tee "$PWF" >/dev/null
sudo chown oracle:oinstall "$PWF"
cat > /tmp/wlst-check.py <<'PY'
import os
f = open(os.environ['PWF']); pw = f.read().strip(); f.close()
connect('weblogic', pw, 't3://127.0.0.1:7001')
print('Connected to domain: ' + cmo.getName())
serverRuntime()
print('AdminServer state: ' + cmo.getState())
disconnect()
PY
chmod 0644 /tmp/wlst-check.py
sudo setpriv --reuid=oracle --regid=oinstall --init-groups env HOME=/home/oracle PWF="$PWF" \
  /u01/app/oracle/product/oracle_common/common/bin/wlst.sh /tmp/wlst-check.py 2>&1 | grep -E 'Connected to domain|AdminServer state'
sudo rm -f "$PWF" /tmp/wlst-check.py

Connected to domain: base_domain
AdminServer state: RUNNING

For an interactive session run sudo -u oracle /u01/app/oracle/product/oracle_common/common/bin/wlst.sh, then connect('weblogic', '<password>', 't3://127.0.0.1:7001'), edit(), startEdit(), your changes, save() and activate().

Step 9: Your own DNS name and certificate

Point your DNS name at the instance, then run (replace the name):

sudo weblogic-set-host weblogic.example.com

This generates a new self-signed certificate for the name, adds it to nginx, sets it as WebLogic's front-end host, updates the URLs in /root/weblogic-credentials.txt and restarts the AdminServer (about a minute). To use a certificate from your own certificate authority instead, replace /etc/nginx/ssl/weblogic.crt and /etc/nginx/ssl/weblogic.key (key owned by root:nginx, mode 0640) after running the command, then sudo systemctl reload nginx.

Step 10: Change the administrator password

To replace the generated password with one of your own, reset it online with WLST (as in Step 8, reading the current password from a file), then write the new password into boot.properties so the AdminServer can still start unattended (WebLogic encrypts the file on its next start), update the credentials file and restart:

sudo -u oracle /u01/app/oracle/product/oracle_common/common/bin/wlst.sh
connect('weblogic', '<current-password>', 't3://127.0.0.1:7001')
cd('/SecurityConfiguration/base_domain/Realms/myrealm/AuthenticationProviders/DefaultAuthenticator')
cmo.resetUserPassword('weblogic', '<new-password>')
disconnect()
exit()

sudo -u oracle sh -c 'umask 077; cat > /u01/app/oracle/product/user_projects/domains/base_domain/servers/AdminServer/security/boot.properties'
username=weblogic
password=<new-password>
(press Ctrl-D)

sudo sed -i 's/^WEBLOGIC_PASSWORD=.*/WEBLOGIC_PASSWORD=<new-password>/' /root/weblogic-credentials.txt
sudo systemctl restart weblogic.service

Typing the password into the interactive WLST prompt and cat keeps it off the command line history of other users. WebLogic locks an account for 30 minutes after five wrong passwords in a row.

Step 11: Apply Oracle patches and Java updates

This image is built from Oracle's WebLogic Server 14.1.2.0.0 base release with no Patch Set Update (PSU) or other Oracle patch applied, because Oracle distributes WebLogic patches through My Oracle Support to licensed customers. Apply the current WebLogic PSU and security patches with your own Oracle support entitlement, following Oracle's patching documentation for Oracle Fusion Middleware 14.1.2 (Patching with OPatch) and the quarterly Oracle Critical Patch Update advisories. Stop the AdminServer first (sudo systemctl stop weblogic.service), apply the patch as the oracle user, then start it again.

Oracle JDK 21 is in /u01/java/jdk-21.0.12.1 with the /u01/java/jdk-21 link that WebLogic uses. To move to a newer Oracle JDK 21 update under the terms your Oracle licence allows, unpack it beside the current one and point the link at it, then restart WebLogic. Oracle Linux packages, including nginx, are updated by dnf-automatic (security errata, daily) or with sudo dnf -y update.

Check the installed versions:

sudo setpriv --reuid=oracle --regid=oinstall --init-groups /u01/java/jdk-21/bin/java -cp /u01/app/oracle/product/wlserver/server/lib/weblogic.jar weblogic.version | grep 'WebLogic Server'
/u01/java/jdk-21/bin/java -version 2>&1 | head -1

WebLogic Server 14.1.2.0.0  Tue Nov 26 02:40:45 GMT 2024 2171472
java version "21.0.12.1" 2026-08-18 LTS

Step 12: Check the security model

Only SSH, HTTP and HTTPS listen on the network; the AdminServer listens on the loopback address only:

sudo ss -tlnH | awk '{print $4}' | sort -u

0.0.0.0:22
0.0.0.0:443
0.0.0.0:80
[::]:22
[::]:443
[::]:80
[::ffff:127.0.0.1]:7001

A request for a host name the instance does not serve gets no answer (000 in curl):

curl -sk -o /dev/null -w "%{http_code}\n" -H "Host: attacker.example" https://127.0.0.1/ || echo "no answer, as intended"

000
no answer, as intended

Processes running as oracle (the AdminServer, WLST and every application you deploy) and as nginx cannot reach the instance metadata service, while root still can (first boot uses it to find the host name). On Oracle Linux 8 this is enforced by the host firewall:

sudo -u oracle curl -s -m 5 -o /dev/null -w "oracle: %{http_code}\n" -X PUT -H "X-aws-ec2-metadata-token-ttl-seconds: 60" http://169.254.169.254/latest/api/token
sudo curl -s -m 5 -o /dev/null -w "root: %{http_code}\n" -X PUT -H "X-aws-ec2-metadata-token-ttl-seconds: 60" http://169.254.169.254/latest/api/token
sudo firewall-cmd --direct --get-all-rules

oracle: 000
root: 200
ipv4 filter OUTPUT 0 -m owner --uid-owner oracle -d 169.254.169.254/32 -j REJECT --reject-with icmp-port-unreachable
ipv4 filter OUTPUT 0 -m owner --uid-owner oracle -d 168.63.129.16/32 -j REJECT --reject-with icmp-port-unreachable
ipv4 filter OUTPUT 0 -m owner --uid-owner nginx -d 169.254.169.254/32 -j REJECT --reject-with icmp-port-unreachable
ipv4 filter OUTPUT 0 -m owner --uid-owner nginx -d 168.63.129.16/32 -j REJECT --reject-with icmp-port-unreachable
ipv6 filter OUTPUT 0 -m owner --uid-owner oracle -d fd00:ec2::254/128 -j REJECT
ipv6 filter OUTPUT 0 -m owner --uid-owner nginx -d fd00:ec2::254/128 -j REJECT

If an application you deploy needs AWS credentials, give it its own credentials (for example AWS Secrets Manager or environment-specific access keys) rather than the instance role, or remove the two oracle rules with firewall-cmd --permanent --direct --remove-rule ... knowingly. SELinux is enforcing:

getenforce

Enforcing

Managing the WebLogic services

The AdminServer and nginx are ordinary systemd services:

sudo systemctl status weblogic.service --no-pager --lines=0 | head -4

● weblogic.service - Oracle WebLogic Server 14.1.2.0.0 AdminServer (base_domain, loopback 127.0.0.1:7001)
   Loaded: loaded (/etc/systemd/system/weblogic.service; enabled; vendor preset: disabled)
  Drop-In: /etc/systemd/system/weblogic.service.d
           └─50-cloudimg-imds-deny.conf

Use sudo systemctl restart weblogic.service, stop or start as needed; the AdminServer is back in RUNNING about 30 seconds after a start. The server log is servers/AdminServer/logs/AdminServer.log under the domain, and the HTTP access log (with the real client address) is servers/AdminServer/logs/access.log. The AdminServer's Java heap is set in the unit (USER_MEM_ARGS=-Xms512m -Xmx2g); raise it with sudo systemctl edit weblogic.service for larger instance types.

NodeManager is not configured in this single-server domain. If you add managed servers on this host, configure NodeManager to listen on 127.0.0.1 with its own credential, and keep port 5556 out of the security group.

Filesystem layout

Path	Purpose
/u01/java/jdk-21	Oracle JDK 21 (link to /u01/java/jdk-21.0.12.1)
/u01/app/oracle/product	Oracle home (MW_HOME)
/u01/app/oracle/product/wlserver	WebLogic Server (WL_HOME)
/u01/app/oracle/product/user_projects/domains/base_domain	Your domain (DOMAIN_HOME), created on first boot
/u01/app/oraInventory	Oracle inventory
/root/weblogic-credentials.txt	This instance's credentials (root only)
/etc/nginx/ssl/weblogic.crt, weblogic.key	This instance's TLS certificate and key
/etc/nginx/conf.d/weblogic-host.conf	nginx site for the configured host (written by first boot and weblogic-set-host)
/usr/local/sbin/weblogic-set-host, weblogic-selftest	Change the host name; prove the login path
/var/log/weblogic-firstboot.log	First boot log
/usr/share/doc/cloudimg/licenses/	Oracle notices and the Oracle JDK licence

The oracle user's ~/.bash_profile exports JAVA_HOME, MW_HOME, ORACLE_HOME, WL_HOME and DOMAIN_HOME.

Troubleshooting

The AdminServer does not start. Check the unit and the server log:

sudo journalctl -u weblogic.service -n 20 --no-pager

weblogic.service and nginx.service only start after first boot has created /var/lib/cloudimg/weblogic-firstboot.done and the domain. If that file is missing, read /var/log/weblogic-firstboot.log.

The browser shows 502 Bad Gateway, or port 443 refuses the connection. First boot or the AdminServer is still starting (about three minutes after launch); wait a minute and reload.

No answer at all on 443 from your workstation. Check that the security group allows your address on 443, and that you use a host name the instance serves (the instance's public DNS name, its public or private address, or the name you set with weblogic-set-host).

Security recommendations

• Allow 443 only from the networks that use WebLogic, and 22 only from your administration networks.
• Replace the self-signed certificate with one from your certificate authority for production (Step 9).
• Create separate users and groups in the security realm for operators and deployers instead of sharing the weblogic account.
• Apply Oracle's WebLogic PSUs and Critical Patch Updates with your Oracle support entitlement (Step 11).

Support and licensing

cloudimg provides 24/7 technical support for this image by email and live chat: support@cloudimg.co.uk or www.cloudimg.co.uk/support. Licensing questions about Oracle software go to Oracle.

Using Oracle WebLogic Server requires your own Oracle licence; Oracle JDK 21 is included under the Oracle No-Fee Terms and Conditions. Oracle WebLogic Server documentation is at docs.oracle.com.

Oracle, Java and WebLogic are registered trademarks of Oracle and/or its affiliates. cloudimg is not affiliated with or endorsed by Oracle.
