GoCD on Ubuntu 24.04 LTS on Azure User Guide

Overview

GoCD is the open-source continuous integration and continuous delivery server from Thoughtworks. It models complex build and release workflows as pipelines and renders a value stream map that visualises every change from commit through to deployment. The cloudimg image runs GoCD 26.1 on Ubuntu 24.04 LTS with a co-located build agent, so it is a complete, self-contained CI/CD server the moment it boots.

GoCD ships with no authentication out of the box — anyone who can reach it can administer it. This image closes that gap: the file-based authentication realm is baked into the GoCD configuration, an admin user is marked as a GoCD administrator, and the per-VM admin password is generated and rotated on first boot. The server binds to loopback and is fronted by nginx on port 80.

What is included:

• GoCD server 26.1 from the official download.gocd.org APT repository (Apache License 2.0, Thoughtworks)
• A co-located go-agent that auto-registers and is auto-enabled, so pipelines run out of the box
• GoCD bound to 127.0.0.1:8153 / :8154, fronted by nginx on :80 with X-Forwarded-* headers
• Secure-by-default authentication: the file-based auth realm (cd.go.authentication.passwordfile) plus an admin GoCD administrator baked into /etc/go/cruise-config.xml
• gocd-firstboot.service generating a strong per-VM admin password (bcrypt entry in /etc/go/password.properties) and writing /etc/cloudimg-credentials.txt (mode 0600 root:root) on first boot
• OpenJDK runtime (installed by the GoCD package), apache2-utils for the bcrypt password entry, nginx 1.24
• 24/7 cloudimg support

Prerequisites

Active Azure subscription, SSH key, VNet plus subnet, NSG allowing TCP 22 (SSH) and TCP 80 (web UI). Standard_B2s (4 GB RAM) suits small teams running a handful of pipelines. GoCD is a JVM application; for busy servers with many concurrent jobs, distributed agents, or large materials, scale up to D4s_v5 or D8s_v5.

Step 1: Deploy from Azure Marketplace

Search the Azure Marketplace for "cloudimg GoCD Ubuntu 24.04" and click Create. Pick the Standard_B2s size, choose your VNet plus subnet, and ensure the NSG attached to the VM allows inbound TCP 22 and TCP 80 from your trusted CIDR.

Step 2: SSH In

ssh azureuser@<vm-ip>

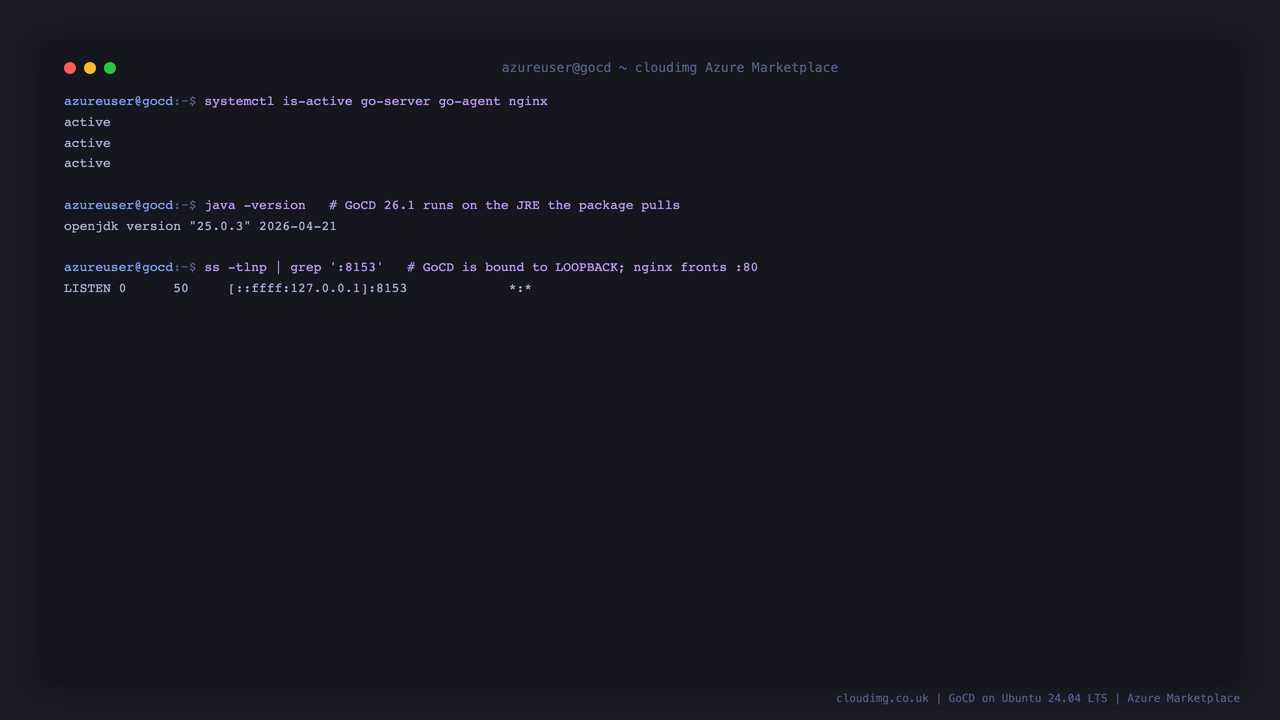

Step 3: Service Status

Confirm the GoCD server, the built-in agent, and nginx are all active. GoCD is a JVM service and can take 60–90 seconds to finish warming up after a boot.

sudo systemctl is-active go-server go-agent nginx

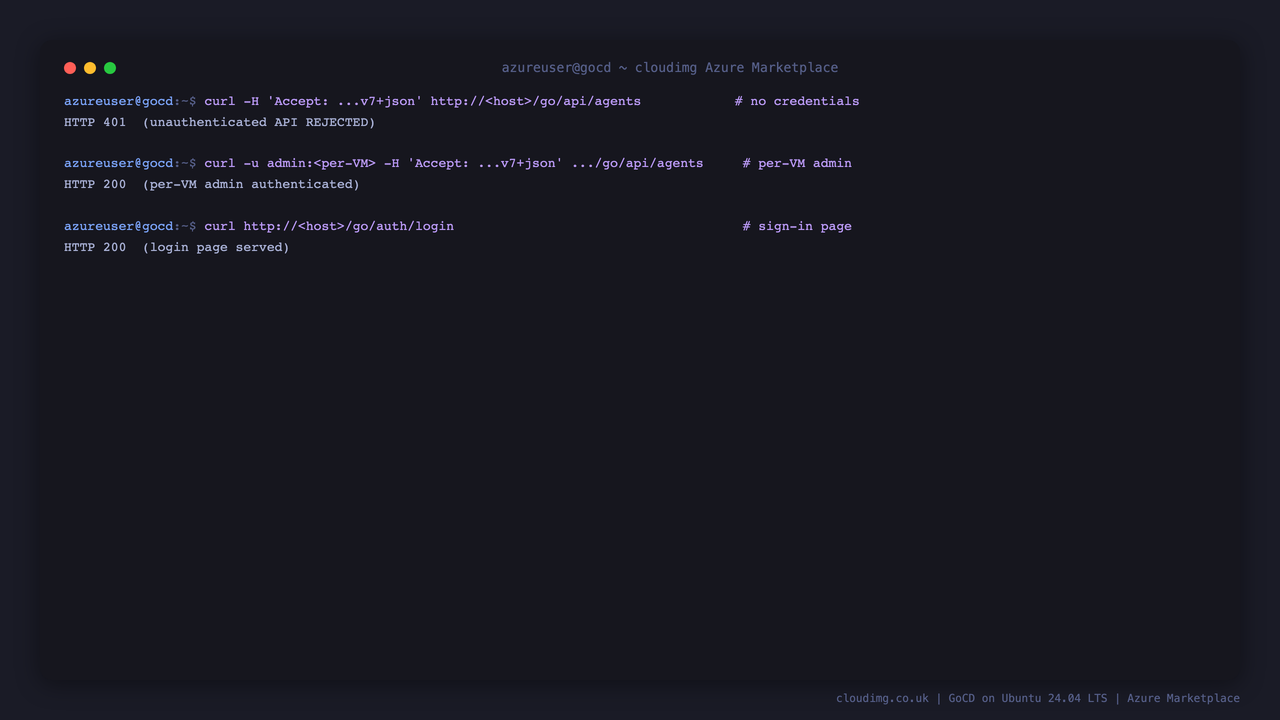

Step 4: Confirm Secure-By-Default Authentication

Unlike a stock GoCD install, this image requires a login. An unauthenticated API call is rejected, while the per-VM admin credentials authenticate.

PASS=$(sudo grep '^GOCD_ADMIN_PASSWORD=' /etc/cloudimg-credentials.txt | cut -d= -f2-)
echo "unauthenticated: $(curl -s -o /dev/null -w '%{http_code}' -H 'Accept: application/vnd.go.cd.v7+json' http://127.0.0.1/go/api/agents)"
echo "per-VM admin:    $(curl -s -o /dev/null -w '%{http_code}' -H 'Accept: application/vnd.go.cd.v7+json' -u "admin:${PASS}" http://127.0.0.1/go/api/agents)"

The unauthenticated request returns 401; the authenticated request returns 200.

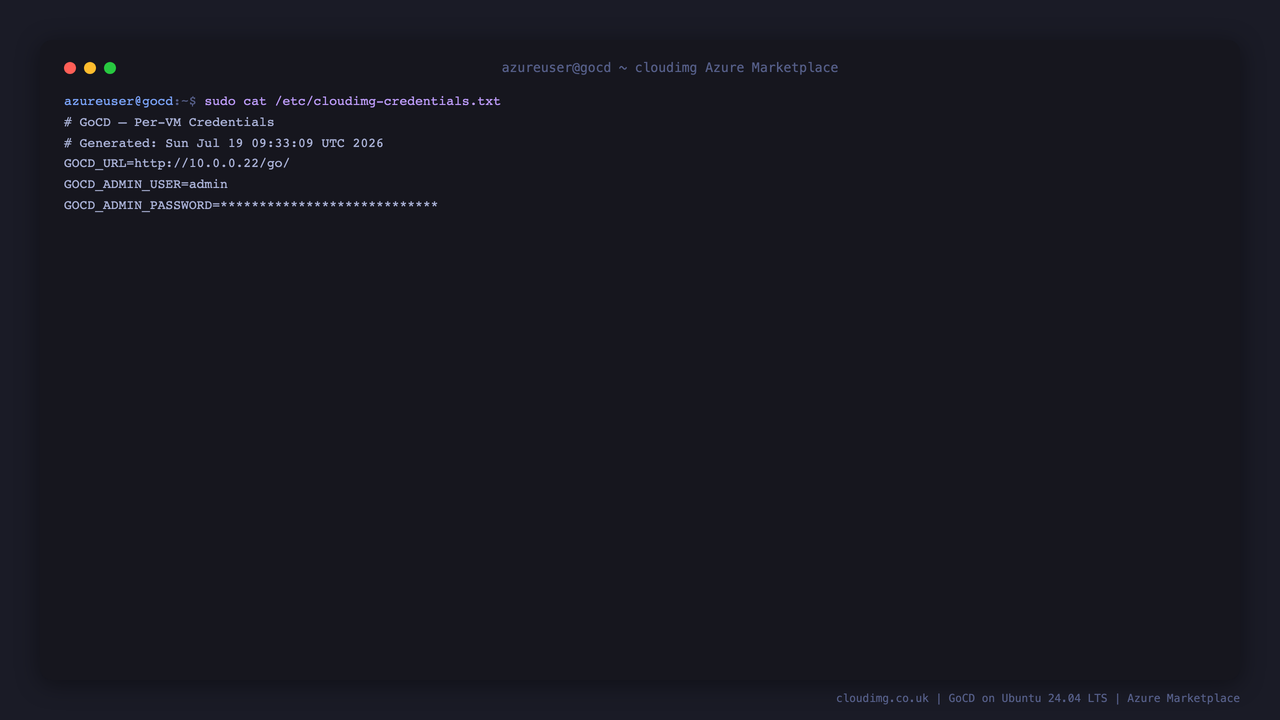

Step 5: Read Per-VM Admin Credentials

The first-boot service rotates the GoCD admin password and writes the cloudimg credentials file. Read it now.

sudo cat /etc/cloudimg-credentials.txt

Pick up GOCD_URL, GOCD_ADMIN_USER (always admin), and GOCD_ADMIN_PASSWORD. Keep this terminal open while you log in.

Step 6: Sign In to GoCD

Browse to http://<vm-ip>/go/ (nginx forwards to GoCD on 127.0.0.1:8153). The GoCD sign-in page appears — proof the server is not open. Enter admin and the password from /etc/cloudimg-credentials.txt.

Step 7: Create Your First Pipeline

A fresh GoCD server has no pipelines, so it opens the Add a New Pipeline wizard. Point it at a Git repository (the Material), name the pipeline, and define stages and jobs. The built-in agent will pick up and run the work.

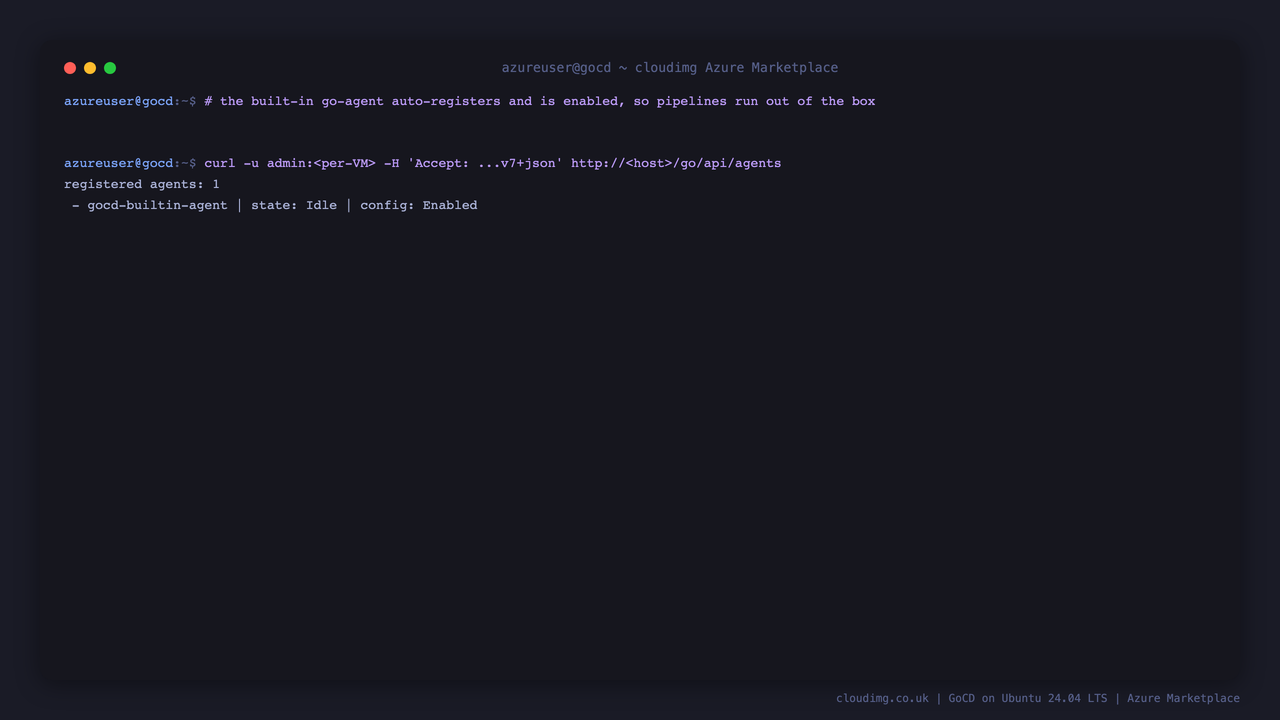

Step 8: Confirm the Built-In Agent

Open Agents from the top navigation. The co-located gocd-builtin-agent is registered and Enabled, so pipelines can run immediately without adding external agents.

You can confirm the same over the REST API:

PASS=$(sudo grep '^GOCD_ADMIN_PASSWORD=' /etc/cloudimg-credentials.txt | cut -d= -f2-)
curl -s -H 'Accept: application/vnd.go.cd.v7+json' -u "admin:${PASS}" http://127.0.0.1/go/api/agents \
  | python3 -c "import sys,json; a=json.load(sys.stdin)['_embedded']['agents']; print('agents:', len(a)); [print(' -', x['hostname'], x['agent_config_state']) for x in a]"

Step 9: Administer Pipelines

The Admin menu is where you manage pipelines, pipeline groups, configuration, plugins, and security. Administration is restricted to the admin user provisioned in the GoCD security configuration.

Step 10: API Round-Trip

Confirm the REST API is reachable with the same credentials from your CI scripts or external triggers.

PASS=$(sudo grep '^GOCD_ADMIN_PASSWORD=' /etc/cloudimg-credentials.txt | cut -d= -f2-)
curl -sf -H 'Accept: application/vnd.go.cd.v7+json' -u "admin:${PASS}" http://127.0.0.1/go/api/agents | head -c 200

A 200 response with a JSON agents payload confirms admin auth via nginx to GoCD is wired correctly. GoCD's versioned API needs an exact Accept header (the agents resource is application/vnd.go.cd.v7+json).

Step 11: Production Hardening Checklist

Before exposing GoCD to the internet, work through these:

1. TLS termination. Add a Let's Encrypt certificate with certbot --nginx and redirect port 80 to 443. Set the GoCD Site URL under Admin → Server Configuration to the https:// form so absolute links are correct.
2. Rotate and add users. The per-VM admin password lives in /etc/go/password.properties as a bcrypt entry; add more users with sudo htpasswd -B /etc/go/password.properties <user> and grant roles under Admin → Security.
3. Authorization. Define pipeline-group and role-based permissions under Admin → Pipelines and Admin → Security → Roles so contributors only see what they need.
4. Add agents. Scale out by installing go-agent on additional hosts pointed at https://<this-server>:8154/go, or use elastic agents. The built-in agent is convenient but shares resources with the server.
5. Back up /etc/go and /var/lib/go-server. These hold the configuration, pipeline history, and artifacts — back them up to Azure Blob storage on a schedule.
6. Keep it patched. Unattended-upgrades is enabled; run sudo apt-get update && sudo apt-get upgrade to pull GoCD point releases from the official repo.

Architecture

Support

cloudimg provides 24/7 support for this image. Open a ticket at https://cloudimg.co.uk/support/ with your subscription ID, VM name, and a brief description of the issue. Common asks: adding distributed or elastic agents, wiring up SSO, configuring pipeline-group authorization, and scaling the server for larger workloads.
